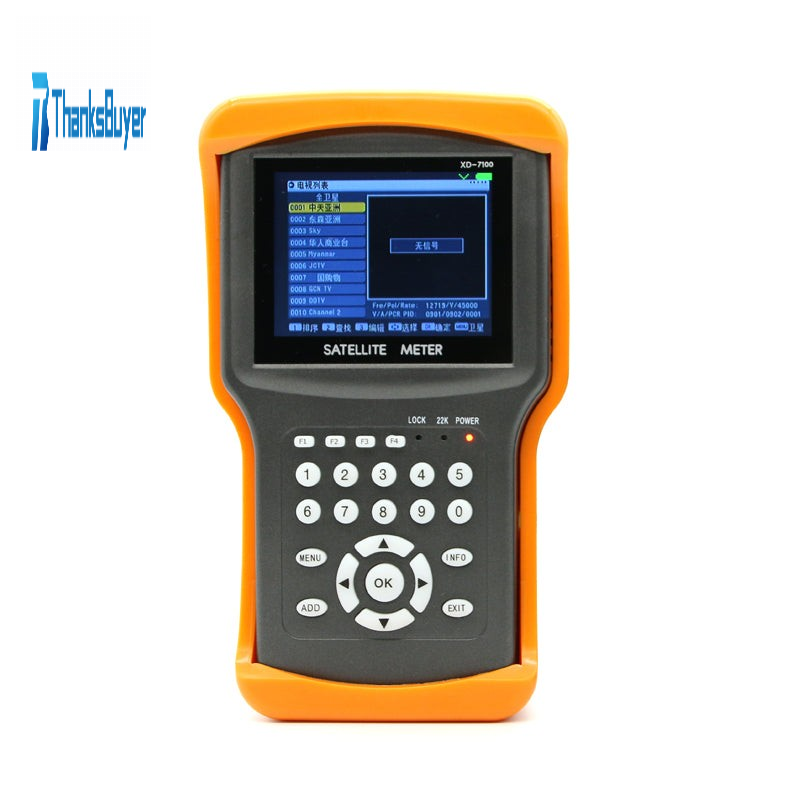

Digital Satellite Finder Meter CCTV Camera Monitor 3.5" LCD for ChinaSat 9 & 6 DVBS AVS+ XD-7100

Digital Satellite Finder Meter CCTV Camera Monitor 3.5" LCD for ChinaSat 9 & 6 DVBS AVS+ XD-7100

Specifications:
- Screen: 3.5-Inch TFT LCD Display
- Screen Size: 73 x 51mm
- LNB Input: F Style Male Connector
- Frequency Range: 950MHz-2150MHz
- Signal Level: -65dbm to 25dbm
- LNB Power: 13/18V, Max. 400mAH
- LNB ON/OFF Control: 22KHz
- Video Format: PAL/NTSC
- Modem Chip: QPSK (Compatible with SCPC & MCPC)
- Pixel: 320*240 (RGB*3)
- Sound Channel: Mono

Features:
- Support AV video input
- Support HD/Huhu TV
- Suport Nanxing satellite receiver, ChinaSat 6 & 9 receiver, and sharing devices
- There is no DVB-S pictures for ChinaSat 6 nor HD pictures for ChinaSat 9
- High sensitivity for finding satellites and fine adjustment
- Buzzer alarm (sound alarm when there is 5% signal )and editing programs
- 6101D solution currently supports all signals
- Support HD signals, including DVB-S1/S2 & MEPG-4

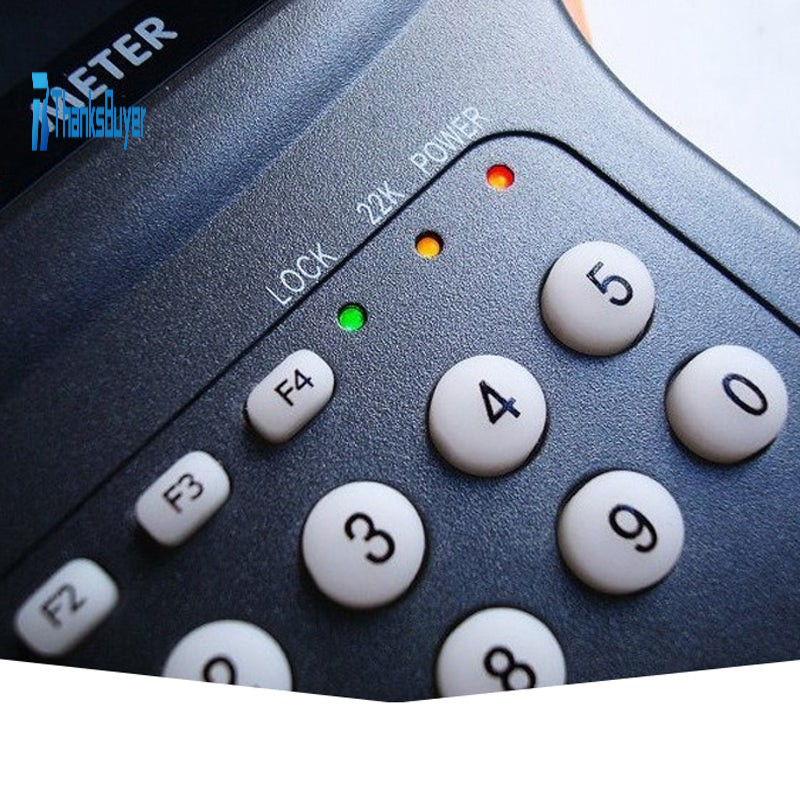

- Buttons with backlight for uses at night
- PCB board with gold plated for stable performance
- Professional producing and multiple inspection process
- Soft silicone buttons
- Switch button lasts for long
- Pure copper F seat gold plated needle
- Integrates with multifunctional ports
- Integrated circuit

Applications:
- CCTV Test: XD-7100 support video input, and coaxial analog monitoring and debugging, making installation a piece of cake.
- Video Input: It can be used as a monitor for flexible uses.

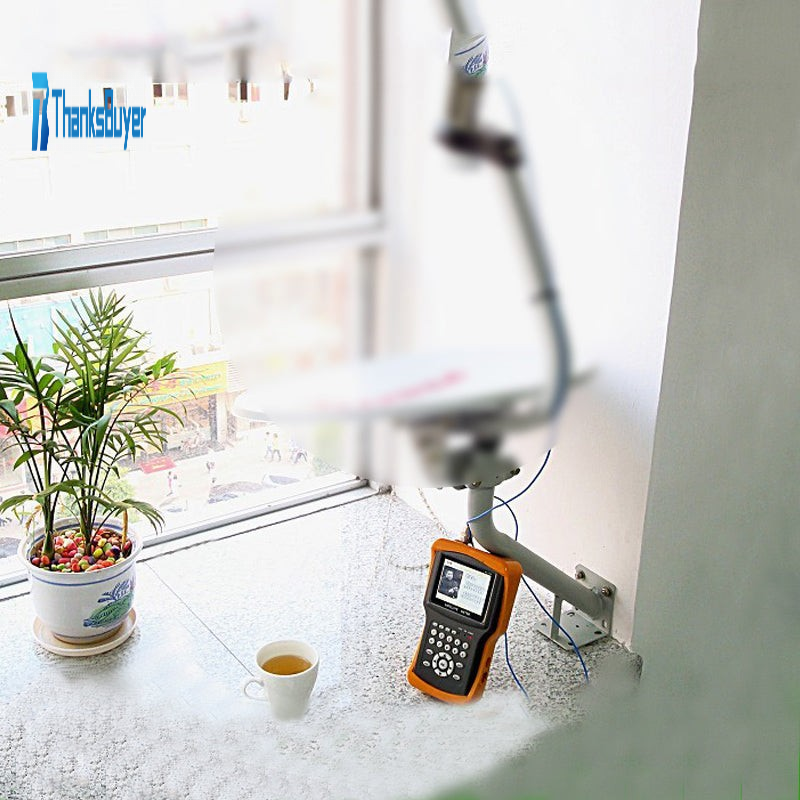

- Signal Debugging: Support ChinaSat 9A, 9B, ChinaSat 6A, 6B, APStar 5/ 6/ 7, KoreaSat 5A, Japanese Satellite 124/ 128/ 110BS and the like.

Package Included:
- 1 x Set of Satellite Finder
