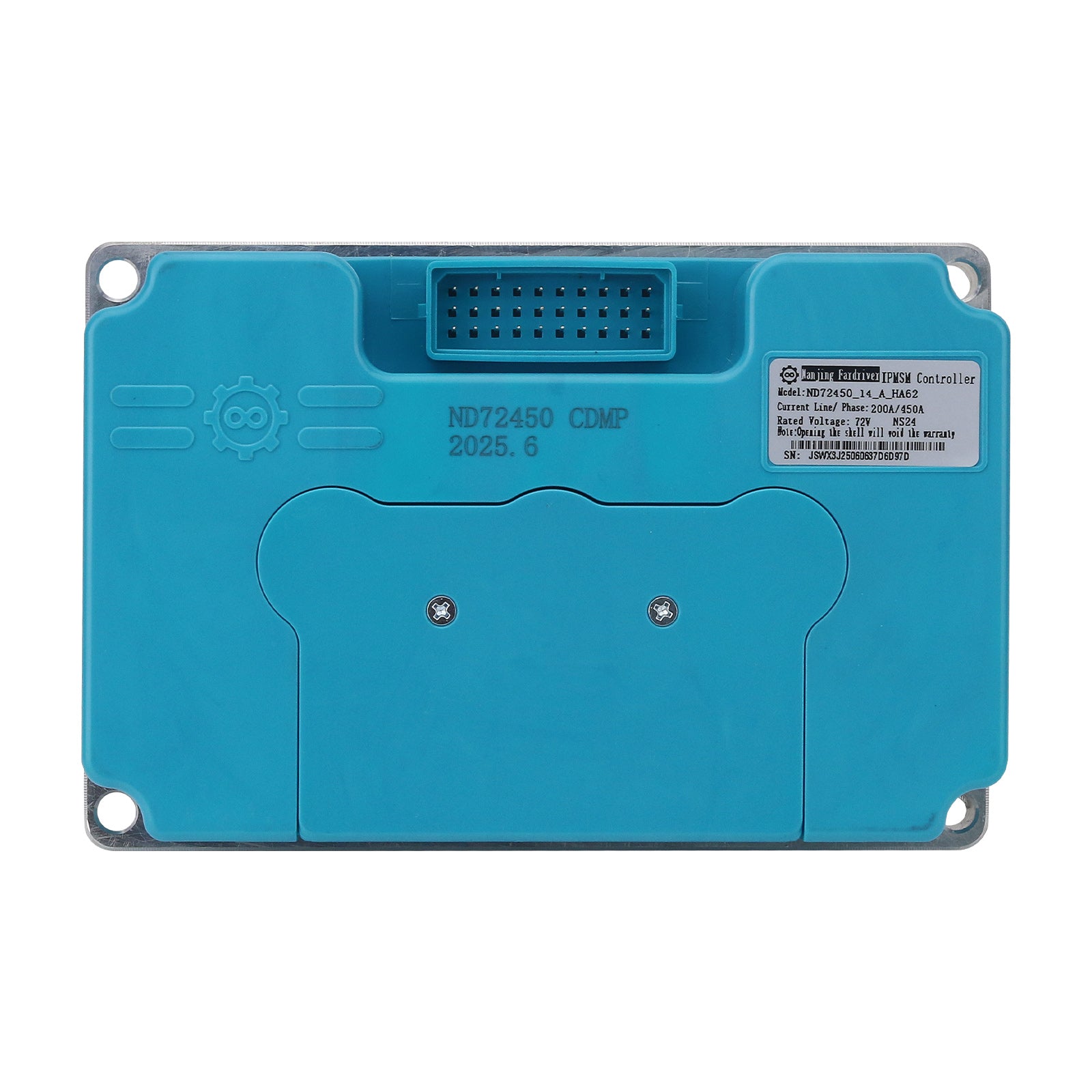

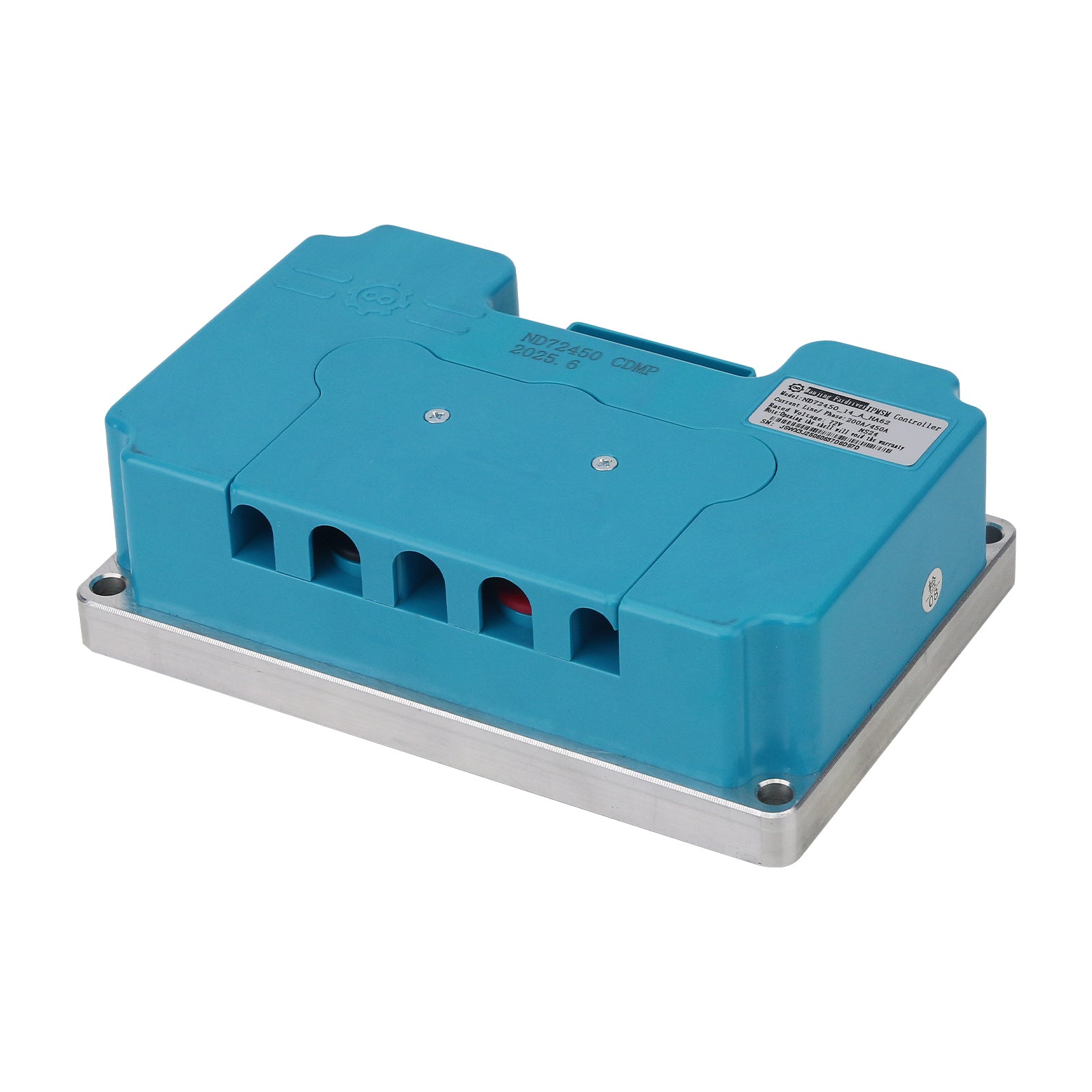

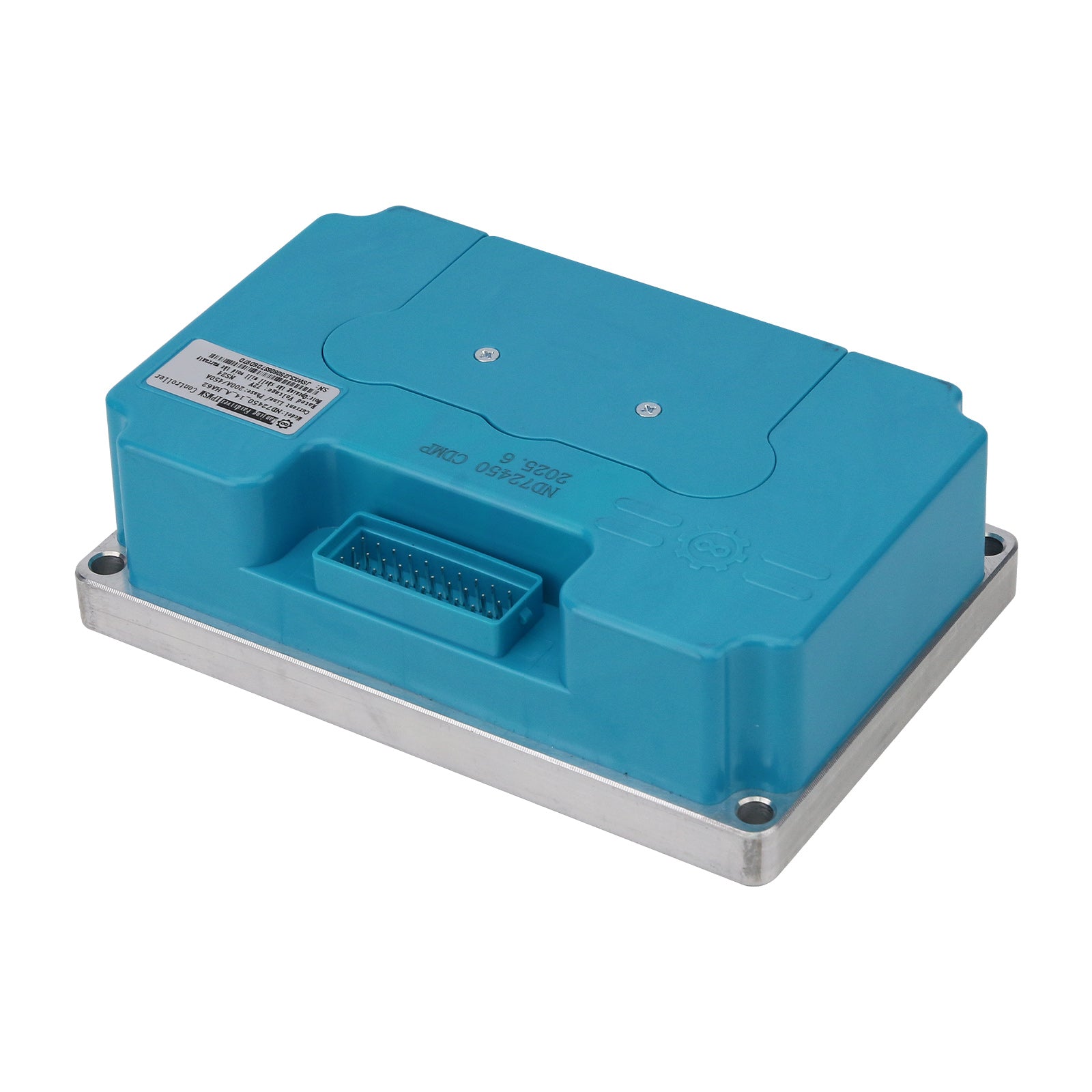

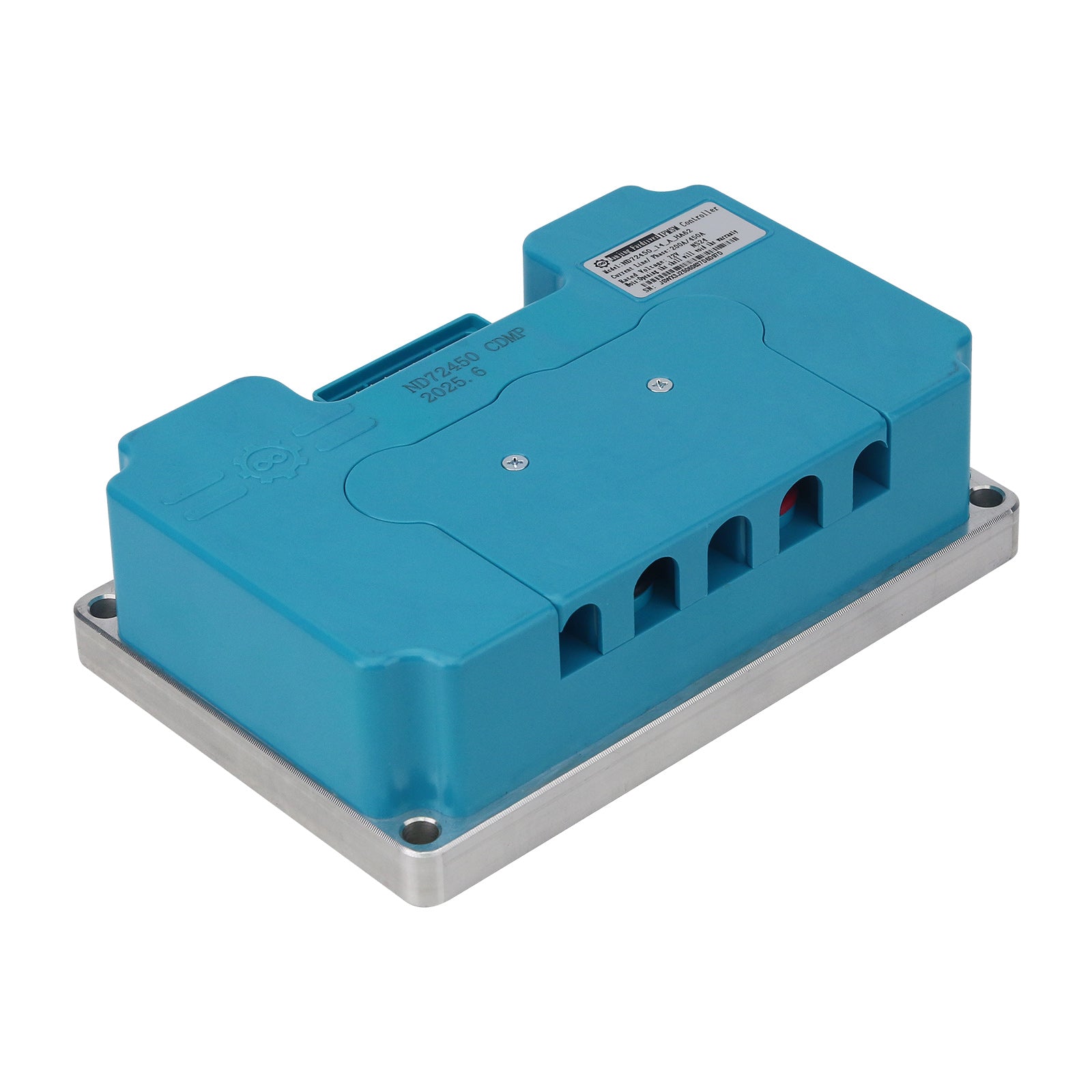

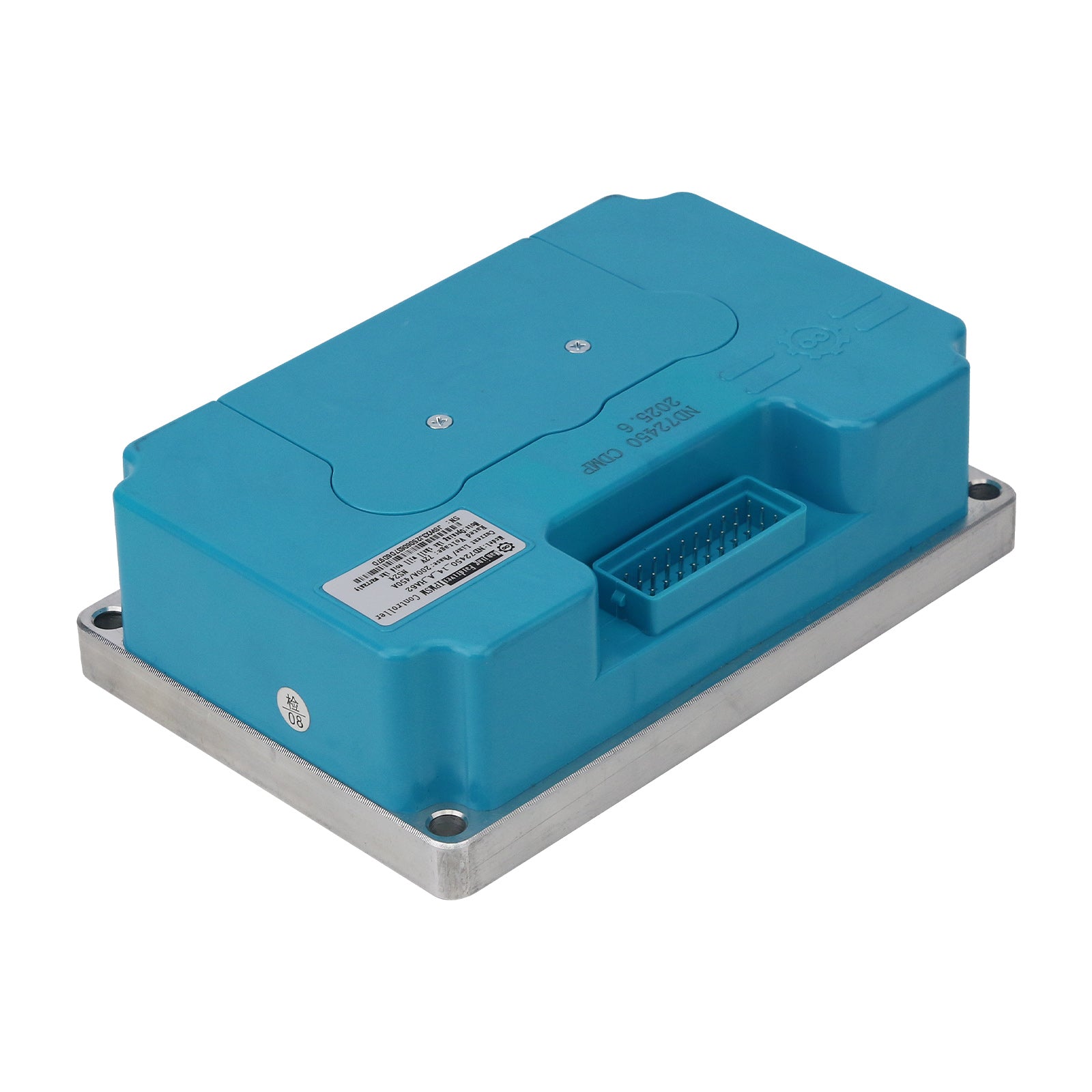

FarDriver ND72450 Sine Wave Motor Controller (without Bluetooth) for 2-4KW Brushless DC Motors

FarDriver ND72450 controller is sine wave type controller. It is a brushless DC controller with self-learning function. Generally, it matches well with QS Motors. If you want to match with new brand motor, some parameters should be tested by yourself.

ND72450 is a sine wave controller with an IP67 waterproof rating. And it is suitable for 2-4kW motors. For the ND72450, the peak voltage is 88V. It is a hall version (default) and is compatible with hall motors.

It also supports encoders; please confirm with sales for details.

* All the raw materials are imported, using high-performance MOSFET

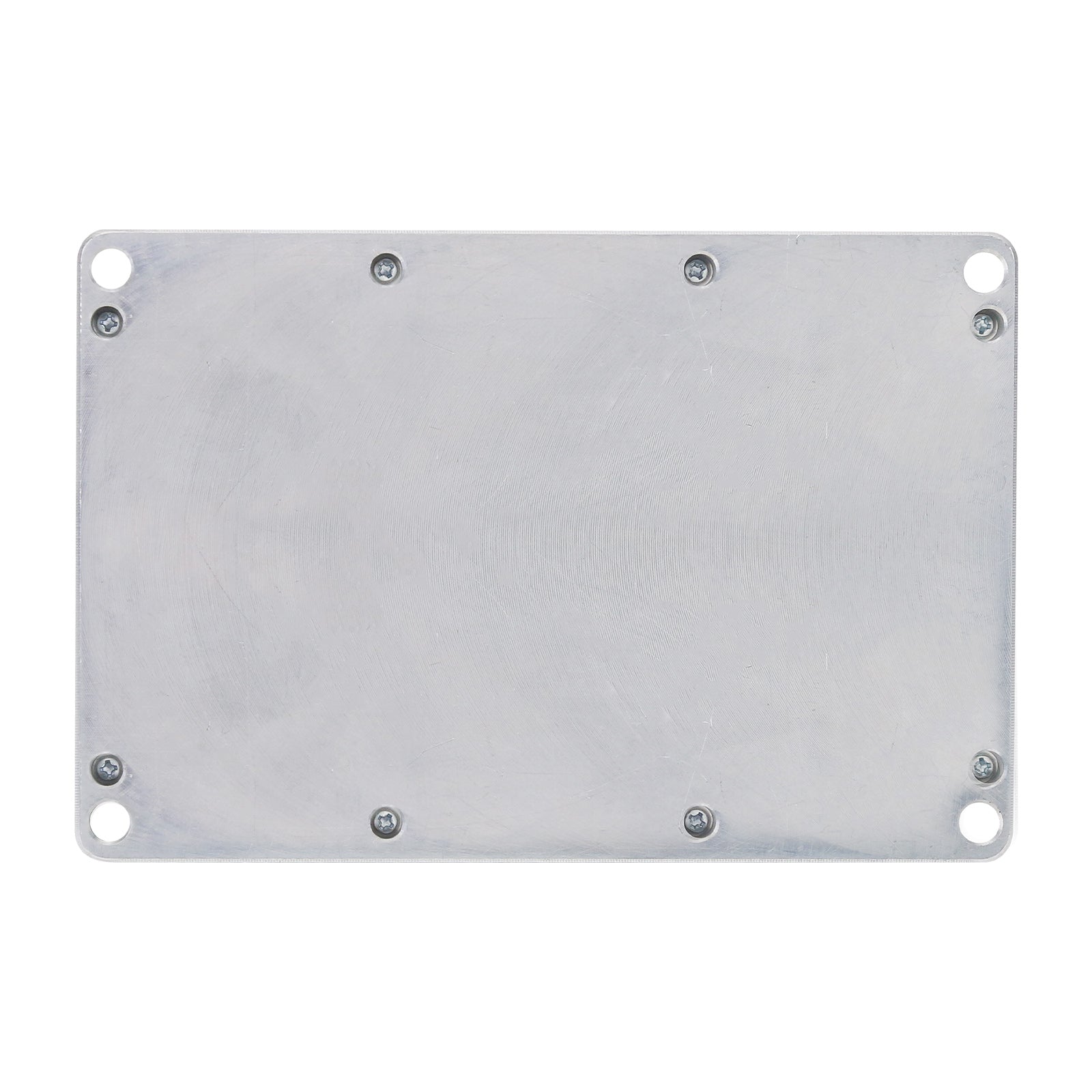

* With the aluminum substrate scheme, the MOSFET is laid on the aluminum substrate and then placed on the PCB board

* Small in size

* High efficiency, low temperature rise, and small running current

* With self-learning function and excellent commonality

* The app for Android and Apple

* With flux weakening function (the product does not contain magnetism)

* 190A Maximum DC Current

* 72V Rated voltage

* 2.5kg Net Weight

* 450A Phase Current Protection

* 2-4kW Compatible Motor

* IP67 Waterproof Rating

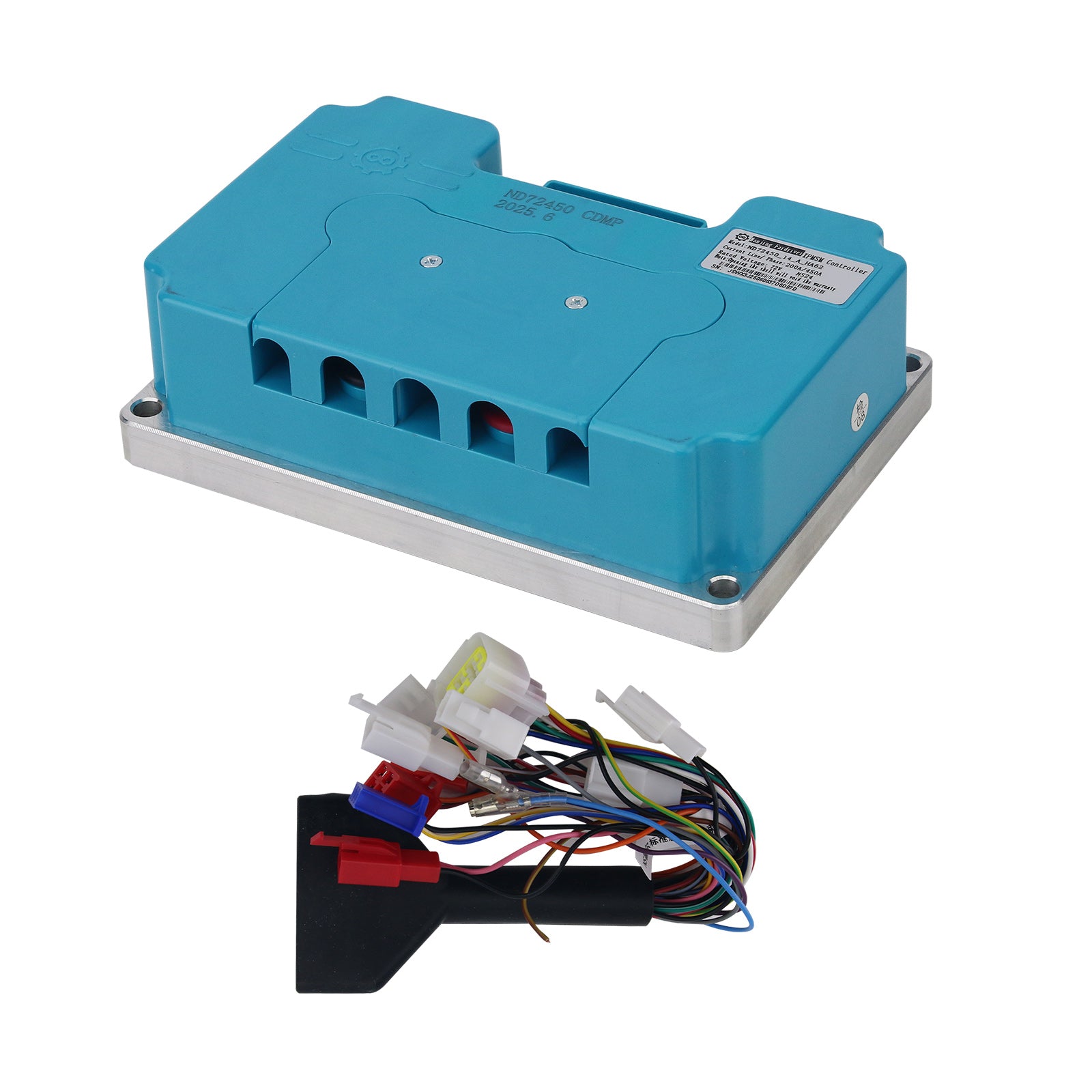

* 1 x Set of motor controller

* Weight: 2.55kg
