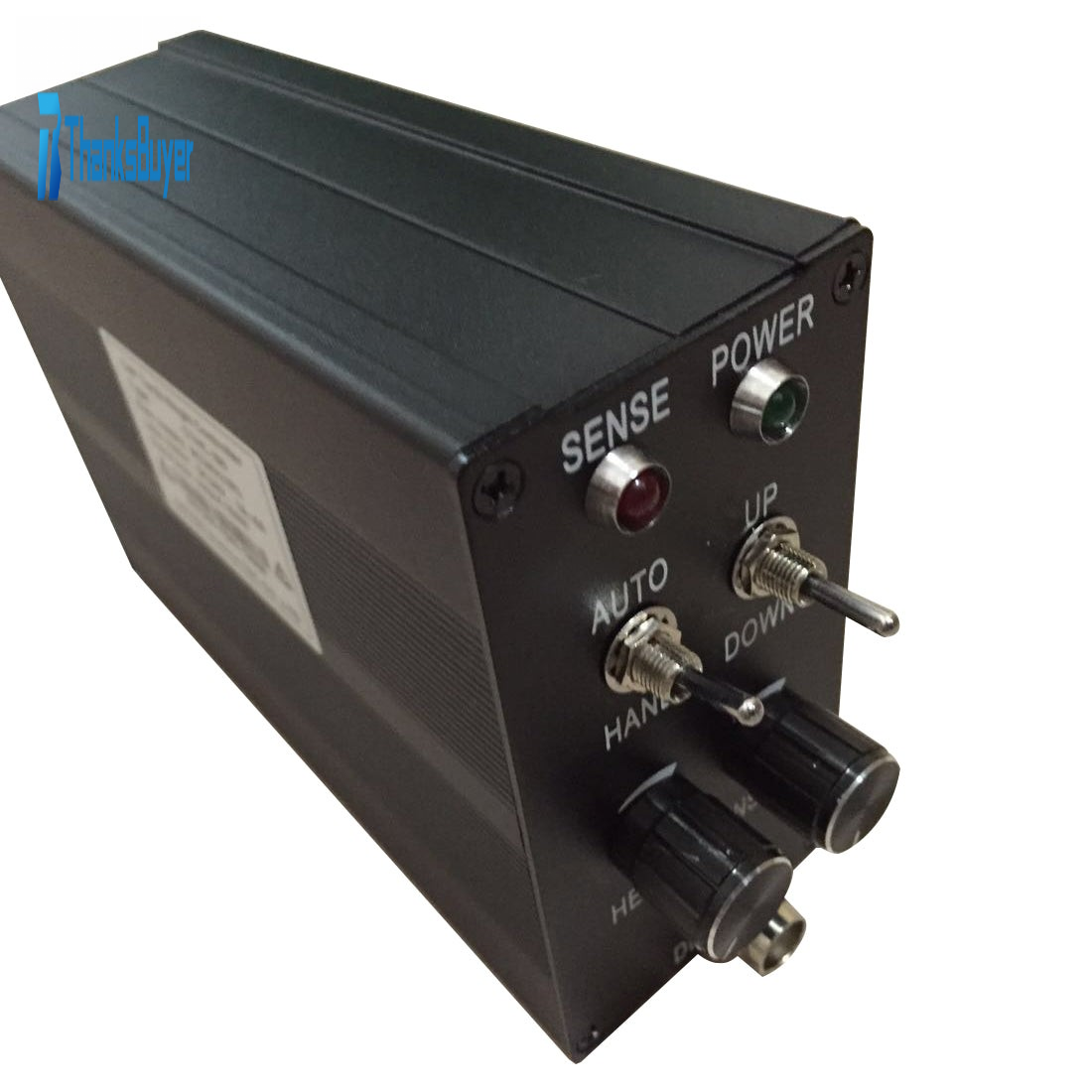

Flame Capacitive Torch Height Controller Kit CTHC-100 for Flame CNC Cutting Machine

Flame Capacitive Torch Height Controller Kit CTHC-100 for Flame CNC Cutting Machine

Technical Parameters:
- Working Voltage: AC 24V±10%, 50Hz/60H z
- Motor: DC 24V
- Output Current: 1A-4A
- Working Temperature:
Torch Height Controller: -10℃ to 60℃
  HF Cable: -10℃ to 200℃
  Sensor Parts: -10℃ to 350℃
- Accuracy: ±0.2mm
- Sensor Distance: 5mm-20mm, adjustable
- Max. Output Power: 100W (150W by changing the current feedback resistor)
- Compatible HF Cable: 500mm-15000m
- Dimension: 150 x 106 x 55mm (L*W*H)

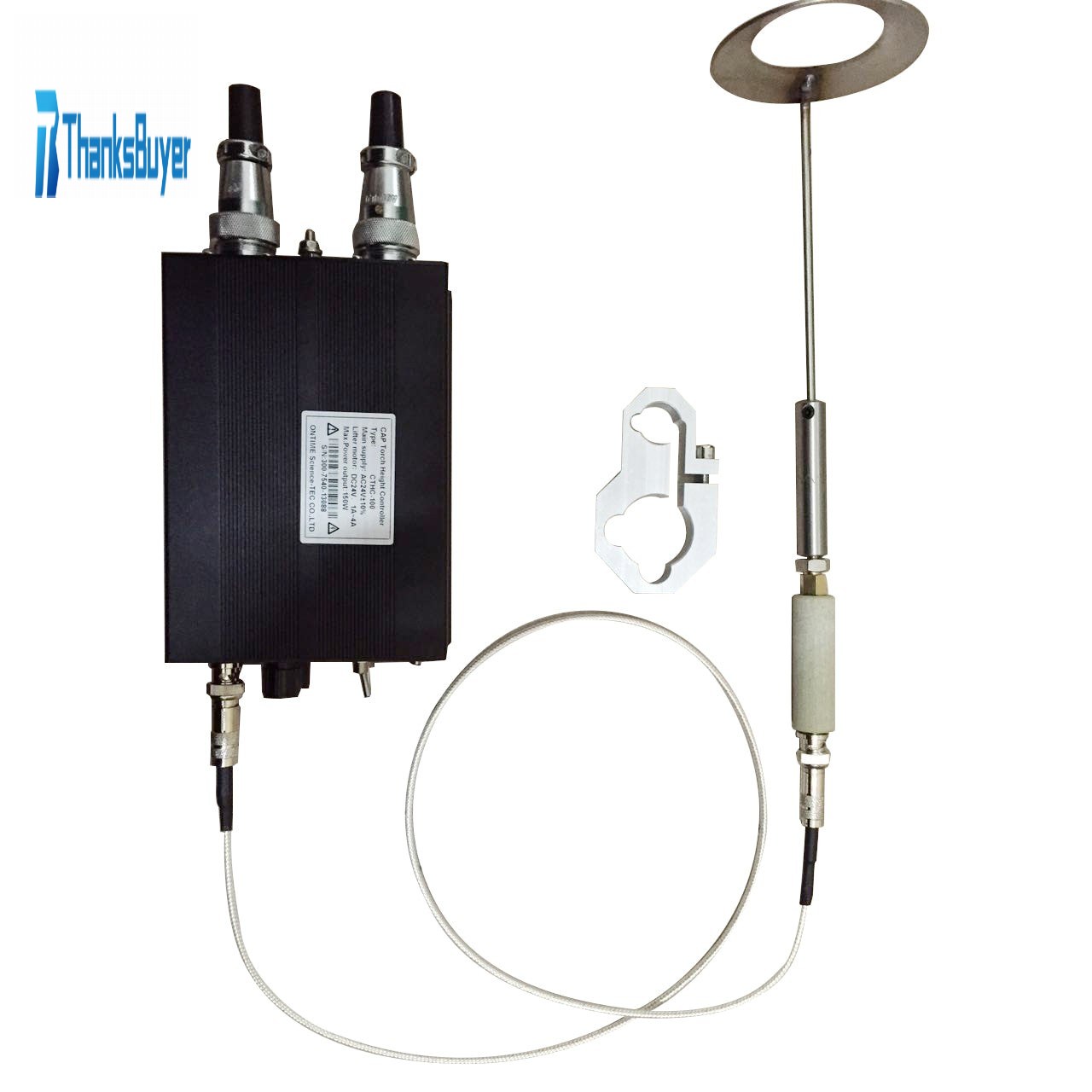

Package Included:
- 1 x Torch Height Controller
- 1 x Aviation Plug
- 1 x HF Cable
- 1 x Handle
- 1 x Connector
- 1 x Sensor Ring
