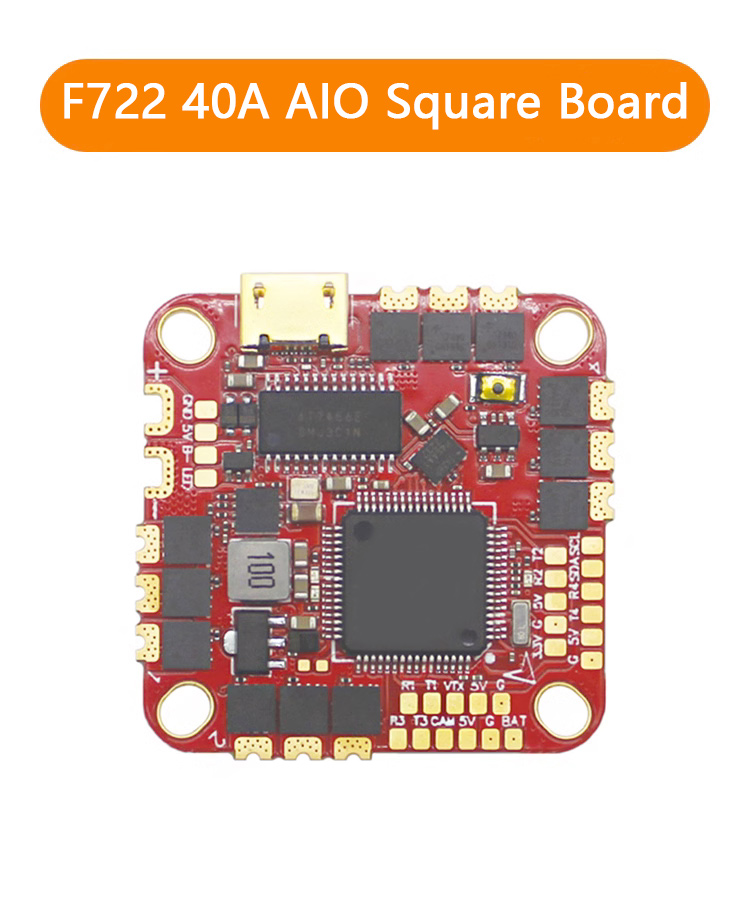

HAKRC F722 40A AIO Square Flight Controller Stack Flight Controller w/ 25.5-26.5mm Installation Hole

HAKRC F722 40A AIO Square Flight Controller Stack Flight Controller w/ 25.5-26.5mm Installation Hole

Read before purchasing:
- It is the accessories of RC models, not toys. Therefore, safety should come first. If you have any questions, please consult customer service or check the manual.
- Please comply with relevant laws when using this product. Flight in crowded areas is not allowed.
- About the battery and charger: Please charge the battery before using. Users who do not know how to wire and set up the charger must consult customer service, because incorrect settings can lead to serious injury. When the battery leaks or is damaged, please do scrap treatment, otherwise it will easily cause fire. Our store is not responsible for safety accidents caused by improper operation by users.

Note:
- Battery is not included.

Features:
- PCB adopts high-end 8-layer 2oZ thickened copper, high-end resin plug hole PCB production process and double pad design, with stronger over-current capability and good heat dissipation.
- It adopts imported 40V MOSFET with high current resistance, long life and strong load capacity.
- Industrial grade LDO is resistant to high temperatures.
- It adopts high-quality Japanese capacitors (for Murata) with strong filtering performance.
- Size: 32 x 32mm (25.5mm-26.5mm mounting hole).
- Product net weight: 9g.

Specifications:
Flight Controller:
- CPU: STM32F722RET6
- MCU: ICM42688
- OSD: AT7456E
- Barometer: integrated
- BEC: 5V/1.5A
- LED: External programmable LED
- Sensor: Built-in current sensor
- Flight controller firmware version: HAKRCF722D
- Applicable receivers: For CRSF/Frsky/Futaba/Flysky/TBS Crossfire/DSMX: DSM2

ESC:
- Firmware version: BLHELI_S (G-H-30)
- Protocol support: for PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Input voltage: 2S-6S Lipo
- Galvanometer ratio: 210
- Continuous current: 40A
- Peak current: 45A
