HAMGEEK ADF4351 On-Board Module 35M-4.4G RF Signal Generator Board w/ Built-in Battery & 1.8" Screen

HAMGEEK ADF4351 On-Board Module 35M-4.4G RF Signal Generator Board w/ Built-in Battery & 1.8" Screen

Features:
- HAMGEEK ADF4351 module with an integrated lithium battery charging management: It can be directly powered by the battery. Lower power supply noise can be provided for the module
- Integrated circuit makes it convenient to download the program with one button
- The board brings out a single-chip microcomputer ADC analog signal input which can be used as feedback
- With a 1.8-inch OLED screen

Package Included:
- 1 x HAMGEEK RF signal generator board

Packaging Details:
- Weight: 0.3kg

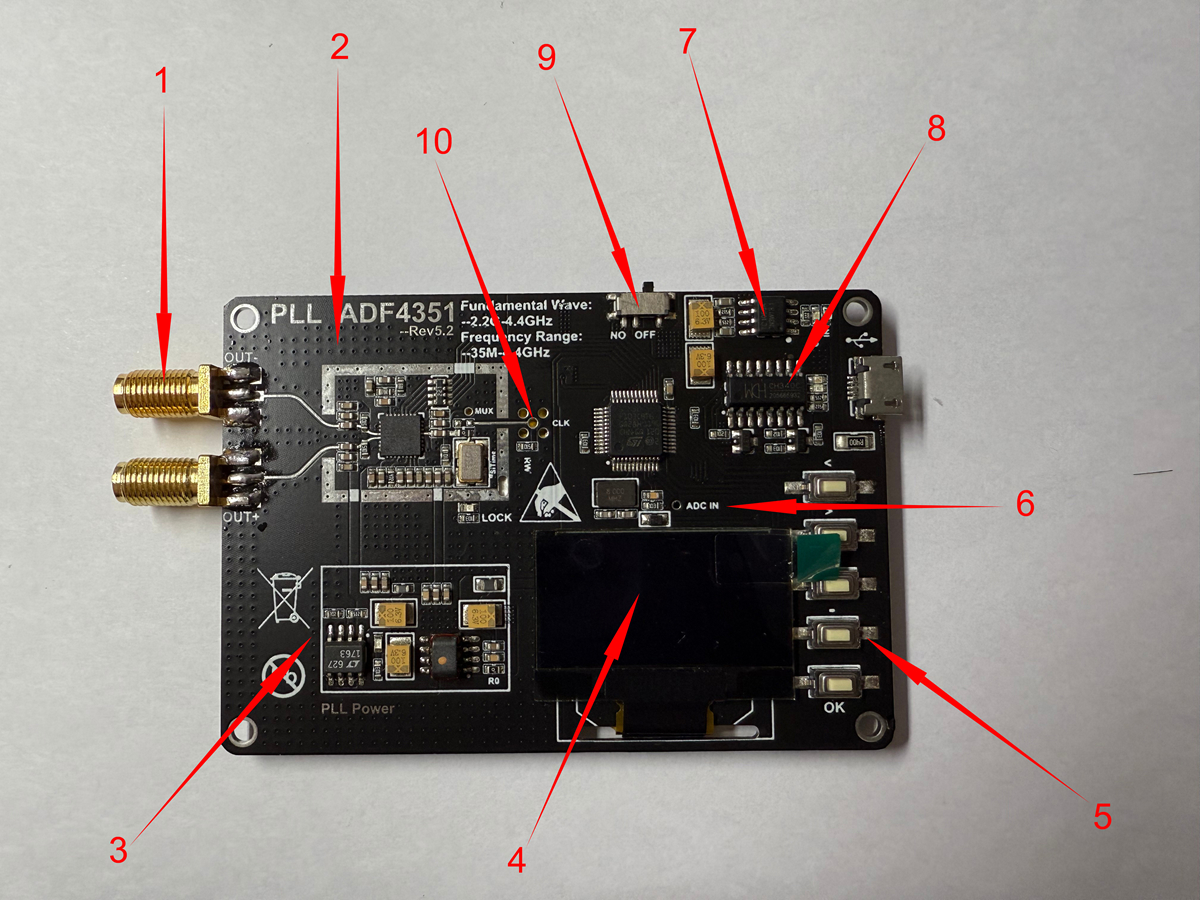

1: Gold-plated high-frequency SMA differential output
2: ADF4351 PLL IC
3: ADF4351 low-noise power supply
4: 1.8-inch OLED screen
5: Operation buttons
6: ADC analog signal acquisition input
7: Lithium battery charging management IC
8: CH340 serial IC (supports one button to download program)
9: Main switch
10: External clock input


11: 450mAh lithium battery
12: 1763 low noise LDO
