HamGeek PA-150W HF Power Amplifier Shortwave Linear Amplifier 100-130W QRP Ham Radio Amplifier for FT-818ND IC-705

Description:
The HamGeek PA-150W Shortwave Power Amplifier is designed for QRP low-power transceivers to significantly enhance transmission output. It can be used in both fixed station and mobile (car) installations.

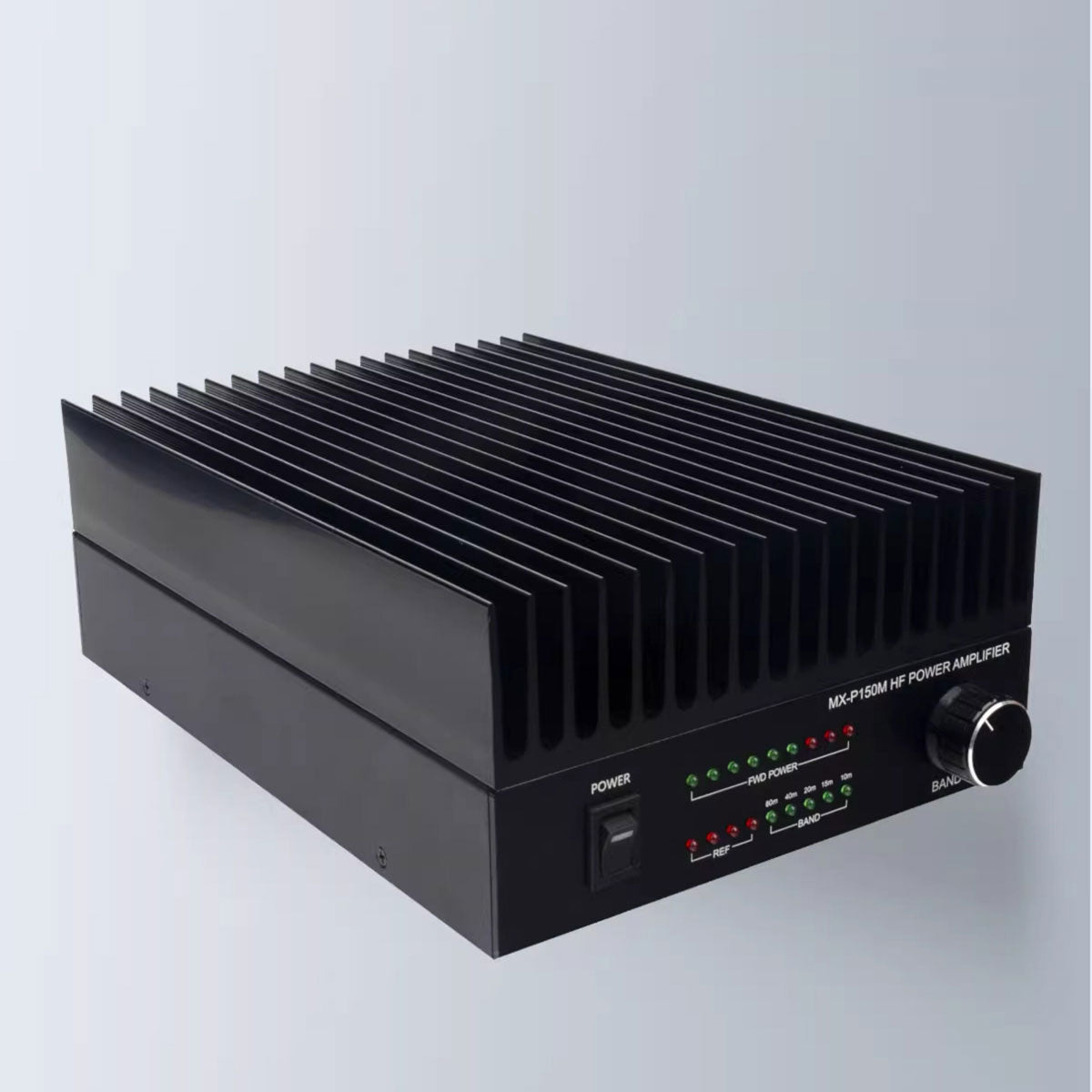

The amplifier features built-in high VSWR protection. When the VSWR exceeds SWR 2.5, the unit will automatically shut down to protect the system. The front panel is equipped with operating indicators, including working band indication, forward transmit power level, and reverse transmit power detection, allowing users to monitor key transmission conditions clearly during operation.

It is compatible with a variety of QRP shortwave transceivers, including FT-818ND, IC-705, KX2, KX3, SUNSDR2PRO, and other similar devices.

Features:
* Strong Power Boost: The HamGeek PA-150W significantly increases the output power of QRP transceivers, improving transmission strength and extending communication range.
* Built-in VSWR Protection: No need to worry about high VSWR damaging your equipment. The PA-150W automatically shuts down the amplifier when abnormal VSWR levels are detected, effectively protecting your transceiver.
* Multi-Equipment Compatibility: The PA-150W is not limited to specific devices. It supports a wide range of QRP shortwave transceivers, providing strong compatibility and flexible usage across different radio setups.
* Versatile Application: Suitable for both indoor and outdoor scenarios, including home stations, field operations, hiking, and camping. The PA-150W ensures stable communication performance in various environments.

Specifications:

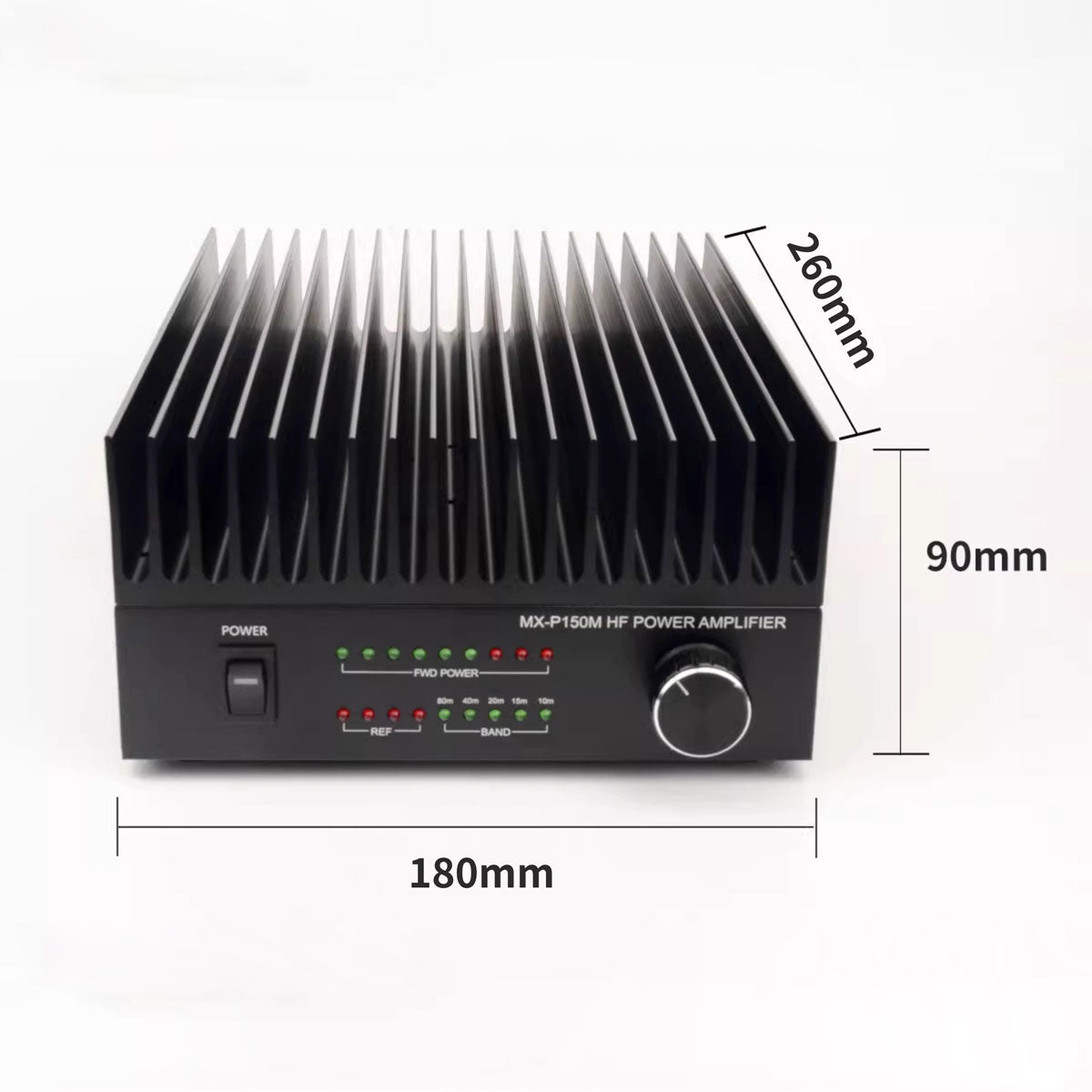

* Product Dimensions: 180mm x 90mm x 260mm
* Product Weight: 4kg
* Input Power: ≤10W
* Output Power: 100–130W
* Current: 12–20A
* Voltage: 13.8V
* SWR Protection Threshold: SWR 2.5
* Antenna Interface: SO-239 (50Ω)
* Frequency Range: 80m/40m/20m/15m/10m
* Type: Class AB Linear Amplifier
* Mode: SSB/FM/CW/AM/FT8
* Band Selection Method: Manual
* Transceiver Switching Method: Wired Control

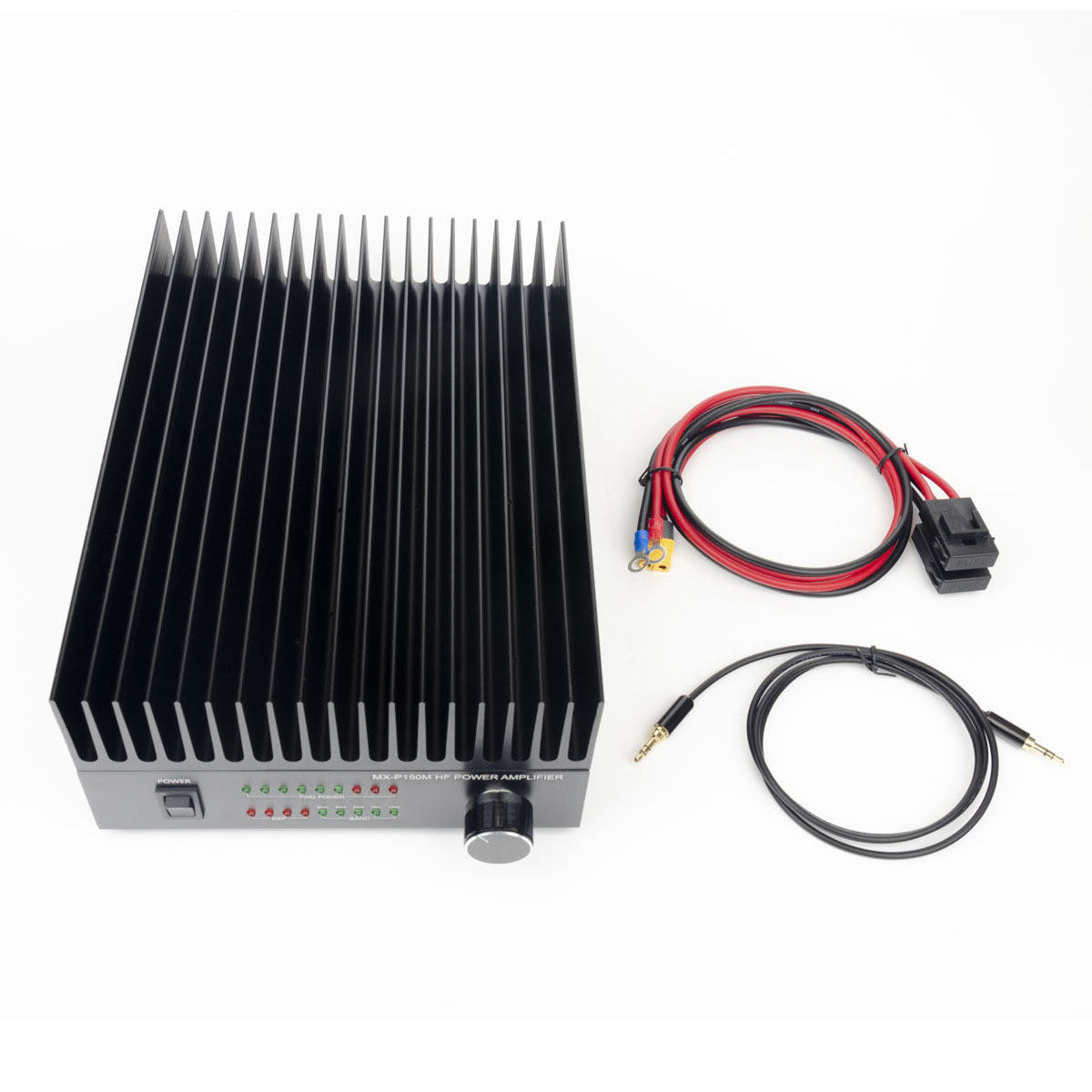

Packing List:
* 1 x HamGeek Power Amplifier
* 1 x Power Cable
* 1 x Transmit Control Cable for Radio

Packaging Details:
* Package Weight: 4.6kg
