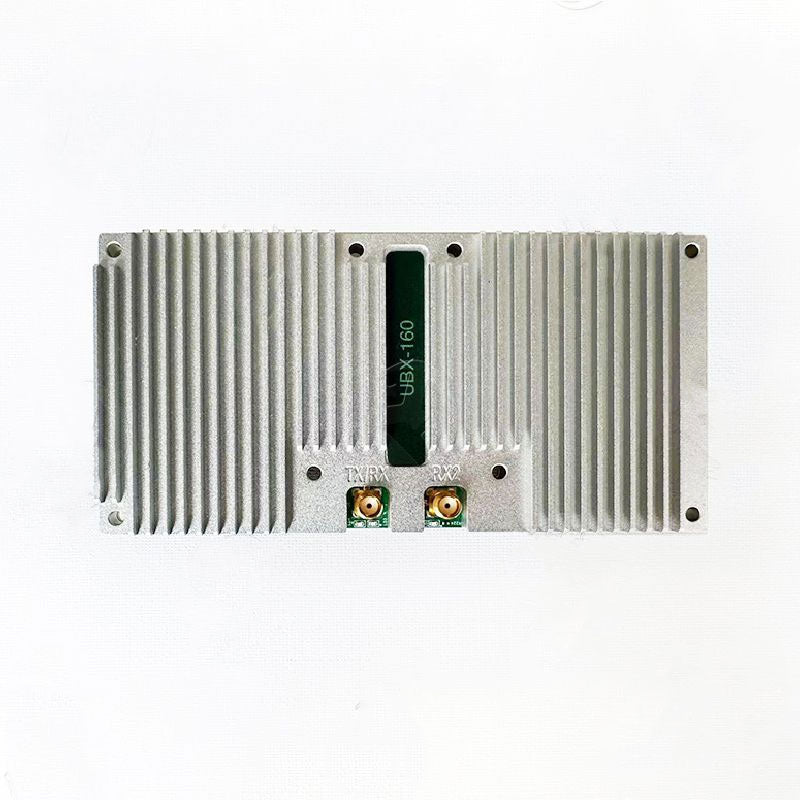

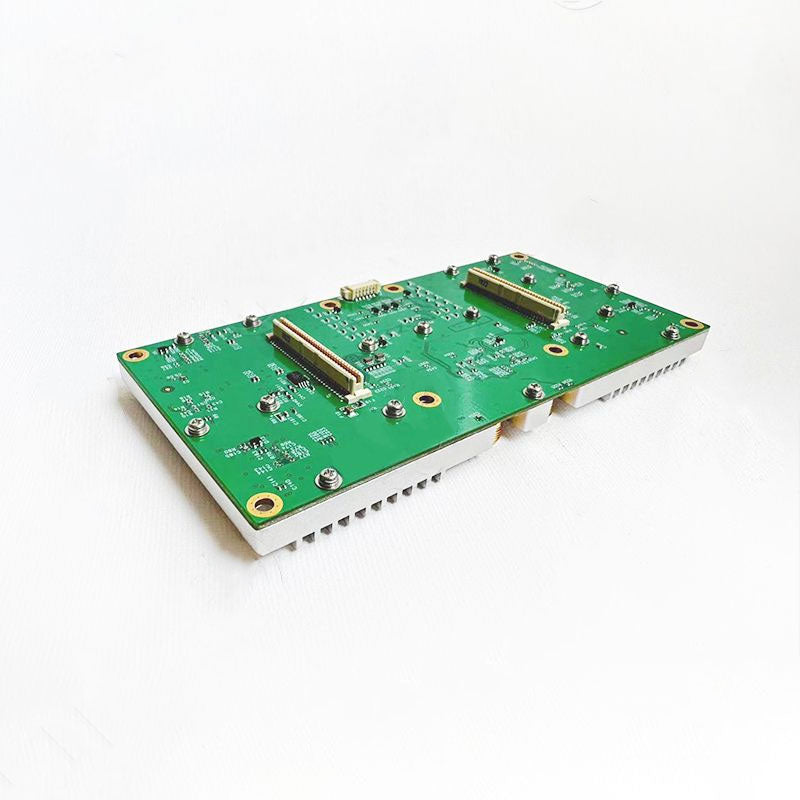

HamGeek UBX-160 RF Daughterboard Full-Duplex 10MHz-6GHz TX/RX 160MHz Bandwidth for X300 and X310 Series

Description:
The HamGeek UBX-160 features a full-duplex transceiver with a tunable frequency range from 10 MHz to 6 GHz and an instantaneous bandwidth of up to 160 MHz. It delivers high-performance RF coverage across most frequency bands and supports phase-coherent operations for multi-channel MIMO and direction-finding applications.

The wide tunable bandwidth makes the UBX an ideal solution for various demanding scenarios. The UBX-160 can replace existing USRP RF daughterboards and integrates seamlessly into your existing hardware setup. It is compatible with the X300 and X310 series.

Features:
* RX: 10MHz-6GHz
* TX: 10MHz-6GHz

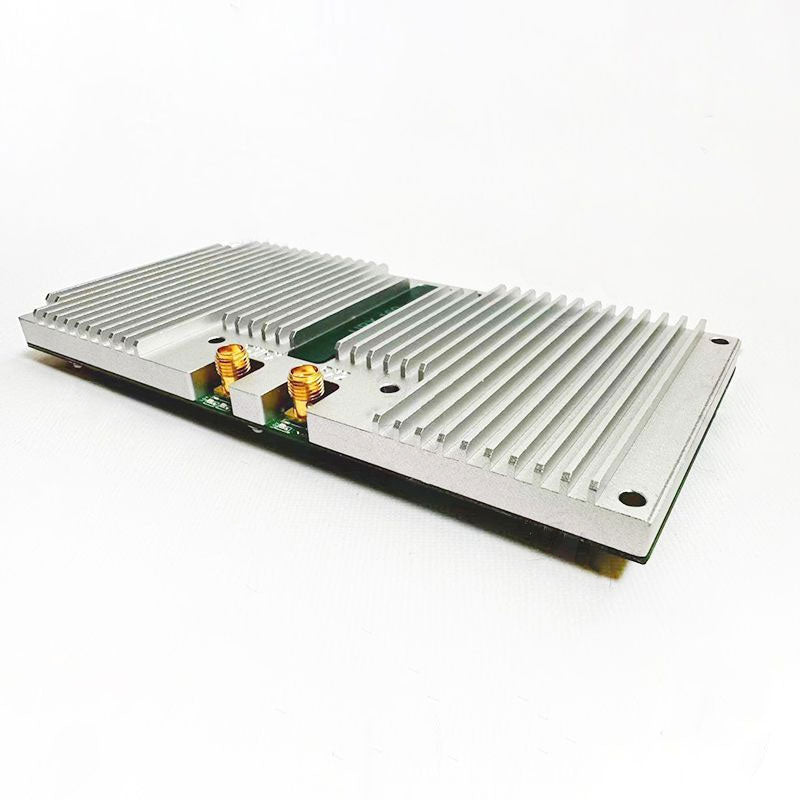

* With shield cover
* Independently operable full-duplex TX and RX frequencies
* Supports phase synchronization or calibration
* The HamGeek UBX-160 RF daughterboard at the transmit end has a bandwidth of 160 MHz across the 10 MHz to 6 GHz frequency range.
* At the receive end, the UBX-160 RF daughterboard has an instantaneous bandwidth of 84 MHz for a center frequency range of 10 MHz to 500 MHz, and an instantaneous bandwidth of 160 MHz for a center frequency range of 500 MHz to 6 GHz.

Applications:
* Covers all the most common frequency bands, including HF, VHF, cellular, radar and Wi-Fi. It can be used for monitoring the entire band of interest.

Packing List:
* 1 x HamGeek UBX-160

Packaging Details:
* Package weight: 0.6kg

Note:
* Not sold separately, requires pairing with host systems X300 or X310.

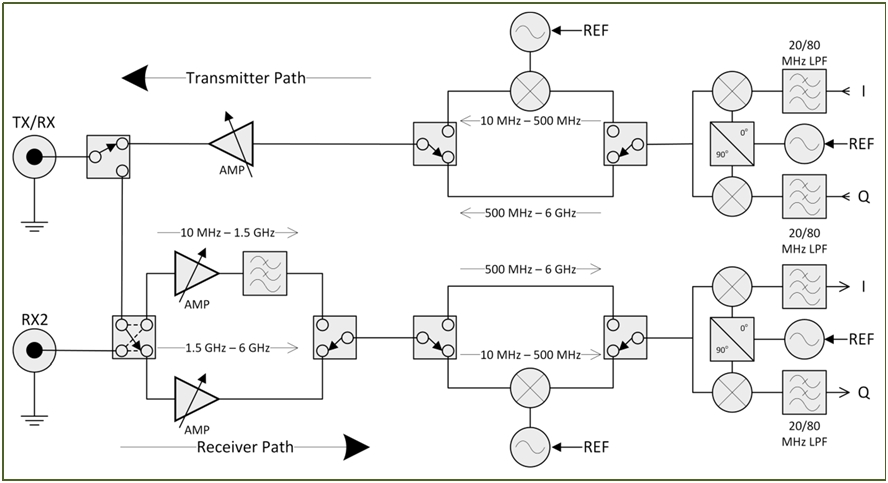

Functional Block Diagram:

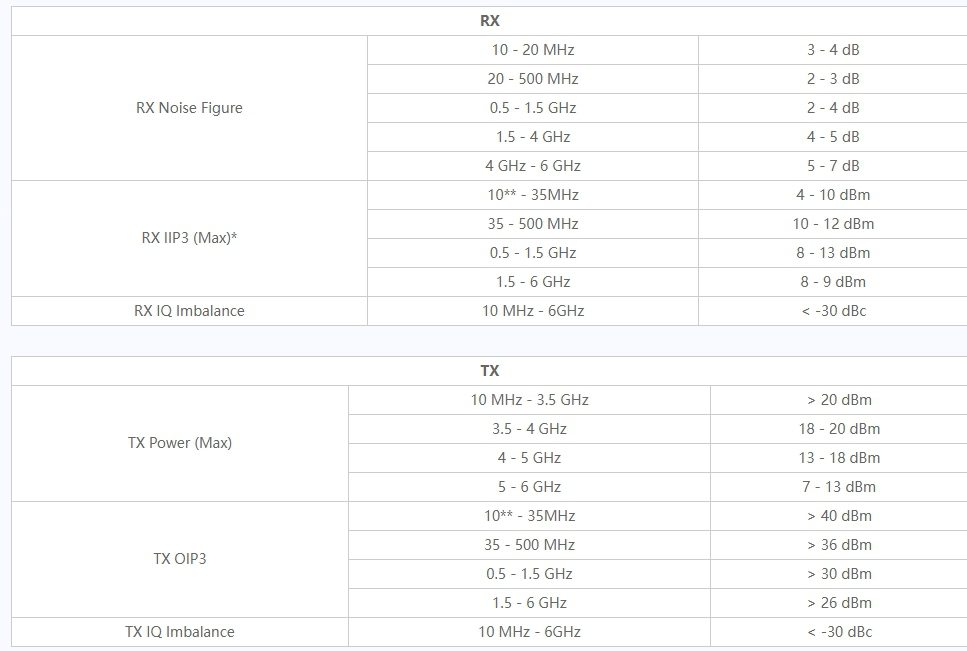

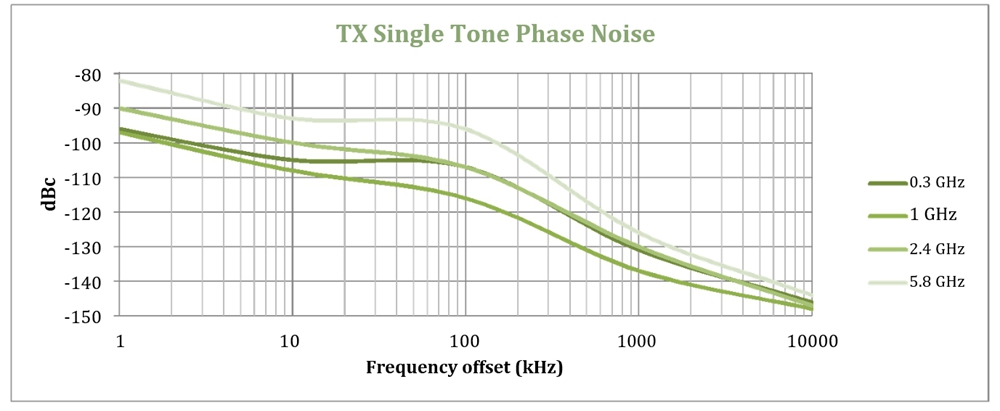

Parameters:
