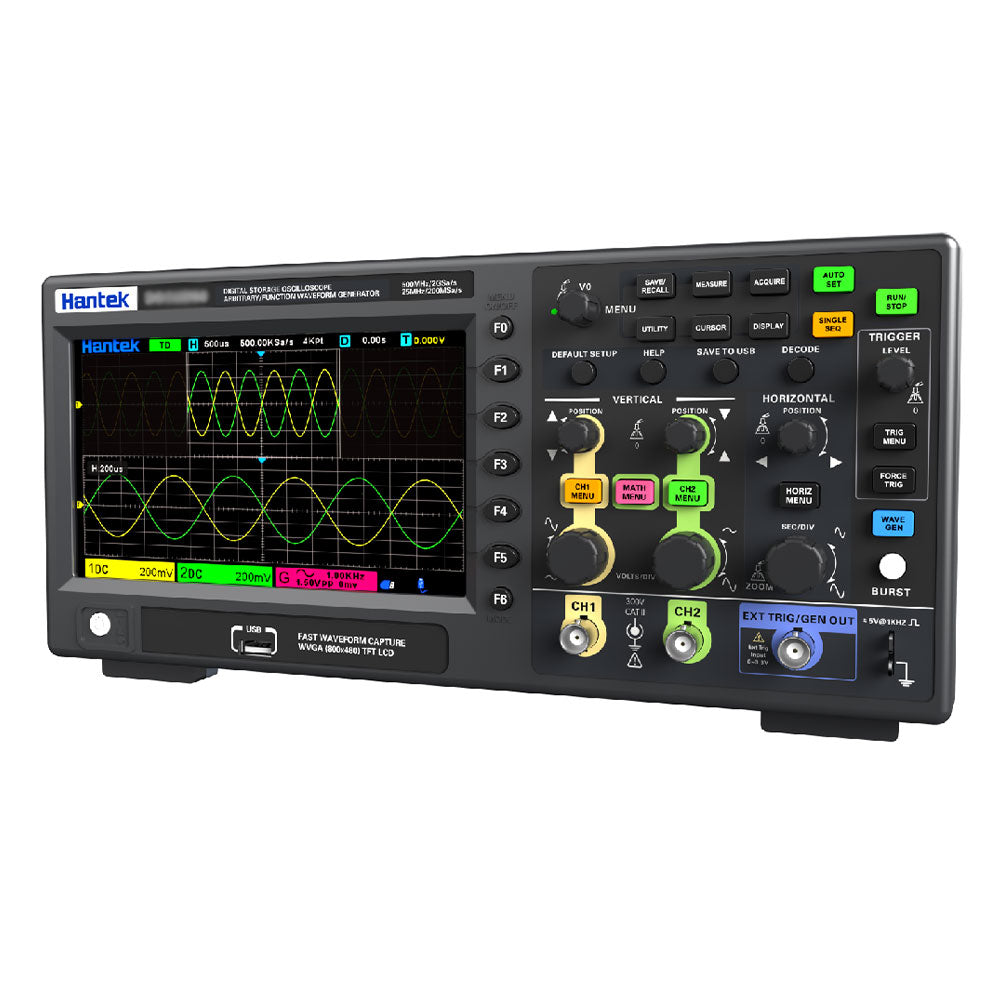

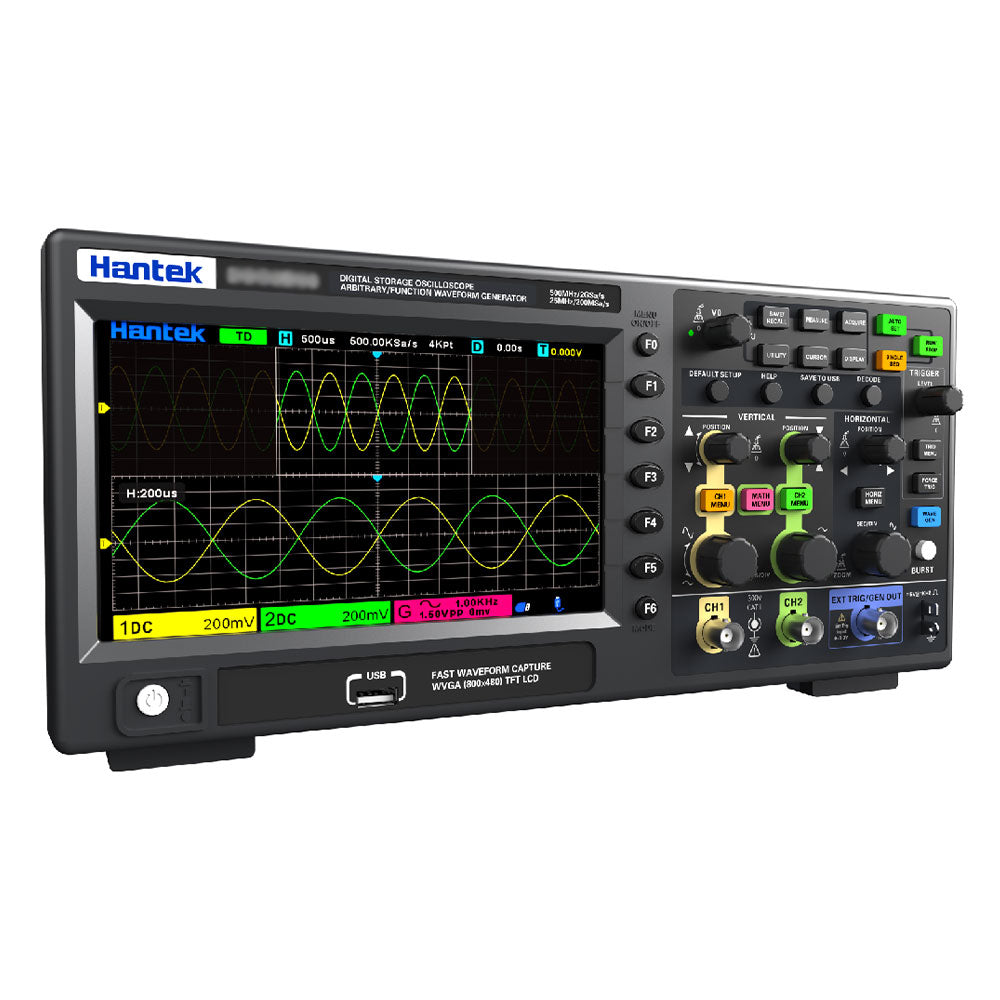

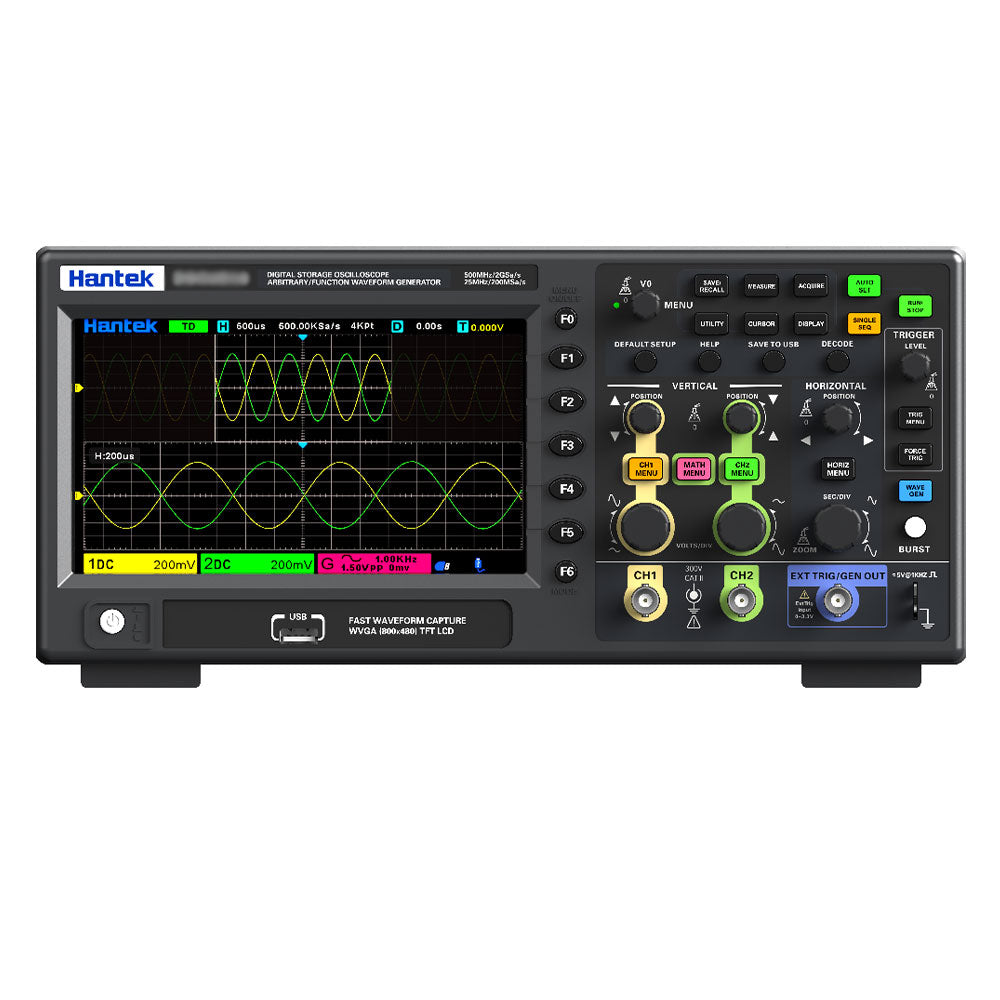

Hantek 200-500MHz 2-Channel Digital Storage Oscilloscope 2GSa/s with 7-Inch Touch Screen & Optional Signal Generator

Introduction:
- The DSO2D20 series digital oscilloscope has comprehensive functions and outstanding performance, with a sampling rate of 2GSa/s and a maximum bandwidth of 500MHz across the entire range. Support 1MΩ/50Ω impedance switching to ensure signal integrity; Built in arbitrary waveform generator, capable of outputting 5 standard waveforms and supporting custom arbitrary waveform output; Standard configuration includes 9 triggering modes including edge, pulse, video, slope, timeout, window, code pattern, interval, and under amplitude, as well as 5 bus analysis and protocol decoding functions including UART, LIN, CAN, SPI, and IIC; 32 automatic measurement and threshold measurement functions, with test results supporting statistical analysis; Two sets of digital voltmeter functions and hardware frequency meter functions; Standard SCPI remote control instructions, convenient for users to build testing systems.

Features:
- Support 1MΩ/50Ω impedance switching to ensure signal integrity.
- The sampling rate of the entire system is 2GSa/s, with a maximum bandwidth of 500MHz.
- Built in arbitrary waveform generator, capable of outputting 5 standard waveforms, supports custom arbitrary waveform output, and supports burst output.
- Protocol Trigger: Comes with five standard serial protocol triggers and decoding, supporting protocols including UART, LIN, CAN, SPI, IIC, making it easy to analyze serial bus data.
- 32 automatic measurement and threshold measurement functions, with test results supporting statistical analysis.
- Two sets of digital voltmeter functions and hardware frequency meter functions.
- Standard SCPI remote control instructions, convenient for users to build testing systems.
- Save and export function, which can save settings CSV, Information such as images, reference waveforms, and waveforms.
- Four sampling methods: normal, average, peak, and high-precision.
- 14 operating languages, supporting over 90% of countries and regions worldwide.
- There are two cursor measurement modes: manual and tracking, and the Math function also supports cursor measurement.
- 500uV-10V vertical measurement gear, 300VCAT Ⅱ withstand voltage input.
- FFT scale display, convenient for reading results.
- Manual, single time, one click AUTO measurement, simple and fast waveform measurement.
- XY mode supports dual window display, making it easy to understand waveform phase changes.

Package Included:
- 1 x Set of Oscilloscope
