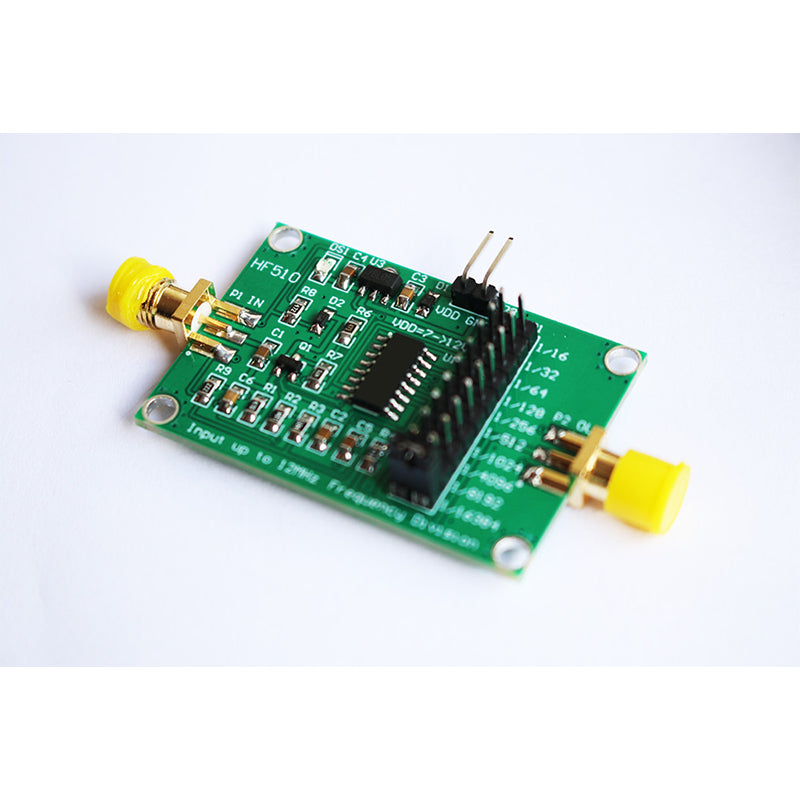

HF510 12MHz Frequency Divider Module Frequency Prescaler Clock Divider Divide By 16 32 64 128 16384

HF510 12MHz Frequency Divider Module Frequency Prescaler Clock Divider Divide By 16 32 64 128 16384

Module Interfaces:
* P1: Input interface (input frequency 100Hz~12Mhz, input voltage 0.2V~5Vp-p). SMA interface
* P2: Output interface (OUT1). SMA interface
* P4: Output interface (OUT2/2) (divide by 2). SMA interface
* P3: Power interface (7V~12V)

JP1 Pin Description:
* 1/16 frequency division
* 1/32 frequency division
* 1/64 frequency division
* 1/128 frequency division
* 1/256 frequency division
* 1/512 frequency division
* 1/1024 frequency division
* 1/4096 frequency division
* 1/8192 frequency division
* 1/16384 frequency division

Specifications:
* Input frequency: 100Hz~12Mhz
* Input voltage: 0.2V~5Vp-p
* Size: 47 x 33mm/1.9 x 1.3"

Package Included:
* 1 x Frequency Divider Module
