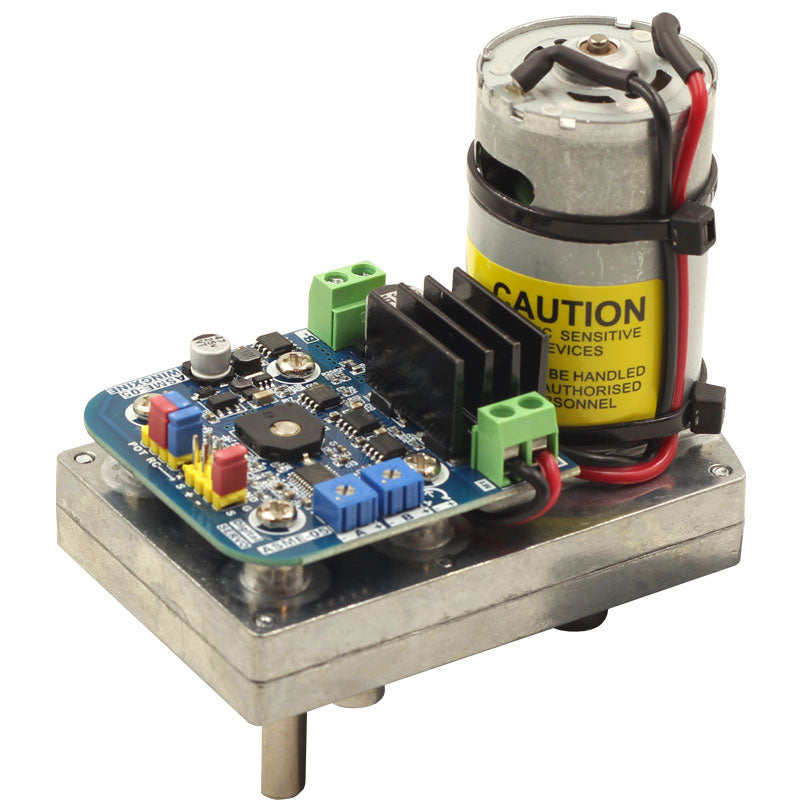

High Torque RC Digital Servo Motor DC12V 24V 180kg.cm Steel Gear for Robot Mechanical Arm ASMC-05B

High Torque RC Digital Servo Motor DC12V 24V 180kg.cm Steel Gear for Robot Mechanical Arm ASMC-05B

Function:
- Potentiometer control, remote control
- Current adjustment and angle adjustment
- CW and CCW switching, AD&PWM switching, pulse width 1-2ms&0.5-2.5ms
- Compatible with Futaba, JR, SANWA, Hitec, etc.

Parameters:
- Working voltage: DC12-24V
- No load current: <500mA
- Maximum torque (actual measurement): 180kg.cm (24V); 1764N.cm (24V); 90kg.cm (12V); 882N.cm (12V)
- Angular velocity: 0.5s/60°, 24V; 1.0s/60°, 12V
- Rotation angle: 300° MAX. (0-300°, adjustable)
- Input mode: pulse signal (remote controller, multi-channel controller, SCM); analog voltage signal (potentiometer)
- Pulse signal input range: 0.5ms-2.5ms for all "multi channel controller", 1ms-2ms for drone remote controller, SCM program, Arduino etc.
- Voltage signal input range: 0-5V
- Control accuracy: 0.32°
- Weight: 530g
- Gear material: Steel
- Size: 95.5 x 60.5 x 102.6mm
- Application: robot, mechanical arm, other high torque control area
- Power input: DC12-24V
- Motor output: 12-24V

Package Included:
- 1 x Servo
- 1 x 20cm Signal Cable
