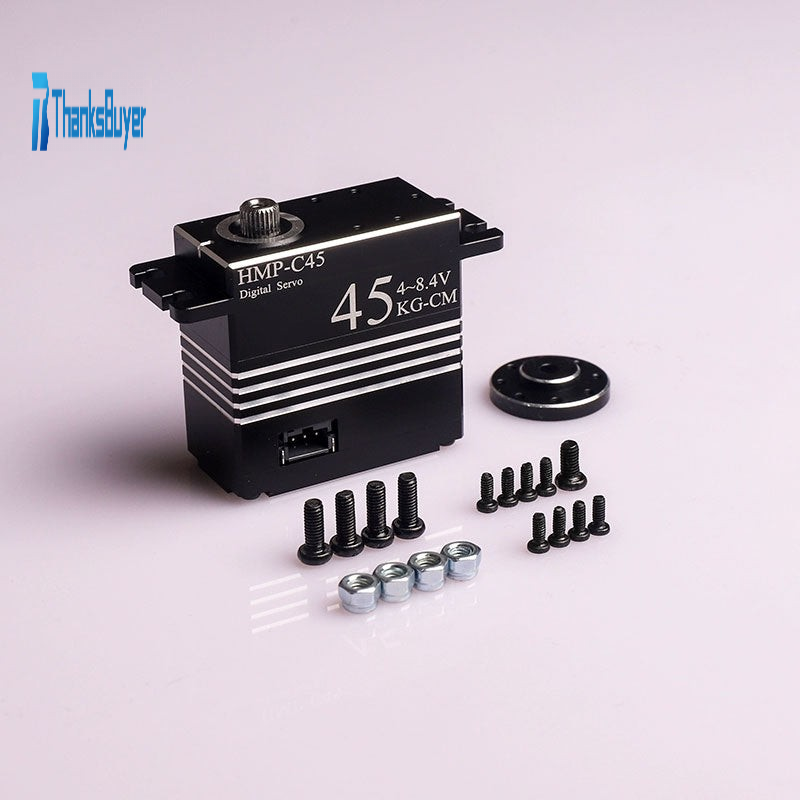

HMP-C45 45KG One Shaft PWM Digital Servo High Torque Servo with Coreless Motor Stainless Steel Gears

HMP-C45 45KG One Shaft PWM Digital Servo High Torque Servo with Coreless Motor Stainless Steel Gears

Features:
- High torque servo
- Bus servo with coreless motor
- Data feedback: timely feedback of the angle, temperature, voltage and speed of the servo
- Thickened stainless steel gears: 25T thickened all-stainless steel gears are wear-resistant and have a longer life
- Multiple protection: locked-rotor protection, temperature protection and voltage protection
- All-aluminum alloy shell: CNC machined aluminum alloy shell has strong thermal conductivity. Stainless steel gears greatly improve the performance of the servo. Aviation aluminum alloy raw material is impact resistant, enabling fast heat dissipation
- Serial connection: Theoretically, 253pcs servos can be serialized in single/unified motion. Each servo should be assigned with an ID

Application Scenarios:
- Robots, robotic arms, PTZ, etc.
- RC applications: drones, rock crawlers, short trucks, helicopters and the like
- Medical equipment: surgical instruments, medical testing and so on
- Non-standard automation: production line automation and automation equipment
- Commercial applications: service robots, monitoring equipment, stage lighting, etc.

Product Parameters:
- PWM protocol
- Locked-rotor and over-temperature protection
- Stall torque: 45Kg-cm (7.4V)
- No-load speed: 0.098s at 60° (7.4V)
- Thickened stainless steel output gears
- Resolution: 4096 steps
- Motor type: coreless motor
- Effective angle: 360°
- 7075 aluminum alloy 8-hole servo horn
- PH2.0 silicone wire 20cm
- Size: 40x40x20mm
- Weight: 81g

Package Included:
- 1 x Set of Digital Servo
