HS04-350 15MPA 9ML/S Lift Pump Station High Power Electric Micro Hydraulic Power Unit 300W

Features:
- Precision machining, highly integrated; There are overcurrent, overload, overheating protection, and bidirectional self-locking of hydraulic cylinders inside. Domestic independent patent, high integration of stable performance, highly integrated hydraulic station, oil cylinder, self-locking mechanism, overflow valve, and directional valve, no need for other hydraulic components, can be used simply by connecting to the power supply.
- Widely used in facilities such as electric tricycles, sanitation vehicles, lifting platforms, assembly lines, industrial robots, agricultural machinery, and industrial automation equipment.

Specifications:
- Model: HS04-350
- Voltage: AC 220V/DC12V/24V/48V (optional)
- Power: 300W
- Fuel tank volume: 350ml
- Maximum pressure: 15Mpa
- Volume of flow: 9ml/s
- Oil pump type: bidirectional gear pump
- Hydraulic oil specifications: L-HV 46#
- Working temperature: -20 to 60℃
- Using frequency: long term continuous use once every 4 minutes
- Waterproof level: IPX6

Package Included:
- 1 x Micro Hydraulic Power Unit

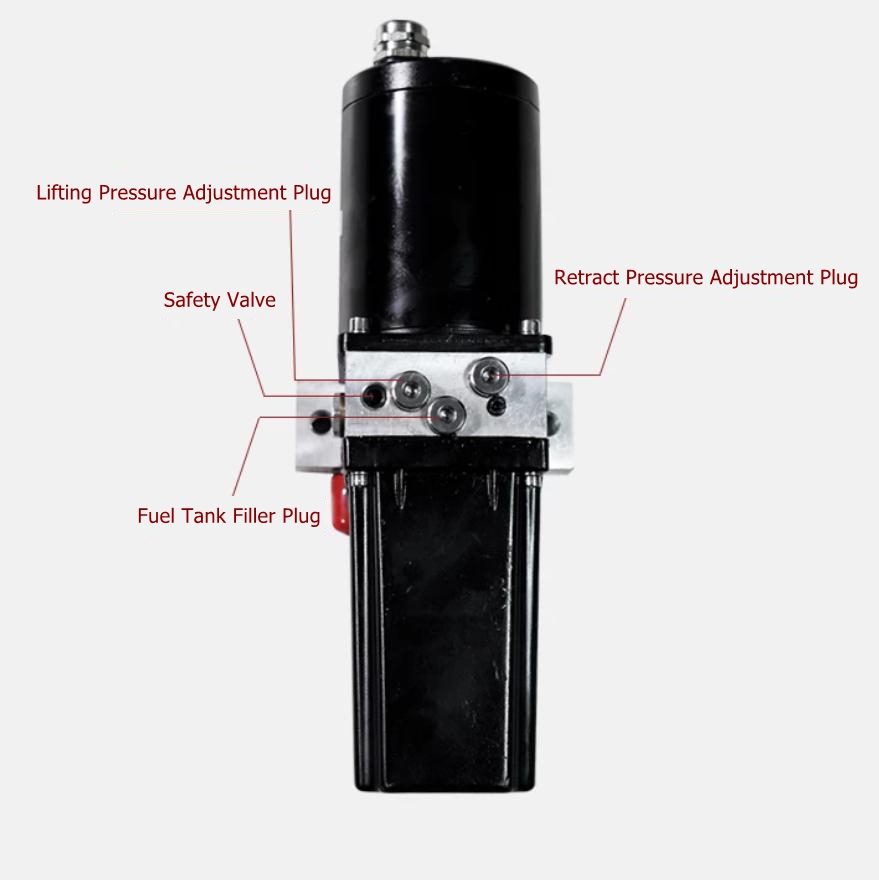

Demonstration:
- Fuel tank filler plug: The oil in the tank is added from here, and hydraulic oil will be replaced from here in the future.
- Retract pressure adjustment plug: Unscrew the plug, adjust the nut inside, tighten to increase the lifting force, and loosen to decrease the lifting force.
- Lifting pressure adjustment plug: Unscrew the plug, adjust the nut inside, tighten to increase the lifting force, and loosen to decrease the lifting force.
