Injection Phase-locked Crystal Oscillator 100MHz Low Phase Noise Frequency Multiplier Oscillator 10M Input and 100M Output

Injection Phase-locked Crystal Oscillator 100MHz Low Phase Noise Frequency Multiplier Oscillator 10M Input and 100M Output

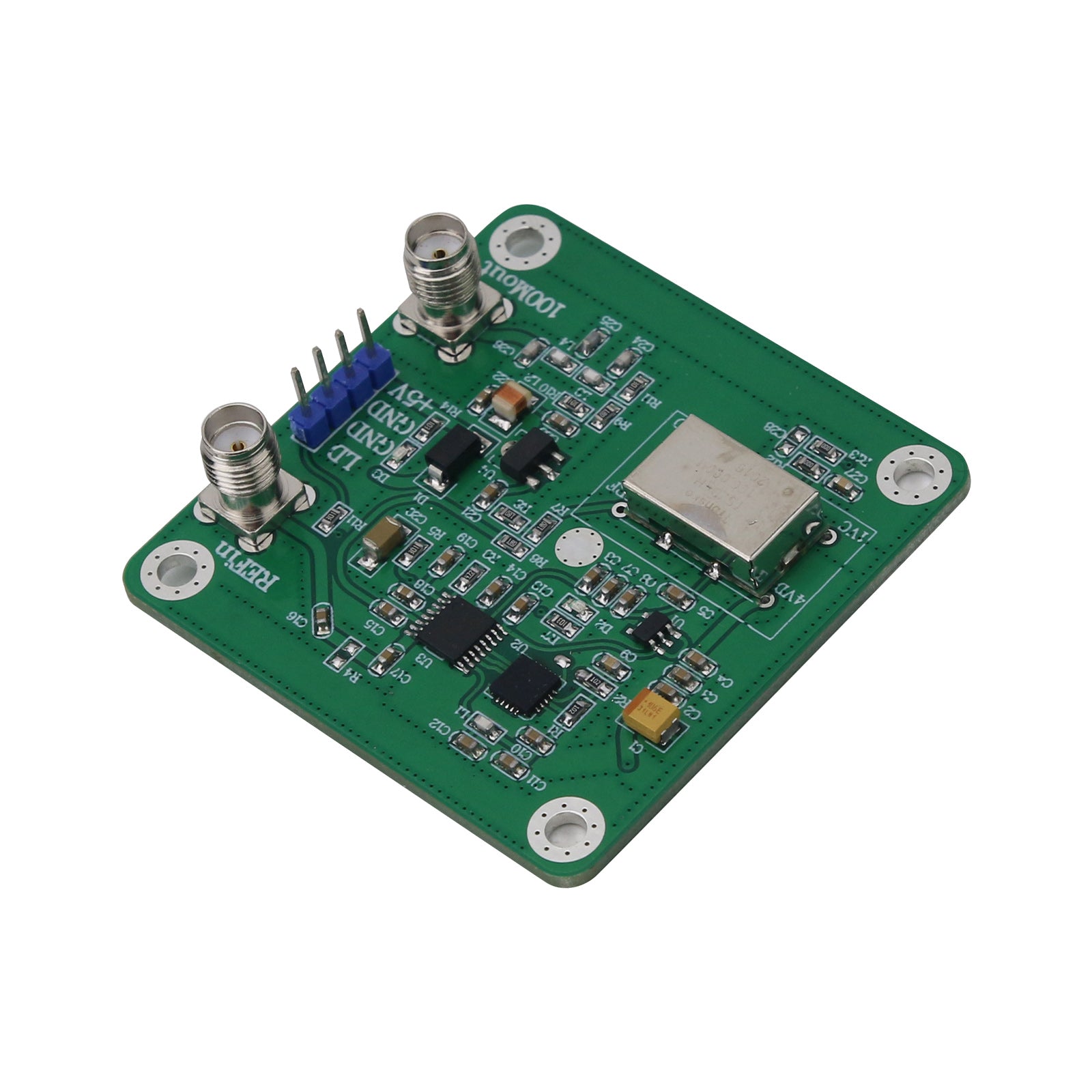

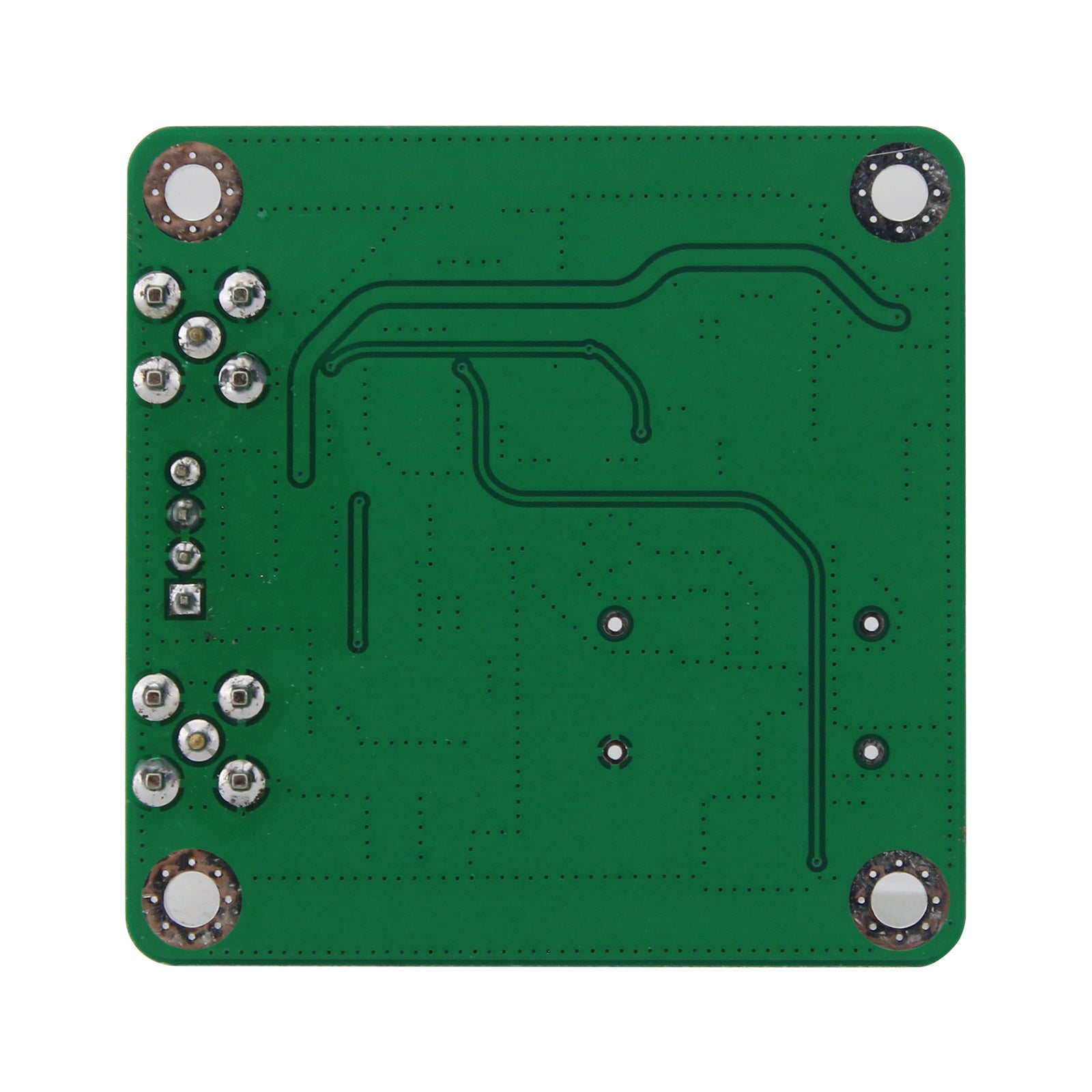

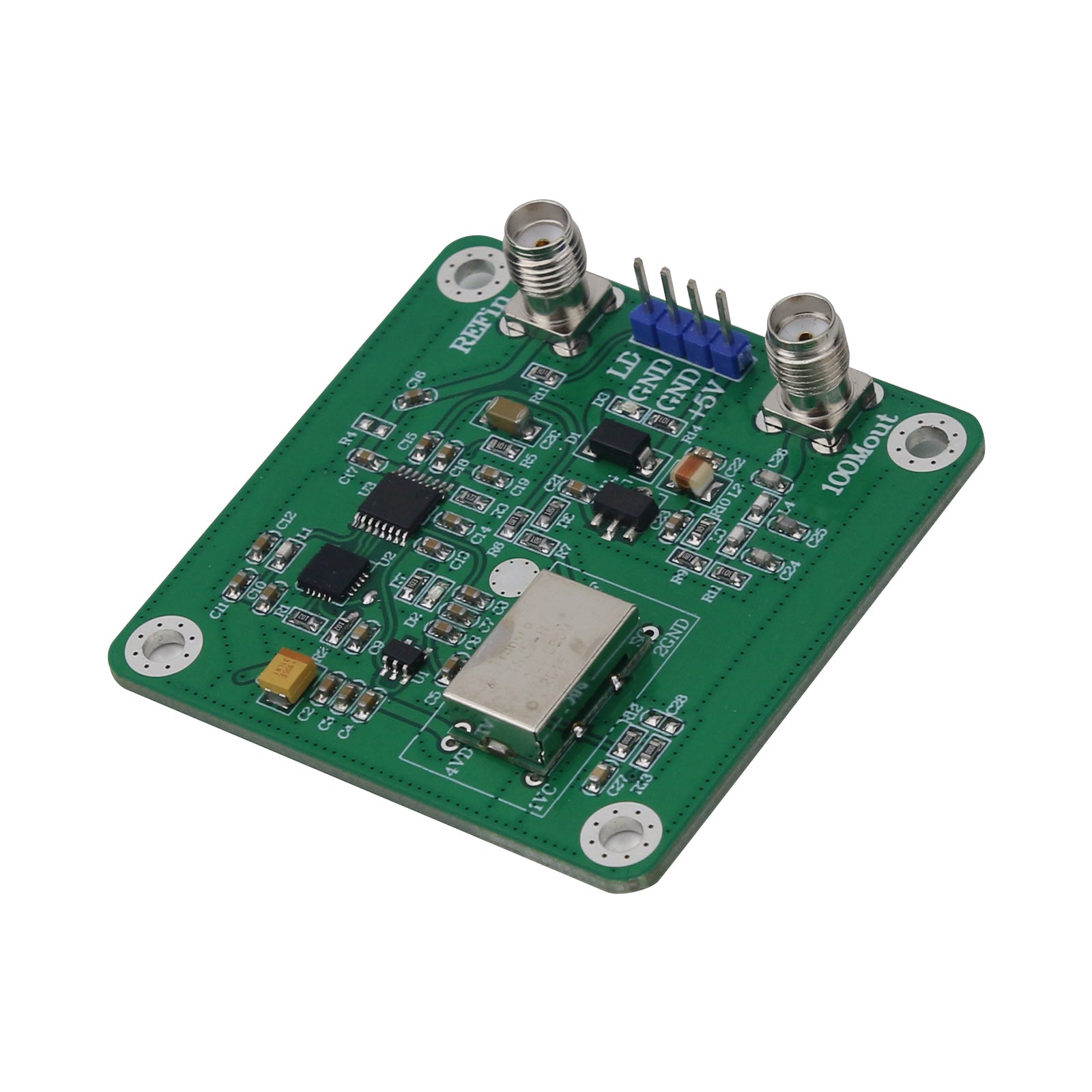

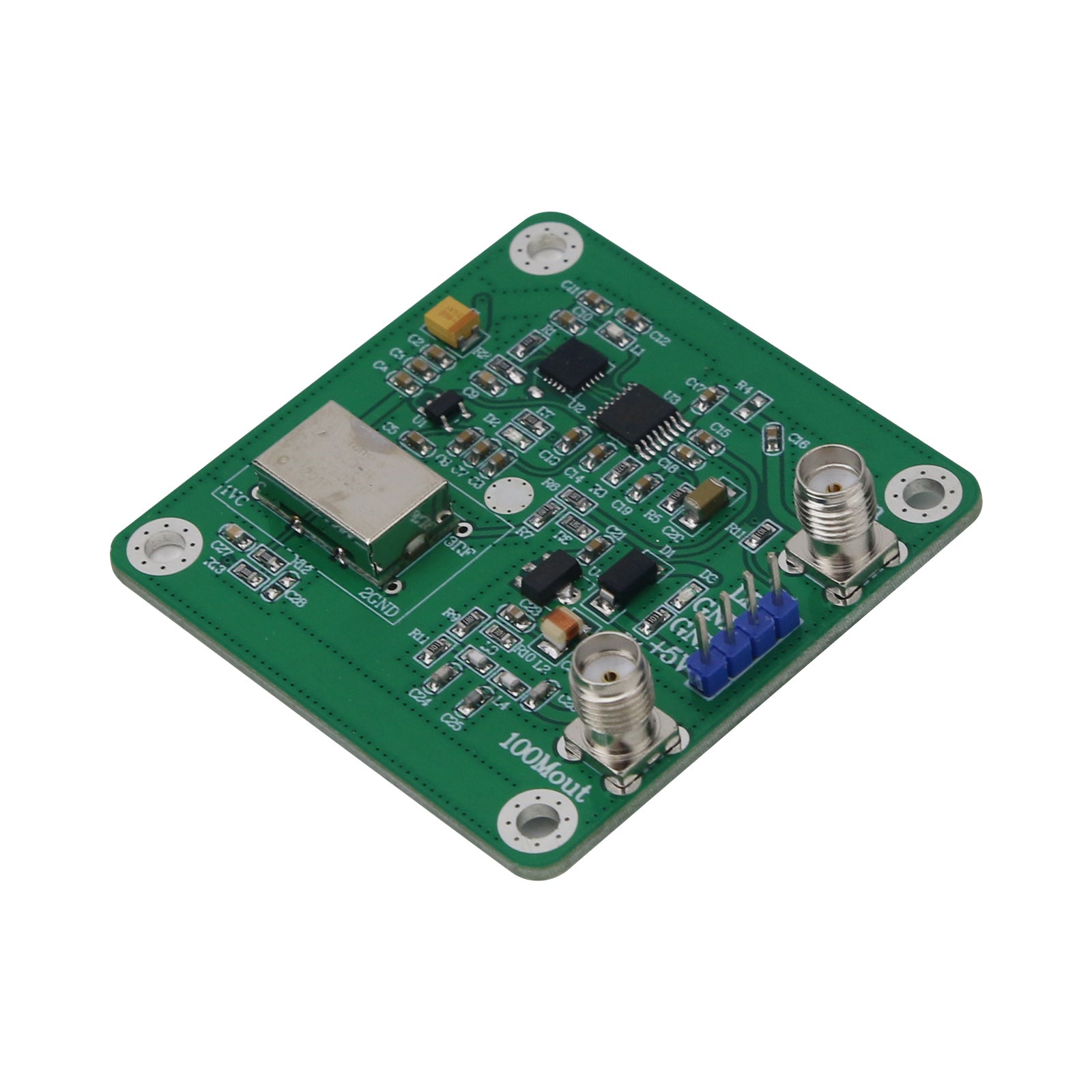

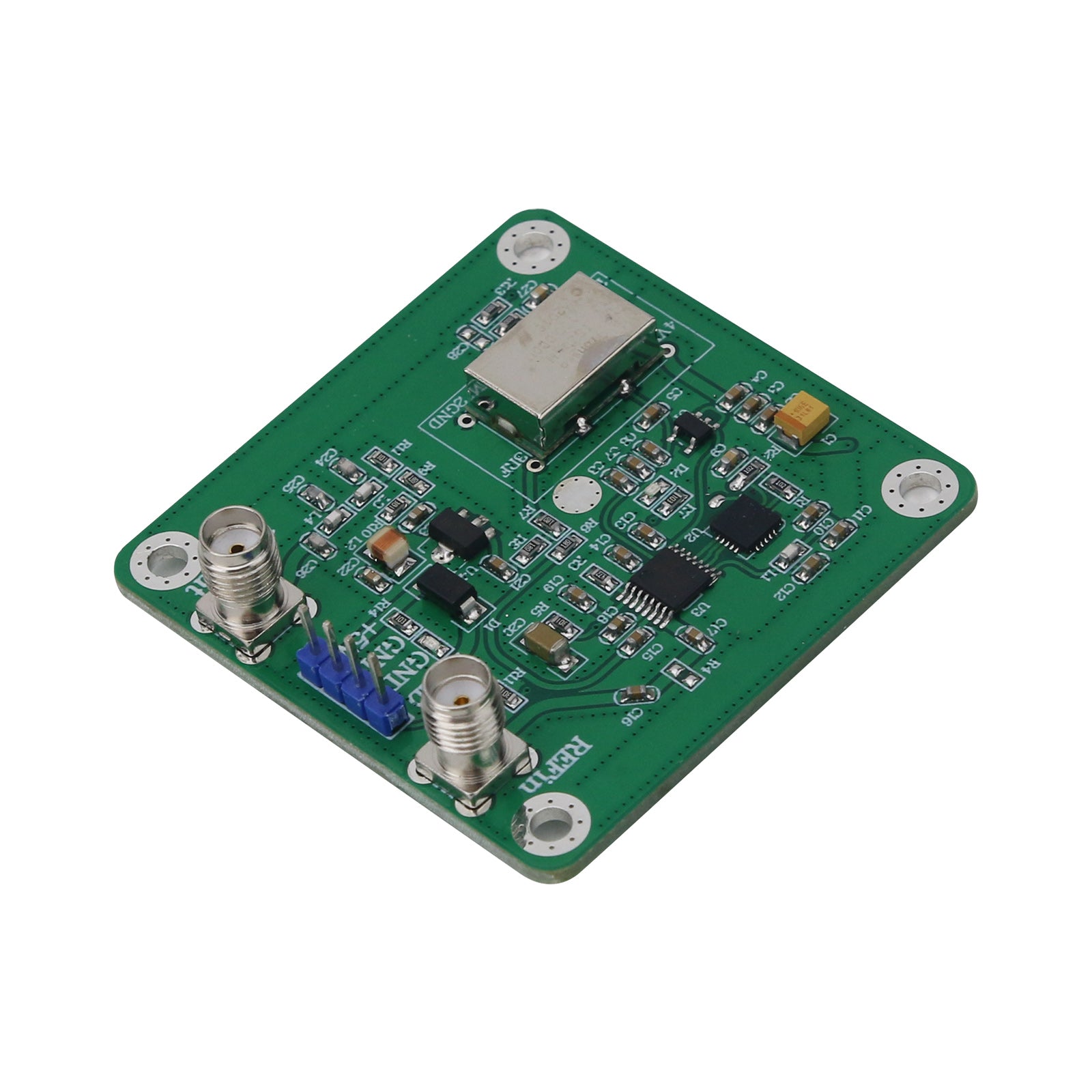

Description:
- The phase-locked frequency multiplier crystal oscillator adopts phase-locked frequency synthesis technology. Its main feature is that the voltage controlled oscillator in the loop adopts a voltage controlled crystal oscillator, which has better phase noise than general voltage controlled oscillators. This makes the phase-locked loop have better far end phase. Due to the presence of loop filters, the phase noise of the phase-locked crystal oscillator at the near end is related to the phase of the reference signal, resulting in a degradation of 20logN. The phase noise at the far end is determined by the phase of the voltage controlled crystal oscillator.

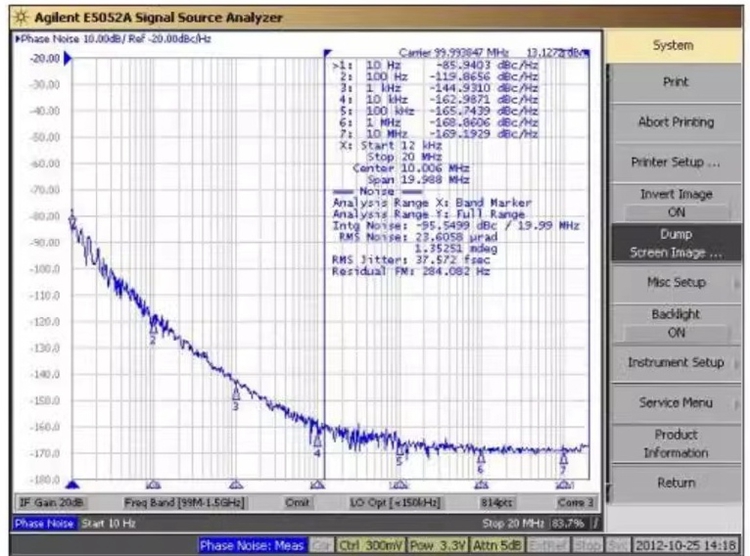

- The phase noise diagram of the 100M crystal oscillator used in this product can refer to the above curve diagram for phase noise outside 10Hz, as the bandwidth of the loop filter in this product is less than 10Hz.

- In the absence of input, a 100MHz signal can still be output, but the signal will be slightly higher by about 200KHz.

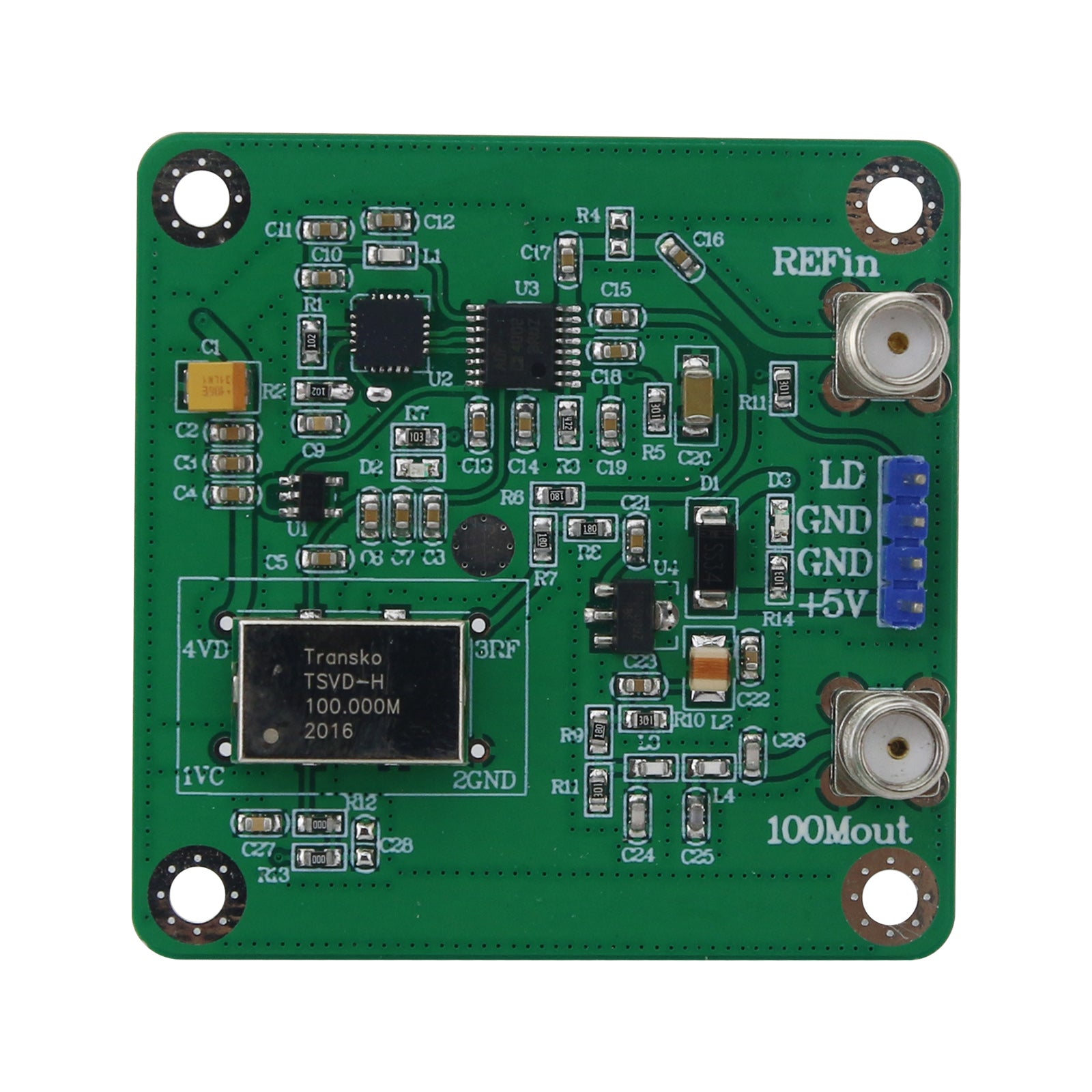

Specification:
- Input/output connector: SMA-K
- Input signal: 10MHz at 0dBm
- Output signal: 100MHz at 14dBm
- Harmonic suppression: ≥ 60dBc
- Stray suppression: ≥ 75dBc
- Power supply: +5V ± 5%, current less than 200mA
- Lock indicator: lock D3 diode on

Package Included:
- 1 x Crystal Oscillator
