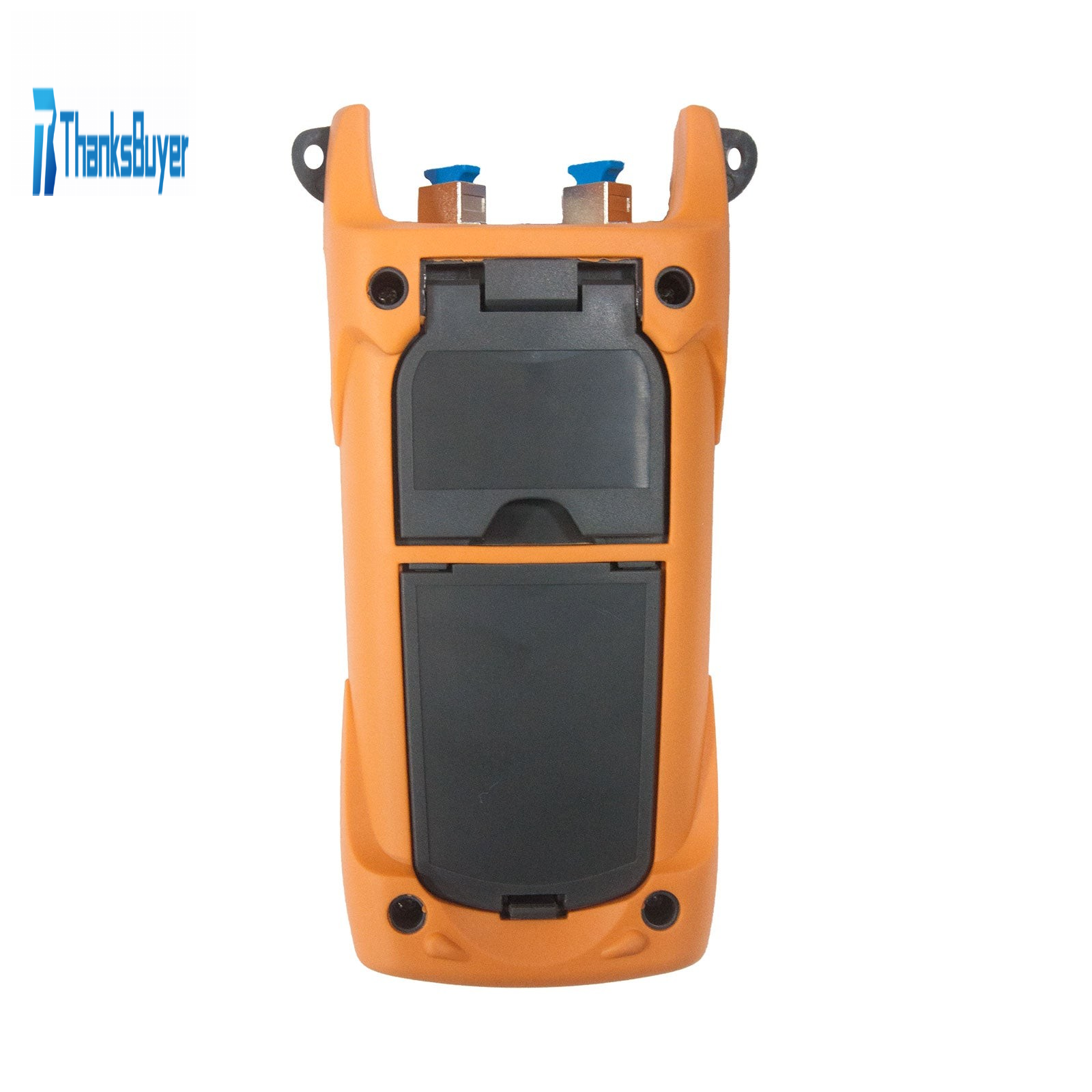

JW3213B PON Optical Power Meter 1310nm/1490nm/1550nm Measurement with Color LCD Screen for FTTx’s Service & Maintenance

JW3213B PON Optical Power Meter 1310nm/1490nm/1550nm Measurement with Color LCD Screen for FTTx’s Service & Maintenance

Description:
- The PON optical power meter is a test meter for FTTx's service and maintenance. It can measure voice, data and RF video signals over optical fiber links. The upgraded color LCD display and threshold data function that can be manually set by the instrument machine are more suitable for PON network engineering, construction and maintenance needs.

Features:
- Color LCD screen display
- Supports synchronous measurement and display of voice, data and video signals in a PON architecture
- Supports measurement of 1310nm upstream burst signal and 1490/1550nm downstream signal
- Meter sets the measurement and alarm threshold
- Data store function 1000
- Supports visible red light fault location and common power meter function
- Supports dry battery, lithium battery, nickel metal hydride battery and adapter power supply

Specification:
- Measuring wavelength: 1310nm; 1490nm; 1550nm
- Measuring range (dBm): +13 ~ -40; +13 ~ -50; +25 ~ -50
- Spectral band-width (nm): 1310±50; 1490±10; 1550±15
- IL (dB): ≤1.5
- Uncertainty (dB): ≤0.5
- Interface type: SC/PC (optional)
- Display resolution (dB): 0.01
- Threshold settings: 10
- Data storage: 1000
- Operating temperature: -10 ~ +60℃
- Storage temperature: -25 ~ +70℃
- Relative humidity: ≤ 75%RH
- Communication interface: Mini USB
- Power supply: 3 x AA 1.5V battery (not included)
- Operating time: ≥ 80H
- Dimension: 192mm x 105mm x 50mm
- Weight: 300g

Package Included:
- 1 x PON Optical Power Meter
- 1 x Mini USB Data Cable
- 1 x User Manual
- 1 x Certificate
- 1 x Oxford Bag

Note:
- Battery is not included.
- The interface type is optional, please leave a message for the interface type you want.
