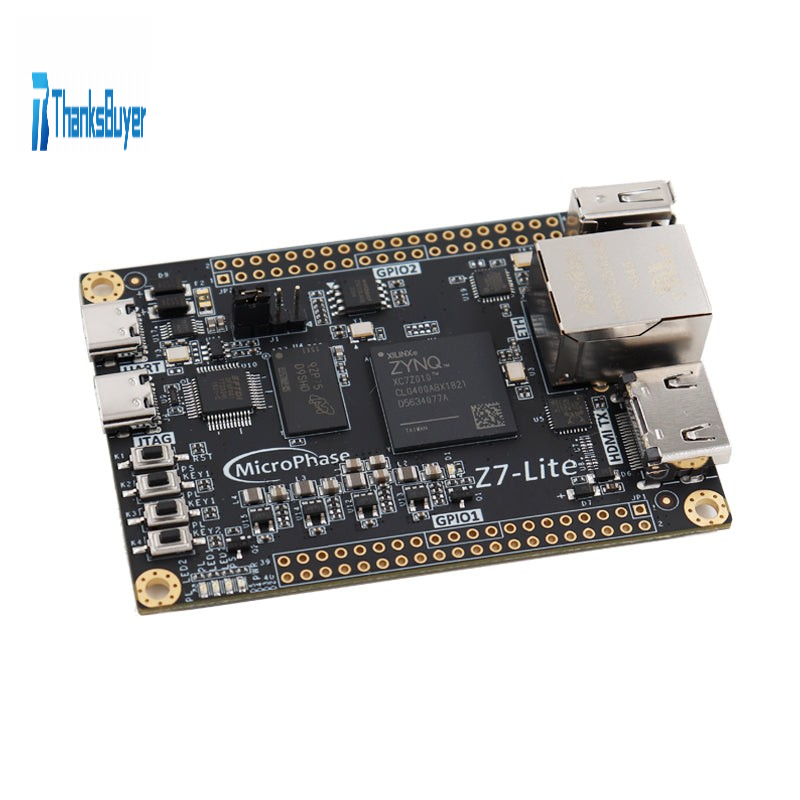

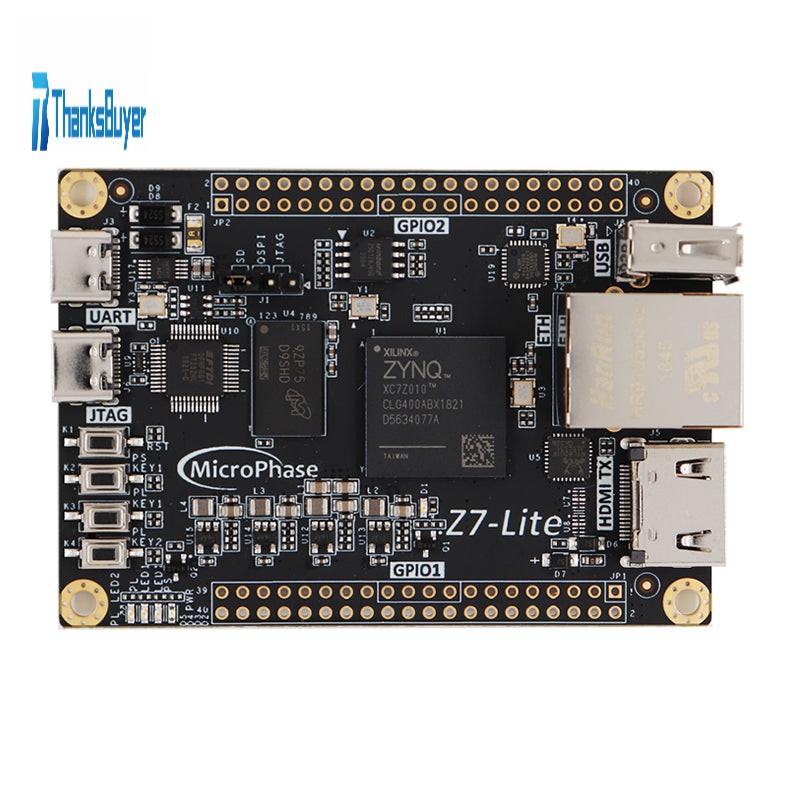

MicroPhase Z7-Lite 7010 Board FPGA Development Board Core Board for ZYNQ 7010 Running Ubuntu Debian

MicroPhase Z7-Lite 7010 Board FPGA Development Board Core Board for ZYNQ 7010 Running Ubuntu Debian

Features:
- High quality and cost-effective SoC development board
- Z7-Lite starter kit for makers and beginners
- Board size 80 x 56mm/3.1 x 2.2"
- For running Ubuntu/Debian
- Open-source materials

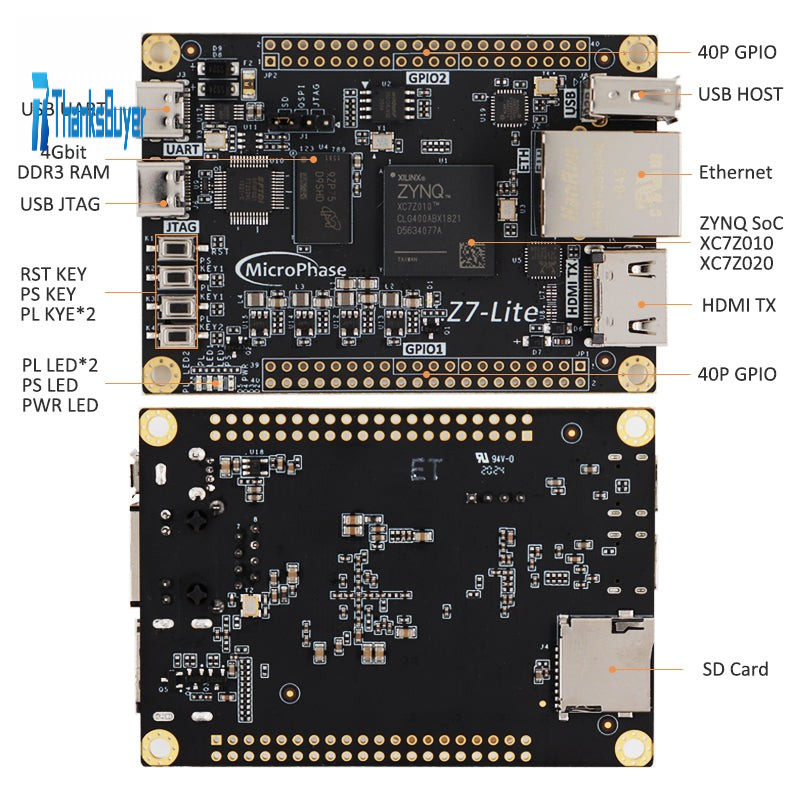

Specifications:
- Module model: Z7-Lite 7010
- Main chip: XC7Z010CLG400-1
- Core: Dual core for Cortex-A9, main frequency 667MHz
- Logic Unit: 28k
- DDR3: 4Gbit, 1066Mbps
- USB-JTAG: Onboard USB JTAG circuit. You can download programs and emulation online without additional downloader
- QSPI Flash: 128Mbit. Can be used to store system boot image file (for ZYNQ) and user data
- HDMI: One HDMI to send. Can also be configured to accept HDMI
- Ethernet: One 10/100 adaptive Ethernet, which can be used for network communication and related applications
- USB Host: One USB Host
- SD Card: Support one SD card to store system boot image file (for ZYNQ) and file system
- USB-UART: One USB UART interface for ZYNQ and PC communication
- Clock: PS side: one-way 33.3333MHz; PL side: one-way 50MHz
- Button/LED: PS side: 1 LED and 1 button; PL: side 2 LED and 2 buttons
- Expansion port: 2-way 40-pin 2.54 pitch expansion port, 72 IO, 3.3V

Package Included:
- 1 x Development Board
- 1 x Type-C Data Cable

Note:
- SD card is not included.
