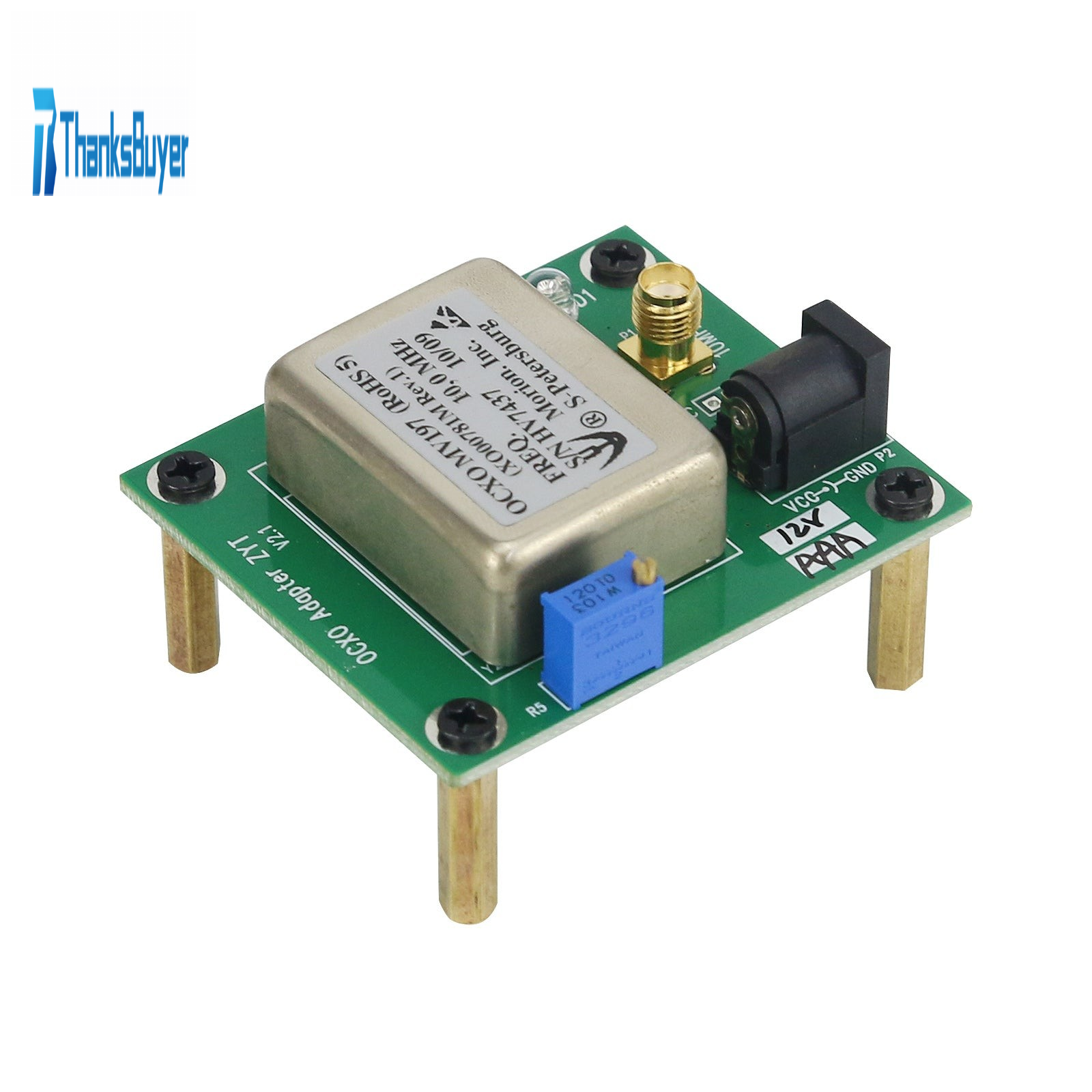

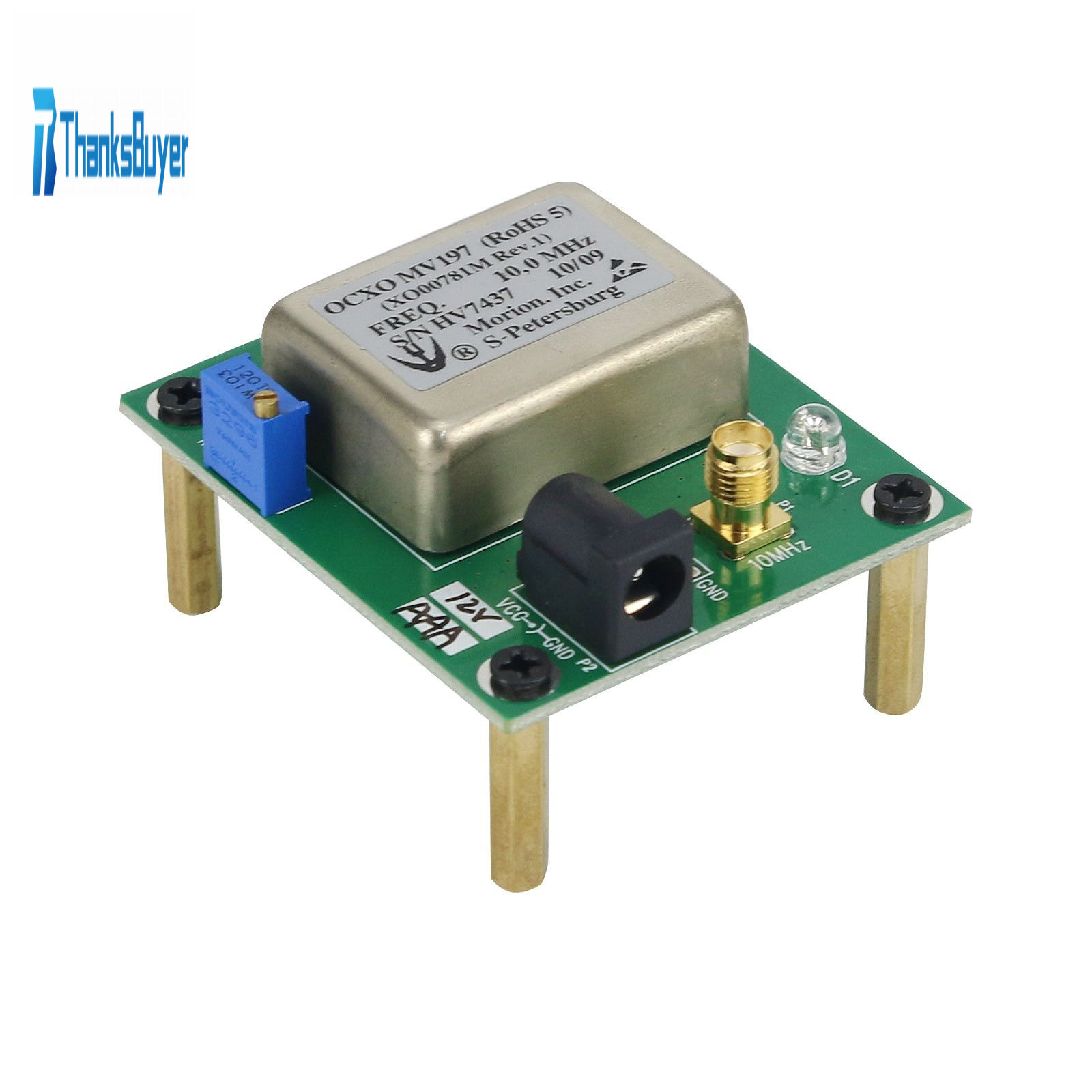

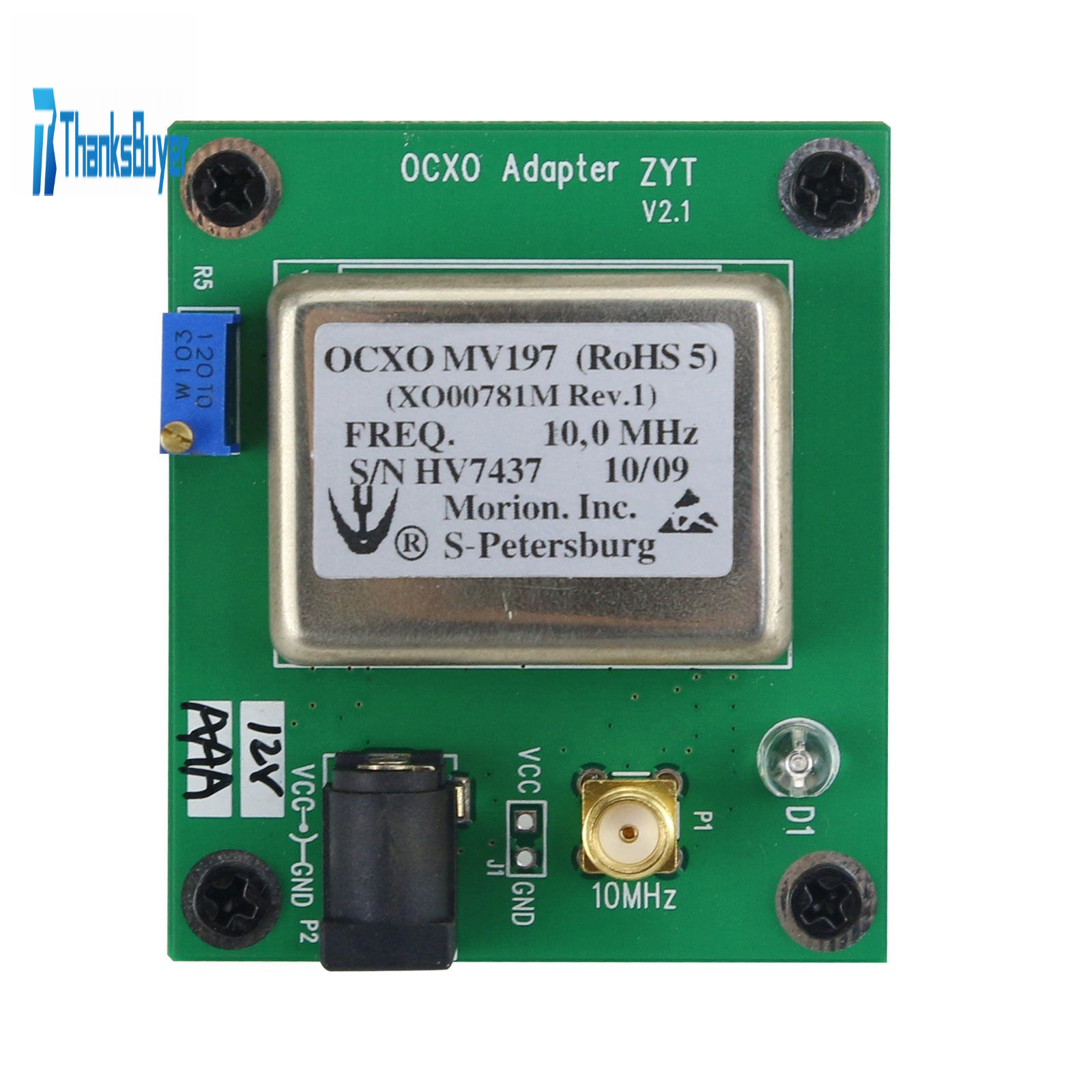

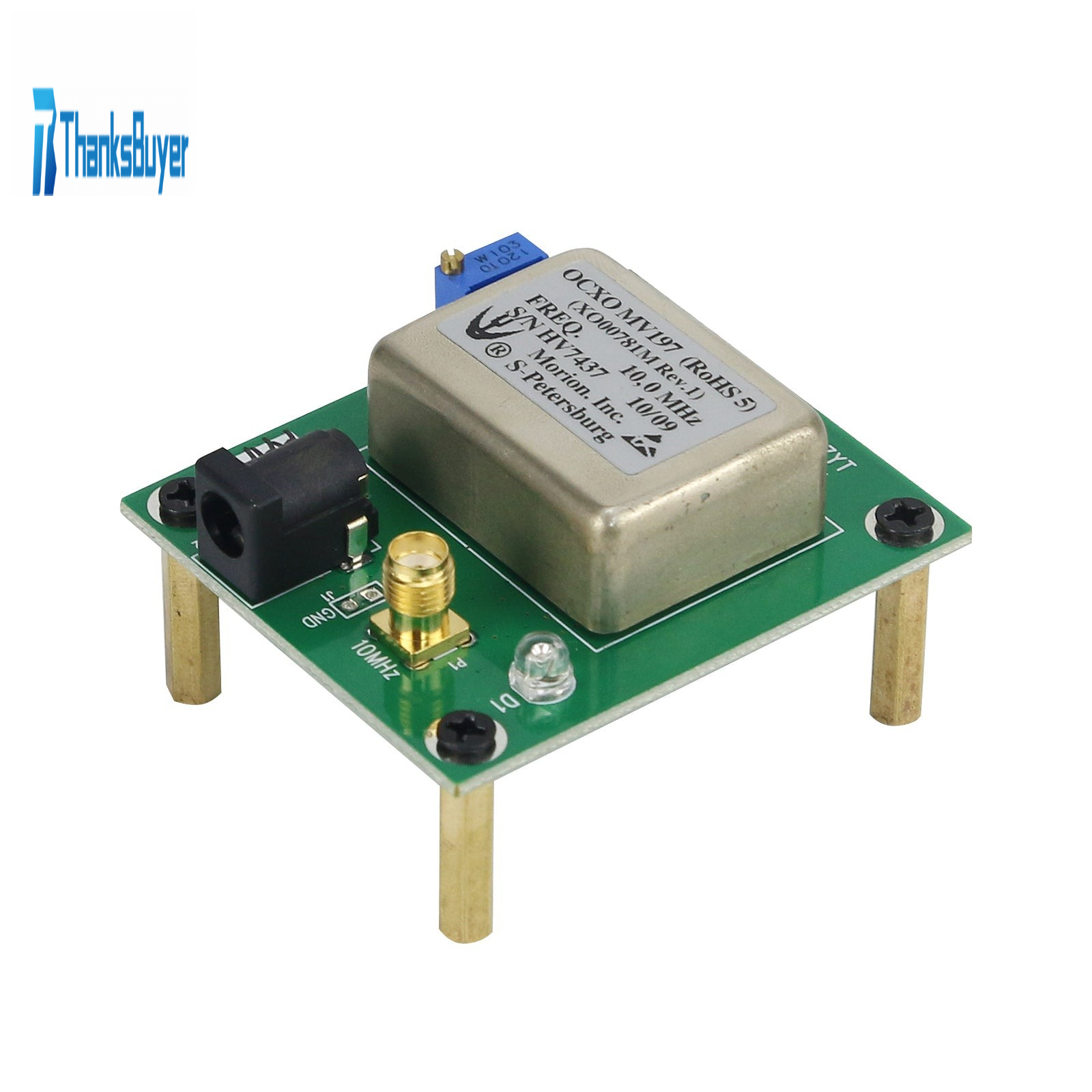

MV197 10MHz OCXO Adapter Frequency Standard Frequency Reference Low Phase Noise 12V Square Wave

MV197 10MHz OCXO Adapter Frequency Standard Frequency Reference Low Phase Noise 12V Square Wave

Description:
OCXO is shipped after 10 days of power-on aging. Its accuracy has been adjusted to ±1mHz=0.0001ppm, and 53220A for Agilent is used to detect its accuracy. The reference standard is an atomic clock calibrated by a GPSDO.

MV197 is a high-stability OCXO. After 5 minutes of power-on, its accuracy can reach 1x10-8=0.01ppm. After 30 minutes of power-on, its accuracy can reach 1x10-9=0.001ppm. Power supply DC12V<1.5A with 5.5*2.1 power port and output port SMA-KE. Output 10MHz square wave and measured impedance 50 ohms 2Vpp.

This version has a fine-tuned design. Its adjustment range is less than ±4Hz and the voltage control range is small. Compared to atomic clocks and GPSDO, the frequency standard has low phase noise and low noise. Its small size makes it easy to carry. Due to its high reliability, it can be used as a reliable reference source for frequency meters. Its short-term stability is excellent, its power consumption is small, and its speed is fast.

Package Included:
- 1 x OCXO Frequency Standard

Note:
- Second-hand OCXO is used. Please make sure that you don't mind before purchasing. Thank you!
