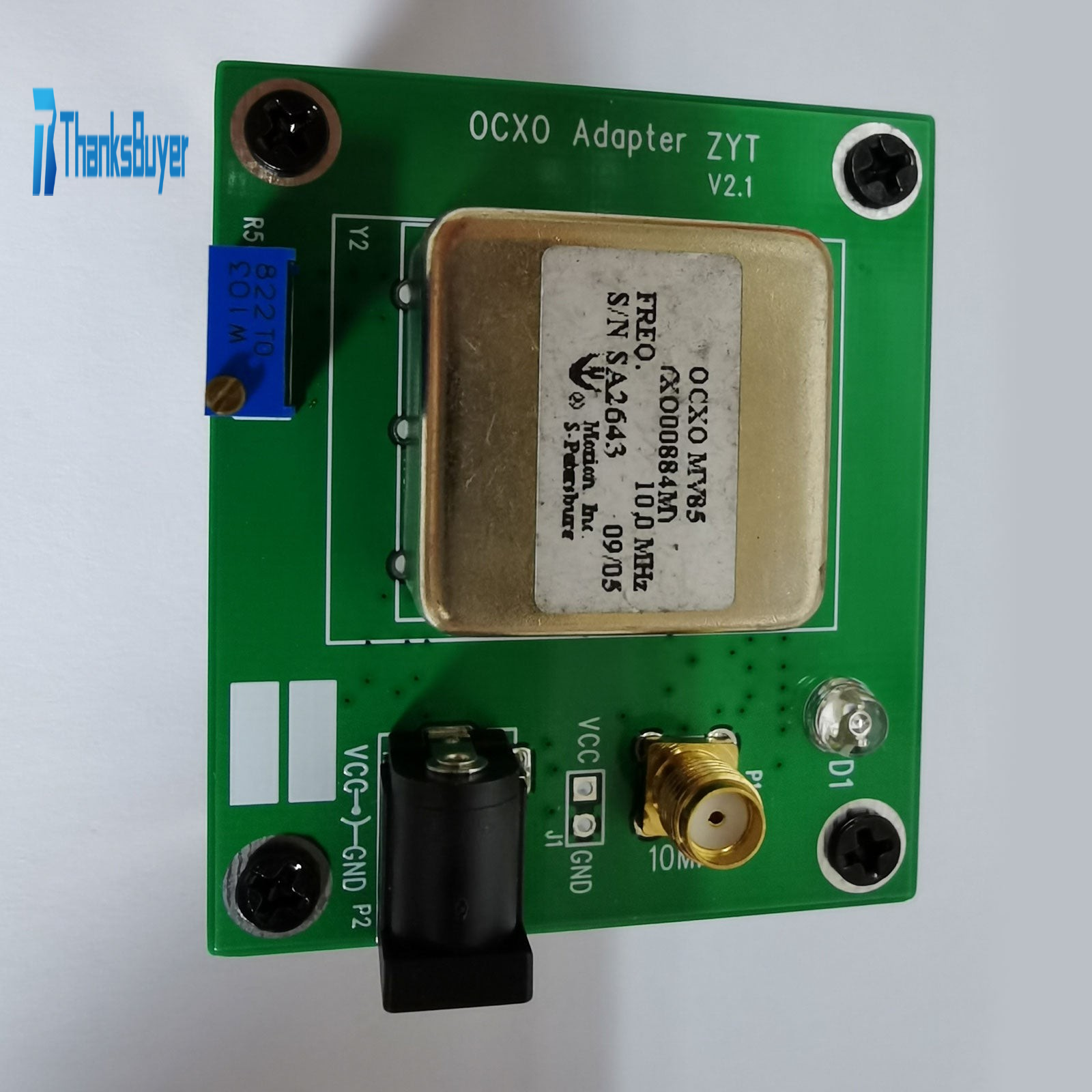

MV85 10MHz OCXO Frequency Standard Oven Controlled Crystal Oscillator Low Phase Noise 5V Sine Wave

MV85 10MHz OCXO Frequency Standard Oven Controlled Crystal Oscillator Low Phase Noise 5V Sine Wave

Description:
It is a high-precision OCXO. And it is shipped after 7 days of power-on aging. Its accuracy has been adjusted to ±0.001Hz. 53220A for Agilent is used to detect its accuracy, using an atomic clock (reference standard) calibrated by a GPSDO.

Power supply DC5V ≈500mA, 5.5*2.1 power port and output port SMA-KE.

Daily aging data: seven-day average 10E-9; after seven days, the daily aging is 5*10-9.

After 5 minutes of power-on, its accuracy can reach 0.1ppm; after 15 minutes, it can reach 0.01ppm; after 1 hour, it can reach 0.001ppm.

Output 10MHz sine wave, +7±2 dBm and measured impedance 50 ohms.

The frequency standard boasts low phase noise, low noise, and reliable performance. Its small size makes it easy to carry. Therefore, it is a reliable reference source for frequency meters.

Featuring excellent short-term stability and low power consumption, it is stable and fast. Placing it in a metal box can significantly improve its temperature drift.

Package Included:
- 1 x OCXO Frequency Standard
