Available Kit Options:
* Development Board Only
* ADDA Kit
* Binocular Camera Kit
* LCD Kit
* SSD Kit
* USB 3.0 Kit
* High-Speed ADC Kit
* Classic Kit
* Deluxe Kit
* Flagship Bundle

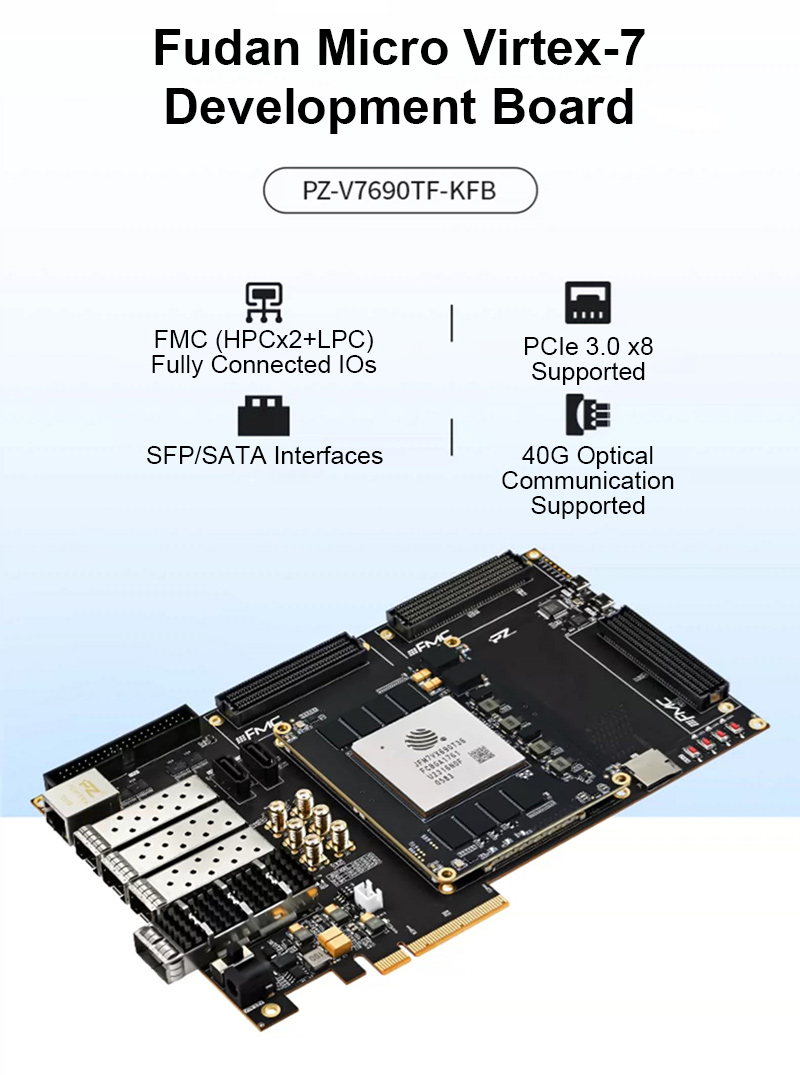

Features:
* Fudan Micro Virtex-7 Development Board
* FMC (HPCx2+LPC)
* PCIe 3.0 x8 Supported
* SFP/SATA Interface
* 40G Optical Communication Supported
* Integrated Downloader

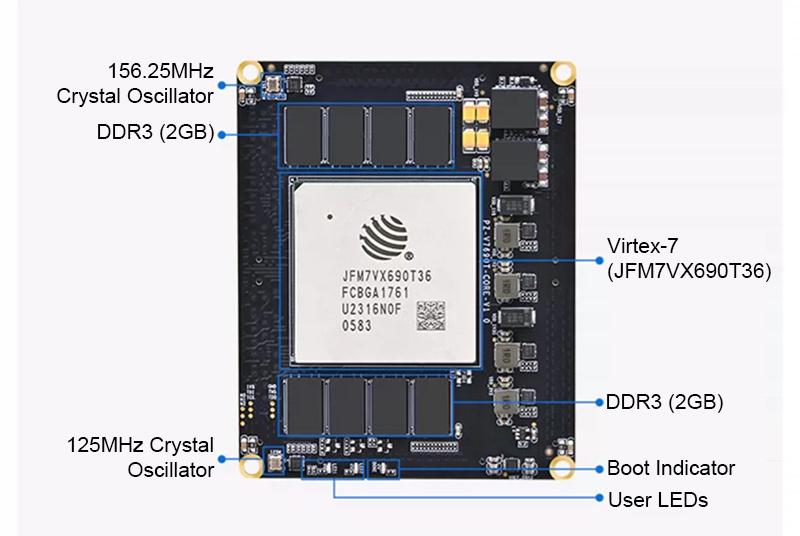

Development Board Parameters:

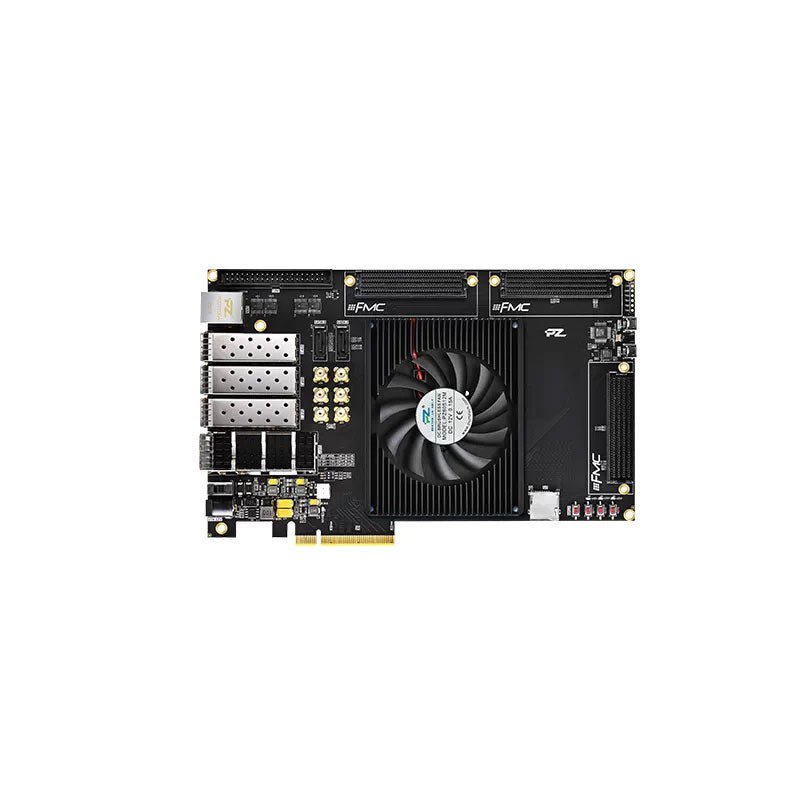

* Development Board: PZ-V7690TF-KFB
* Main Controller: JFM7VX690T36
* Speed Grade: Grade 2
* Temperature Grade: Industrial Grade (-40°C to 85°C)
* Logic Cells: 693k
* Slices: 108300
* Flip-Flops: 866400
* DSP Slices: 3600
* TOTAL BLOCK RAM: 52920
* DDR3: 2GB/64bit + 2GB/64bit
* Boot Mode: JTAG/QSPI/BPI, selected via DIP switch
* User LED: 2 Channels
* GTH Quantity: 36 Pairs TX/RX
* IO Quantity: 528 single-ended/264 pairs differential (1.2/1.8V adjustable, default 1.8V)
* Crystal Oscillator: 1 differential 200MHz crystal oscillator for FPGA, 1 differential 125MHz crystal oscillator for GT transceiver reference clock, and 1 differential 156.25MHz crystal oscillator for GT transceiver reference clock
* Core Board Size: 100mm x 80mm

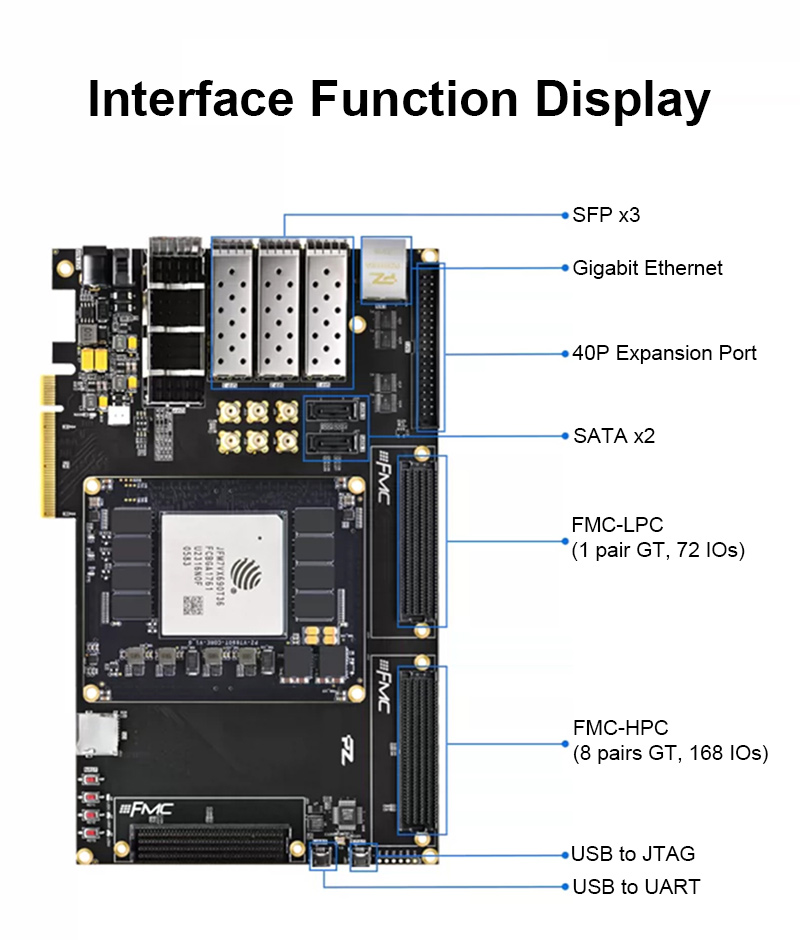

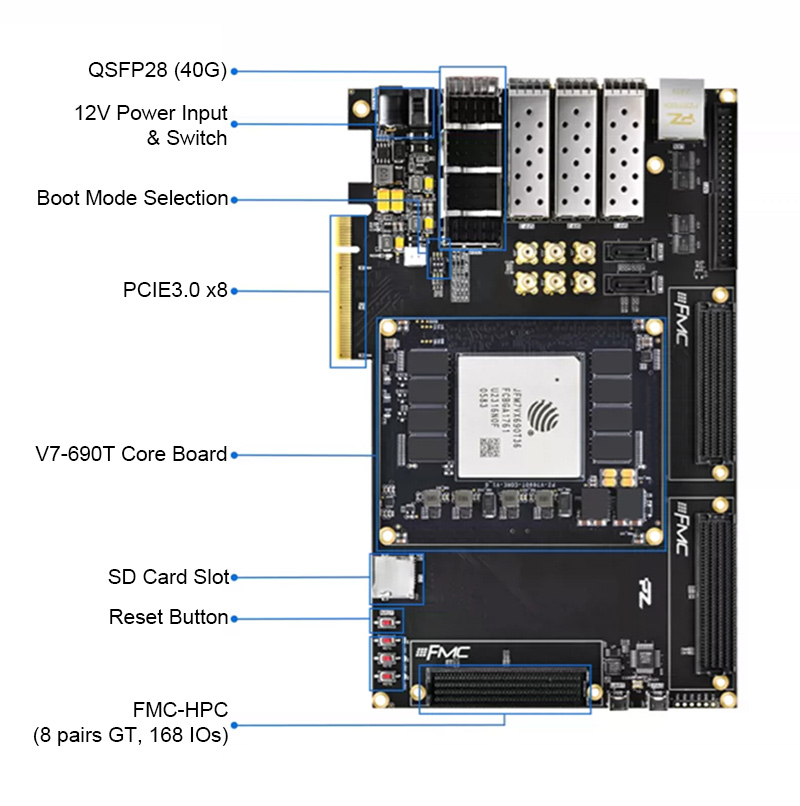

Interfaces and Functions:
* Integrated JTAG Downloader: 1 Channel

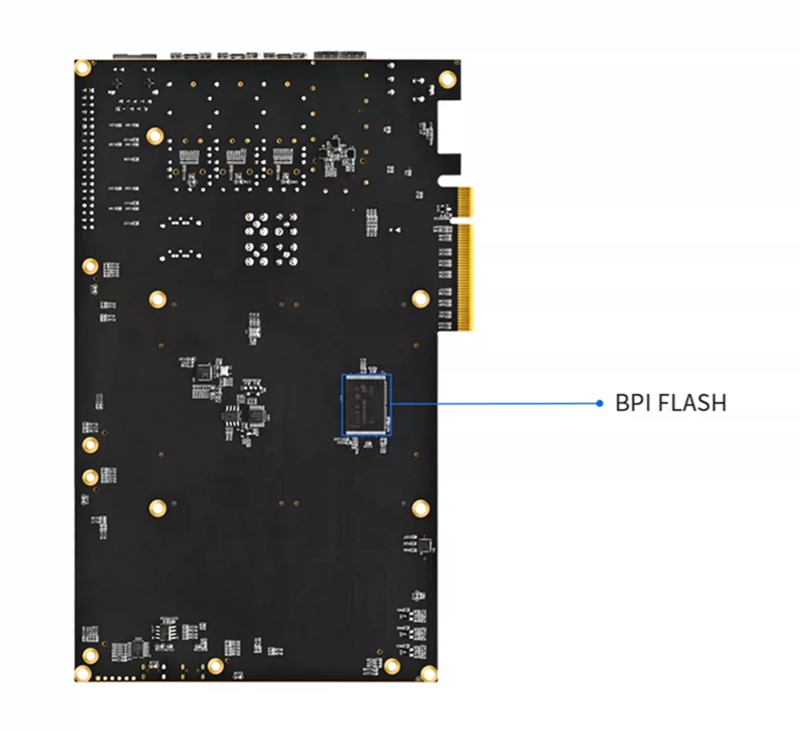

* Boot Mode: 1 Channel QSPI/1 Channel BPI (Selected via DIP Switch)
* UART: 1 Channel
* SD Card Interface: 1 Channel
* Gigabit Ethernet: 1 Channel
* LED, Buttons: 2 LEDs, 2 Buttons
* PCIE3.0: x8 Interface
* SFP: 3 Channels
* QSFP28: 1 Channel (40G)
* FMC Interface: 2 HPC Types (8 pairs GT, 168 IOs) and LPC Type (1 pair GT, 72 IOs)
* Power Supply/Current: 12V/3A

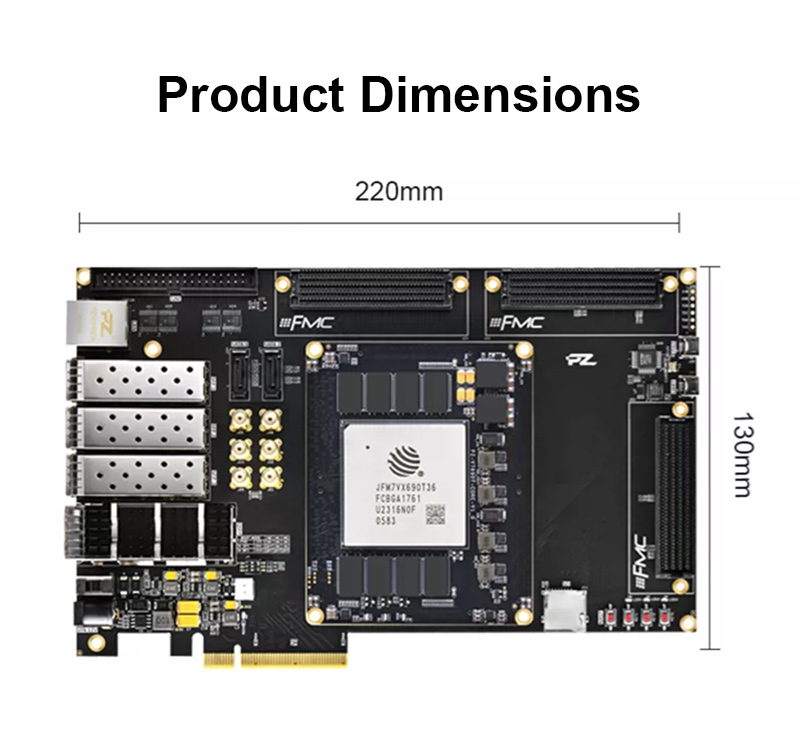

* Development Board Size: 220mm x 130mm
* Development Board Process: Matte Black, Immersion Gold
* 40P Expansion Port: Total 32 single-ended signals/16 pairs differential signals; 40P 2.54mm pitch expansion port for connecting various Puzhi modules (AD/DA, binocular camera, 4.3-inch TFT LCD screen, etc.); expansion port includes 1x 5V power supply, 1x 3.3V power supply, 6x GND, and 32x IO ports
Additional Information:
* Processor Architecture: FPGA
* Expansion Slot Types: MicroSD, PCIe, 40-Pin GPIO, and GPIO
* Typical Applications: Embedded Hardware, IoT, Energy & Environment, 51 MCU Learning, and Consumer Electronics
* Network Interfaces: UART, I/O, and Gigabit Ethernet (1Gbps)
* Expansion Module Compatibility: Universal Platform Compatibility
* Operating System Support: None
Packing List (Varies by Selected Kit):
Development Board Only:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
ADDA Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
* 1 x 32G SD Card
* 1 x SD Card Reader

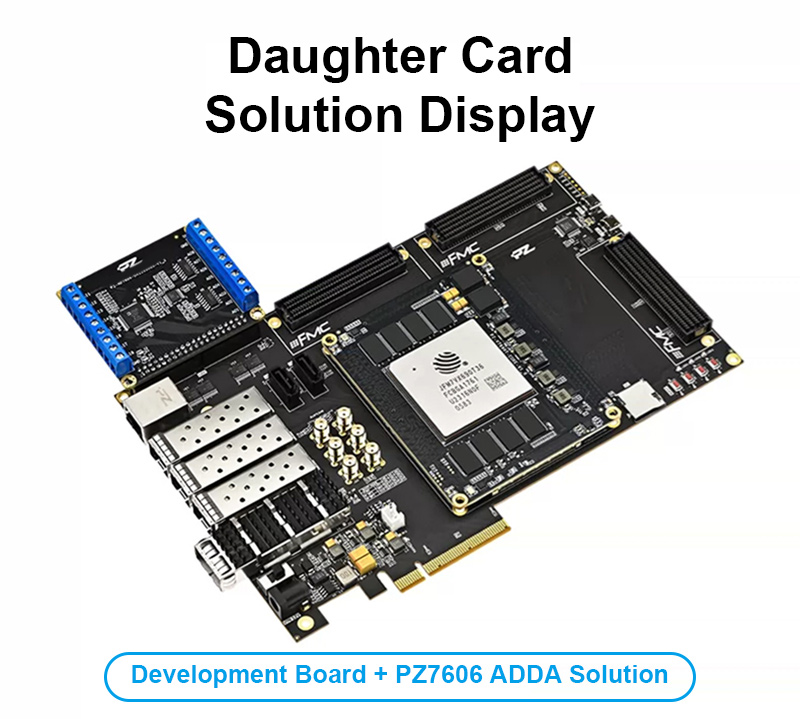

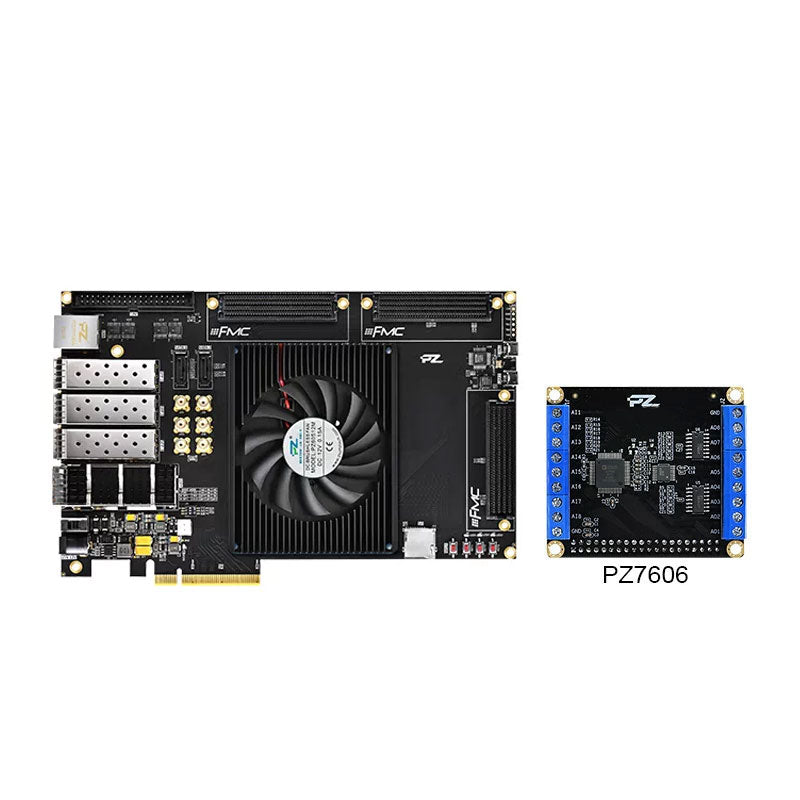

* 1 x PZ7606 AD7606 8CH 200KSPS ADC Module

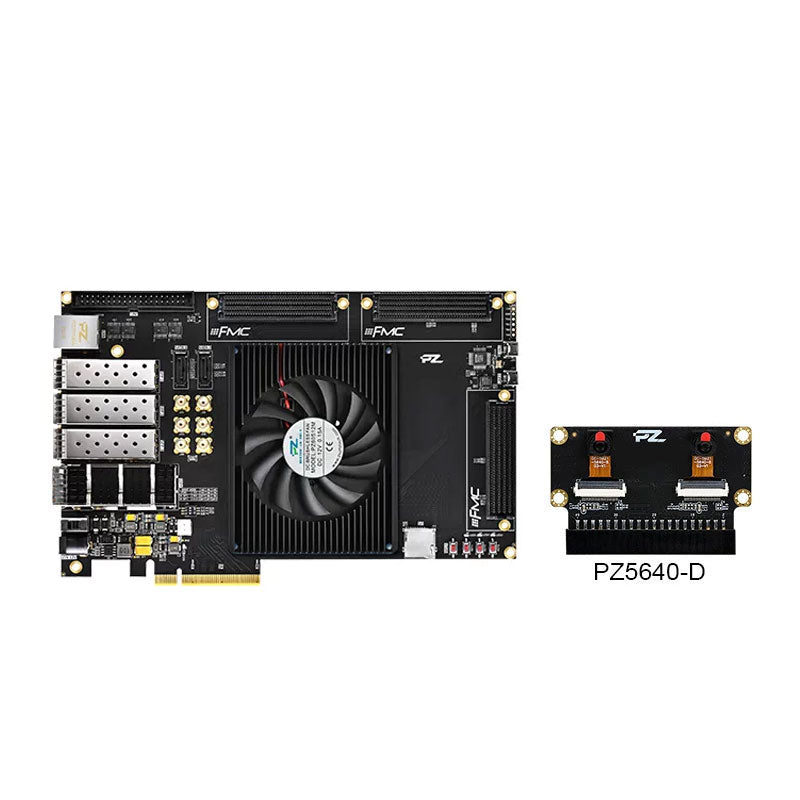

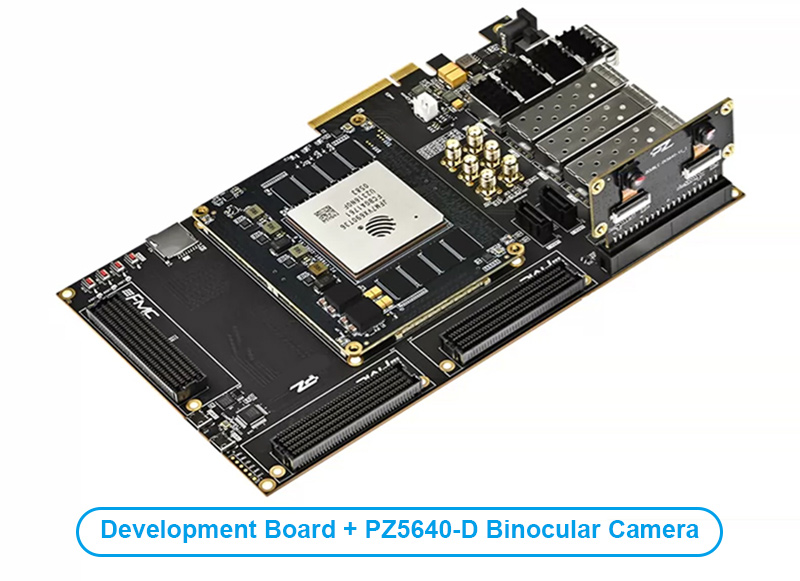

Binocular Camera Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x PZ5640-D OV5640 5MP Binocular Camera
LCD Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
* 1 x 32G SD Card
* 1 x SD Card Reader

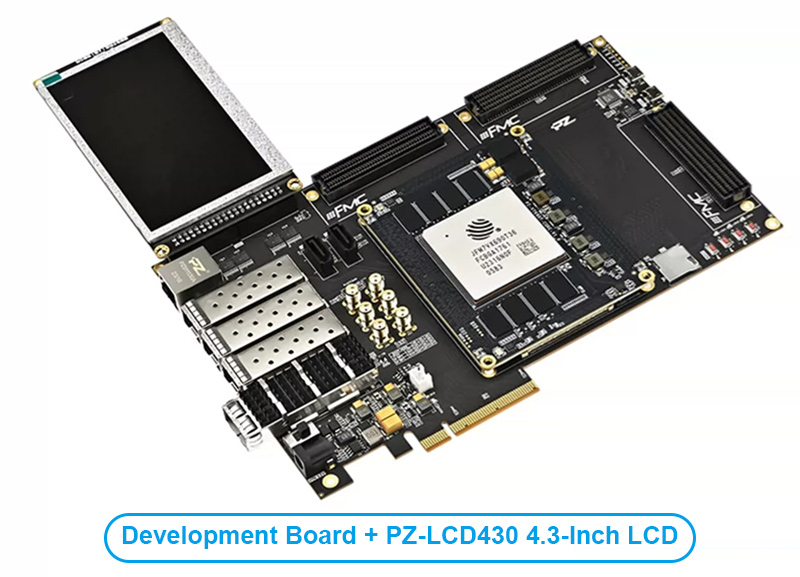

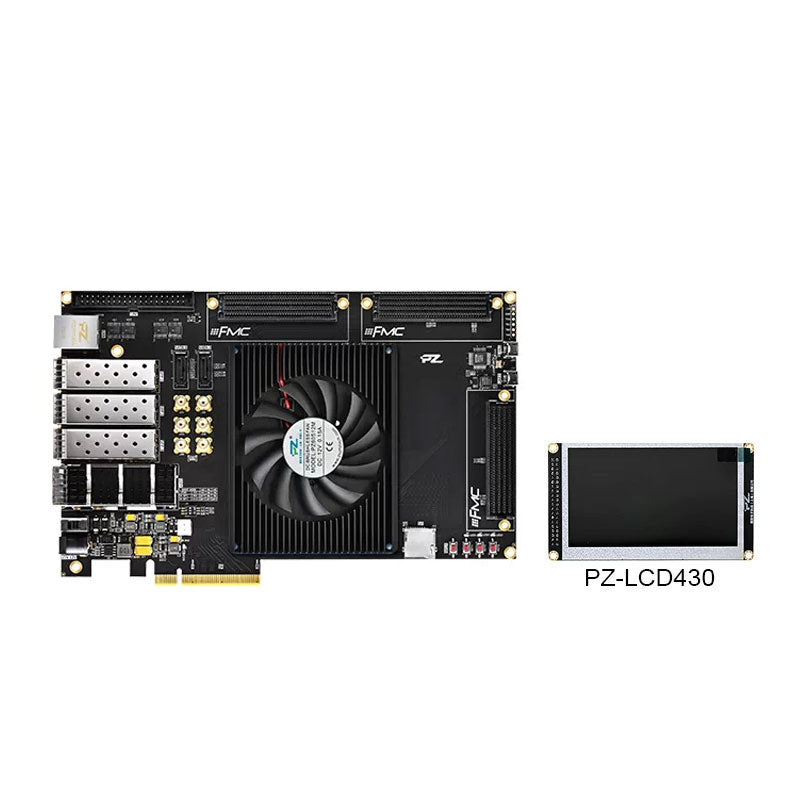

* 1 x PZ-LCD430 4.3-Inch TFT LCD Display

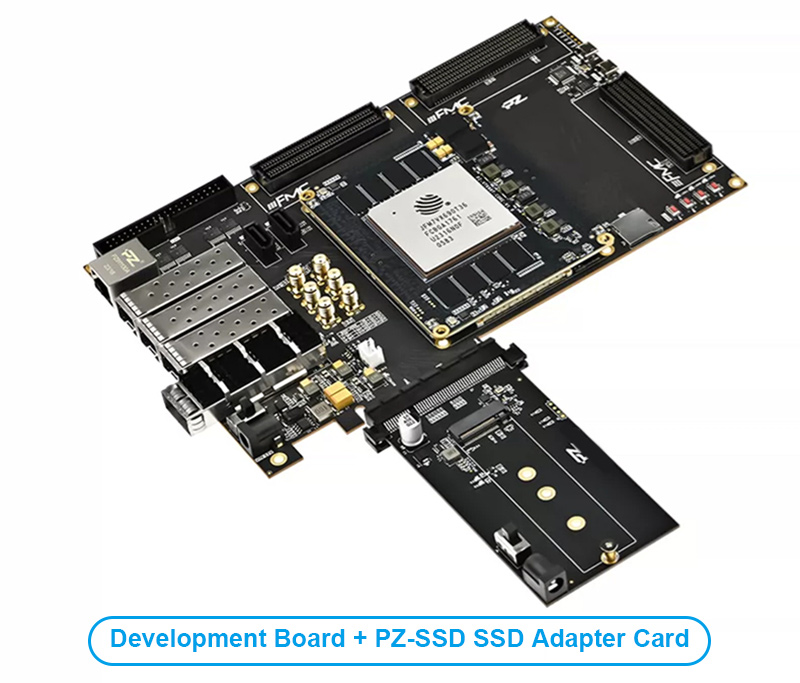

SSD Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
* 1 x 32G SD Card
* 1 x SD Card Reader

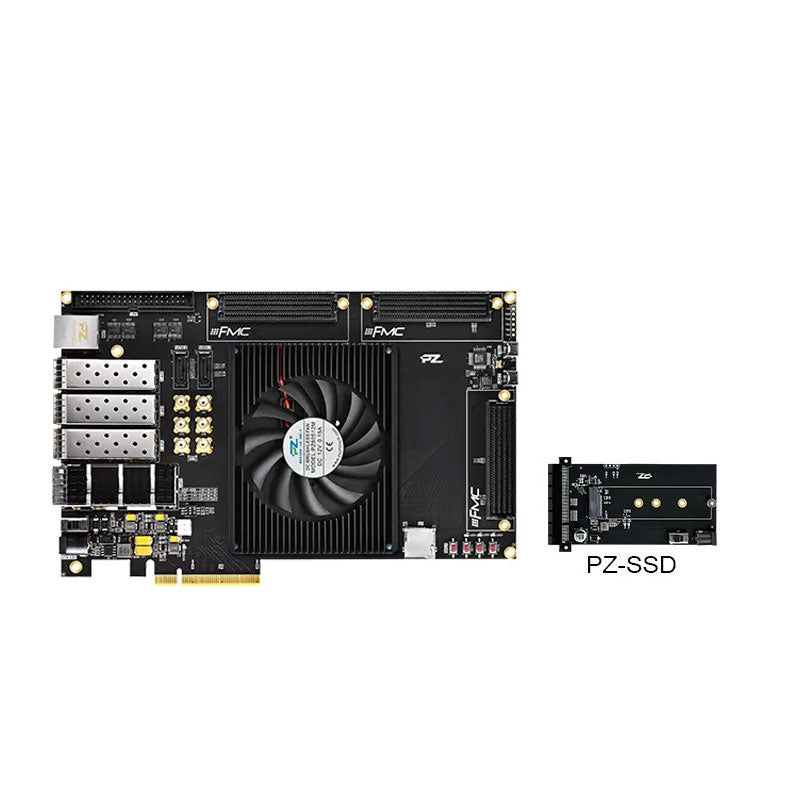

* 1 x PZ-SSD M.2 NVMe SSD Adapter Card

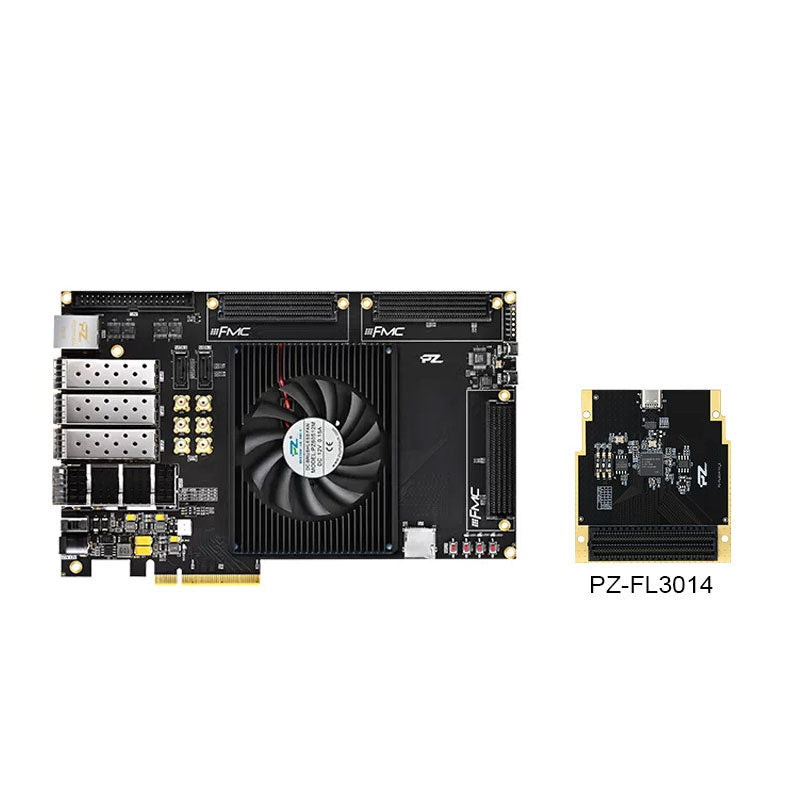

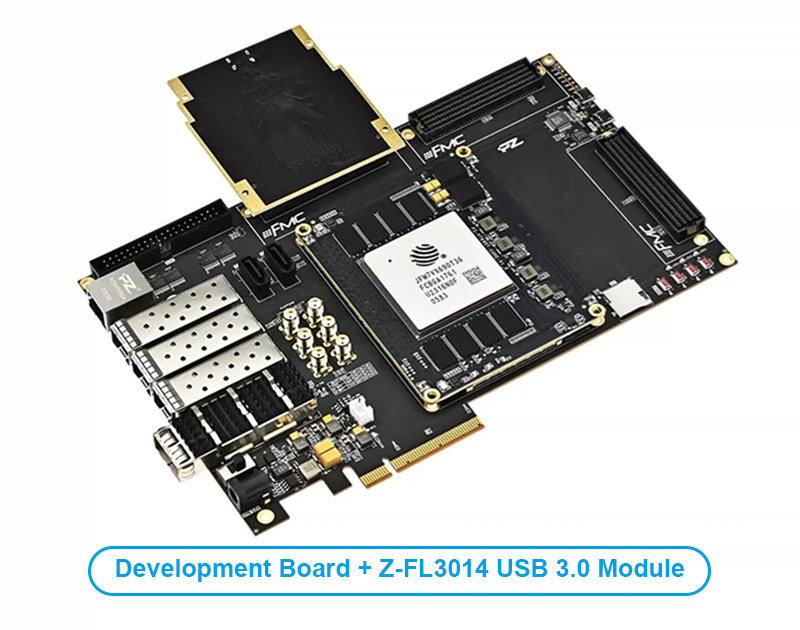

USB 3.0 Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x PZ-FL3014 CYUSB3014 USB 3.0 FPGA FMC Module

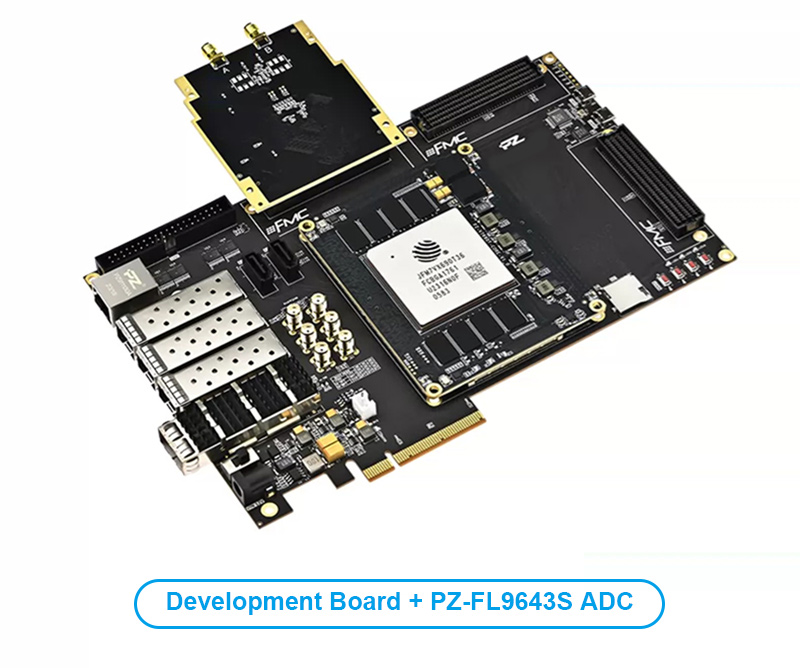

High-Speed ADC Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
* 1 x 32G SD Card
* 1 x SD Card Reader

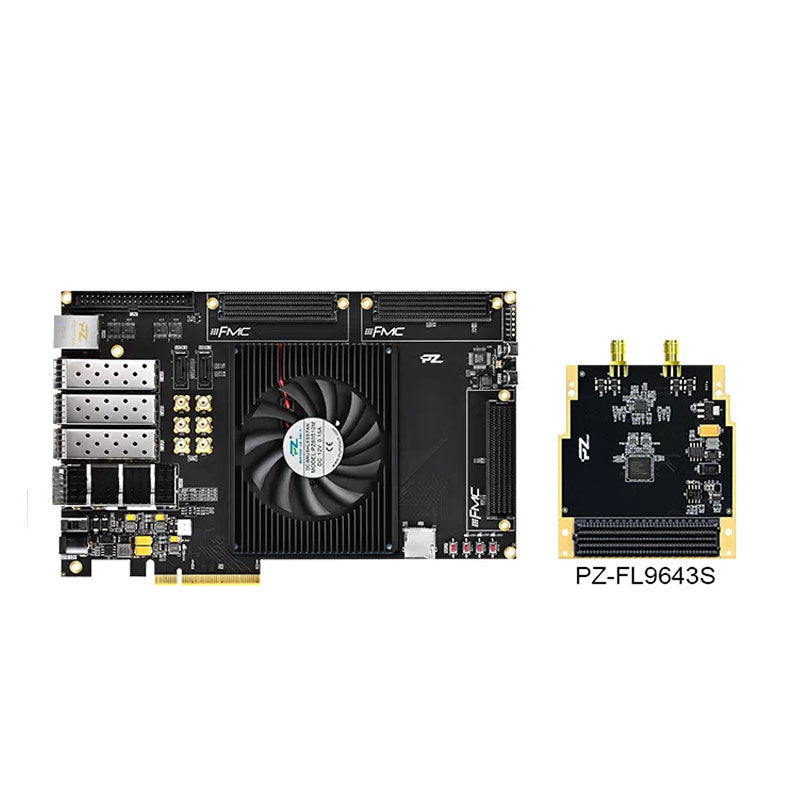

* 1 x PZ-FL9643S AD9643 2CH 250MSPS ADC

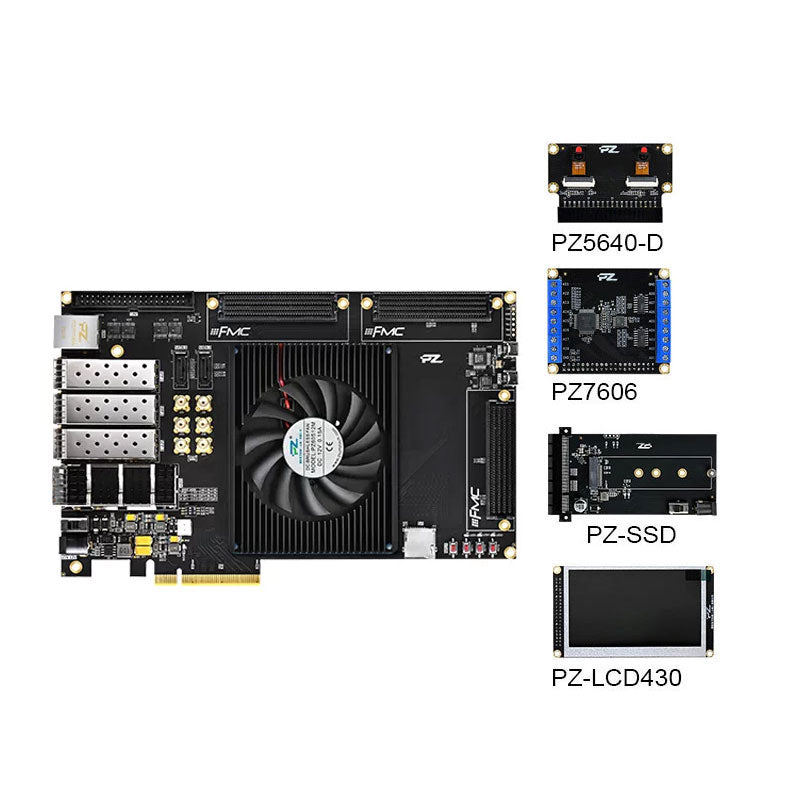

Classic Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x PZ5640-D OV5640 5MP Binocular Camera
* 1 x PZ7606 AD7606 8CH 200KSPS ADC Module
* 1 x PZ-SSD M.2 NVMe SSD Adapter Card
* 1 x PZ-LCD430 4.3-Inch TFT LCD Display
Deluxe Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x PZ5640-D OV5640 5MP Binocular Camera
* 1 x PZ7606 AD7606 8CH 200KSPS ADC Module
* 1 x PZ-FL3014 CYUSB3014 USB 3.0 FPGA FMC Module
* 1 x PZ-SSD M.2 NVMe SSD Adapter Card
* 1 x PZ-LCD430 4.3-Inch TFT LCD Display

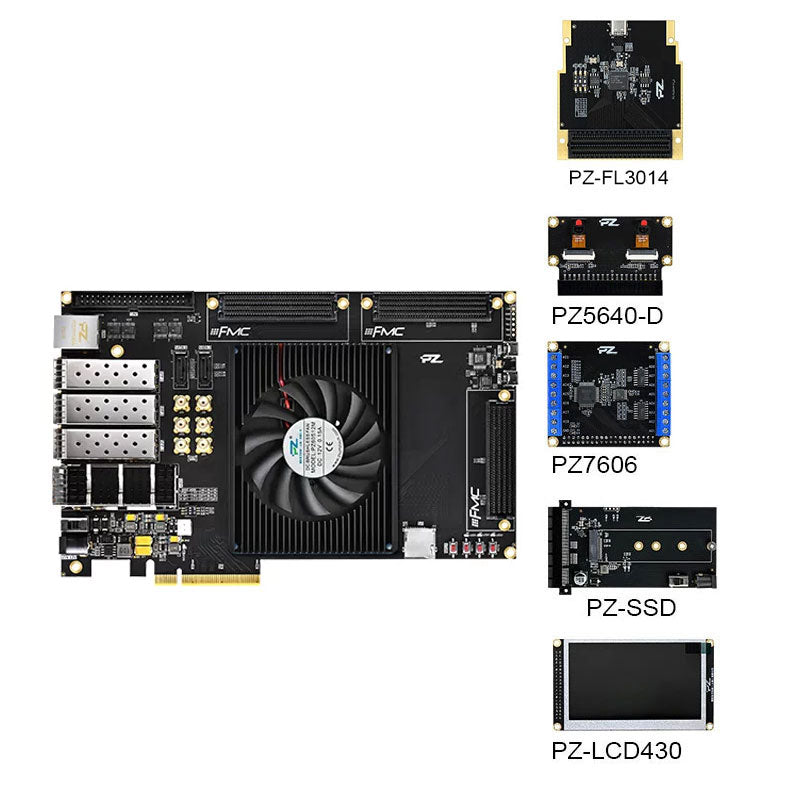

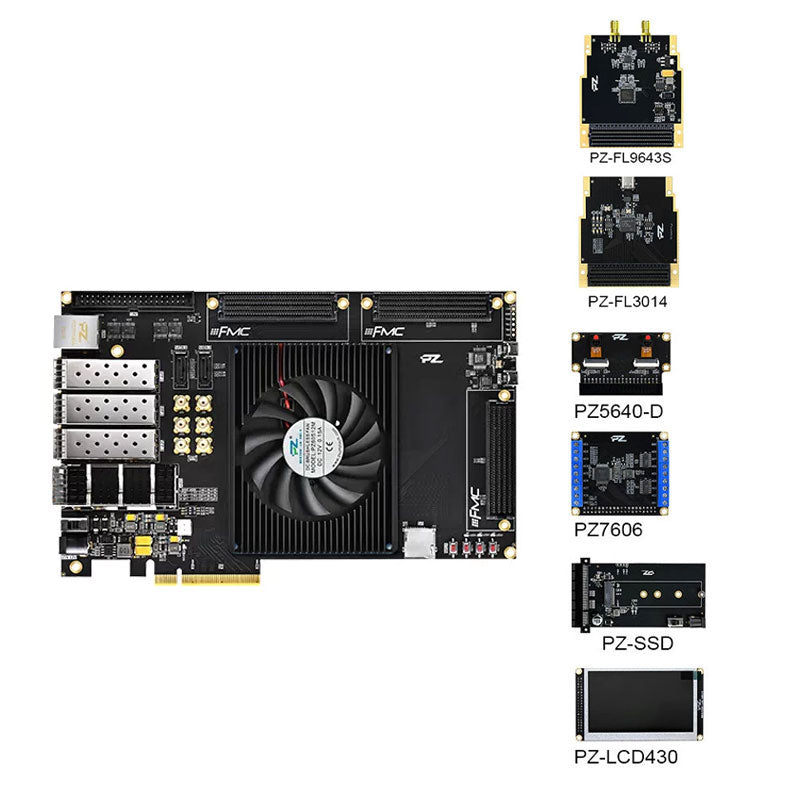

Flagship Bundle:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x PZ-FL9643S AD9643 2CH 250MSPS ADC
* 1 x PZ-FL3014 CYUSB3014 USB 3.0 FPGA FMC Module
* 1 x PZ5640-D OV5640 5MP Binocular Camera
* 1 x PZ7606 AD7606 8CH 200KSPS ADC Module
* 1 x PZ-SSD M.2 NVMe SSD Adapter Card
* 1 x PZ-LCD430 4.3-Inch TFT LCD Display
Package Weight (Varies by Selected Kit):
* Development Board Only: 0.9kg
* ADDA Kit: 1kg
* Binocular Camera Kit: 1kg
* LCD Kit: 1kg
* SSD Kit: 1kg
* USB 3.0 Kit: 1kg
* High-Speed ADC Kit: 1kg
* Classic Kit: 1.2kg
* Deluxe Kit: 1.2kg
* Flagship Bundle: 1.3kg

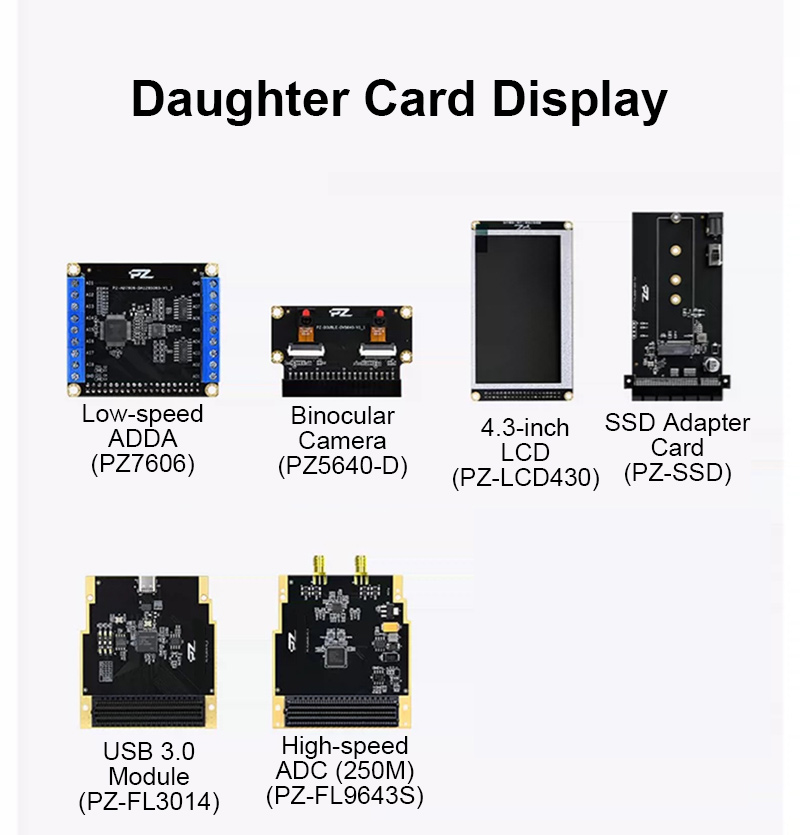

Click to Learn More about the Optional Daughter Cards:
