Available Configurations:

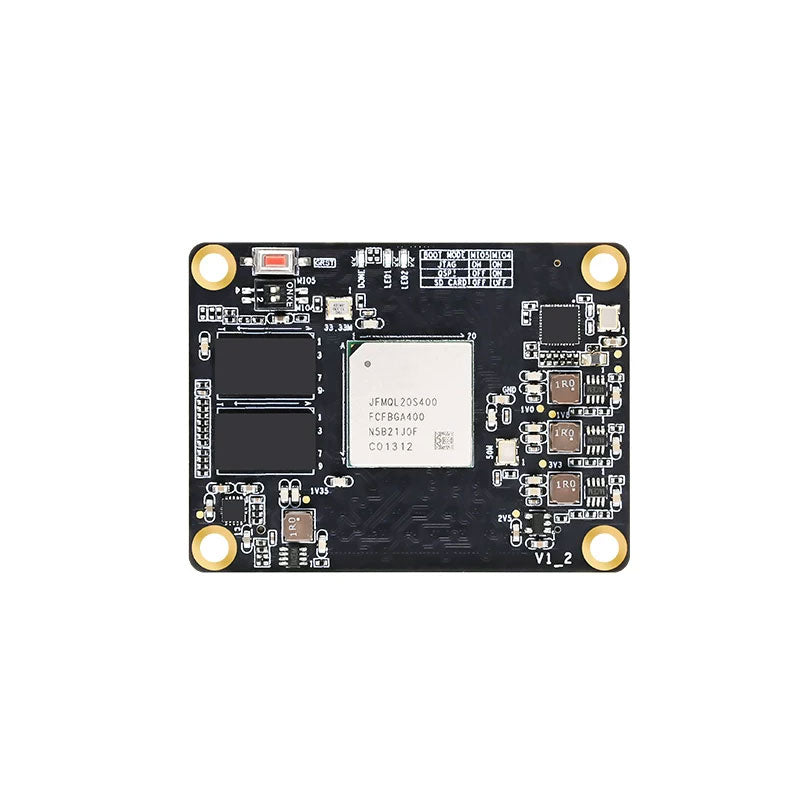

* Core Board Only
* Core Board + Heatsink

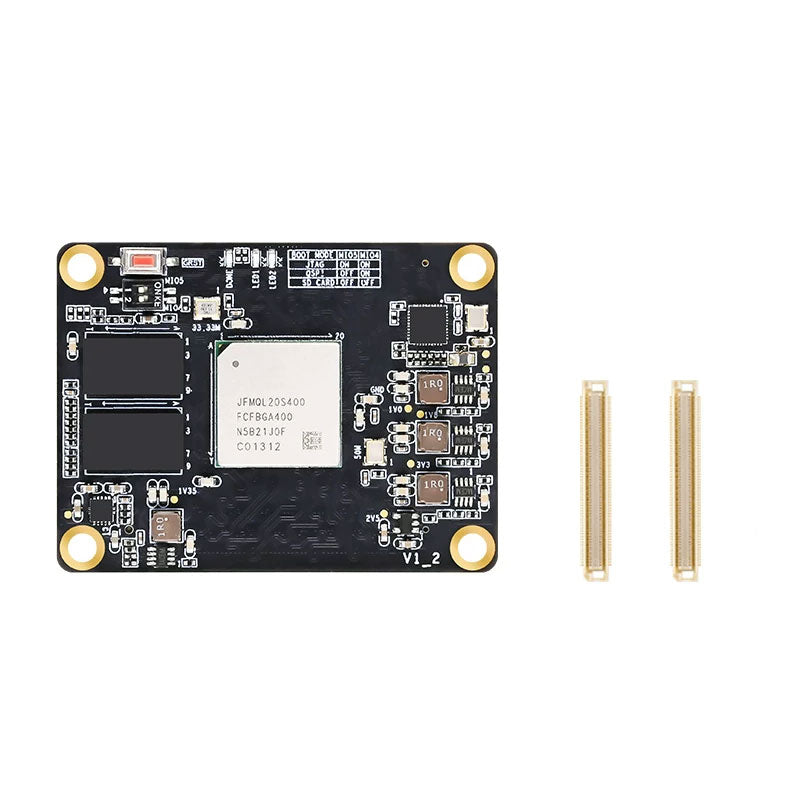

* Core Board + Connector
* Core Board + Downloader

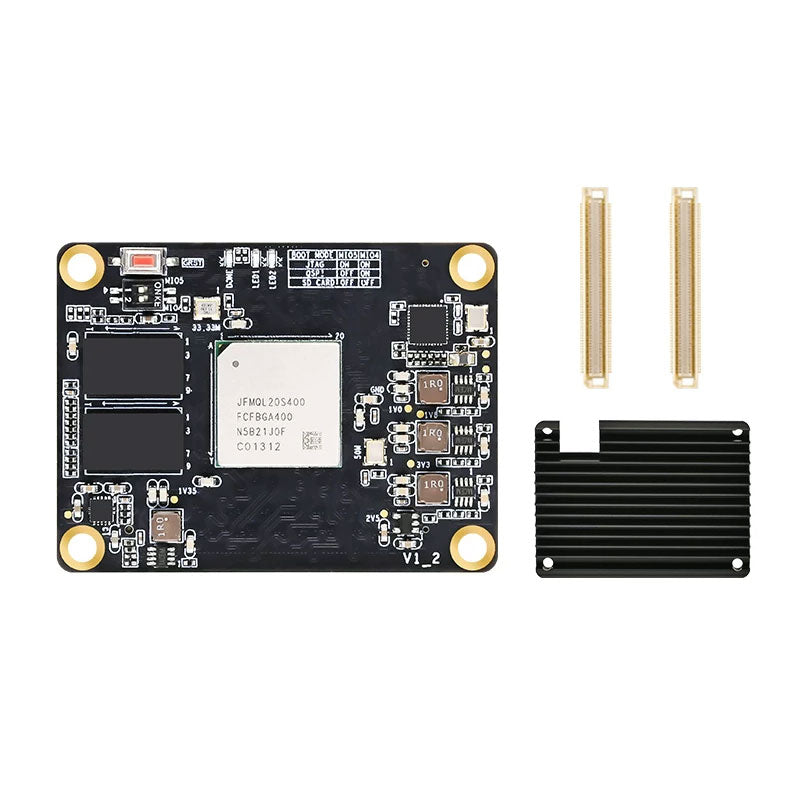

* Core Board + Heatsink + Connector

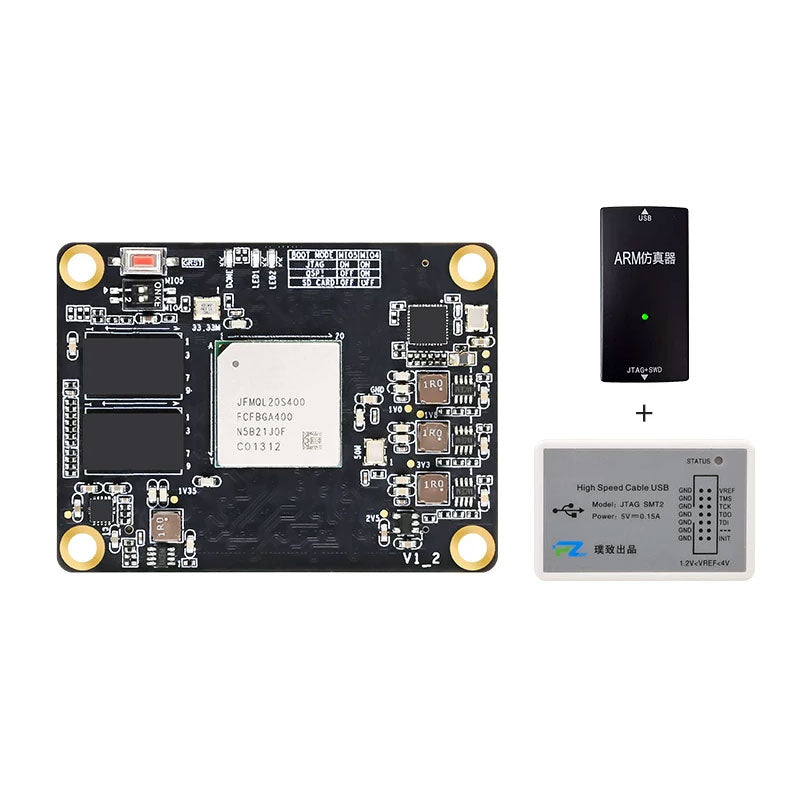

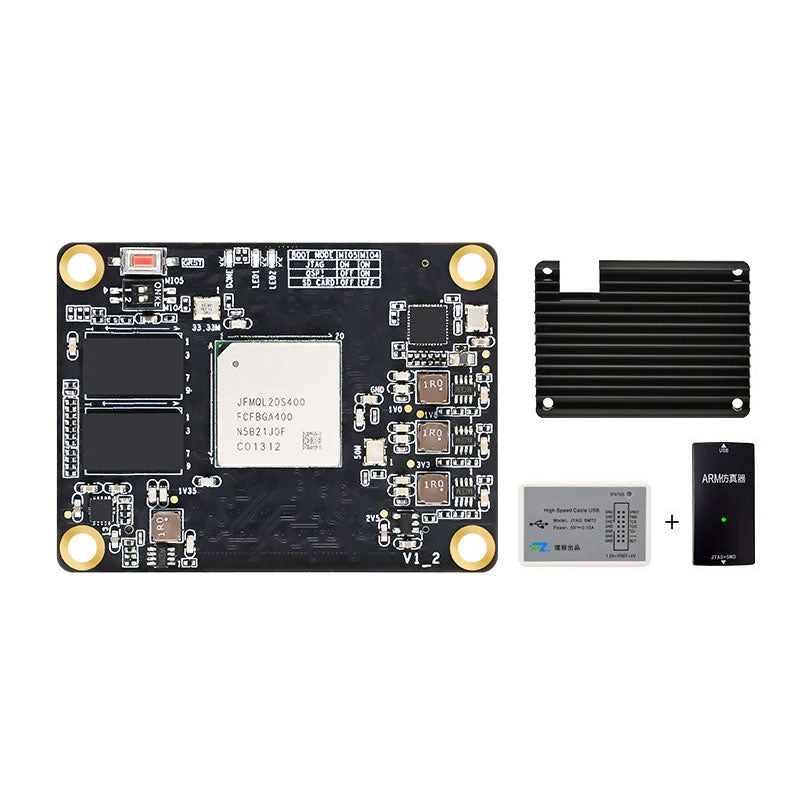

* Core Board + Heatsink + Downloader
* Core Board + Connector + Downloader

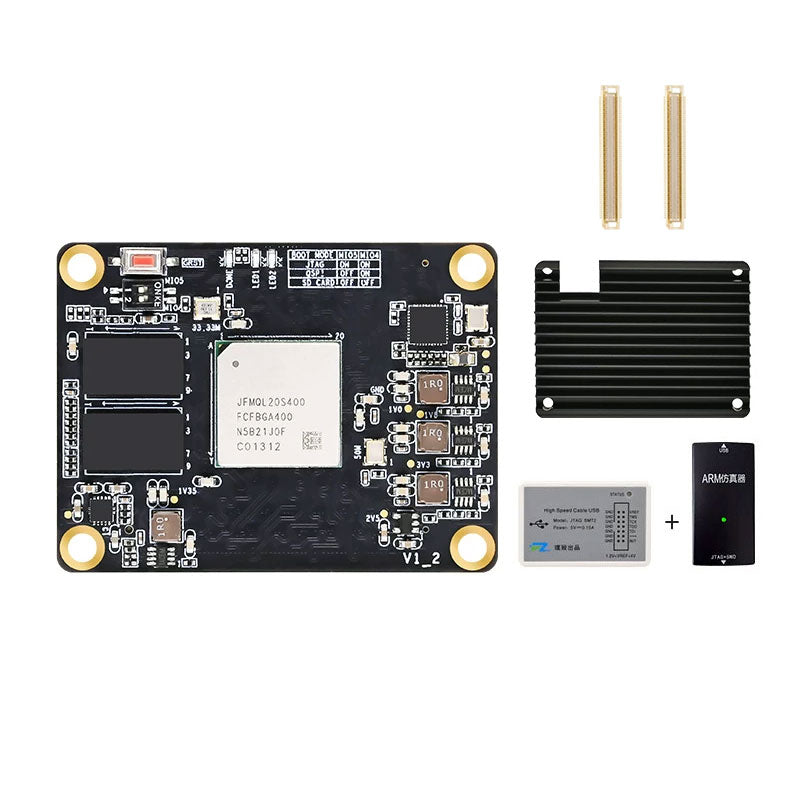

* Core Board + Heatsink + Connector + Downloader
Features:

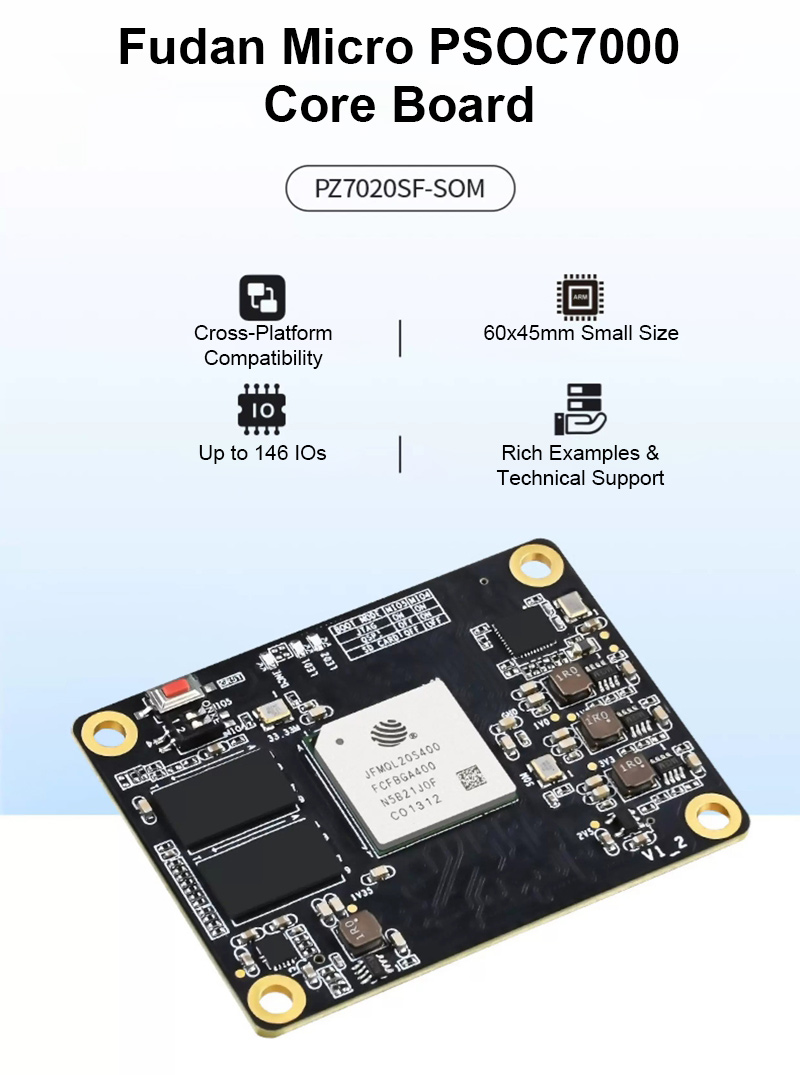

* Fudan Micro PSoC7000 Core Board
* Cross-Platform Compatibility
* Up to 146 I/O Interfaces
* 60mm x 45mm Compact Size
* Rich Examples & Technical Support
* 85K Logic Cells, 1GB DDR3, and 256Mb QSPI FLASH
* Passed Multiple International Certifications: ISO 9001 Certified and RoHS Compliant
* 72-Hour Rigorous High & Low Temperature Testing
* 10+ Years Extended Service Life
* Industrial Grade, Localization Rate up to 95%

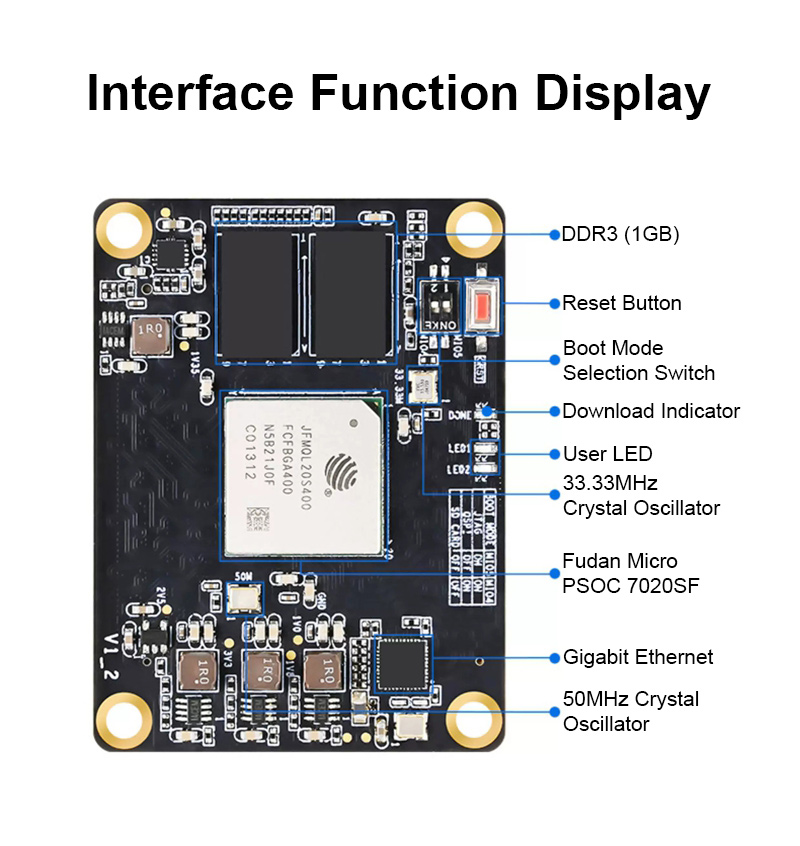

Specifications:
* Core Board: PZ7020SF-SOM
* Main Controller: JFMQL20S400
* CPU Core: Quad-core Cortex-A7 for ARM, Main Frequency 800MHz
* Speed Grade: Grade 2
* Temperature Grade: Industrial Grade (-40°C to 85°C)
* Logic Cells: 85K
* Look-up Tables (LUTs): 53200
* Flip-Flops: 106400
* DSP Slices: 220
* BLOCK RAM: 4.9Mb
* DDR3: 1GB
* QSPI FLASH: 256Mb
* PS-Side MIO: 30 PS Ports (24 fixed at 1.8V, 6 fixed at 3.3V)
* PL-Side IO: 116 Single-ended Ports (1.8/2.5/3.3V Adjustable, Default 3.3V)
* Gigabit Ethernet: 1 Channel
* User LED: 2 Channels
* PS-Side MIO: 30 PS Ports (24 fixed at 1.8V, 6 fixed at 3.3V)
* PL-Side IO: 116 Single-ended Ports (1.8/2.5/3.3V, 6 Fixed at 3.3V)
* Power Supply/Current: 5V/1A
* Crystal Oscillator: 1 Single-ended 33.3333MHz Crystal Oscillator for PS; 1 Single-ended 50MHz Crystal Oscillator for PL

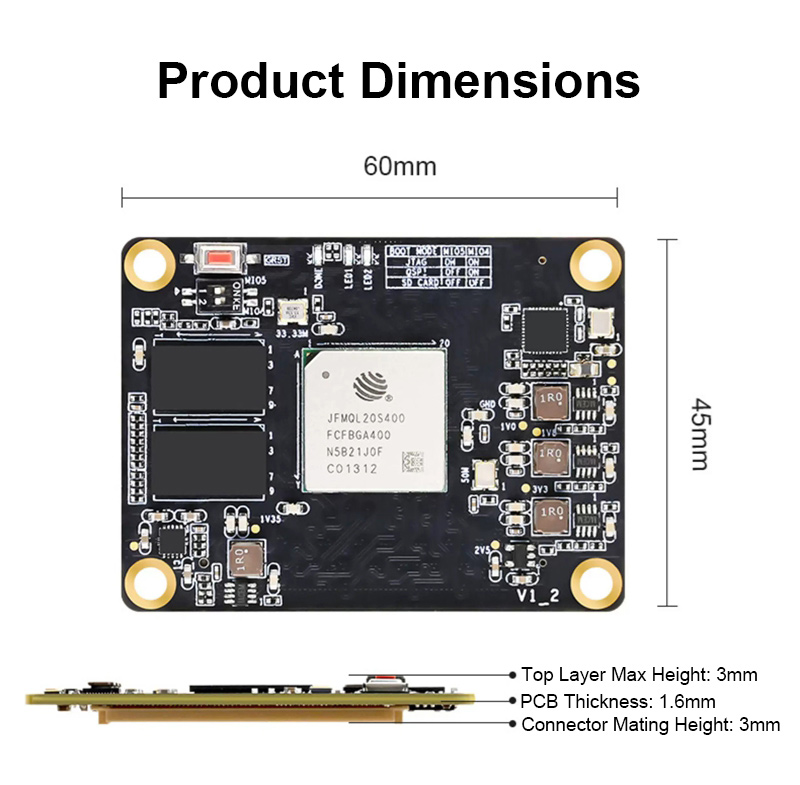

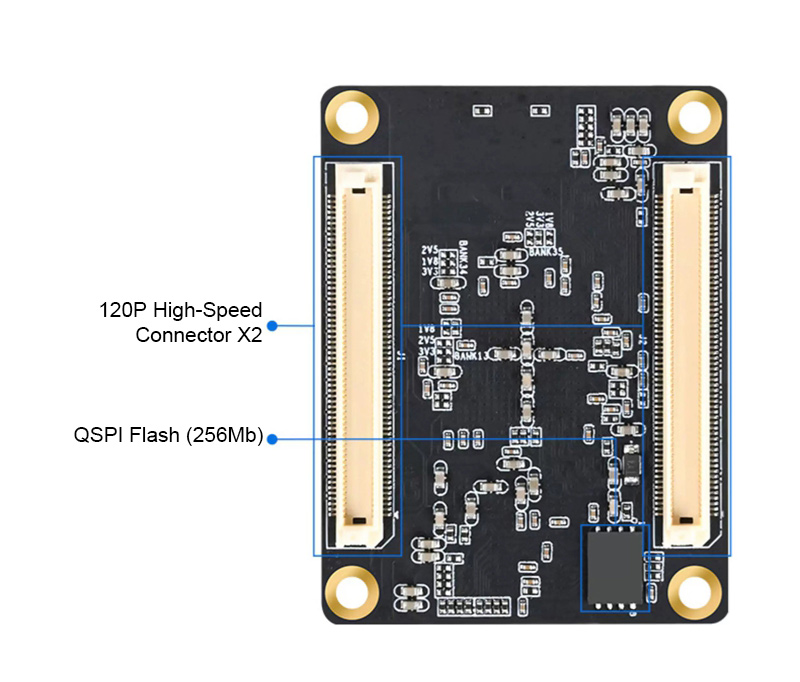

* Dimensions & Technology: 60x45mm, 0.6mm Pitch 120P High-speed Connector x 2; Immersion Gold Process, Top Layer Max Height 3mm, PCB Thickness 1.6mm, Connector Mated Height 3mm
More Information:
* Processor Architecture: FPGA, For ARM + FPGA
* Expansion Interface: GPIO
* Operating System Support: Linux
* Typical Applications: Energy & Environmental Applications, 51 MCU Learning, Embedded Hardware, Consumer Electronics, and IoT
* Network Interface: Gigabit Ethernet (1Gbps)
* Compatible Expansion Module: 1 Module

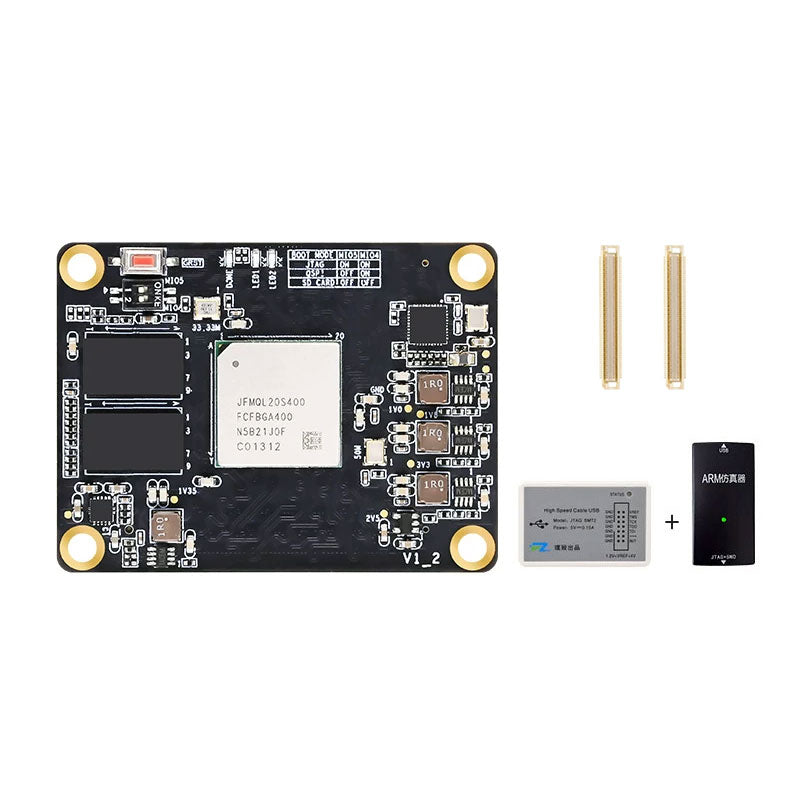

Packing List (Varies by Selected Configuration):
Core Board Only:
* 1 x Core Board
Core Board + Heatsink:
* 1 x Core Board
* 1 x Heatsink
Core Board + Connector:
* 1 x Core Board
* 2 x Baseboard Connectors
Core Board + Downloader:
* 1 x Core Board
* 1 x Downloader
* 1 x ARM Emulator
Core Board + Heatsink + Connector:
* 1 x Core Board
* 1 x Heatsink
* 2 x Baseboard Connectors
Core Board + Heatsink + Downloader:
* 1 x Core Board
* 1 x Heatsink
* 1 x Downloader
* 1 x ARM Emulator
Core Board + Connector + Downloader:
* 1 x Core Board
* 2 x Baseboard Connectors
* 1 x Downloader
* 1 x ARM Emulator
Core Board + Heatsink + Connector + Downloader:
* 1 x Core Board
* 1 x Heatsink
* 2 x Baseboard Connectors
* 1 x Downloader
* 1 x ARM Emulator
Packaging Details:
* Package Weight: 0.15kg
