Q02H01A Standard Version Voltmeter High Quality Digital Display Meter with 0.56-inch LED Display

Q02H01A Standard Version Voltmeter High Quality Digital Display Meter with 0.56-inch LED Display

Features:
- This multi-function digital display meter is mainly used for the display of small voltage analog signals.
- The display ratio and the position of the decimal point can be set to facilitate comparison with the actual value.
- Wide voltage power supply, voltage change does not affect the display accuracy.
- Power supply reverse connection protection, input anti-static protection.
- It can work constantly with electricity for a long time.

Specification:
- Power supply: 5 - 28VDC, power <0.5W
- Measuring range: DC voltage +/-50V
- Input impedance: 50kohm
- Display: 4bit 0.56-inch red LED
- Working temperature: 0 - 40℃
- Relative humidity: < 80%

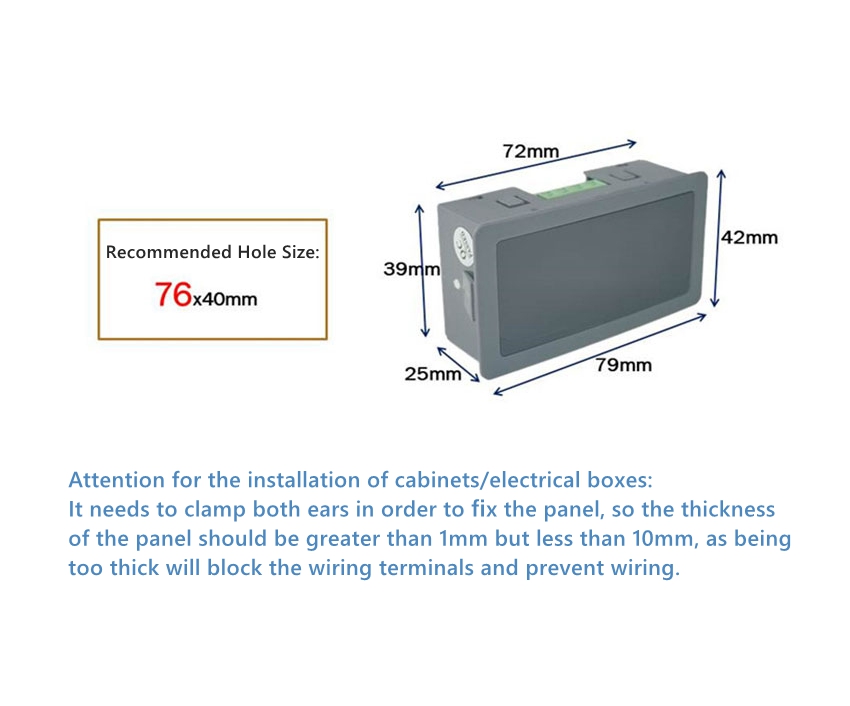

- Drilling hole size: 76 x 40mm is recommended, the thickness of the panel need to be greater than 1.4mm in order to catch the ears.
- Weight: 40g

Package Included:
- 1 x Meter
