QA-26S PWM Speed Controller DC Motor Speed Controller 6V 12V 24V 48V Stepless Speed Control Switch

QA-26S PWM Speed Controller DC Motor Speed Controller 6V 12V 24V 48V Stepless Speed Control Switch

Features:
- Digital display 0-100 percentage meter accurate positioning
- Jog stop/start switch
- Panel type installation
- 6-60V wide voltage 30A

Product Parameters:
- Model: QA-26S
- Input voltage: DC6-60V
- Output voltage: linear under load
- Output current: 0-30A
- Continuous current: 20A
- Speed regulation type: current regulation
- Speed regulation method: potentiometer
- Speed adjustment range: 0-100%
- Control frequency: 15KHZ
- Wiring type: Barrier terminal block
- Knob cord length: 18CM

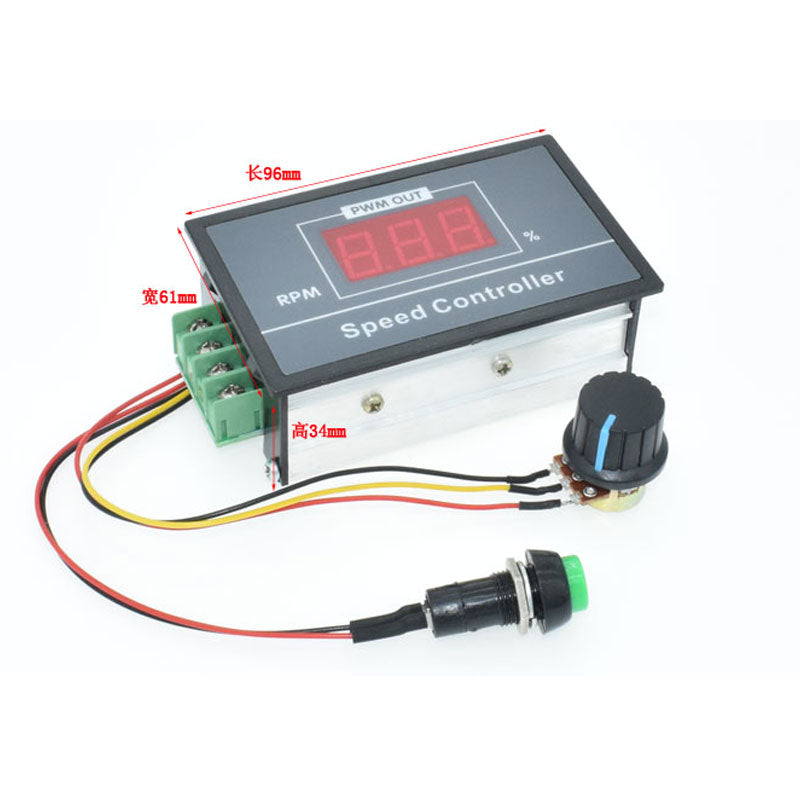

- Module size: 96mm*61mm*34mm (LxWxH)
- Product net weight: 120g

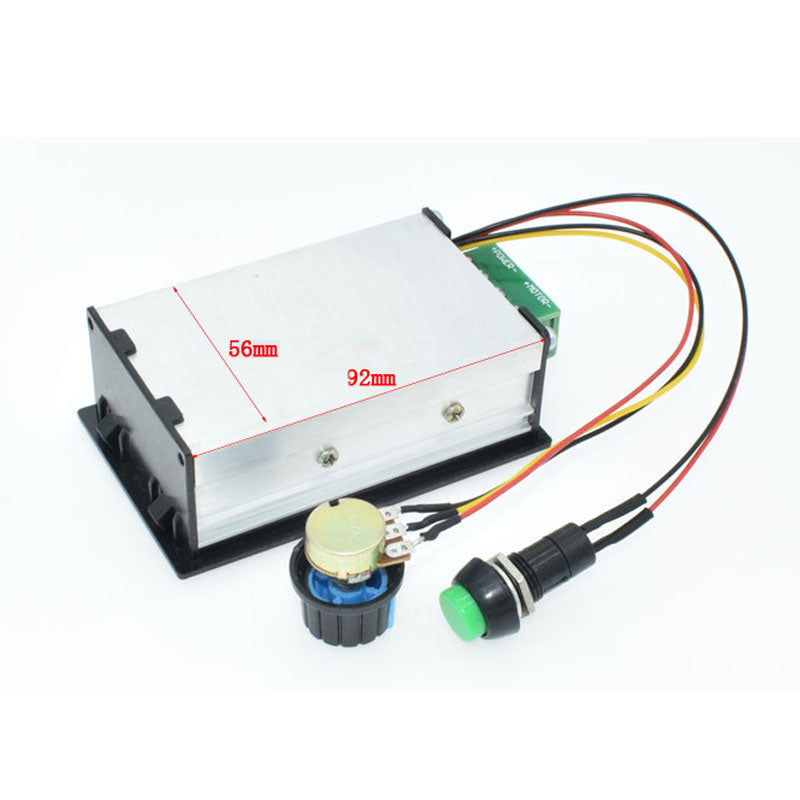

- Panel opening: 92mm*56mm (LxW)
- Speed digital display: percentage 0-100

Attention:
- The displayed number is a percentage, not the actual speed of motor.
- Please pay attention to the - and + ends of input voltage. Cannot input 220V household electricity.
- The input voltage should be equal to the rated voltage of the motor (within 6-60V). For example, the rated voltage of the motor is 12, input voltage is 12V. If the motor is 36V, input voltage is 36V.

Package Included:
- 1 x Speed Controller
