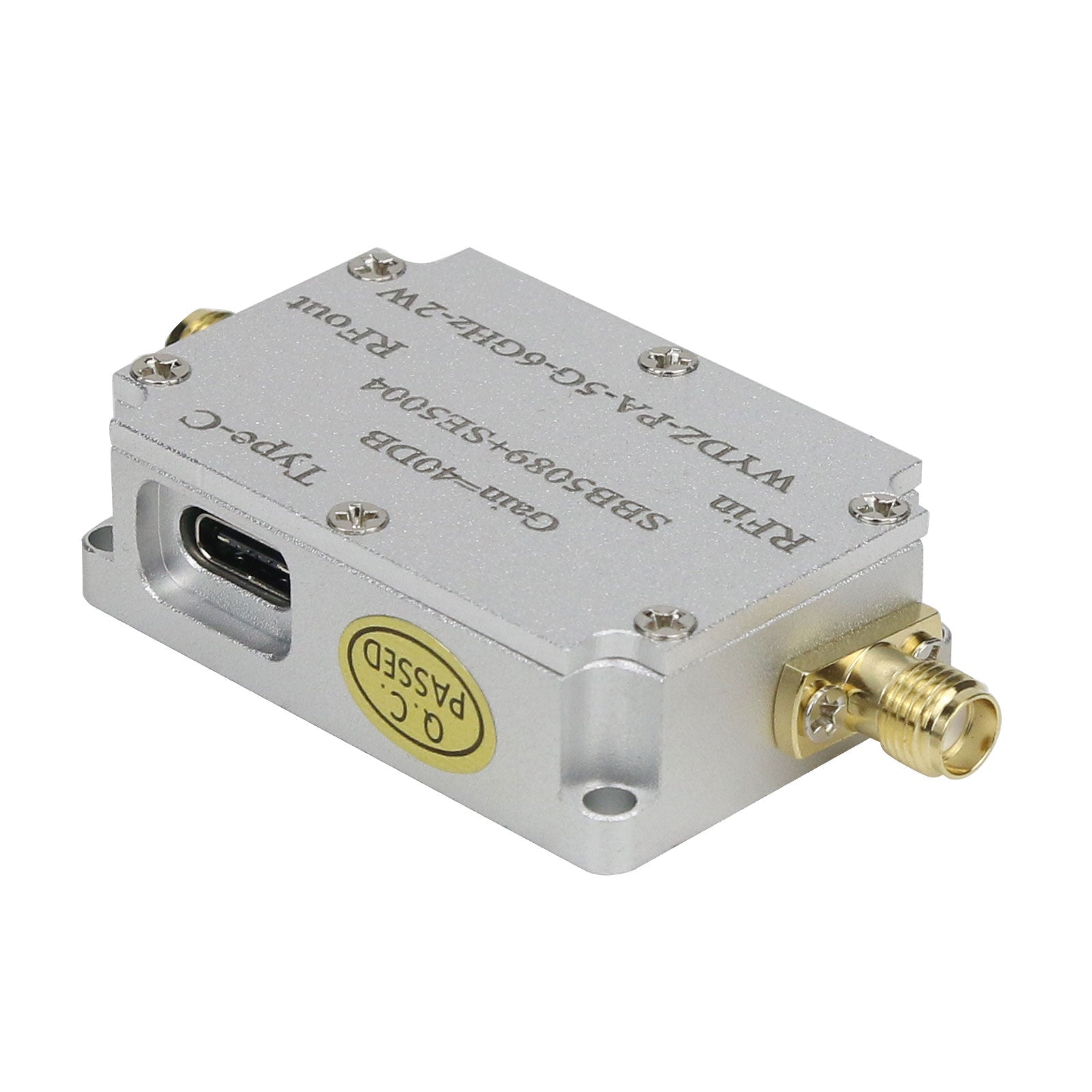

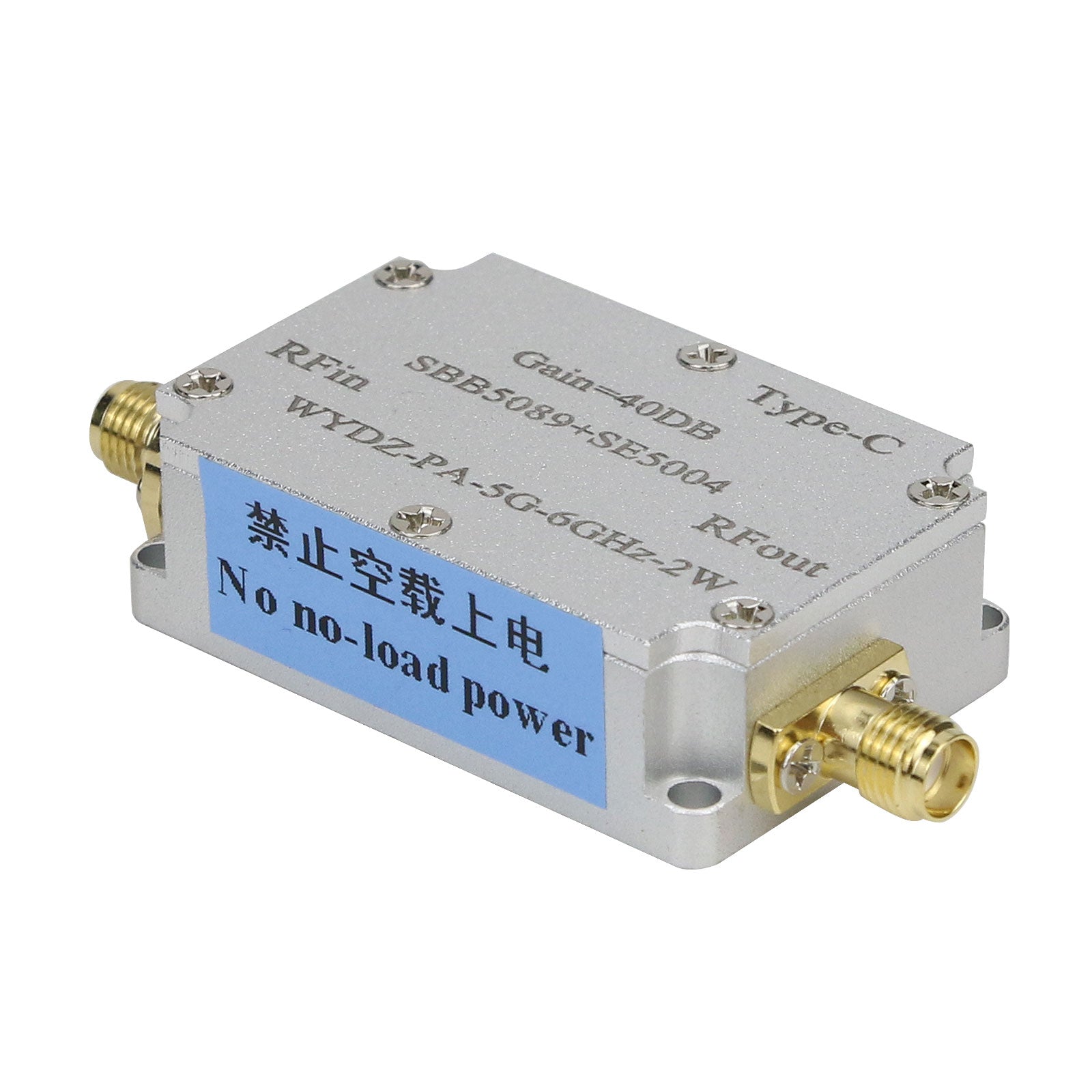

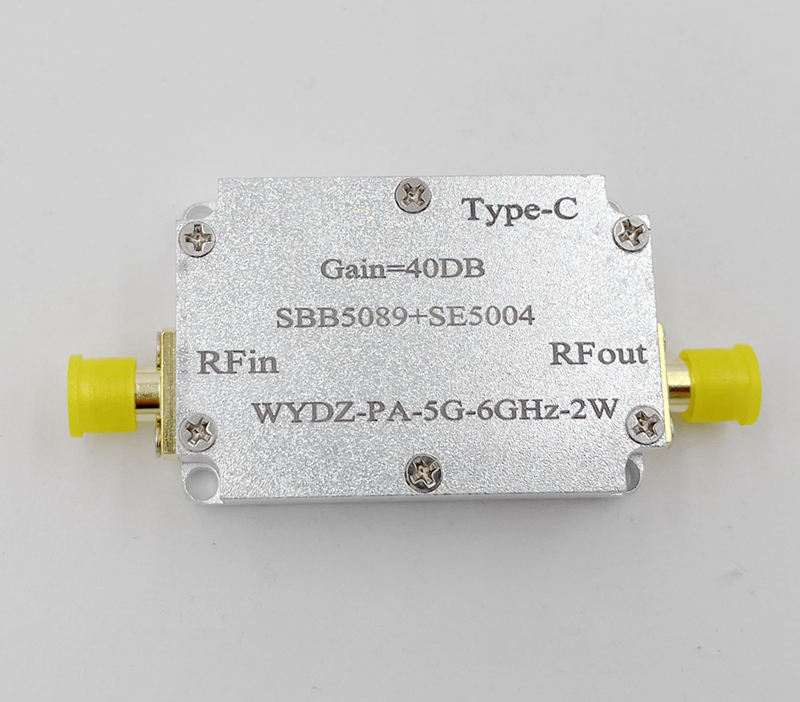

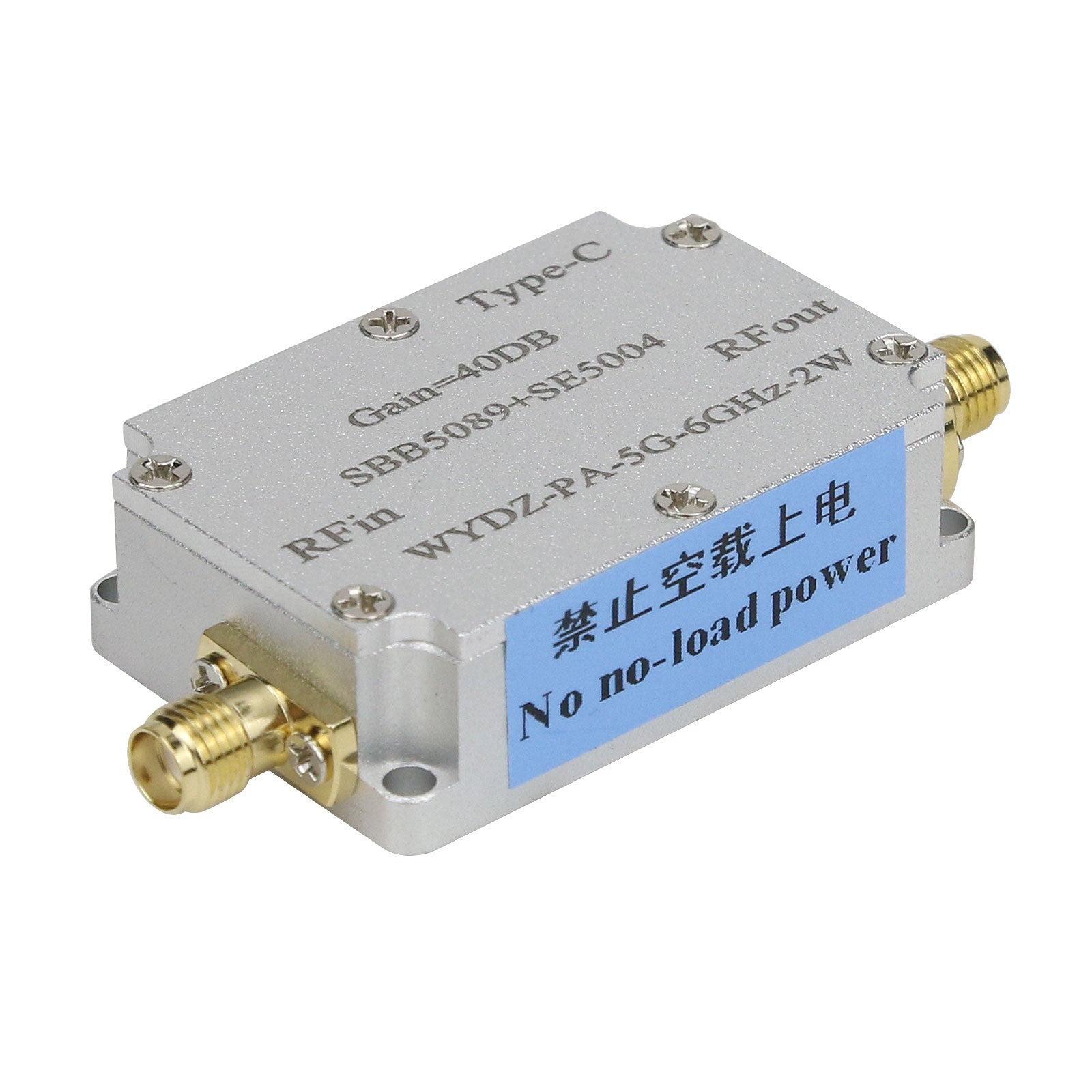

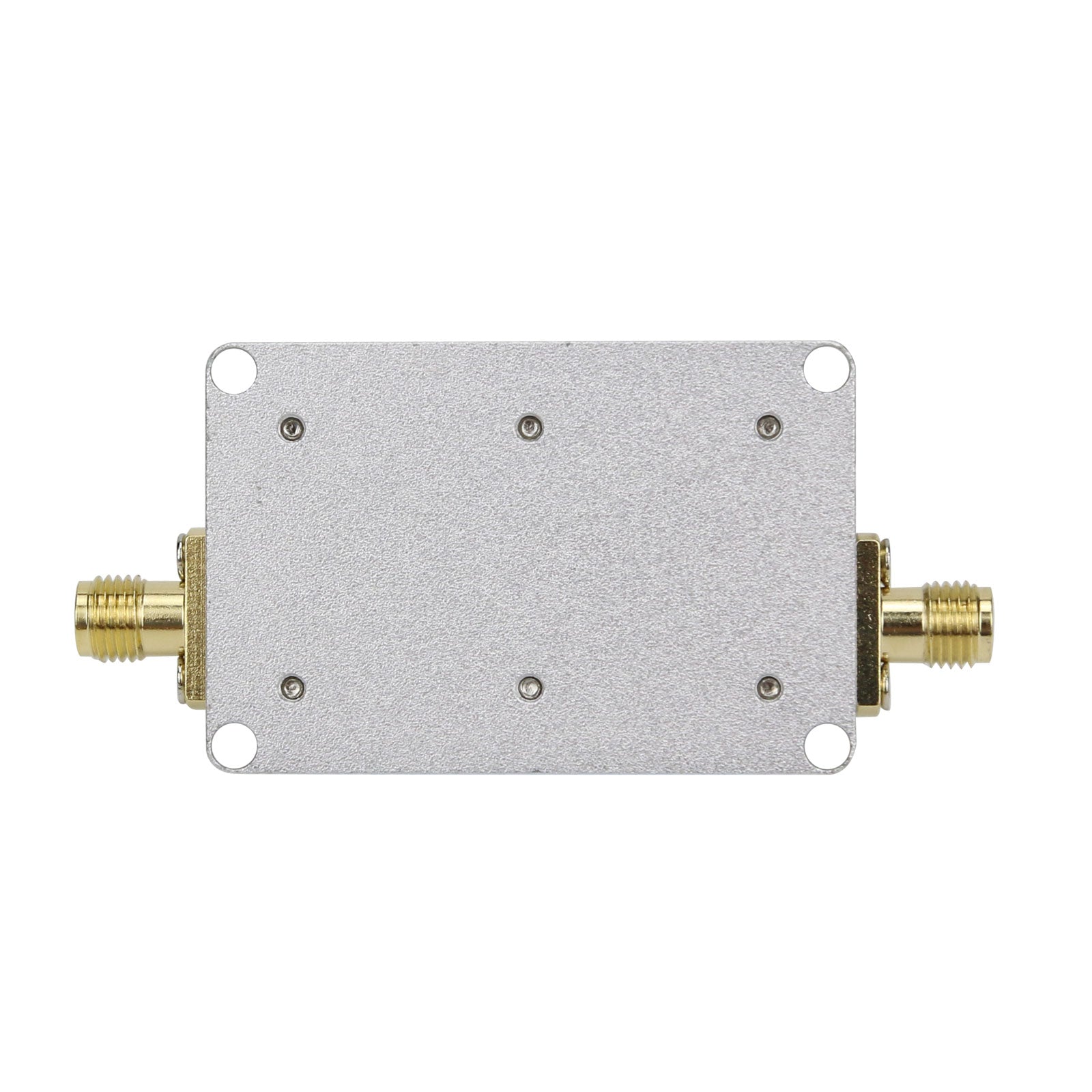

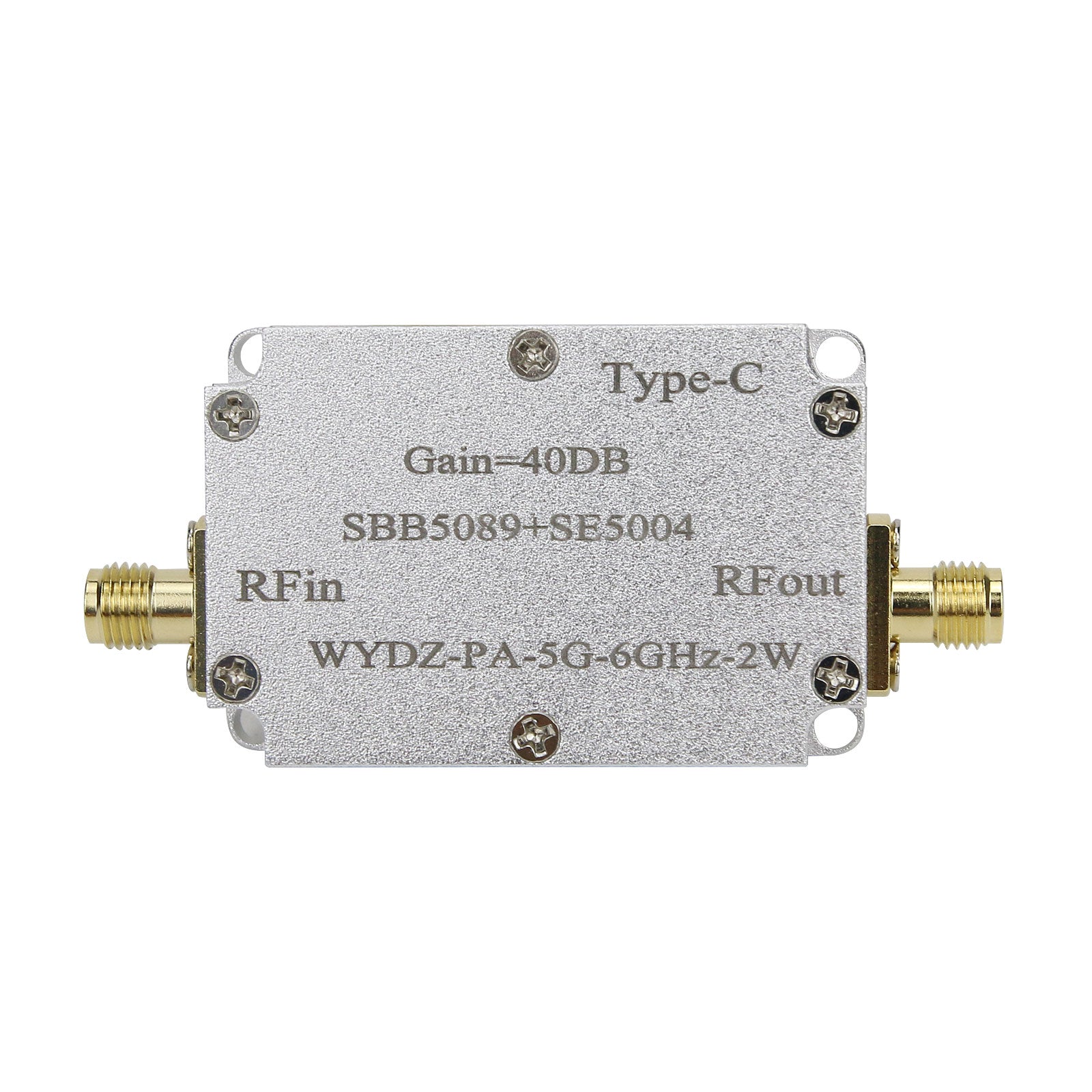

SBB5089+SE5004 One-Way Microwave Power Amplifier RF Power Amplifier Module 40DB WYDZ-PA-5G-6GHz-2W

SBB5089+SE5004 One-Way Microwave Power Amplifier RF Power Amplifier Module 40DB WYDZ-PA-5G-6GHz-2W

Application Scenarios:
1. 5.8G video transmission, interference unit power amplifier
2. WIFI transmission, data transmission module transmission
3. Electromagnetic compatibility launch system
4. Software radio transmitter

Index Parameters:

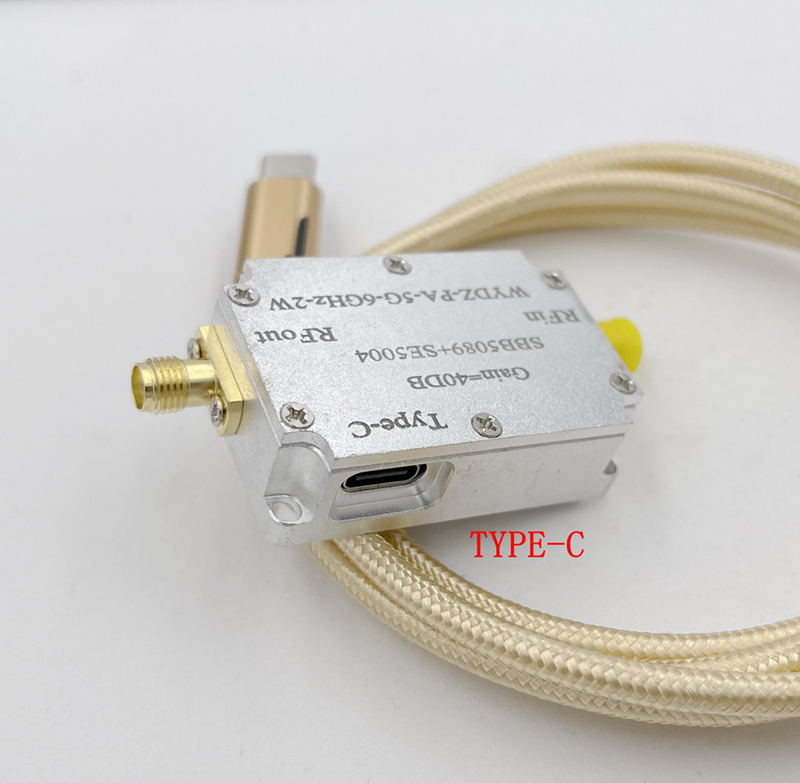

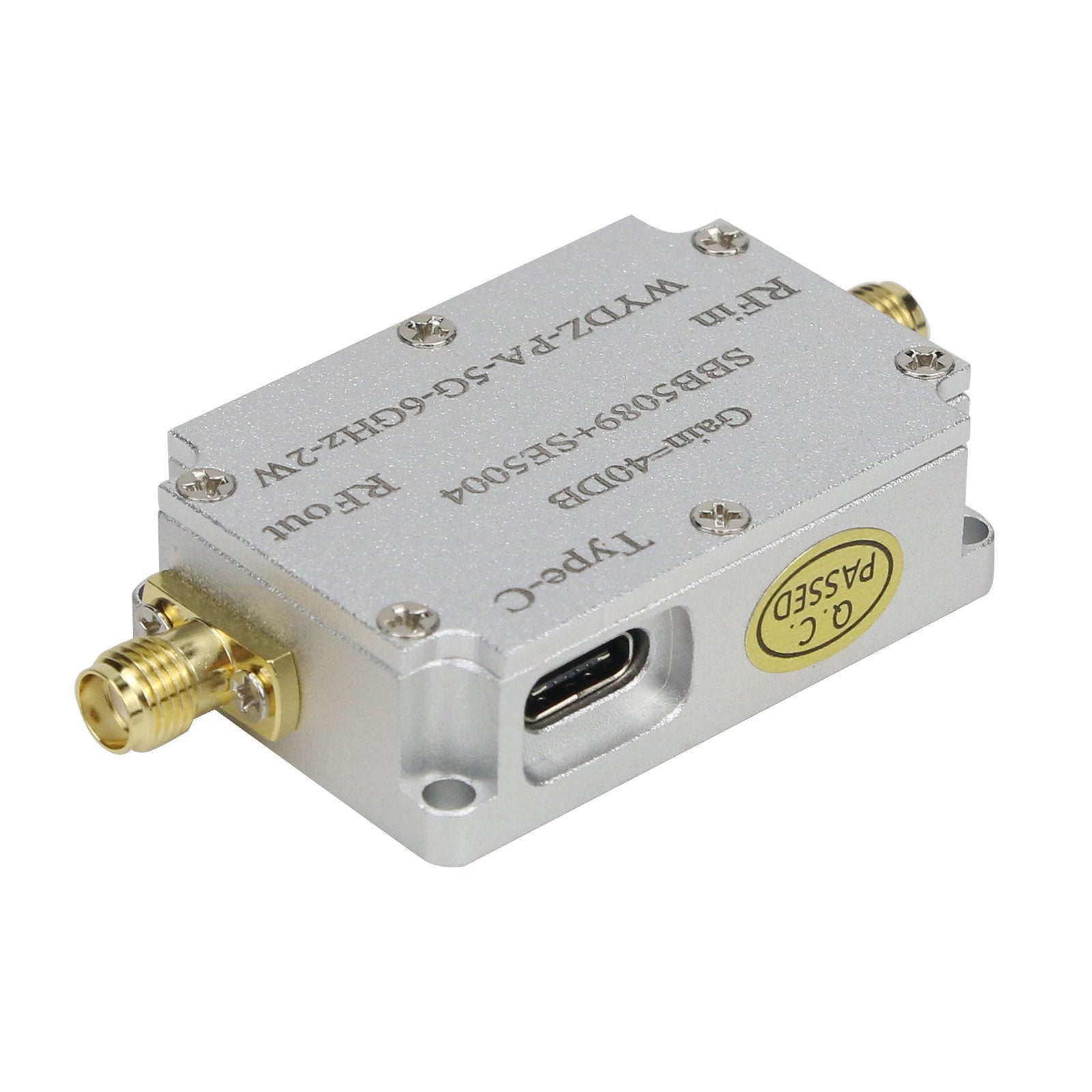

1. Power supply: TYPE-C cable
2. Module frequency range: 5G-6GHz (wideband power amplifier)

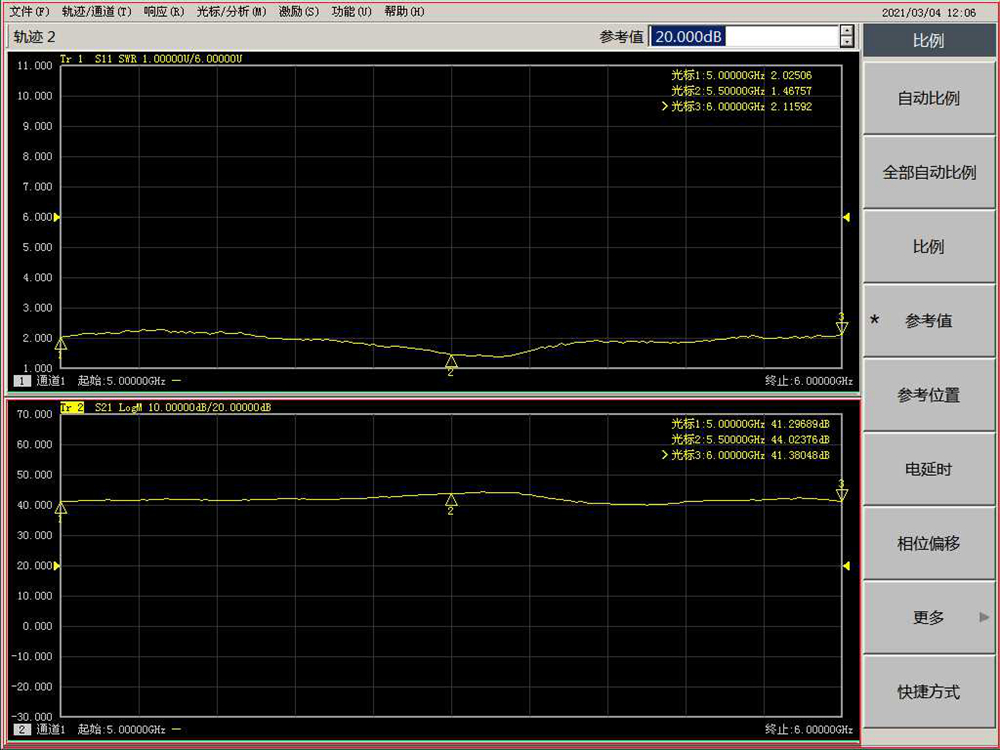

3. Gain: 40DB (refer to the measured curve for different frequencies)

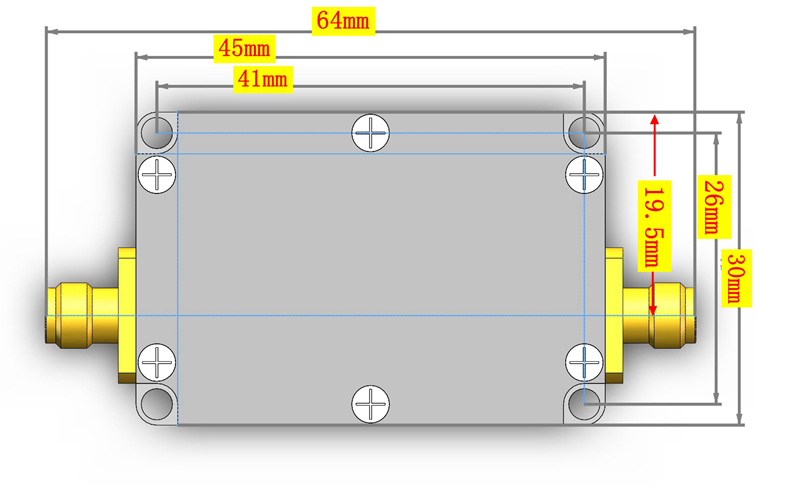

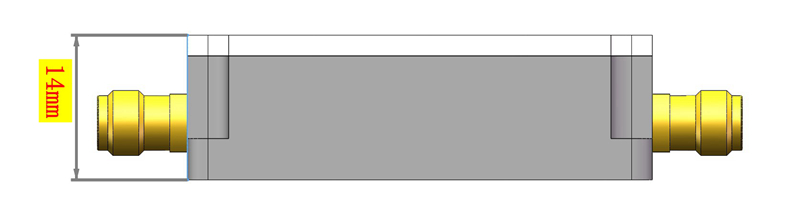

4. Volume: 4.5*3*1.4cm (without sizes of protruding SMA)
5. Net Weight: 66g (including host + TYPE-C cable)
6. Current: 2A (5V/2A power adapter is recommended)
7. P1dB=33dBm at 5.5GHz (2W)

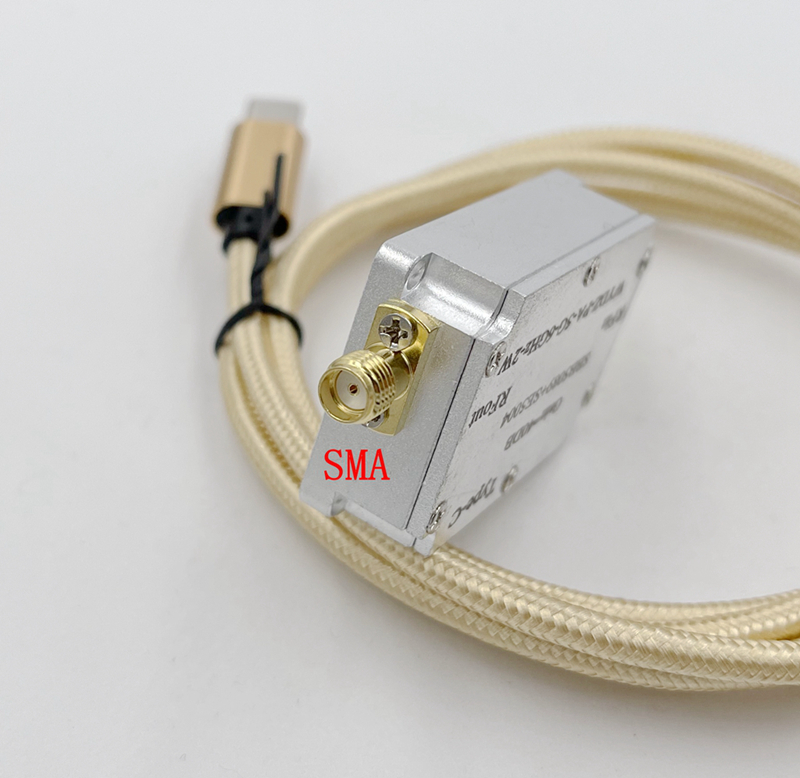

8. Output interface: SMA female, input and output impedance: 50 ohms

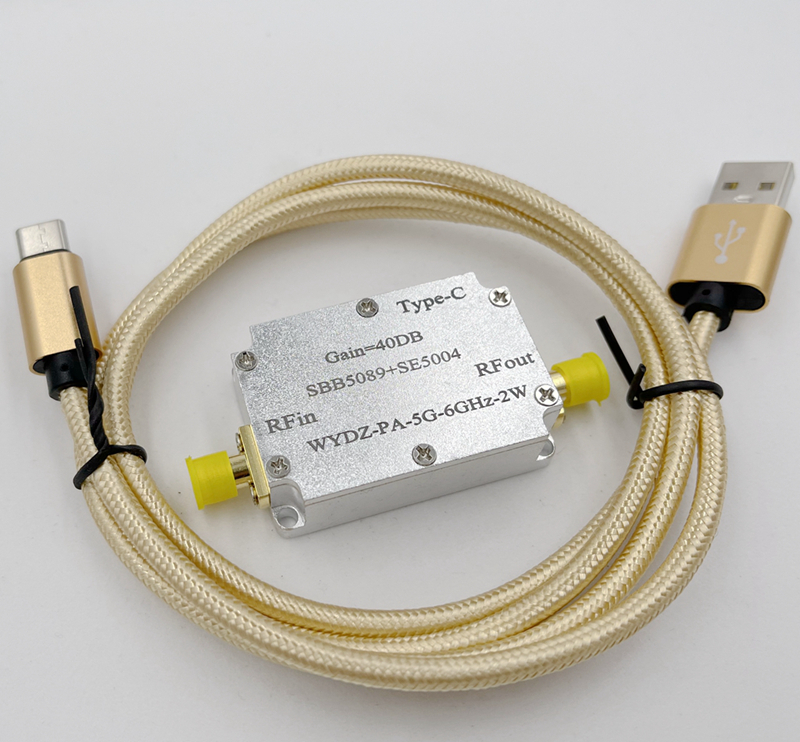

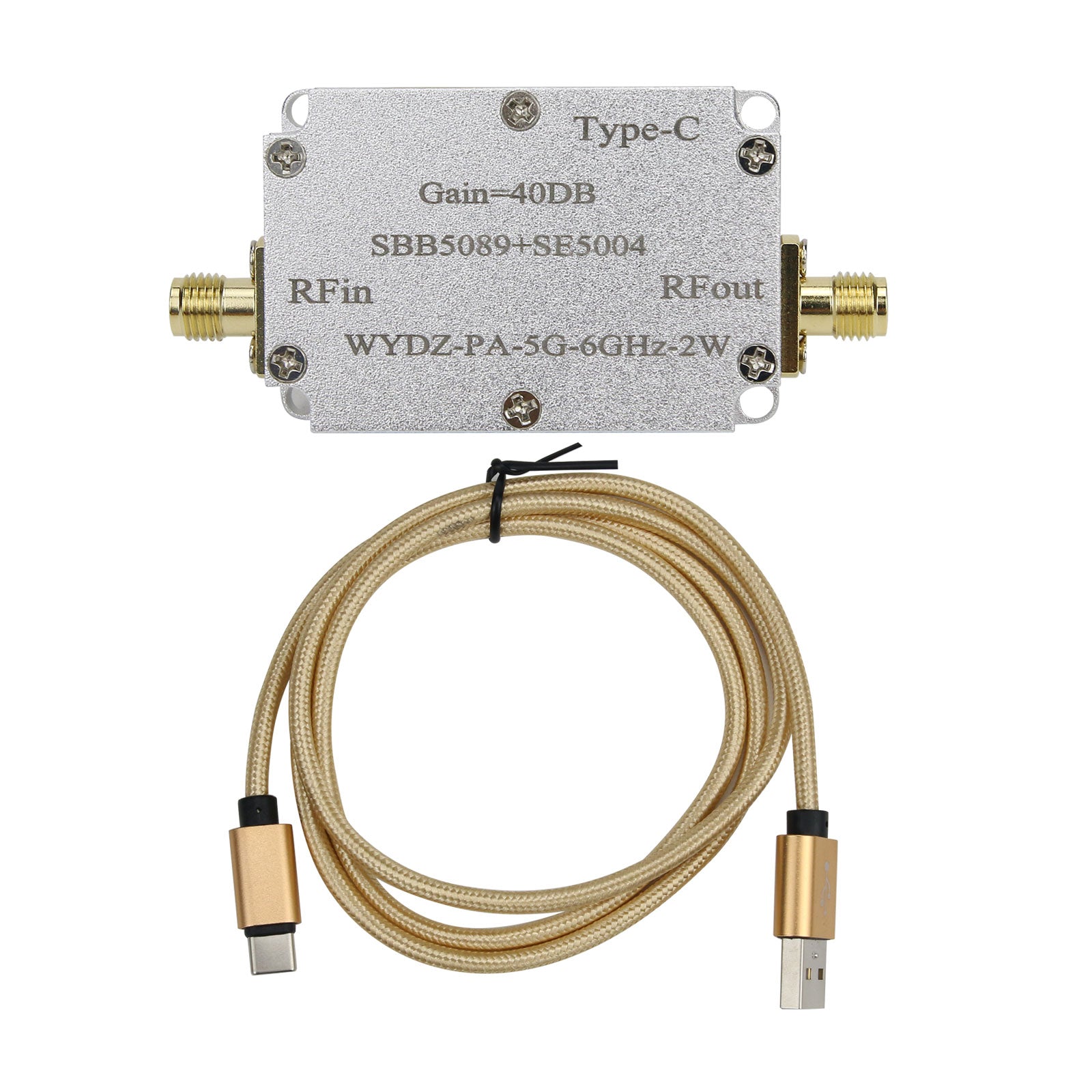

Package Included:
- 1 x Aluminum Alloy RF Power Amplifier
- 1 x Type-C Cable
