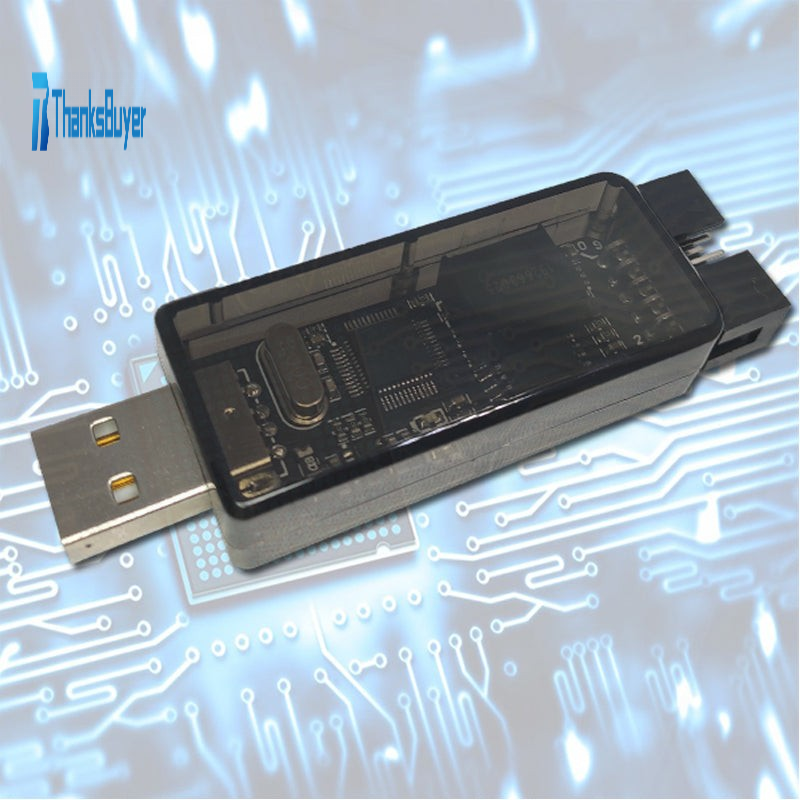

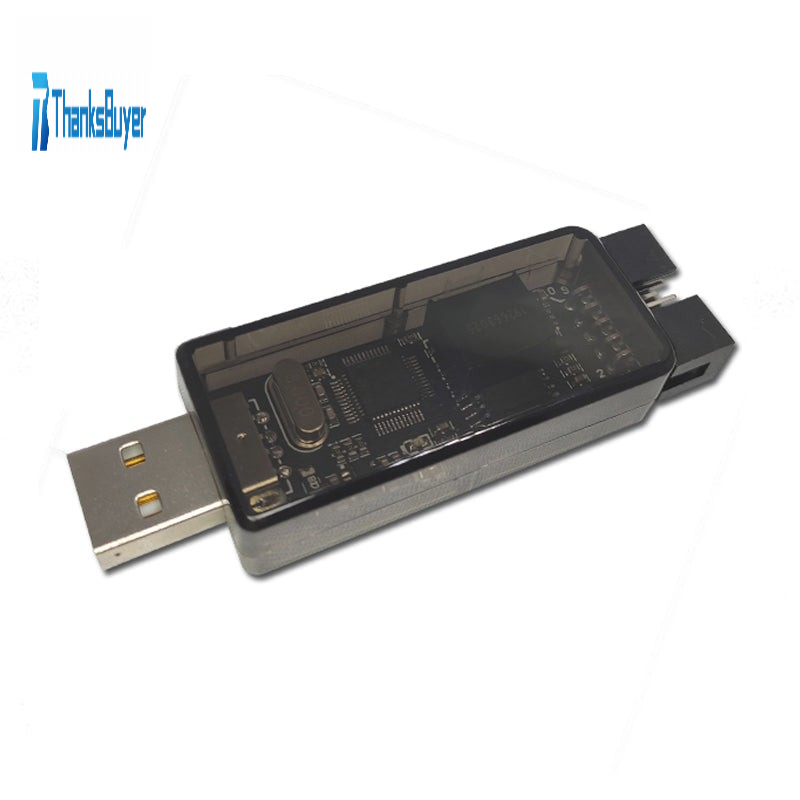

ST-LINK V2 Emulator Isolated STM8/STM32 Debugger Programmer Simulator Download Programming Debugging

ST-LINK V2 Emulator Isolated STM8/STM32 Debugger Programmer Simulator Download Programming Debugging

Description:
ST-LINK V2 isolated emulator adopts B0505S isolated power supply, isolated IC for ADuM to protect your computer. Allows you to perform simulation debugging in various harsh circuit environments! The isolation voltage of 1500v can protect your computer!

Features:
- ST-LINK V2 isolation emulator
- Support SWIM and SWD interface
- Isolation voltage 1500VDC
- Small and easy to carry
- The shell is made of high hardness and tough PC material
- STM8/STM32 emulator for programming, downloading and debugging

Specifications:
- Dimensions: 66 x 24 x 14mm/2.6 x 9 x 0.6" (LxWxH)
- Power supply output: 3.3V 0.2A
- Scheme: For ADI scheme
- Isolation Voltage: 1500V
- Power supply: Powered by computer host USB port (no additional power supply required)
- Input port: USB port
- Connection method: SWD/SWIM

Applicable Scene:
A working environment with strong electricity and strong interference. Some circuits contain strong electricity and strong interference (such as high-voltage electricity, frequency converter, motor drive, etc.) environment. When it comes to computer connection, it must be isolated to ensure computer and personal safety.

Specifications:
- 1 x ST-LINK V2 Isolated Emulator
- 1 x 50cm/19.7" USB Extension Cable
- 1 x 20cm/7.9" 4Pin Cable For Dupont
