UC2679Y 1KΩ-10TΩ Insulation Resistance Meter Insulation Resistance Tester with LCD Touch Screen

UC2679Y 1KΩ-10TΩ Insulation Resistance Meter Insulation Resistance Tester with LCD Touch Screen

Advantages:
* Brand New Interface & Advanced Technology
* Optional PLC Interface
* LCD Display
* High Durability
* High Voltage Output
* Dual Protection
* Preset Time Function
* High Measurement Accuracy
* Leakage Current Alarm
* 3-Year Warranty

Features:

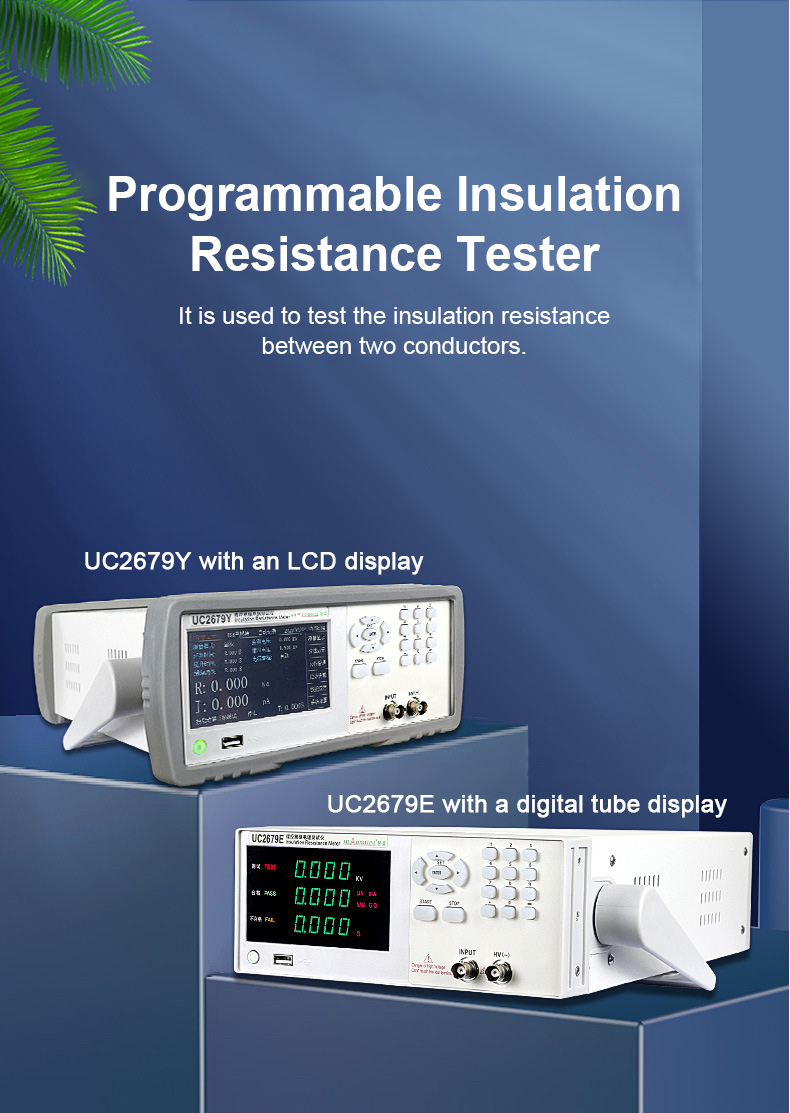

Programmable Insulation Resistance Tester
* This instrument is used to test the insulation resistance between two conductors.
* The UC2679Y features an LCD display, while the UC2679E has a digital tube display.

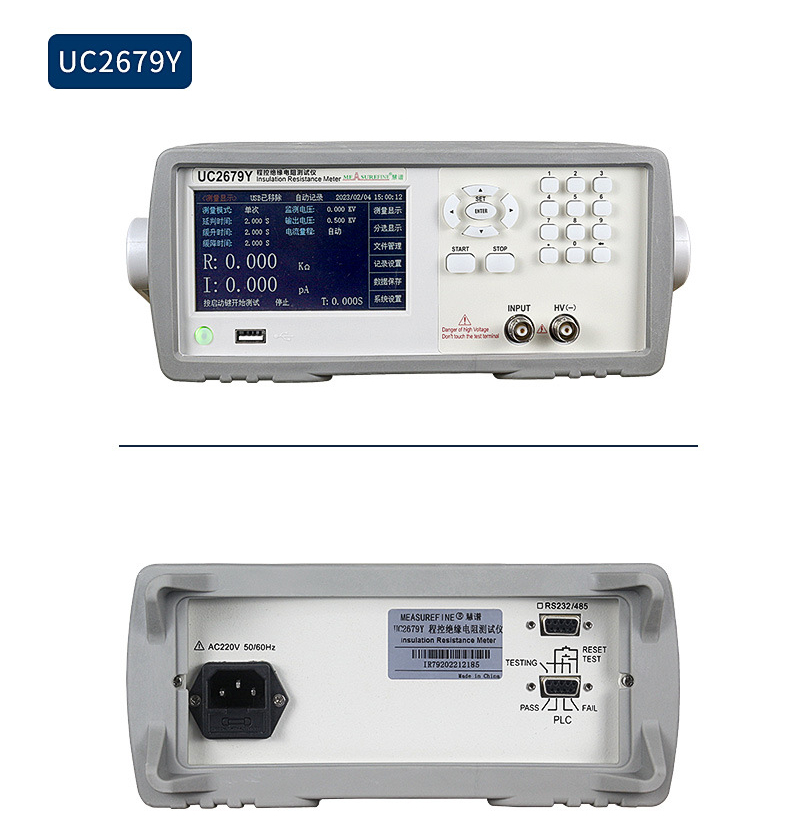

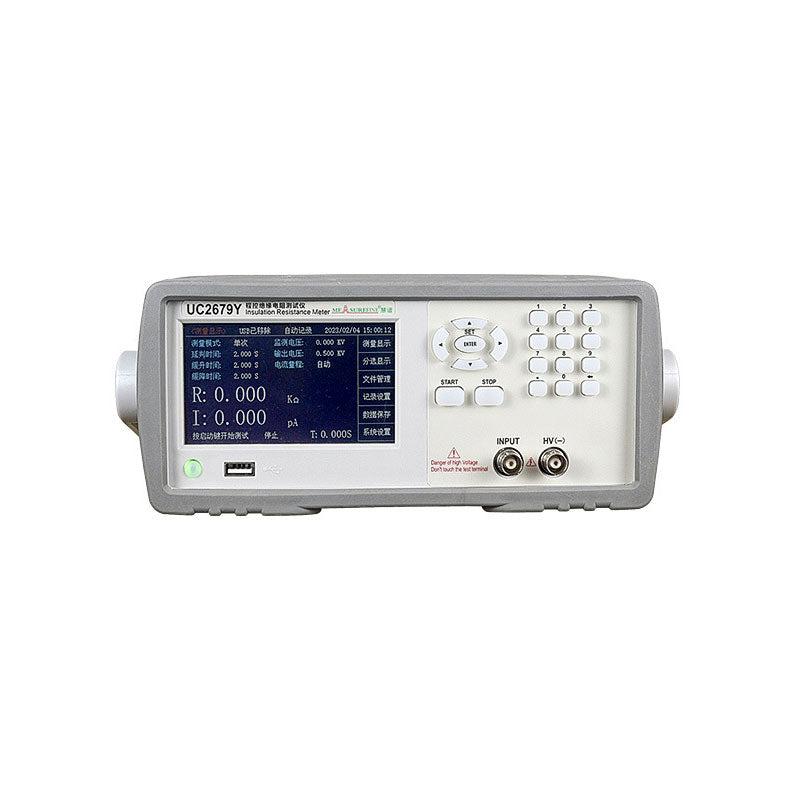

UC2679Y with LCD Touch Screen
* It simultaneously displays multiple parameters, with range testing supporting a maximum insulation resistance of 10 TΩ. The maximum display count is 9999.

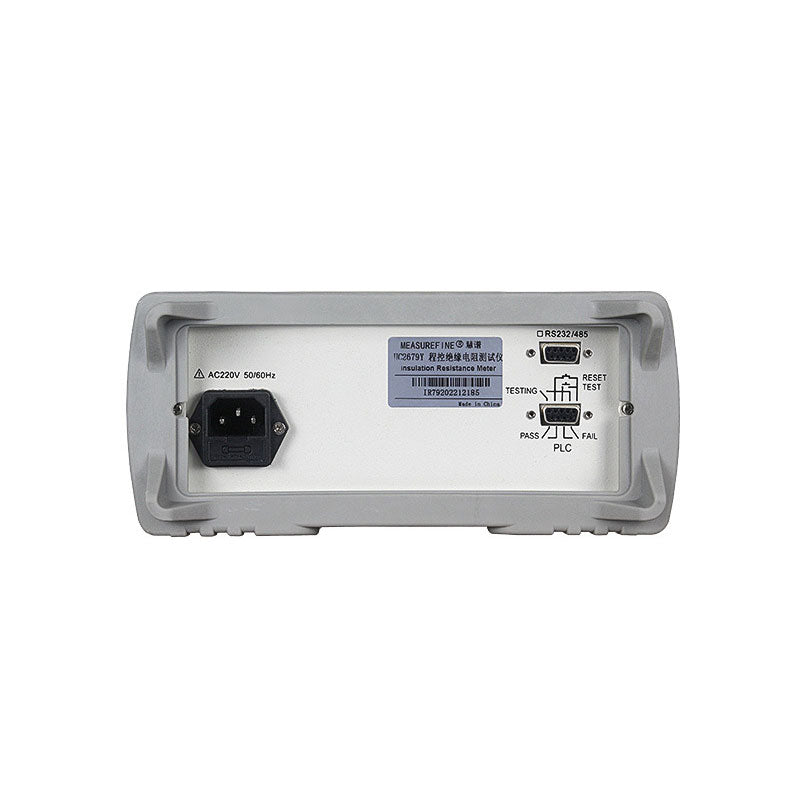

Optional PLC Interface
* By connecting to a PLC port, the tester can be externally started or reset in advance. This optional feature is not included in the basic model.

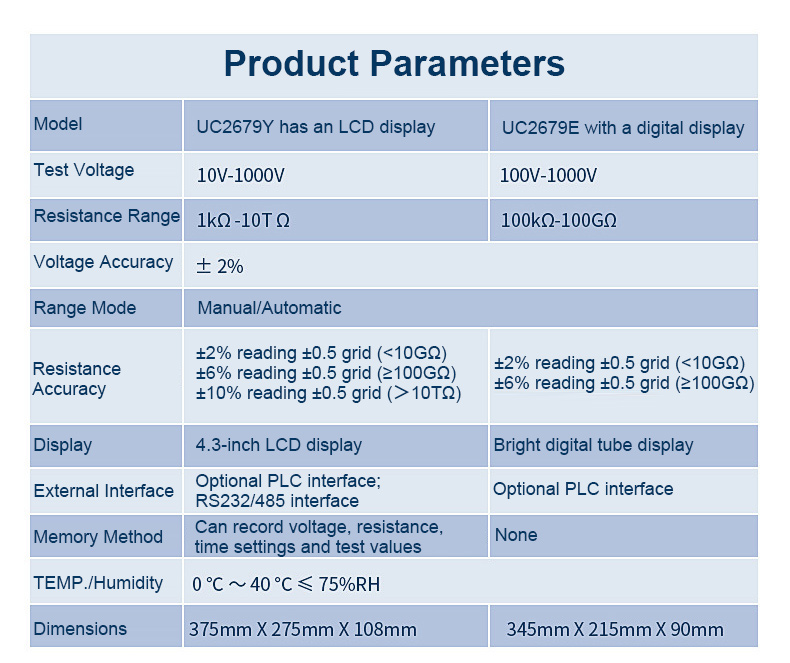

High Measurement Accuracy (UC2679Y)
* Test Voltage: 10V-1000V
* Resistance Range: 1KΩ-10TΩ
* Voltage Accuracy: ±2%

Product Details

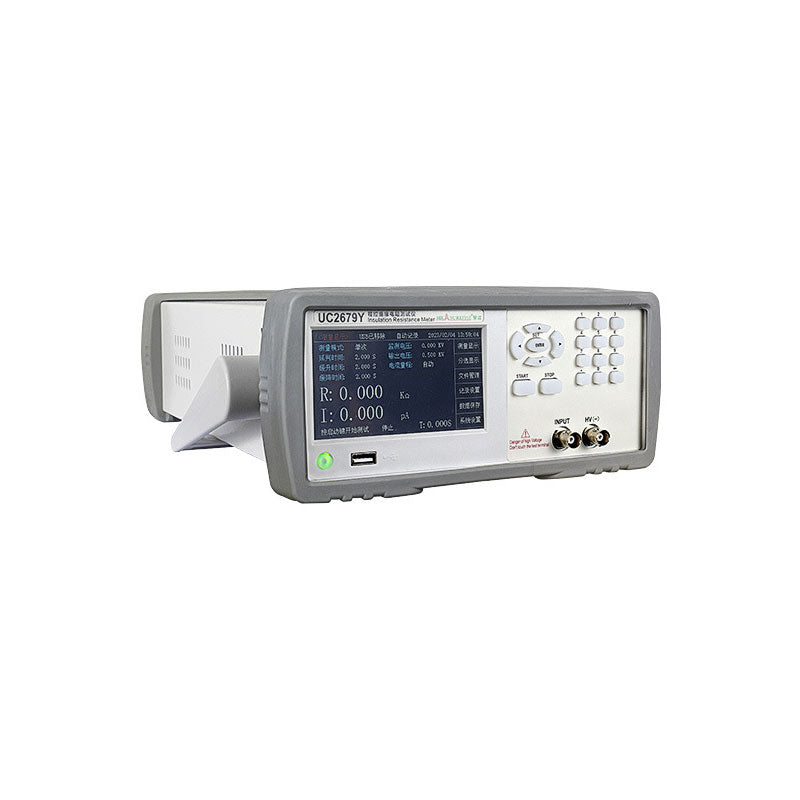

* Bracket Design: The bottom features a bracket for easy placement and convenient data viewing.
* Touchscreen Operation: Chinese and English interfaces can be switched, with various parameter measurements and clear data display.
* Button Design: Function buttons enable easy operation.
* Intelligent Heat Dissipation: Cooling functionality ensures more stable operation.

Application Range
* Suitable for components, instruments and meters, wires and cables, lighting equipment, and household appliances.

Package Included:
* 1 x Insulation resistance tester
* 1 x Pair of test clips
* 1 x Power cord

Packaging Details:
* Weight: 4.5kg
