USB To Serial Module USB To TTL for Mac Linux Android WinCE Windows FT232 USB UART Board (Type A)

Description:
USB to UART solution with USB type A connector

Features:
- Original FT232RL
- Supports for Mac, Linux, Android, WinCE, Windows 7/8/8.1/10...
- 3 Power Modes : 5V output, 3.3V output, or powered by target board (3.3V-5V)
- 3 LEDs: TXD LED, RXD LED, POWER LED

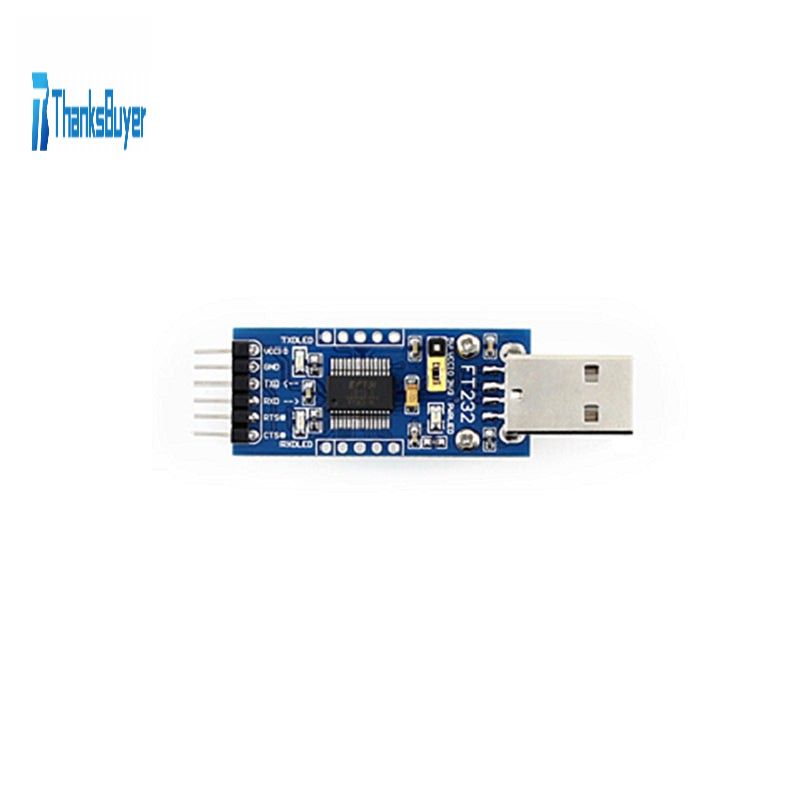

Functional Pins:
- TXD, RXD, RTS#, CTS# : Connected to the onboard soldered pin headers

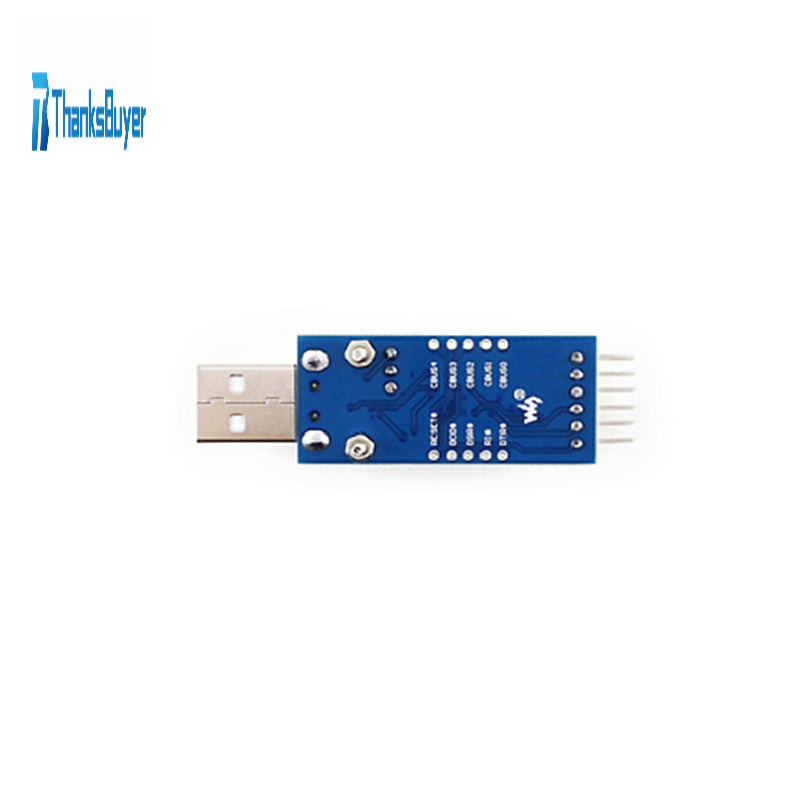

- Other Pins : Accessable on the drill holes (separate pinheaders are also provided for easily connecting to user system, the pitch is compatible with bread boards)

How TO Use?
(Example: Connection to MCU )
- VCCIO: 3.3V or 5V output (The module is powered by USB. Onboard jumper should be shorted to 3.3V or 5V)
- GND: Connect to GND
- TXD: Connect to MCU.RX (Signal direction: MCU.RX << FT232 << PC.TX)
- RXD : Connect to MCU.TX (Signal direction: MCU.TX >> FT232 >> PC.RX)
- RTS: Connect to MCU.CTS (Signal direction: MCU.CTS << FT232 << PC.RTS)
- CTS: Connect to MCU.RTS (Signal direction: MCU.RTS >> FT232 >> PC.CTS)

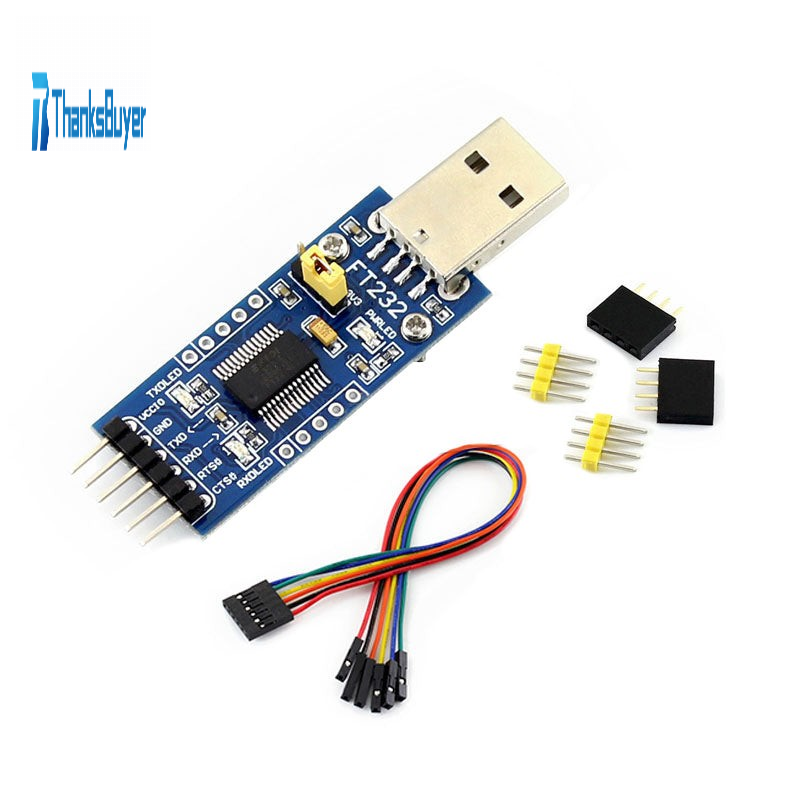

Package Included:
- 1 x FT232 USB UART Board
- 2 x 5PIN Male Pin Headers & 5PIN Female Pin Headers
- 1 x Dupont Cable 6-pin to User-defined

Note: The module is USB to TTL board. Please not connect it to RS232 level directly to avoid burning the module.
