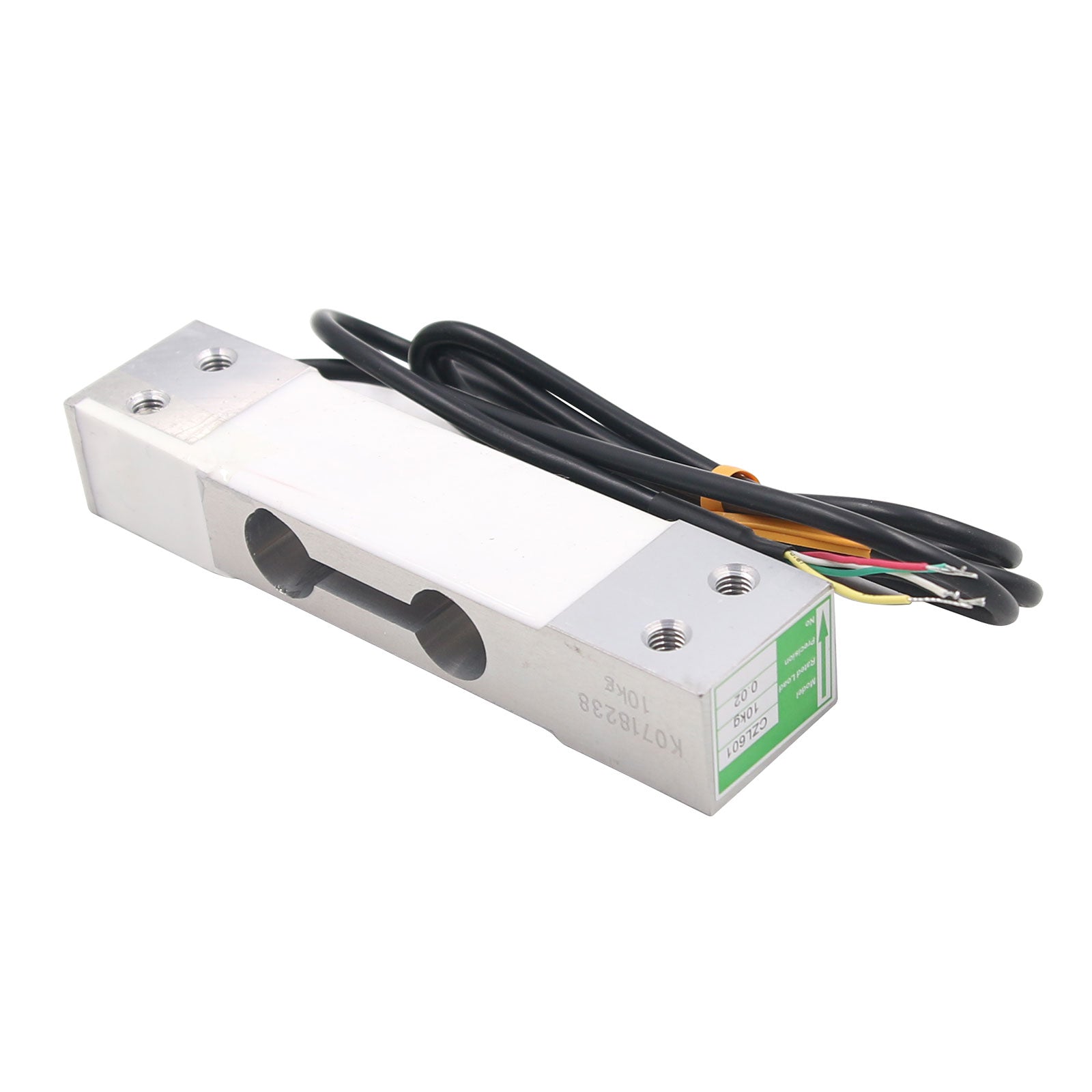

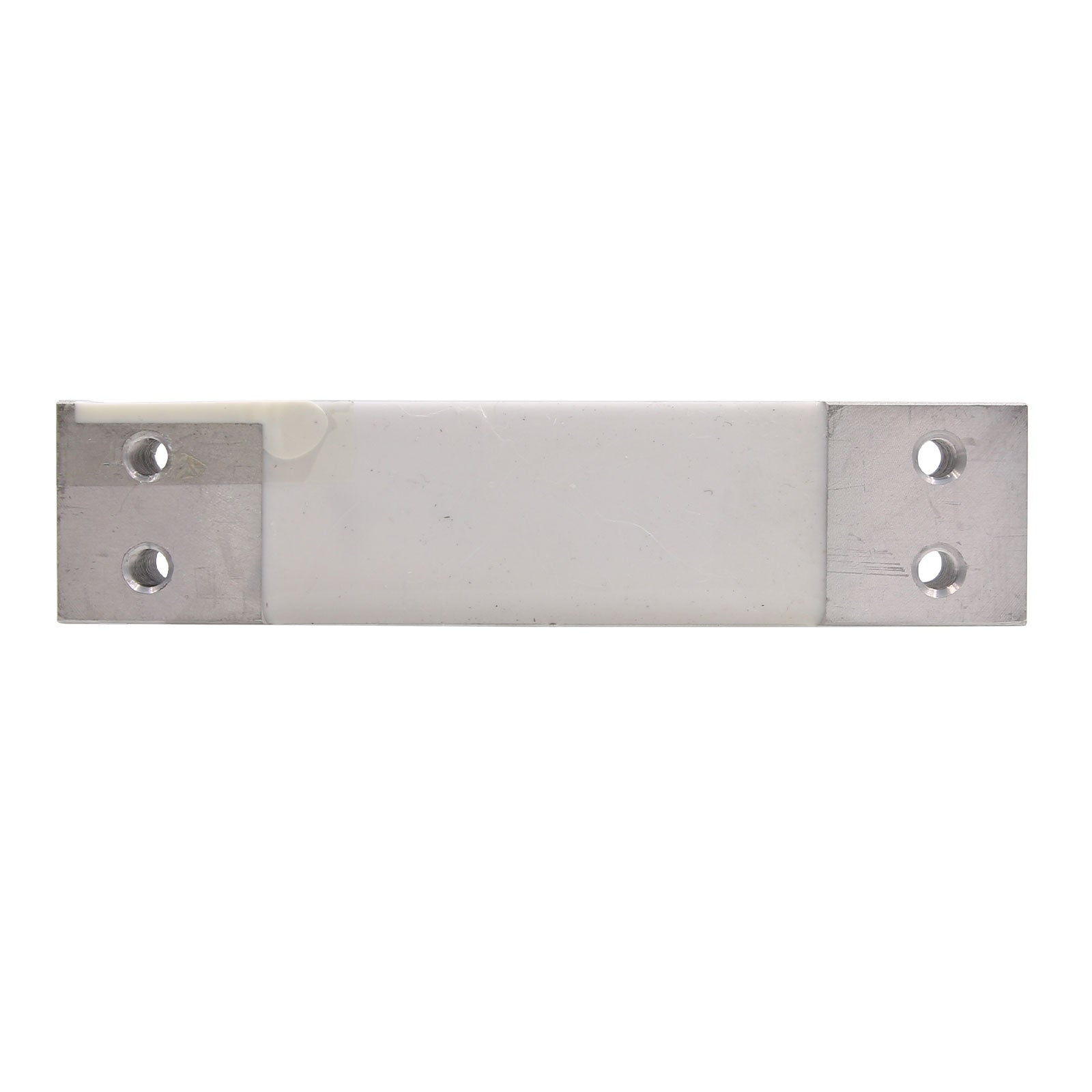

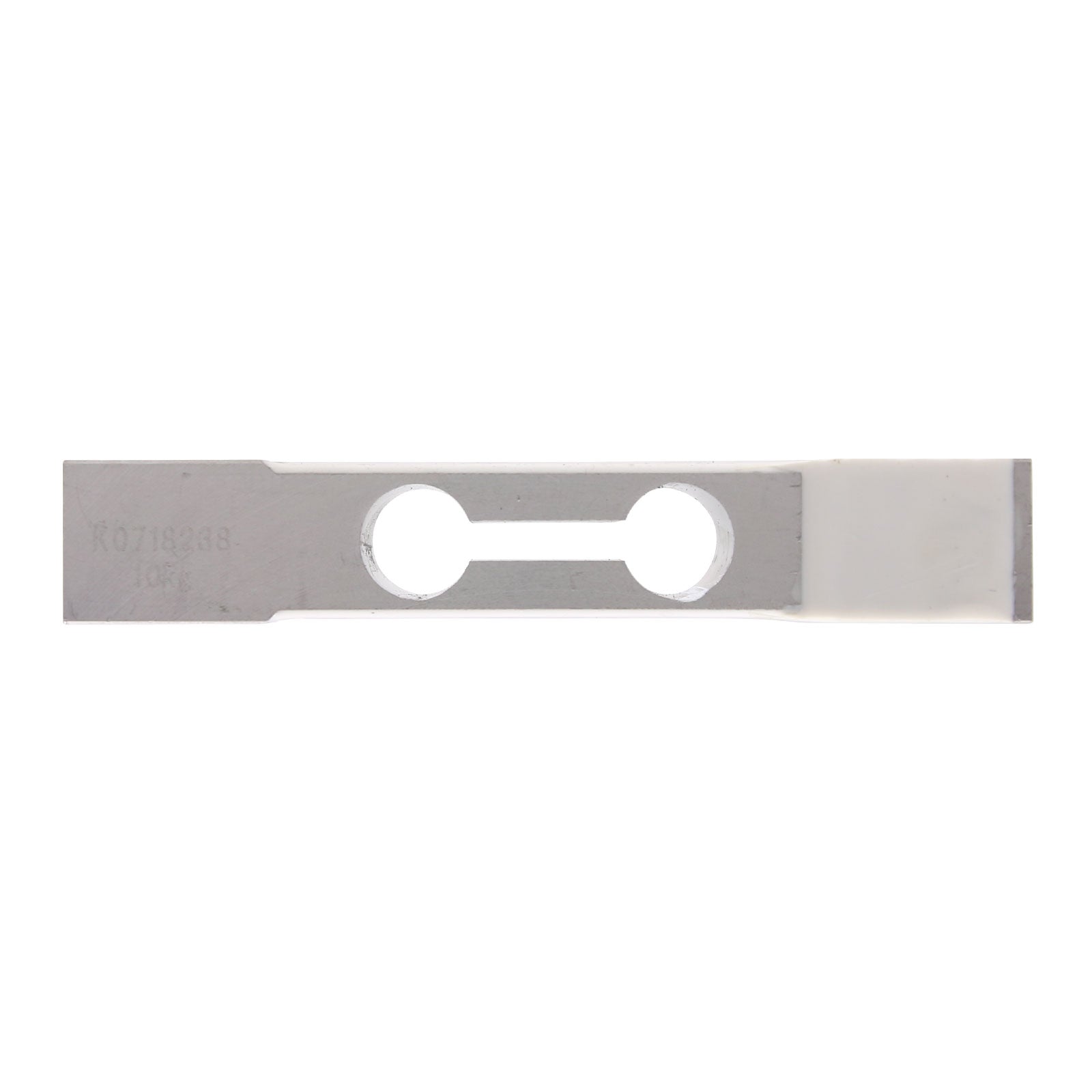

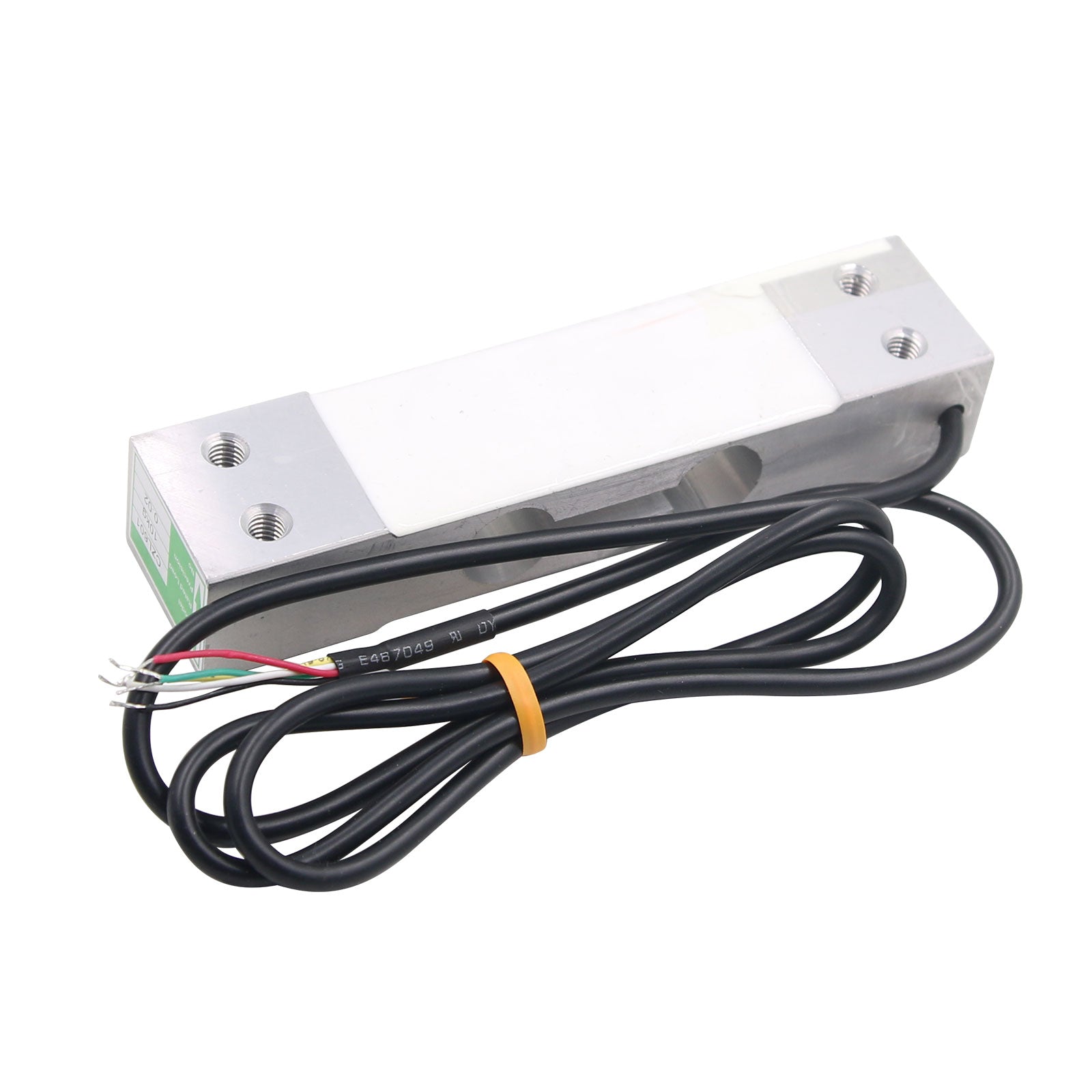

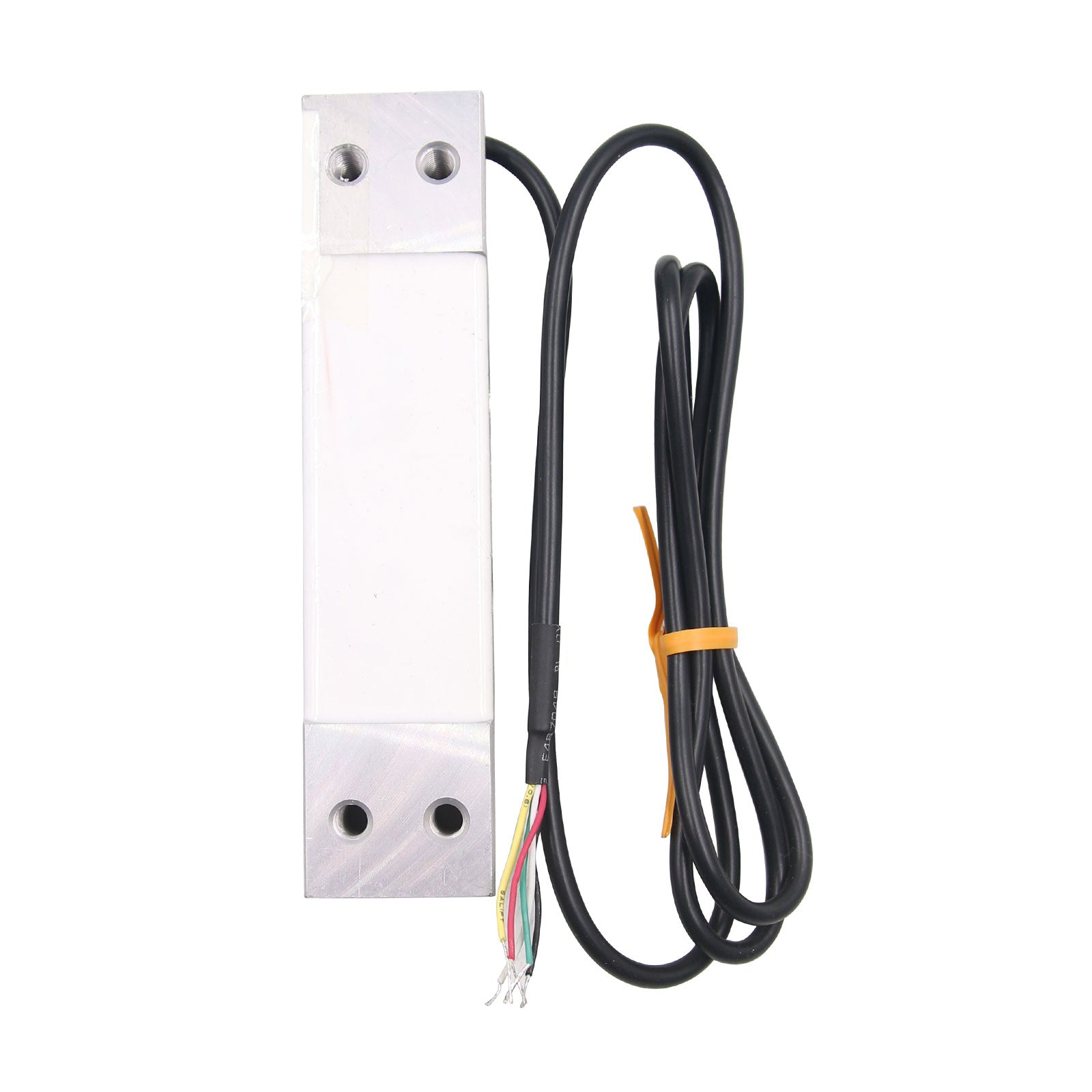

Weighing Load Cell Parallel Beam 10KG with Protective Cover for Sensor CZL601 10KG

Weighing Load Cell Parallel Beam 10KG with Protective Cover for Sensor CZL601 10KG

Features:
- Ingress protection: IP65 Not to be affected by water-sprinkle from any direction in a short period of time.
-Surface anodized and anti-corrosion
-Rated load 10 KG
-Integral structure and easy to install or calibrate.
-The product is suit for electronic top scale, floor scale and other weighing equipment.

Specifications:
- Accuracy level: C2
- Sensitivity temperature effect (%F.S/10°C): ±0.02
- Combined error (%F.S): ±0.02
- Zero temperature effect (%F.S/10°C): ±0.03
- Sensitivity (mv/v): 2.0±0.2
- Temperature compensation range: -10 to 40°C
- Creep (%F.S/30min) : ±0.02
- Use temperature influence (°C) : -20～+60
- Zero output (%F.S): ±1.0
- Excitation voltage (V): 9 to 12 (DC)
- Input impedance (Ω): 405±10
- Safety overload range (%F.S): 120
- Output impedance (Ω): 350±3
- Ultimate overload range (%F.S): 150
- Insulation resistance (MΩ) : ≥5000 (100VDC)
- Protection level : IP65
- Size: 130 x 30 x 22mm

Package Included:
- 1 x Parallel Beam Load Cell CZL601
