WFC8100 8-120V WiFi Remote Control Coulomb Meter Battery Capacity Tester 0-650A with 3.5-Inch Color Screen & Relay Control Option

Optional Versions:
- Standard Version 0-100A
- Standard Version 0-200A
- Standard Version 0-300A
- Standard Version 0-500A
- Standard Version 0-650A
- Relay Control Version 0-100A
- Relay Control Version 0-200A
- Relay Control Version 0-300A
- Relay Control Version 0-500A
- Relay Control Version 0-650A

Introduction:

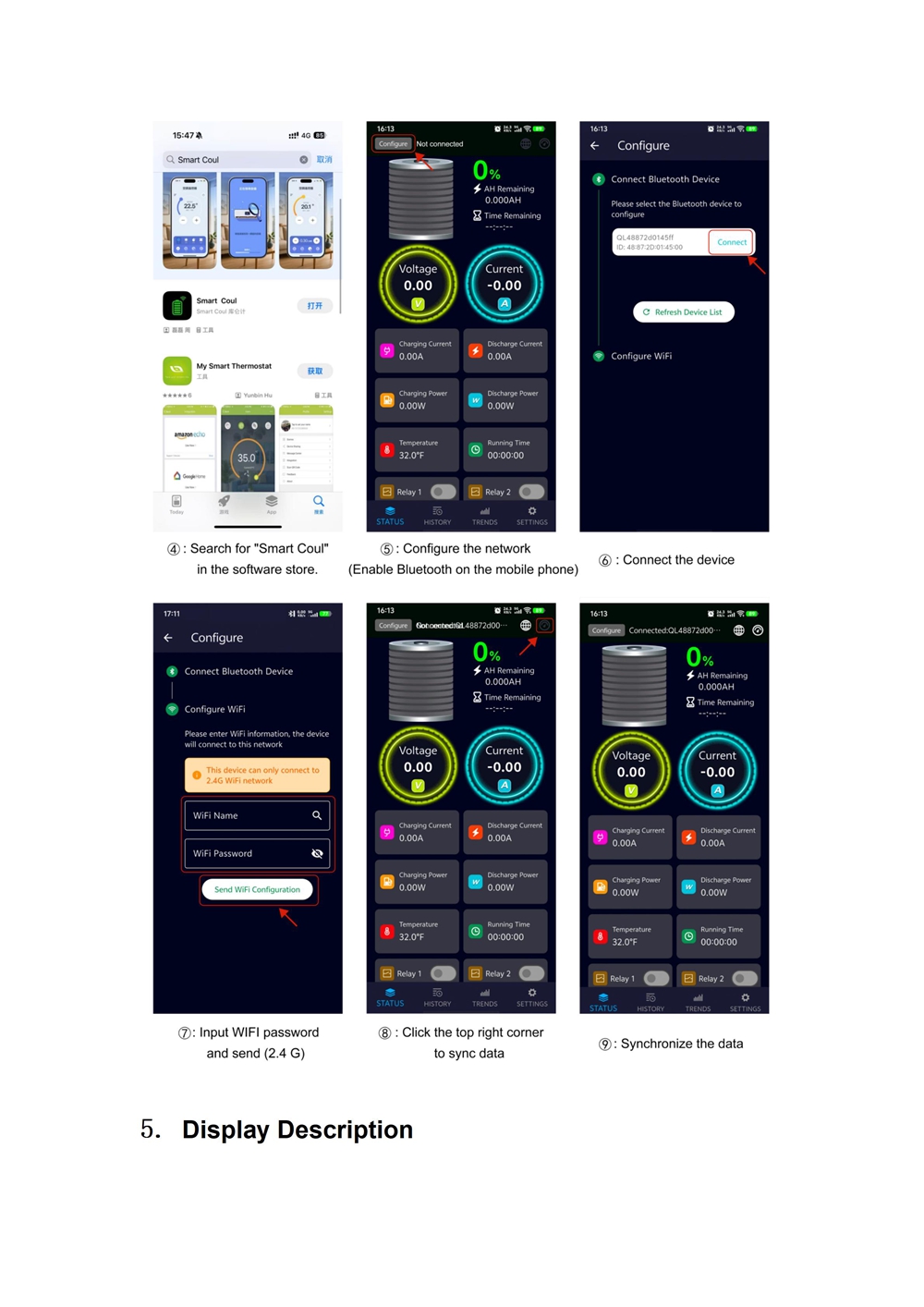

- The WFC8100 is a battery capacity management coulomb meter. It can display real-time parameters including voltage, current, power, remaining capacity, cumulative charge and discharge capacity, operating time and temperature. Remote communication with mobile APP is supported via WiFi.
- This meter is equipped with a color LCD screen for clear data display and easy observation. It is widely applied to scenarios such as battery charge-discharge capacity monitoring, remaining power indication, as well as voltage, current and power tracking.

Application Scope:
- Compatible with various batteries: lead-acid, lithium iron phosphate, lithium-ion, Ni-MH and other battery types.
- Battery-equipped vehicles: electric motorcycles, electric vehicles, RVs, etc.
- Electrical parameter measurement experiments, research laboratories, photovoltaic systems and other related scenarios.

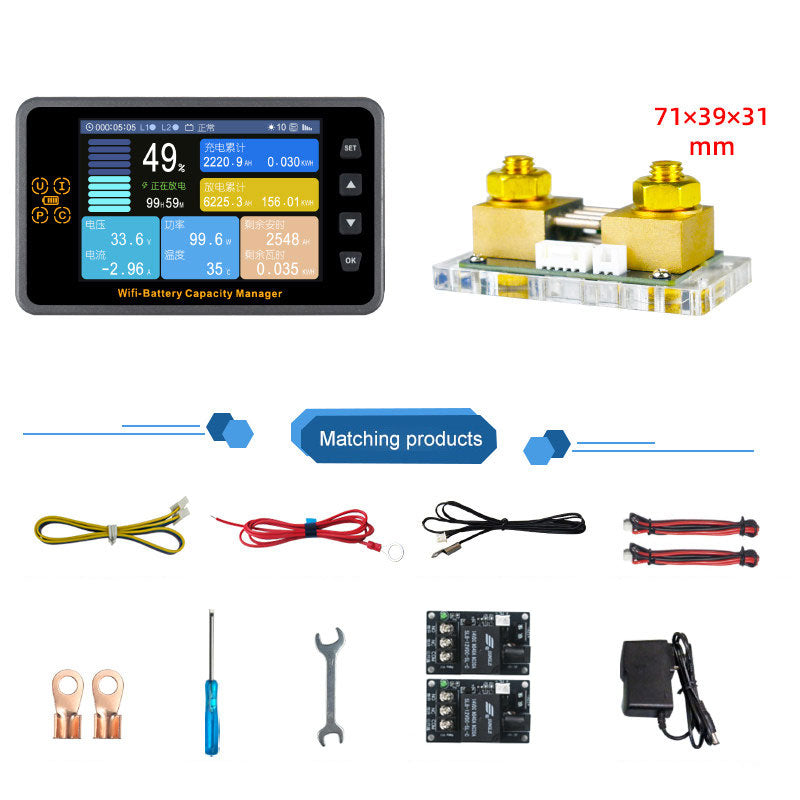

Package Included (Depending on Selected Configuration):

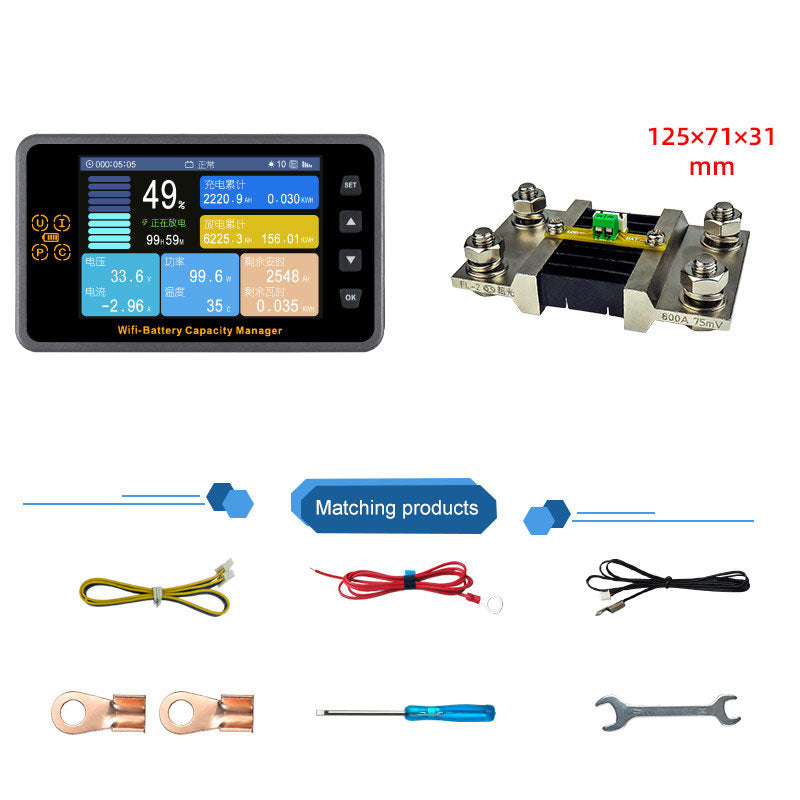

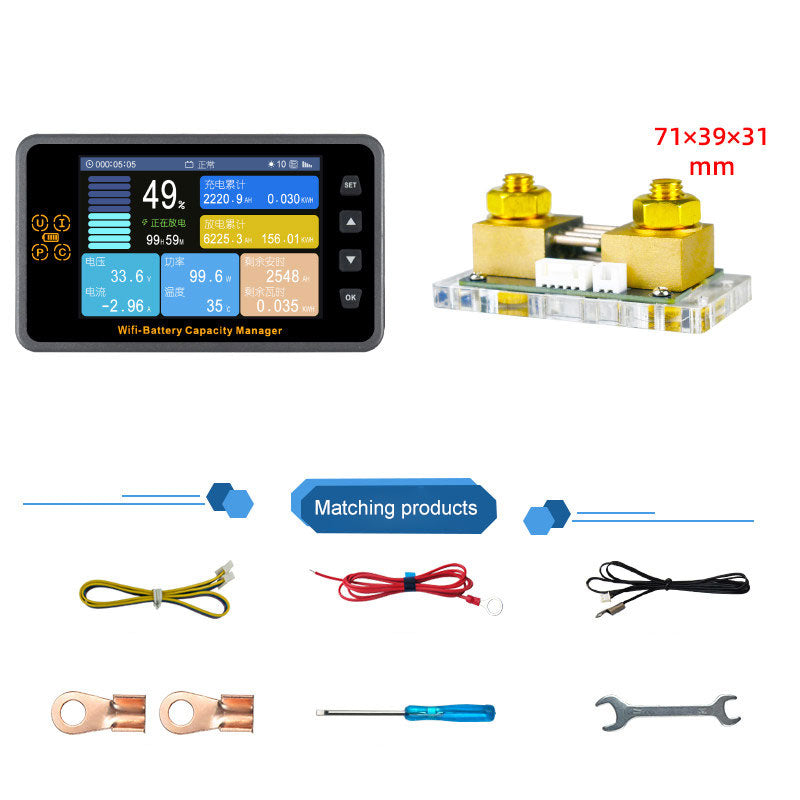

Standard Version:
- 1 x Coulomb Meter
- 1 x 100A/200A/300A/500A/650A Current Divider
- 1 x Display Connection Pin Cable 50cm
- 1 x Voltage Acquisition Cable 1m
- 1 x Temperature Acquisition Sensor 1m
- 2 x Copper Nose
- 1 x Screw Driver
- 1 x Wrench

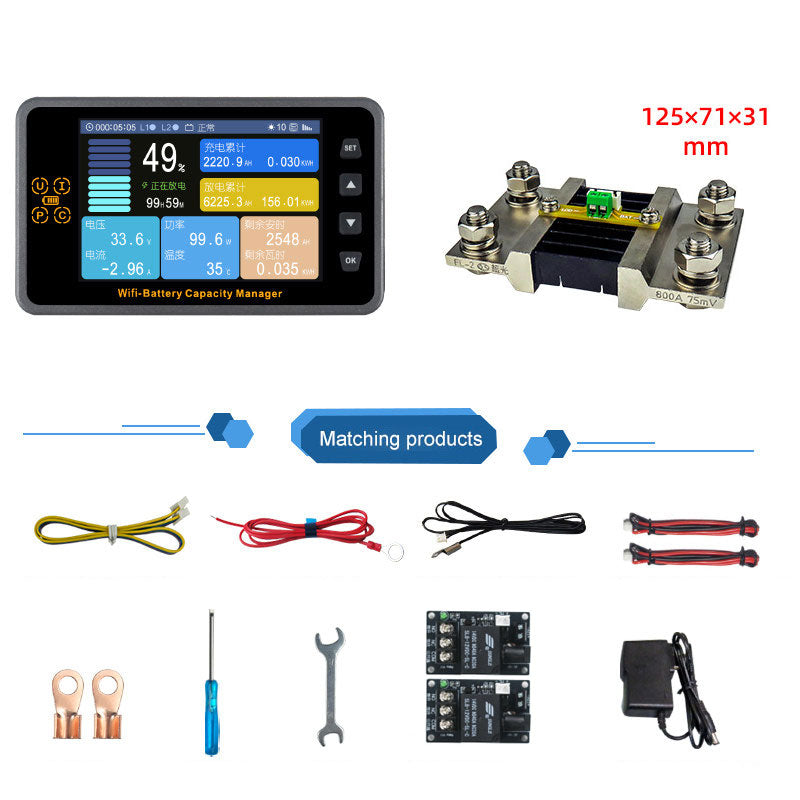

Relay Control Version:
- 1 x Coulomb Meter
- 1 x 100A/200A/300A/500A/650A Current Divider
- 1 x Display Connection Pin Cable 50cm
- 1 x Voltage Acquisition Cable 1m
- 1 x Temperature Acquisition Sensor 1m
- 2 x Relay Control 50cm
- 1 x 12V Relay Driving Power Supply
- 2 x Relay Module
- 2 x Copper Nose
- 1 x Screw Driver
- 1 x Wrench
