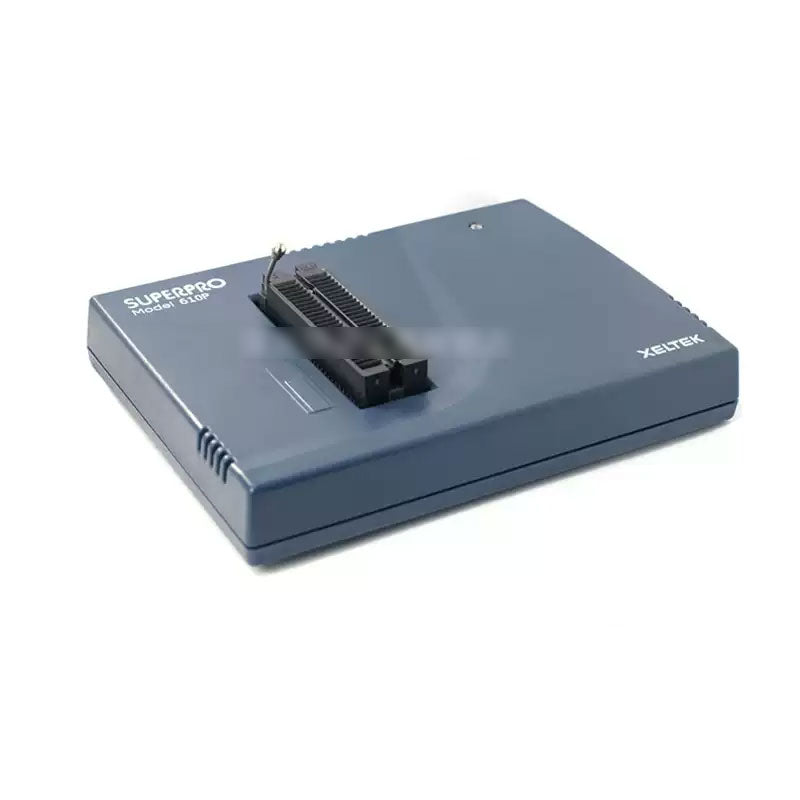

XELTEK SP610P USB Interfaced Ultra-high Speed Device Programmer Built with 48 Universal Pin-drivers

Introduction:
- An economical universal programmer. adopt SUPERPRO/6000's kernel, DIP48 full-driver interface.

Key Features:
- As of today, supports 249 manufacturers, 34157 programmable devices.
- Support devices with Vcc from 1.2V to 5V.
- Extremely fast speed higher than SUPERPRO/500P.
- Built with 48 universal pin-drivers.
- PC hosted mode and stand-alone mode. Under PC hosted mode the programmer is controlled by a PC via USB2.0 (high speed) to program a chip.
- Only IC manufacturer approved programming algorithms are used for high reliability. (+5%~-5%) and (10%~-10%) Vcc verification enhances programming reliability.
- Advanced and powerful functions.
- Production mode start chip operation at the moment the chip is inserted in the socket properly.
- Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one touch step.
- Password can be set for project files and production volume control.
- Batch command combines device operations like program, verify, security into a single command at any sequence.
- Serial numbers generators are available as standard or customer-specific functions.
- Log file is useful for quality tracking.
- Over-current and over-voltage protection for safety of the chip and programmer hardware.
- Support for WINDOWS XP/Vista compatibility/Win7/Win10.

Specifications:
- Device Support: EPROM, Paged EPROM, Parallel and Serial EEPROM, BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU.
- Package Support: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, CSP, SCSP , ...
- Communication Interface: USB2.0
- Standalone Mode: Not available
- Power Supply: Input AC 100-240V; Output 12V/2A
- Power: 15W
- Unit Dimensions: 178x130x40mm

Package Included:
- 1 x Programmer
- 1 x USB Cable
- 1 x Power Adapter
