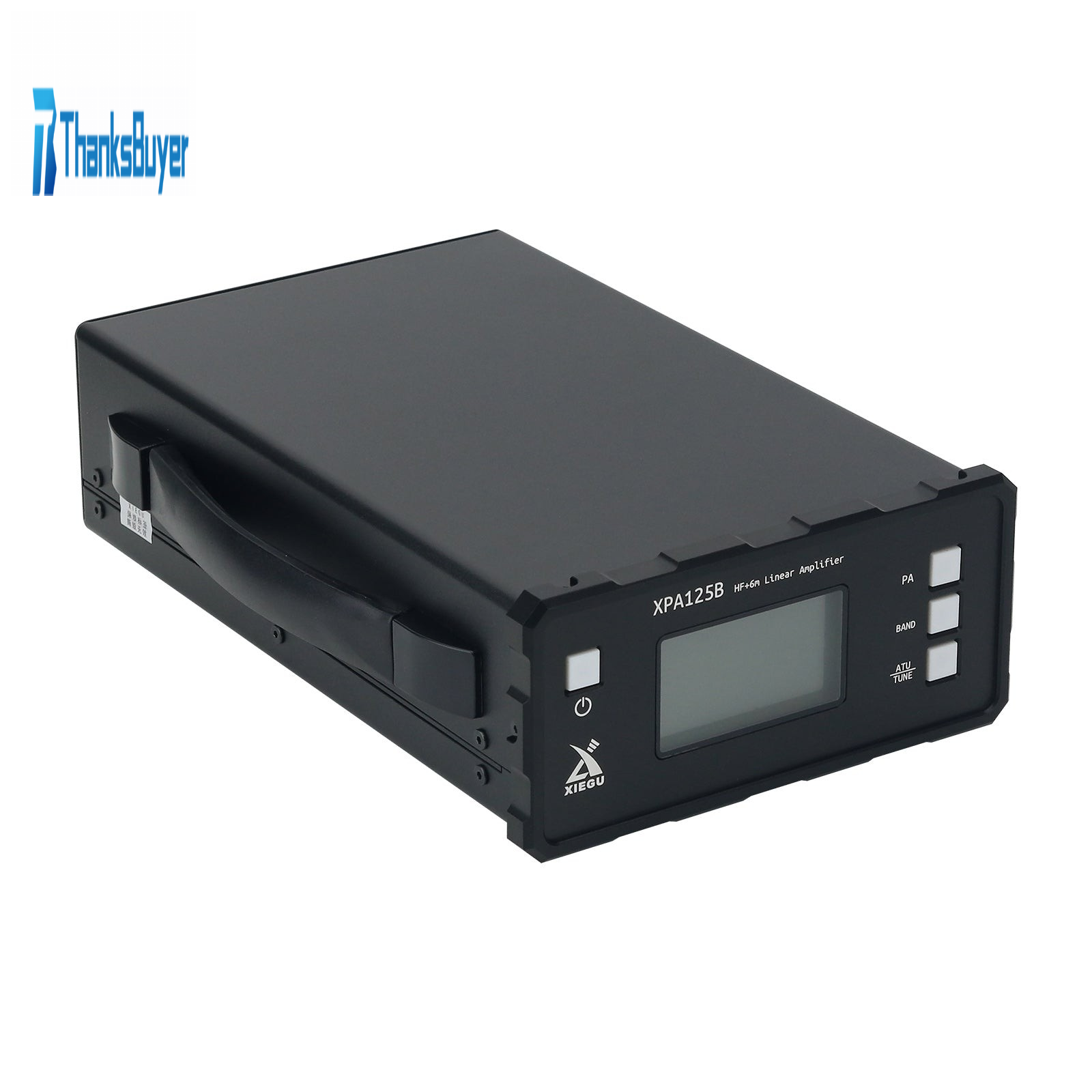

XIEGU XPA125B Power Amplifier 100W HF Integrated Radio Power Amplifier for X5105 X108G G1M G90

XIEGU XPA125B Power Amplifier 100W HF Integrated Radio Power Amplifier for X5105 X108G G1M G90

Description:
-XPA125 is a 100W power amplifier and ATU all-in-one machine of Xiegu series. It can quickly build a high-power short-wave transceiver with X5105, X108G, G1M, G90 and other hosts through the adapter C-19. It is also possible to quickly build a high-power short-wave transceiver with an adapter such as ICOM817 through the adapter CN-20.
-The amplifier host uses an all-solid-state CNC design, built-in perfect input and output protection functions, so that you can communicate at any time.

Specification:
Working frequency: 0.5 ~ 54MHz
Input power: ≤5W
Maximum output RF power: 1.8-30MHz≥110W; 50-54MHz≥90W
Current parameter: Standby 260mA @Max launch: 30A @ Max
ATU maximum tuning range: 14 ~ 500Ω
Working voltage: 12V ~ 14.5V DC
Machine size: 260 * 150 * 100mm (excluding knobs, handles, etc.)
Weight: 3.3 kg

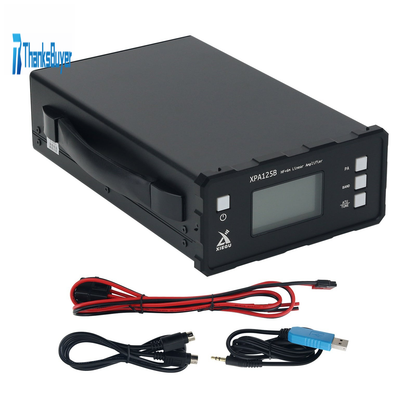

Package Included:
1 x XPA125B Amplifier

Note:
XPA125 can also be connected to G90, X5105 and compatible with other Xiegu products.
