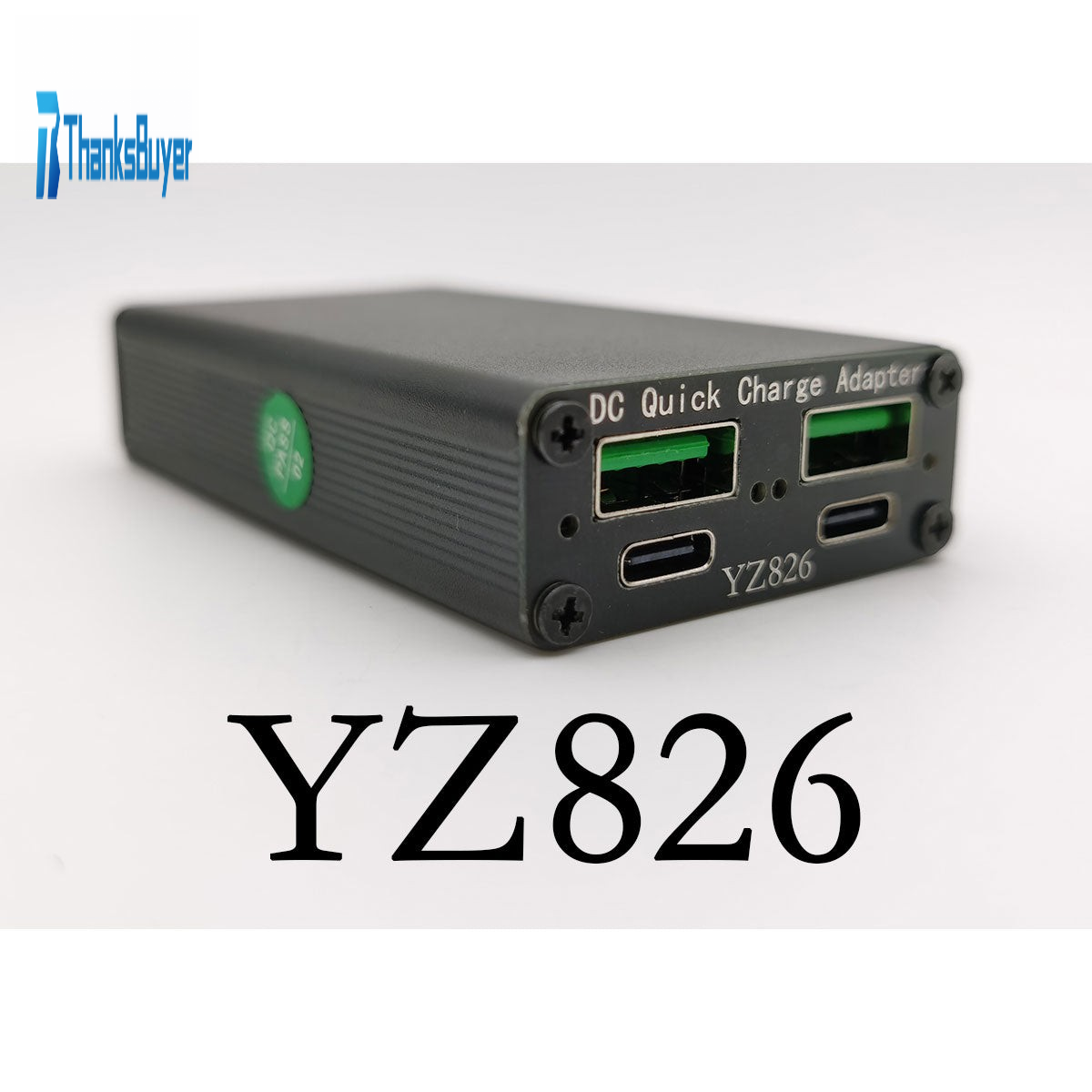

YZ826 Car Mobile Phone Charger Adapter Multi-Protocol DC Quick Charge Adapter DC Input 6-30Vdc

YZ826 Car Mobile Phone Charger Adapter Multi-Protocol DC Quick Charge Adapter DC Input 6-30Vdc

Performance Parameters:
- Volume: 83 x 45 x 18mm/3.3 x 1.8 x 0.7"
- Support protocol: In addition to normal fast charge protocol, its USB port currently supports for Huawei SCP 22.5W and genuine authorized VOOC and DASH 3.7A, and an original cable should be used. Its PD3.0 type-c port also supports PD3.0, PPS and QC4+

Attention:
- Type-A and type-C ports do not support fast charging at the same time. And only 5V is output when both of them are used.
- Ordinary fast charge protocol: Support for ordinary Android and Apple 5V fast charge, QC2.0/3.0, Huawei FCP, Samsung AFC, MTKPE, type-C PD2.0 and other fast charge protocols.

Features:
- YZ826 two-channel step-down type
- USB + Type-C dual interface
- Input voltage: DC input 6-30Vdc
- Support 200W max

Supporting Protocols:
- For OnePlus DASH and OPPO VOOC
- For MTK PE+1.1/2.0
- QC2.0/QC3.0/QC4.0/QC4+
- For Huawei SCP/FCP and USB PD3.0 (PPS)
- For Apple 2.4A, Samsung AFC, and VIVO flash charge

Package Included:
- 1 x YZ826 Charger Adapter

Note:
- Input interfaces: DC5525 + PD20Vdc.
- DC5525 input cable is not included. If you want to buy it, please contact us to cover the cost.
