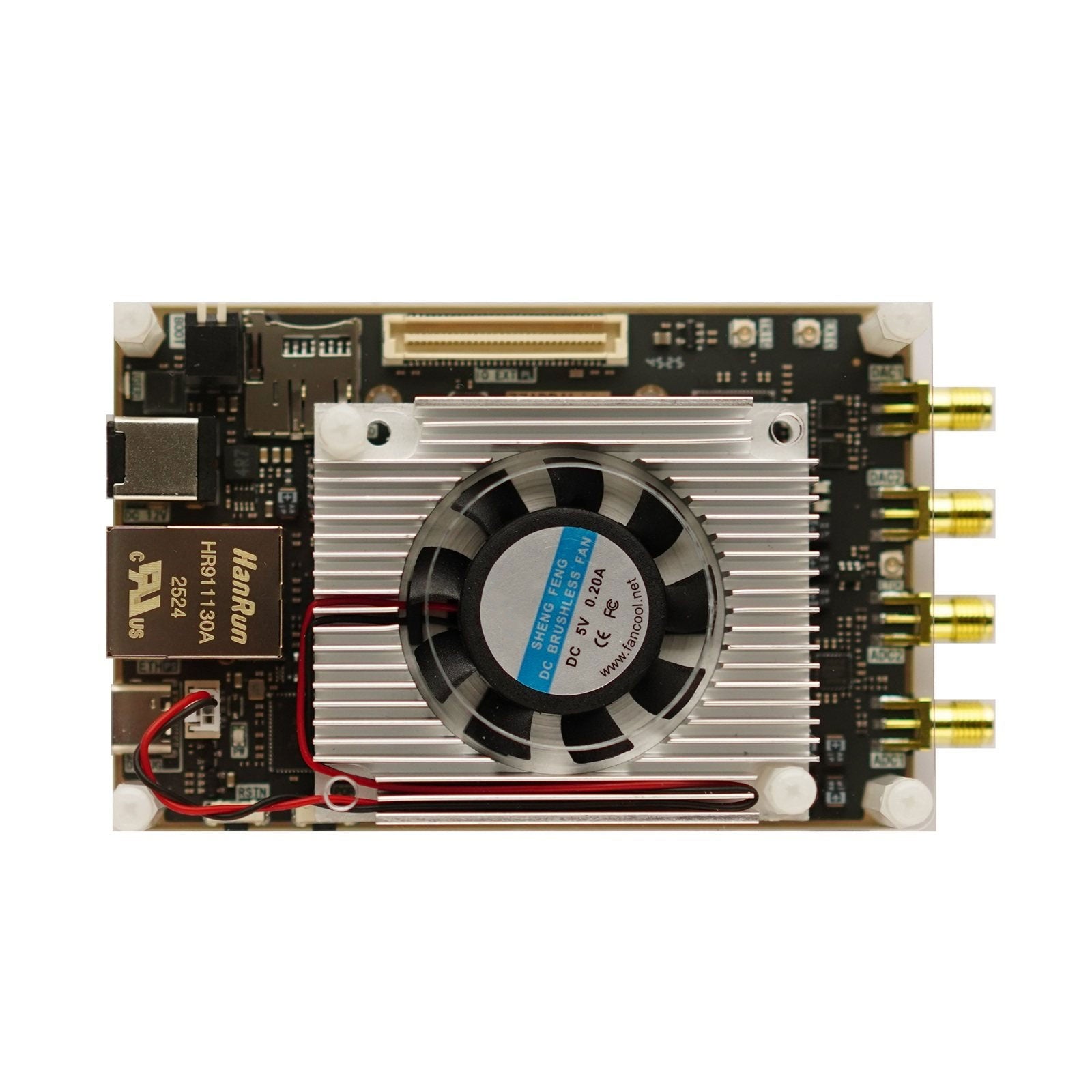

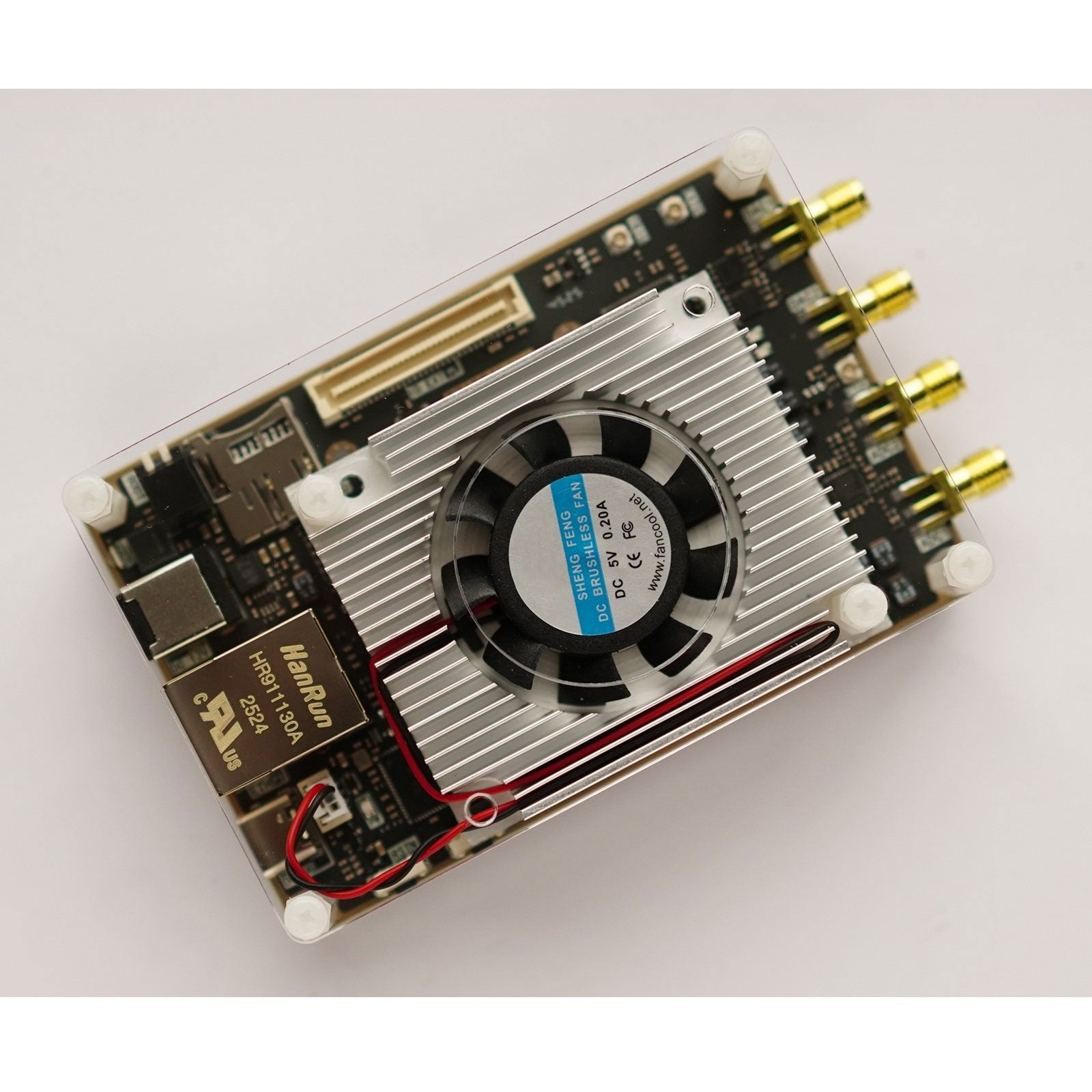

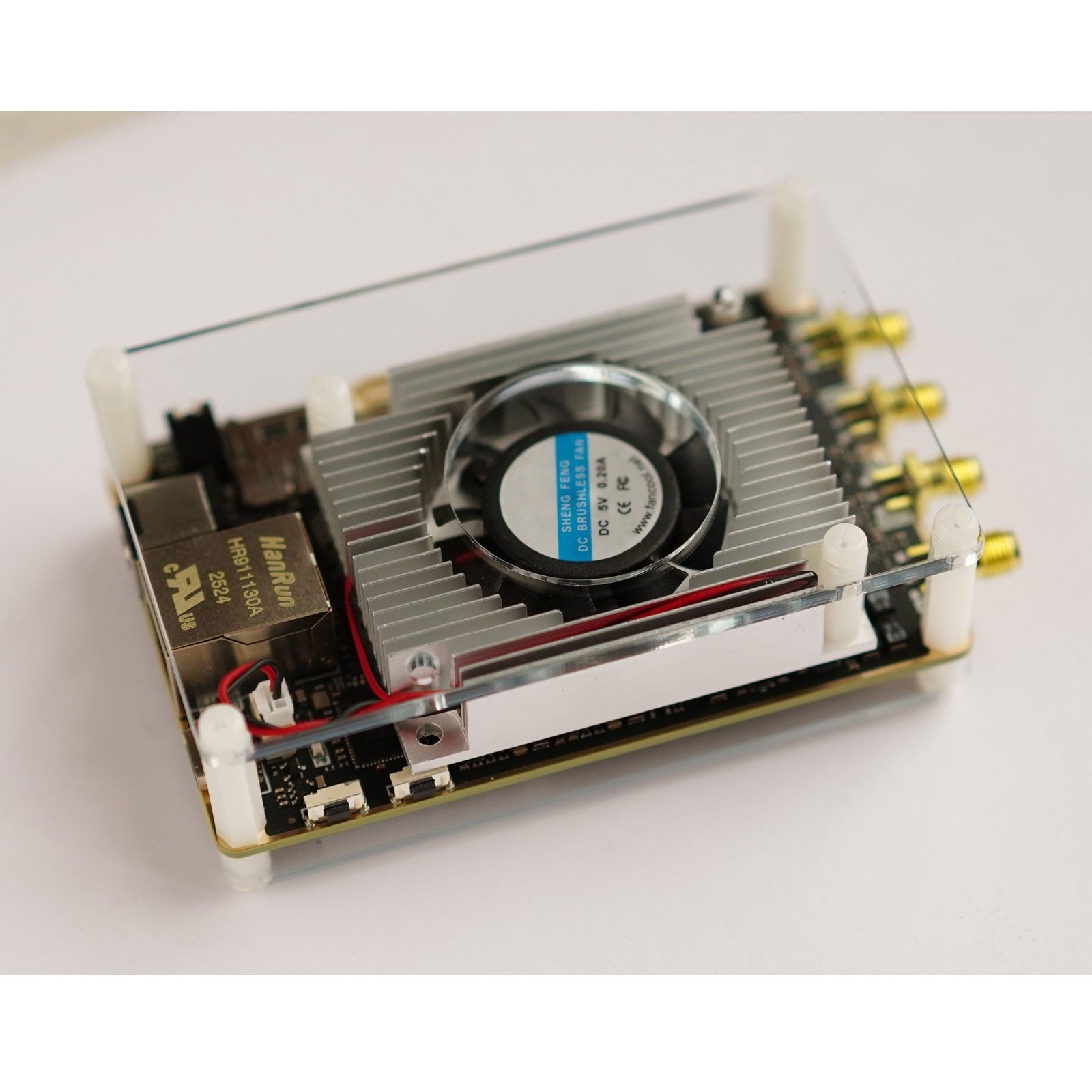

Z7ADDALite High Speed ADDA Sub Card Module DAC Signal Source Electronic Competition Signal Processing Development Board

Master Chip Parameter:
- Master chip model: XC7Z020-2CLG484I
- Chip level: industrial
- Clock recommended maximum speed: for FPGA PLL/MMCM recommended up to 628M
- PS application processor model: for ZYNQ on-chip hardcore processor, dual core Cortex-A9, main frequency of 766M
- DDR specification model: 1024MByte (1GB), 32 bit width, 1066M data rate, MT41K256M16TW-107
- Logic unit (LC): 85K
- Lookup table (LUT): 53200
- DSP unit multiplier: 220
- Trigger (FlipFlops): 106400
- Ram: 4.9MBit
- Component temperature range: industrial -40℃ to 85℃
- Speed level: -2

Functional Interfaces:
- Development power supply: power supply through DC-IN, 9-12V input; device power supply about 8-9W
- ADC/DAC channel: 2 channels 250MSPS/14bit ADC, op amp input, impedance of 50ohms; 2 channels 1.2GSPS/16bit DAC, op amp input, impedance of 50ohms
- Development board clock: 33.33M(PS) + 50M(PL) logic clock; 10M(TCXO-0.5PPM) + AD9516 clock chip (AD DA)
- External clock: AD9516-3 reserved external clock input, IPEX1 interface
- Serial port/JTAG: one FT2232HQ two-in-one, support UART/JTAG
- Ethernet interface: one PS gigabit RTL8211E-VL
- Expansion IO port: one BTB connector, model of X0802WVS-60AS-LPV01, lead out 40 IOs, 4 pair of differential/32 single-ended, voltage can be modified
- LED and button: POR reset/PL_RSTN button/USR/PWR/DONE indicator
- Startup setting switch: one BOOT dip switch for startup settings
- Onboard FLASH: 16M bytes, model of W25Q128FVSIG
- SD interface: one SD interface of TF card slot, support SD boot
- EEPROM: onboard a 24C02, PL terminal
- Synchronization/trigger: one TRIG pin, IPEX interface
- Note 1: Extended IO ports supports 4 pairs of differential and 2.5V LVDS_25.
- Note 2: Expand IO ports with 32 single-ended IO ports, and differential wiring is not supported.
- Note 3: ADC input defaults to AC coupling, can be changed to DC, DAC defaults to DC output.

AD9643 Parameters:
- Master chip model: AD9643BCPZ-250
- Resolution: 14Bit
- Signal data bandwidth: up to 250MHz
- Channel number: 2-channel
- Power supply voltage: 1.8V
- SNR: 70.6dB
- Signal terminal: configuration interface is SPI interface, data interface is LVDS parallel port
- Front-end op amp bandwidth: 1.9G
- Integral nonlinearity: 3.5LSB
- Component level: industrial, -40℃ to 85℃

AD9122 Parameters:
- Master chip model: AD9122BCPZ
- DAC resolution: 16Bit
- Maximum sampling rate: 1200MHz (data input up to 600MHz, interpolation achieves higher values)
- Channel numbers: 2 channels
- Power supply voltage: 1.8V - 3.47V
- Signal terminal: configuration interface is SPI interface, data interface is LVDS parallel port
- Front-end op amp bandwidth: 1.5G
- Integral nonlinearity: 3.7LSB
- Component level: industrial, -40℃ to 85℃

Package Included:
- 1 x Development Board
- 1 x Type-C USB2.0 Data Cable
- 1 x SMA Cable
- 1 x DC5.5-12V Power Supply
