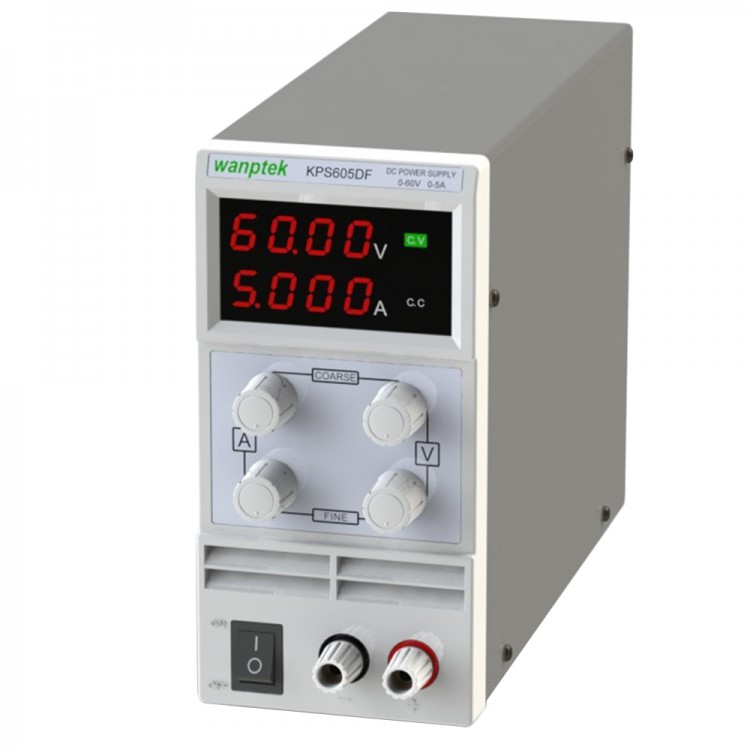

KPS605DF 0-60V 0-5A 110V-230V 0.1V 0.001A EU LED Digital Adjustable Switch DC Power Supply
Description:
KPS series is a single set of output, high precision double display switch dc power supply.Machines have complete operating protection function, with high performance,low ripple, high stability , light weight and small volume etc. Current limiting protection can make KPS power supply and load against accidental damage. KPS series power supply with low temperature control circuit, a cooling fan noise is low.
Features:
- Have complete operating protection function
- Highly efficient, low ripple, small volume, light weight
- Double display voltage, current, and high precision
- Voltage stabilization, current limiting, simple operation
- Dual voltage input and convenient choice
- Temperature control fan heat dissipation, low noise
- Double potentiometer more precise adjustment
Technical indicators
- Input voltage:AC 110V/220V/50/60Hz
- Output voltage:0 - 60V
- Output current:0 - 5A
- Voltage resolution:0.1V
- Current resolution:0.001A
- Power effect:CV≤1%+10mV
- Effect of load:CV≤1%+10mV
- Ripple and noise:Vp-p≤1%
- Voltage display precision:±1%+1digits
- Current display precision:±1%+2digits
- Net/gross Weight (KG):1.4/1.7
- Volume (mm):81WX165HX220L
- Operating environment:(-10-45) Rh<90%
Package included:
- 1 x DC Power Supply
- 1 x Power cable
- 1 x Manual
