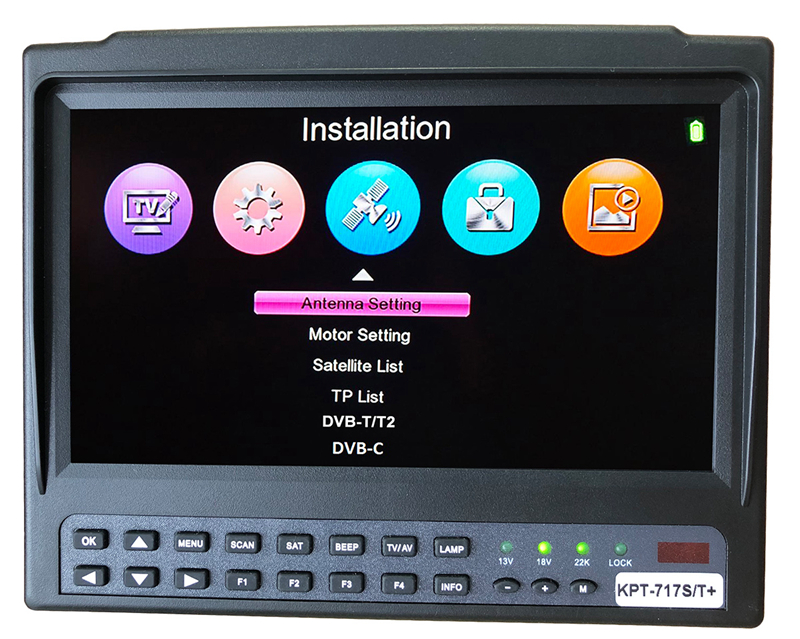

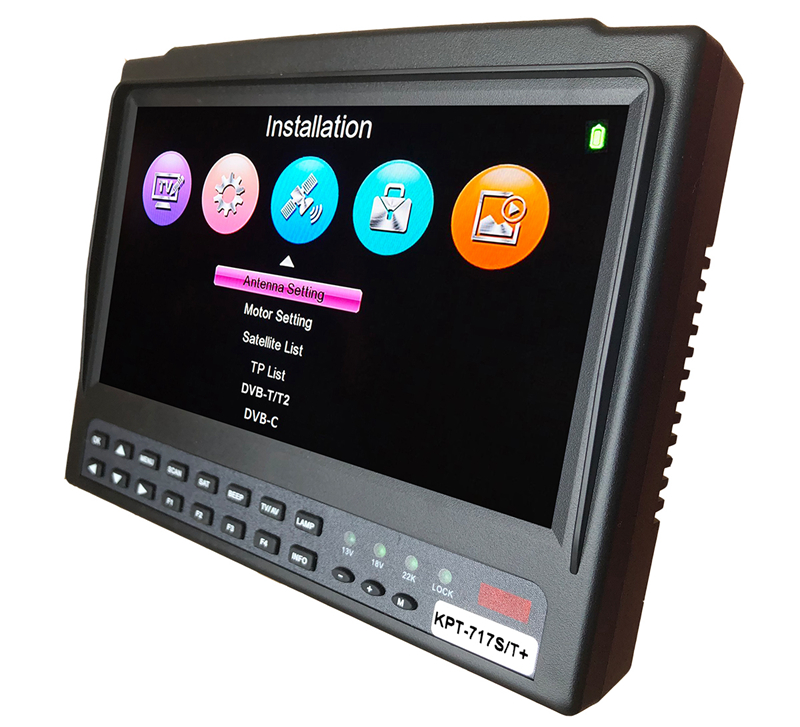

KPT-717S/T+ 7" LCD HD Satellite Finder & HD Monitor & CCTV Camera Tester Supporting AHD Input

KPT-717S/T+ 7" LCD HD Satellite Finder & HD Monitor & CCTV Camera Tester Supporting AHD Input

Features:
* 7" High definition TFT LCD Screen which can display channels (DVB-S/S2+T/T2+C); Support DVB-S/S2 MP4 HEVC (H.265) AVS/AVS+
* DVB-S2+T2+C Combo receiver; Live FTA digital picture and sound
* Support AVS/AVS+ HEVC (H2.65/4K) satellite TV TP signal and lock the signal alarm (No image display)
* Lock signal. Find star signal quality, shows strength & quality & BER & PWR strength and quality readings
* Built-in speaker; remote control function

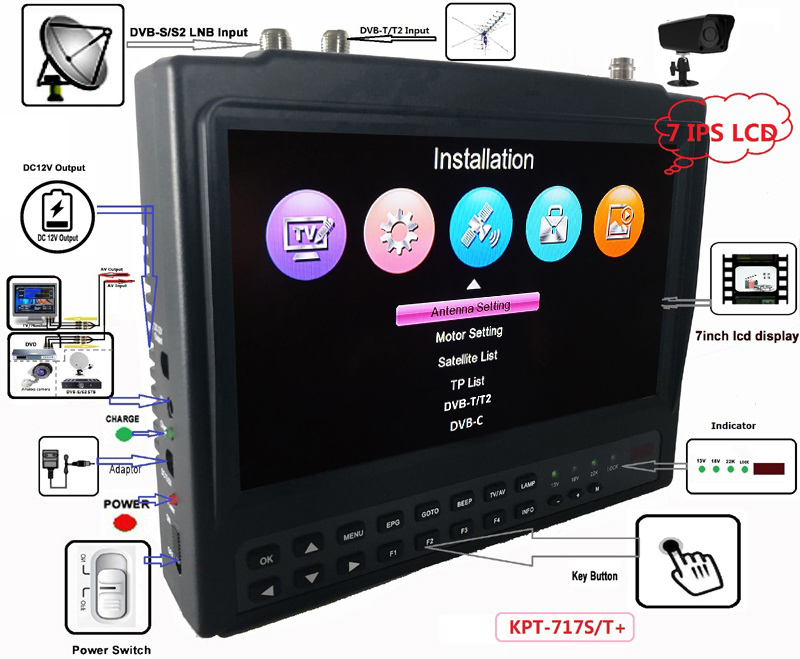

* With DC12V power output to CCTV
* On satellite finder state, AV port outputs video and audio synchronously

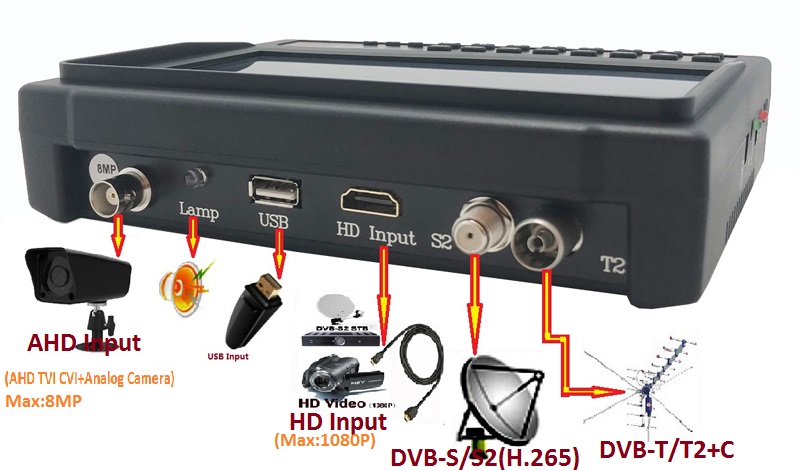

* TV/AV key: ① Satellite TV Finder (DVB-S 2/T2/C). ② HD input function (HD Monitor). ③ AHD input function (HD camera test). ④ AV input function(Monitor)

Detailed Information:
1. Satellite finder: <S2+T2+C Combo>
1.1 DVB-S/S2 <DVB-S/S2 MP4 HEVC (H.265) AVS/AVS+>:
* Frequency range: 950MHz-2150MHz
* LNB power & switch: 13V 18V/22K/signal lock indicator
* Input impedance: 75Ω (F). LNB short-circuit protection
* DiSEqC: 1.0, 1.1, 1.2, USALS; Built-in signal locked alarm
* Built-in satellite finder management. Easy Satellite Manager (Edit, Delete and Scan), and Edit TP, Frequency, LNB switch, Symbol Rate, etc.

1.2. DVB-T/T2: <DVB-T and DVB-T2 standard>
* Frequency range: VHF-H 174-230MHz;  UHF 470-860MHz
* Demodulation: QPSK, 16QAM, 64QAM, and 256QAM
* Bandwidth: 6, 7, and 8MHz

1.3. DVB-C: <DVB-C standard>
* Frequency range: 115~858MHz
* Symbol Rate(Kbps): Modify according to country information
* Demodulation: 16QAM, 32QAM, 64QAM, 128QAM, and 256QAM

2. HD Input: (1080P max.)
* HD signal display support: 480, 576, 720, and 1080 (Max. 1080P)

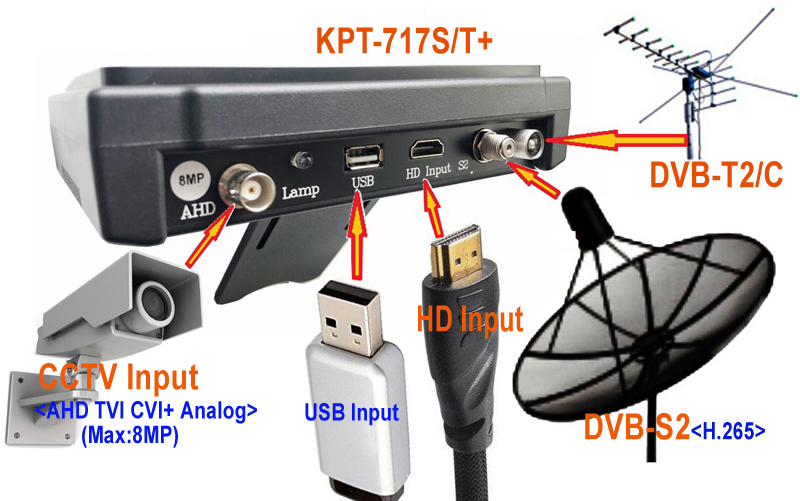

3. AHD Input: Test CCTV Camera
* AHD: Support TVI AHD CVI camera 720P, 960P and 1080P HD video input, and display picture (Max. 8MP)
* Analog CVB-S Video

4. AV Input: (on AV state; TV state is AV output)
* Support Video & Audio & DCl2V power test
* AV Input (Video & Audio Input Monitor)

Others:
* USB (On satellite finder state): Support software upgrade and PVR. Supports external HDD via USB, power wanted if necessary
* Menu: Include English/Arabic/Persian/Russian/Spanish menu

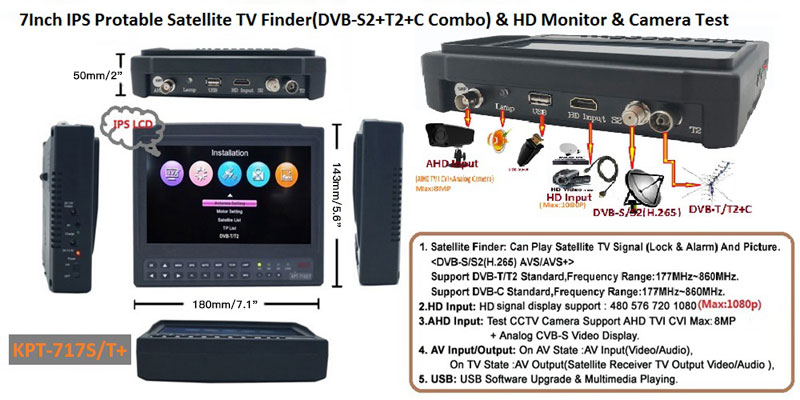

Specifications:
* 7" IPS high-resolution digital display LCD (LED Backlight)
* Dots pixels: 1024*600 (1843200 Pixels)
* Color system: PAL/NTSC
* Input voltage: DC13.5V 1A
* Dimensions: 180 x 143 x 50mm/7.1 x 5.6 x 2"

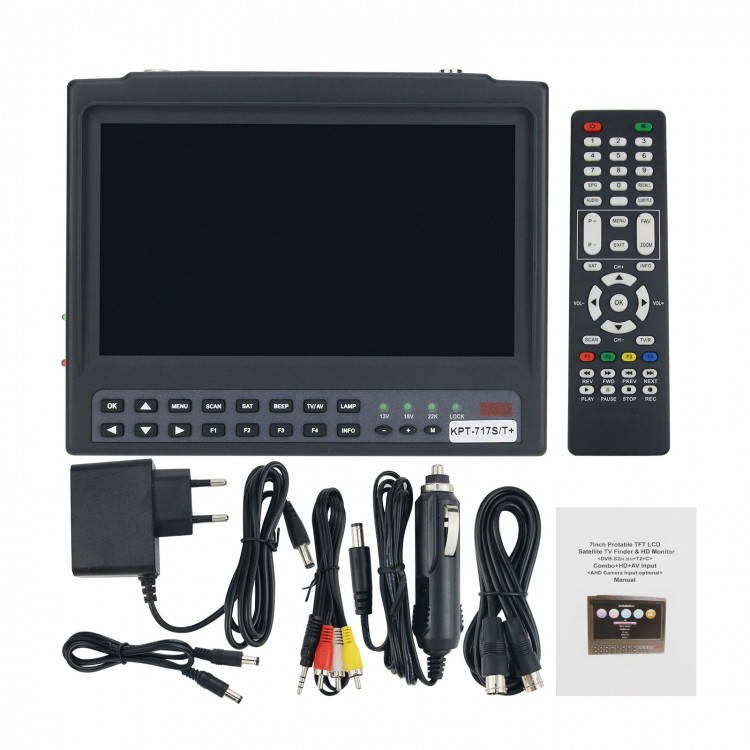

Package Included:
* 1 x Satellite Finder
* 1 x Adapter
* 1 x Car Power
* 1 x LNB Cable
* 1 x DC Cable
* 1 x AV Cable
* 1 x Bag
* 1 x Remote
* 1 x Manual

Note:
* Battery is not included. DC 11.1V 2600mAh lithium battery is recommended.
* Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
