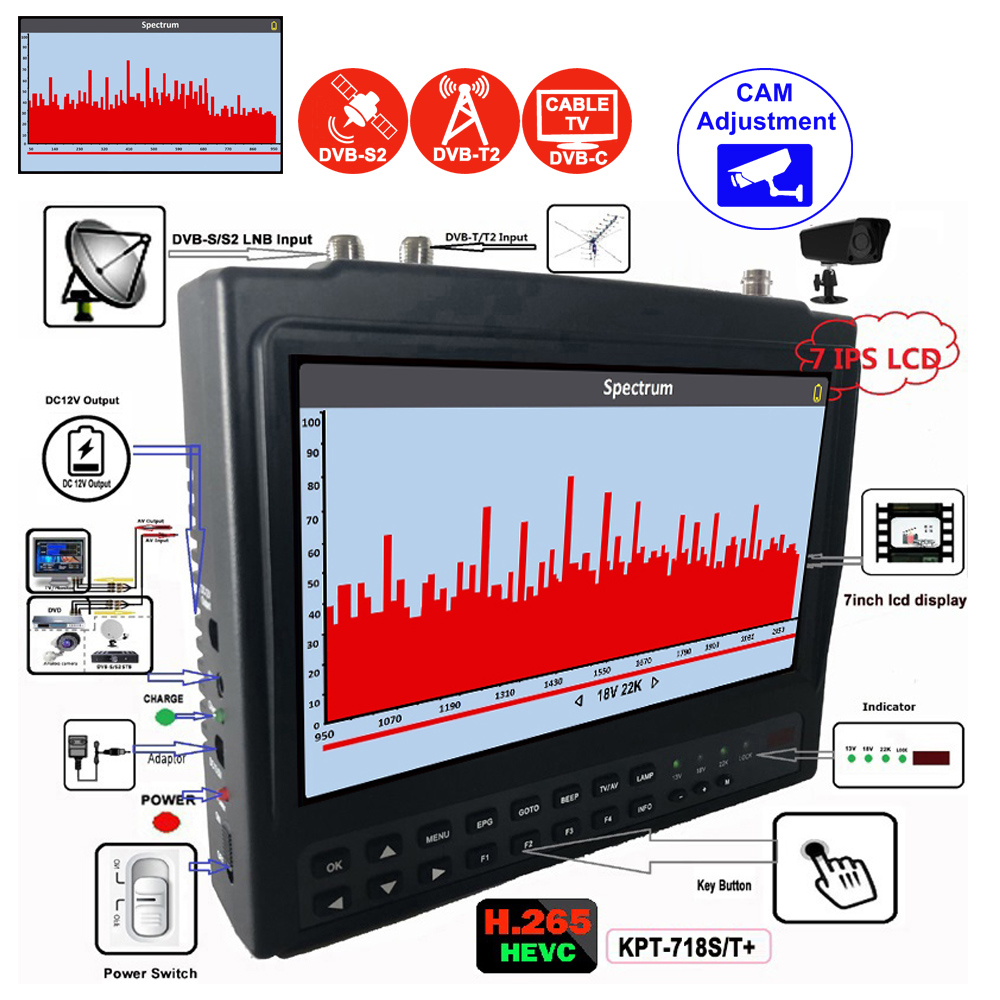

KPT-718S/T+ 7" Combo Satellite Finder (S2+T2+C) CCTV Camera Tester Spectrum Analysis 8MP AHD Input

KPT-718S/T+ 7" Combo Satellite Finder (S2+T2+C) CCTV Camera Tester Spectrum Analysis 8MP AHD Input

Features:
- 7" Inch High definition TFT LCD screen can display channels (DVB-S/S2+T/T2+C). <Support DVB-S/S2 MP4 Hevc (H.265) AVS/AVS+>
- With DVB-S/S2+T/T2+C for spectrum analysis
- DVB-S2+T2+C Combo Receiver; Live FTA Digital Picture and Sound. Satellite TV TP signal and lock the signal alarm
- When Locking signal, it will find star signal quality, shows strength & quality & BER & PWR strength and quality readings
- Built-in speaker and remote control
- With DC12V power output to CCTV
- Built-in Lithium battery find satellite around 3 hours
- Battery running hours (AV input): about 6 hours
- In satellite finder state, AV port outputs video and audio synchronously
- Plus+: Added AHD TVI CVI HD coaxial camera test
- TV/AV key: ① Combo Satellite TV Finder ( DVB-S2/T2/C); ② HD input function (HD Monitor); ③ AHD input function (HD Coaxial Camera Test); ④ AV input function (Monitor)

1. Combo Satellite finder:
DVB-S/S2: < DVB-S/S2 MP4 HEVC(H.265) AVS/AVS+>
- Frequency range: 950MHz-2150MHz
- LNB power & switch: 13V 18V/22K / signal lock indicator
- Input impedance: 75Ώ (F)
- LNB short-circuit protection
- DiSEqC: 1.0, 1.1, 1.2, USALS
- Built-in signal locked alarm
- Build-in satellite finder management
- Easy Satellite Manager (Edit, Delete and Scan), Edit TP, Frequency, LNB switch, Symbol Rate, etc.

DVB-T/T2: < DVB-T and DVB-T2 standard>
- Frequency range: VHF-H 174-230MHz and UHF 470-860MHz
- Demodulation: QPSK, 16QAM, 64QAM and 256QAM
Bandwidth: 6, 7 and 8MHz

DVB-C: <DVB-C standard>
- Frequency range: 115~858MHz
- Symbol Rate (Kbps): Modify according to local country information
- Demodulation: 16QAM, 32QAM, 64QAM, 128QAM, and 256QAM

2. HD Input: In HD Input state
- Support 800*480 to Max 1920*1080 (Max: 1080P)

3. AHD Input: Test CCTV Camera
Automatic display of HD AHD/TVI/CVI camera pixel
3.1. AHD: Support TVI AHD CVI camera 720P 960P 1080P HD video input, display picture (Max: 8MP)
3.2. Analog CVB-S Video

4. AV Input: (In AV state; TV state is AV output)
- Support Video & Audio & DC12V power test
- AV Input (Video & Audio Input Monitor)

USB: (In satellite finder state)
- Support software upgrade & PVR & Games & IP Setting & Network Apps & DLNA Render
- USB connection Internet (by USB WiFi:7601 & 5370), for Youtube / Weather / LOCAL IPTV /for XTREAM / Upgrade By Net.

Menu:
- English; Polish; Arabic; French; German; Russian; Portuguese; Spanish; Turkish

Specifications:
- 7" IPS high-resolution digital display LCD ( LED Back Light)
- Dots pixels: 1024*600 (1843200Pixes)
- Color system: PAL/NTSC
- Battery indicator light show
- Lithium battery: DC 11.1V 2600mAh (built-in)
- Input voltage: DC 13.5V 1A

Package Included:
- 1 x Satellite finder
- 1 x Power adapter
- 1 x Car power
- 1 x LNB line
- 1 x DC line
- 1 x AV line
- 1 x Bag
- 1 x Remote control
- 1 x User manual
