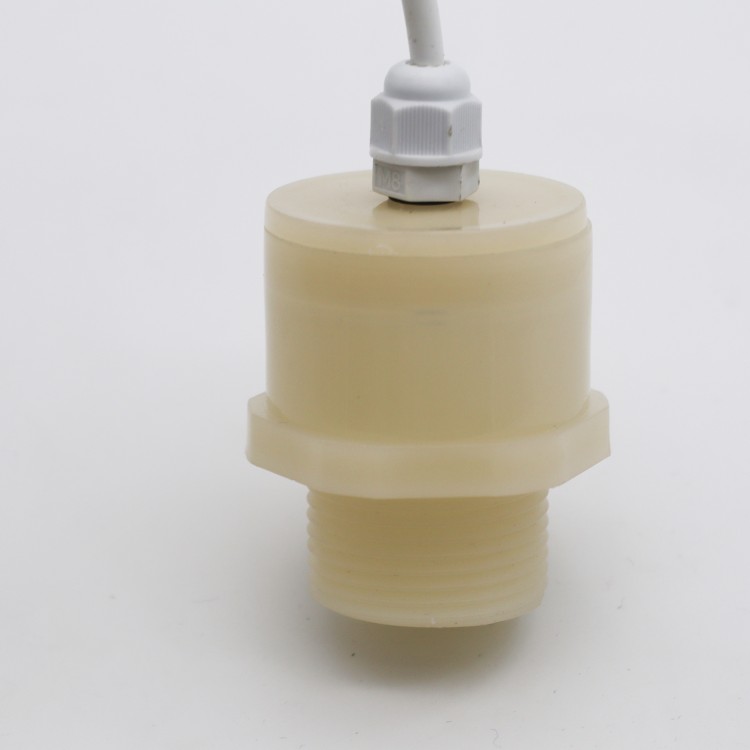

KUS550 Ultrasonic Water Level Sensor Transmitter Corrosion-Resistant Ultrasonic Level Meter Beige

KUS550 Ultrasonic Water Level Sensor Transmitter Corrosion-Resistant Ultrasonic Level Meter Beige

Features:
- High sensitivity
- Compact and robust structure
- IP68 high protection rating
- Corrosion resistant casing. Suitable for corrosive medium and application
- Strong anti-interference and interface for convenient connection to related facilities
- Light weight, no scaling, no pollution to the medium
- Non-toxic. Easy to maintain
- Low power consumption

Applications:
- Water and sewage treatment: pump room, water collection well, biochemical reaction tank, sedimentation tank
- Electric power, mine: mortar tank, coal slurry tank, water treatment, etc.

Parameters:
- Detection range: 250-2500mm/9.8-98.4"
- Blind zone: 0-250mm/0-9.8"
- Power supply: 3.3V-30V DC, ripple 10%SS
- Output: one analog output, and can be configured as 0-10V or 4-20mA output programmable. Or switch output one RS485 or TTL compatible UART output
- Accuracy: 1%
- Environment temperature: -40 to 85℃
- Storage temperature: -40 to 85℃
- Connection: 5-wire cable/6-wire cable for switch output
- IP grade: IP68
- Casing material: PVDF (default)

Package Included:
- 1 x Ultrasonic Water Level Sensor

Dimensions (Unit: mm):


Electronic Interface and Signals Definition:
I. Analogue output type wiring diagram


II. Switch output type wiring diagram


Description of Sensor Functions:
I. Adjusting Analogue Output
The analogue output can be programed as the user want. Such as working at switch output or working at liner output all the parameters can be set by the RS485 interface.
There are 8 types of output functions can be programed.

All the setting routine as follows:
step 1: set one pointed distance by the RS485,
step 2: set another pointed distance by the RS485.
Step 3: set the output type liner or switch, and set the related output options
Step 4: reboot the sensor.

1. Window mode normally-open and liner mode positive slope output function.
2. Window mode normally-closed and liner mode negative slope output function.
3. Single switching point, normally-open function.
4. Single switching point, normally-closed function.
5. Single switch point with hysteresis gap normally-open function.
6. Single switch point with hysteresis gap normally-closed function.
7. Detection of object presence-normal open function.
8. Detection of object presence-closed open function.

Switching point, Setting distance only after power on. The internal clock can assure can't be changed after 5 minutes after power on. If want to change the switching point, users can only set the request distance after power restart.

II. For RS485 Output
There are 2 kinds of working style, one for auto measure, the sensor will measure the distance or level repeatedly, and the measurement period can be set by the UART. The measure result can be fetched every time. The other style is power save mode when the sensor is sleep, until the sensor received the inquiry command with pre-code. Communication protocol for Modbus-RTU. For example, the measure result can be read by access the register 0x101 by protocol for Modbus.
For more information please contact us for the software engineering guide.



Installation conditions:
If the sensor is installed at the environment temperature fall below 0℃, it should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.
