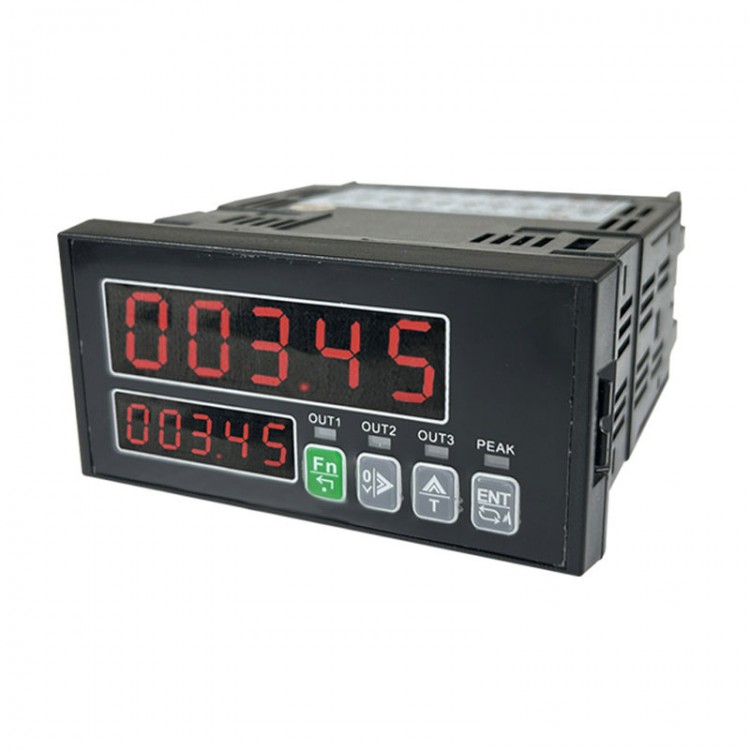

KV-4A 5-Digit Weight Indicator and Tension Indicator Display (220V Basic Version with 0-10V/4-20mA)

KV-4A 5-Digit Weight Indicator and Tension Indicator Display (220V Basic Version with 0-10V/4-20mA)

Description:
KV-4A is a high-speed data acquisition instrument featuring dual five-digit display windows. The main screen displays net weight, while the secondary screen shows settings, total weight, peak value, and units. This weight indicator is equipped with three sets of alarm switches.

Specifications:
* Model: KV-4A
* Display: Dual 5-digit segment LED display
* Power Supply: DC 10–28V or AC 85–265V (Rated 100–240V, 50/60Hz). Wide voltage power supply. Choose one option only
* Load Capacity: Supports up to 8 × 350Ω sensors
* Signal Range: 0.5–3.0 mV/V
* Excitation Voltage: 5V
* Sampling Frequency: Configurable: 10, 40, 640, 1280 Hz
* Internal Resolution: 24-bit Σ-Δ ADC, internal resolution 1/1000000
* Display Resolution: 1/100000
* Non-linearity: 0.005% of full scale
* Maximum Power Consumption: 5W
* Operating Temperature: -25°C to +45°C
* Relative Humidity: <85% RH
* Weight: Approximately 300g
* Dimensions: 96 × 48 × 110 mm (Panel cutout size: 92 × 46 mm)

Packing List:
* 1 x Weight Indicator
* 2 x Brackets

Packaging Details:
* Weight: 0.5kg

Note:
* After placing the order, please contact customer service to request the electronic English user manual.
