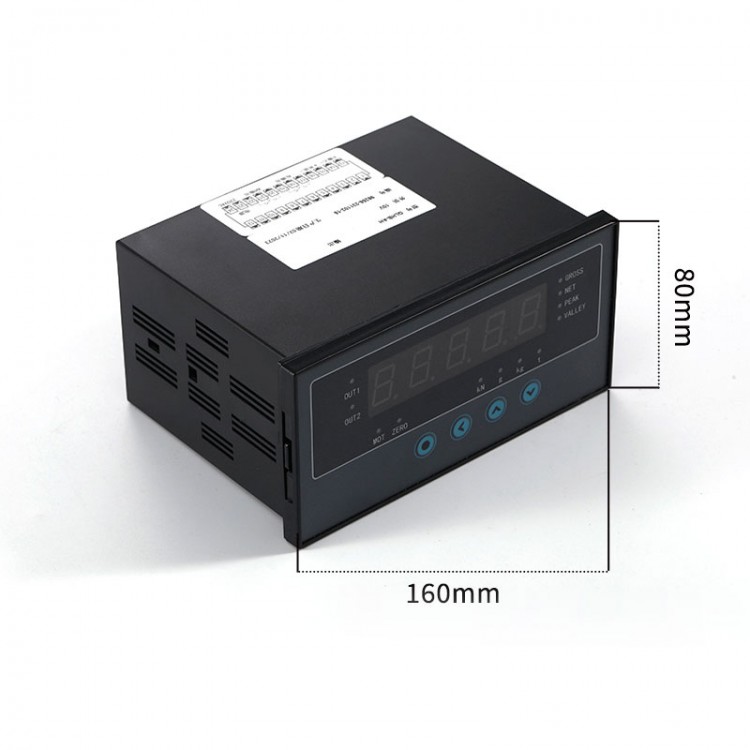

160x80mm CHB Load Cell Display Load Cell Indicator for Load Cell Tension and Compression Instrument
Description:
The load cell display adopts a 24-bit A/D converter. When used with various sensors and transmitters, it can measure physical parameters such as pressure, flow, level, composition analysis, force, and mechanical quantities. It also supports display, alarm monitoring, data acquisition, and recording of these parameters.
Features:

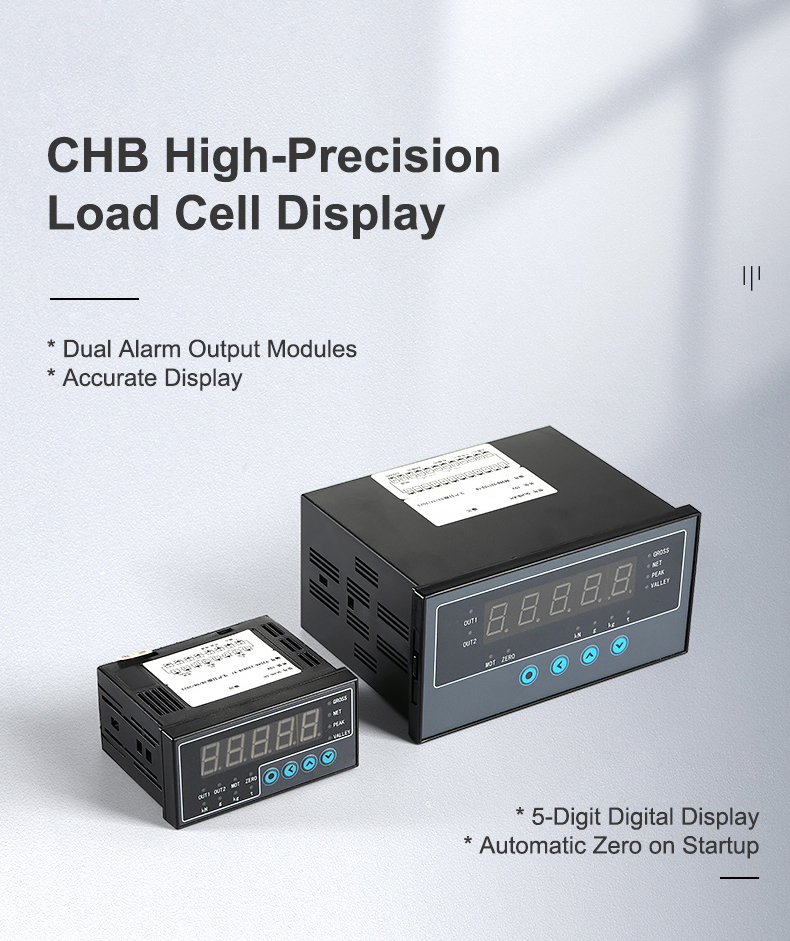

High-Precision Display
* Dual Alarm Output Modules
* Accurate Display
5-Digit Digital Display
* Automatic Zero on Startup

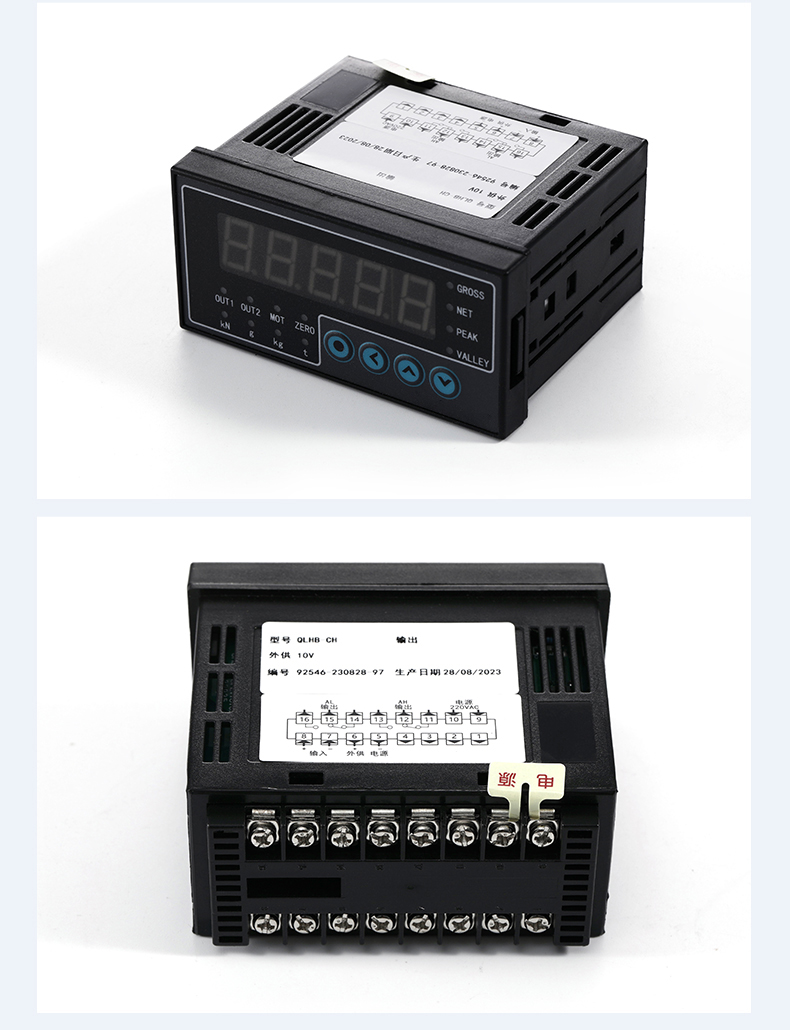

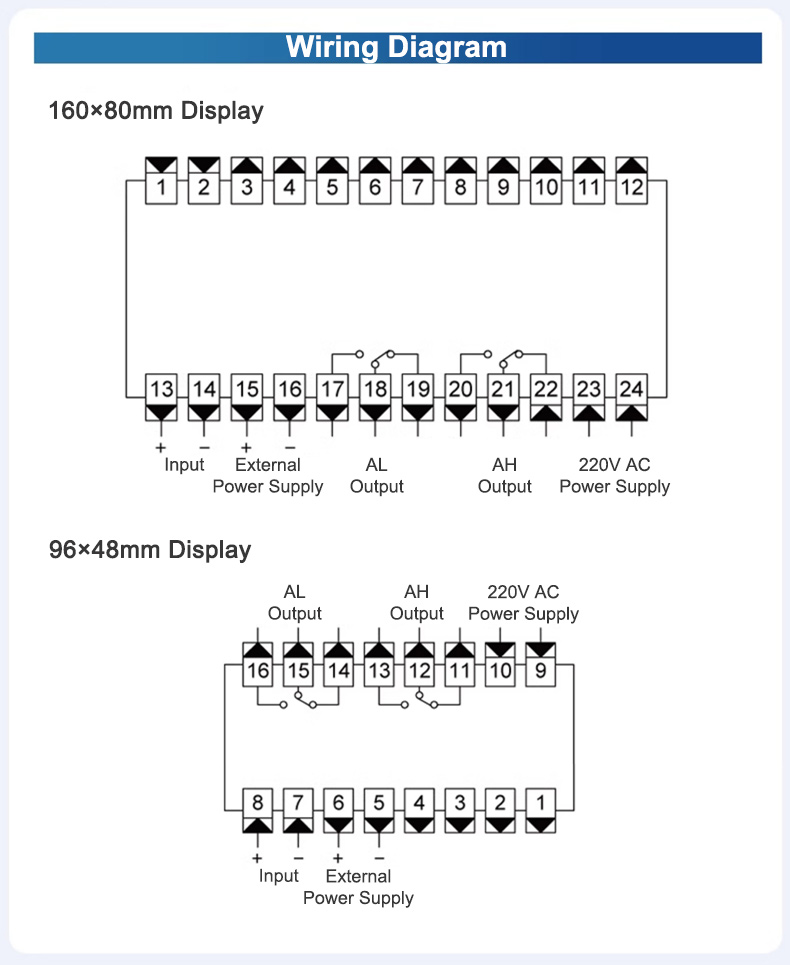

Clear Wiring Labels
* Wiring terminals are clearly marked for quick and easy installation.
Ventilation Grilles for Excellent Heat Dissipation
* Multiple ventilation grilles enhance airflow, ensuring excellent thermal performance.
High-Quality Enclosure
* Durable plastic housing with excellent insulation and mechanical strength.
Application Scenarios
* Suitable for industrial automation measurement and control systems involving various force measurement and weighing devices.
* Applicable to hopper scales, floor scales, testing machines, industrial automation systems, mixing stations, and belt scales.
Technical Specifications:
* Power Supply Voltage: AC power 100–240 V AC, 50/60 Hz
* Power Consumption: Below 7 VA for AC power
* Allowable Voltage Variation Range: 90% to 110% of power supply voltage
* Insulation Resistance: Above 100 MΩ (measured at 500 V DC MEGA)
* Withstand Voltage: 2000 V AC, 50/60 Hz for 1 minute; IEC61000-4-2 (Electrostatic Discharge), Level III
* Interference Immunity: IEC61000-4-4 (Electrical Fast Transient/Burst), Level III; IEC61000-4-5 (Surge), Level IIII
* Protection Level: IP65 (front part of the product)
* Ambient Environment: Operating temperature: -10 to 55°C; Storage temperature: -25 to 65°C; Operating humidity: 35% to 85% RH; Storage humidity: 35% to 85% RH
* Measurement Control Speed: 10 times per second
* Basic Error: ±0.05% of full scale
* Display Range: -19999 to 45000; shows "OL" when overloaded
* Ratio Measurement: Compatible with 4-wire strain gauge sensors
* Input Signal: Suitable for 0.8 to 2.5 mV/V
Packing List:
* 1 x Load Cell Display Indicator
Packaging Details:
* Weight: 0.8kg
