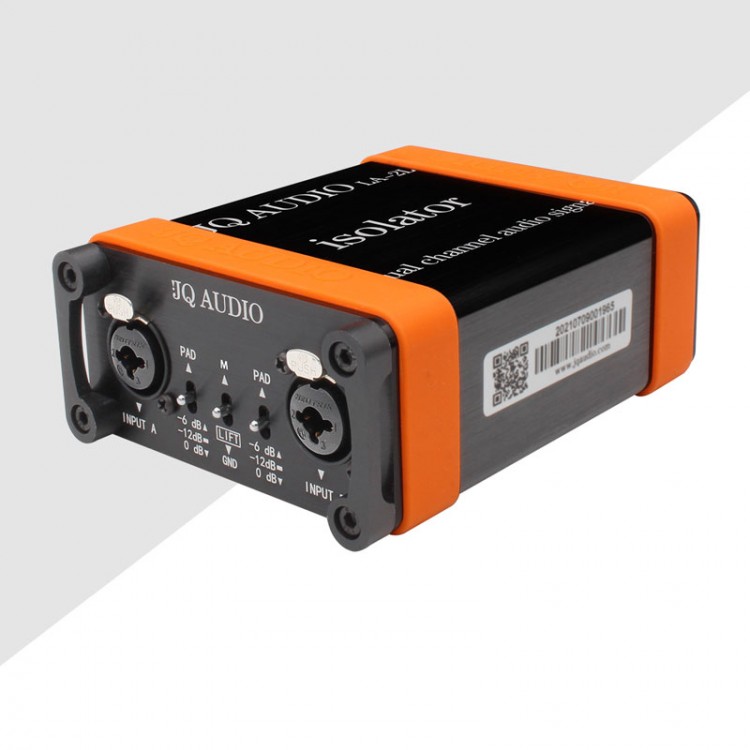

LA-2L Upgraded Audio Signal Isolator Professional Current Noise Cancellation Support Attenuation Switch

LA-2L Upgraded Audio Signal Isolator Professional Current Noise Cancellation Support Attenuation Switch

Compared to classic LA-2, LA-2L upgraded:
- Add a three level attenuation switch for input.
- Three grounding mode selection switches.
- Audio transformer upgrade, circuit upgrade.
- Add 'M' mode and output grounding mode.
- Add silicone protective kit for better protection against collisions.
- Industrial grade design of the shell, CNC machining.

Description:
- The upgraded LA-2L audio isolator adopts a custom-made permalloy material audio transformer from an imported manufacturer as the signal coupling and conversion between input and output. The imported connector for NEURIK and double-layer shielded gold-plated circuit design enable signal isolation and conversion between input and output. The input adopts a mixed interface of 6.35 and XLR, and the output adopts an independent interface of 6.35 and XLR, which can be converted between balanced and unbalanced. There are suspension and grounding switches, as well as input signal attenuation switches for Group A and Group B. The input high-level signal can be attenuated, converted, and isolated to completely isolate the potential difference between the two systems, avoiding AC sound interference caused by grounding issues and preventing damage to the input components of the equipment due to excessive potential difference. Realize secure transmission of audio signals.
- Remove the electric current sound generated by connecting laptops, cameras, broadcasting consoles, simultaneous interpretation equipment, electronic musical instruments, other devices to the mixing console and noise generated by impedance mismatch between devices. It is also suitable for theaters, large outdoor performances, lightning protection, sound engineering, multimedia conferences, entertainment venues, exhibitions, etc. It is an essential equipment for cascading audio systems.

Features:

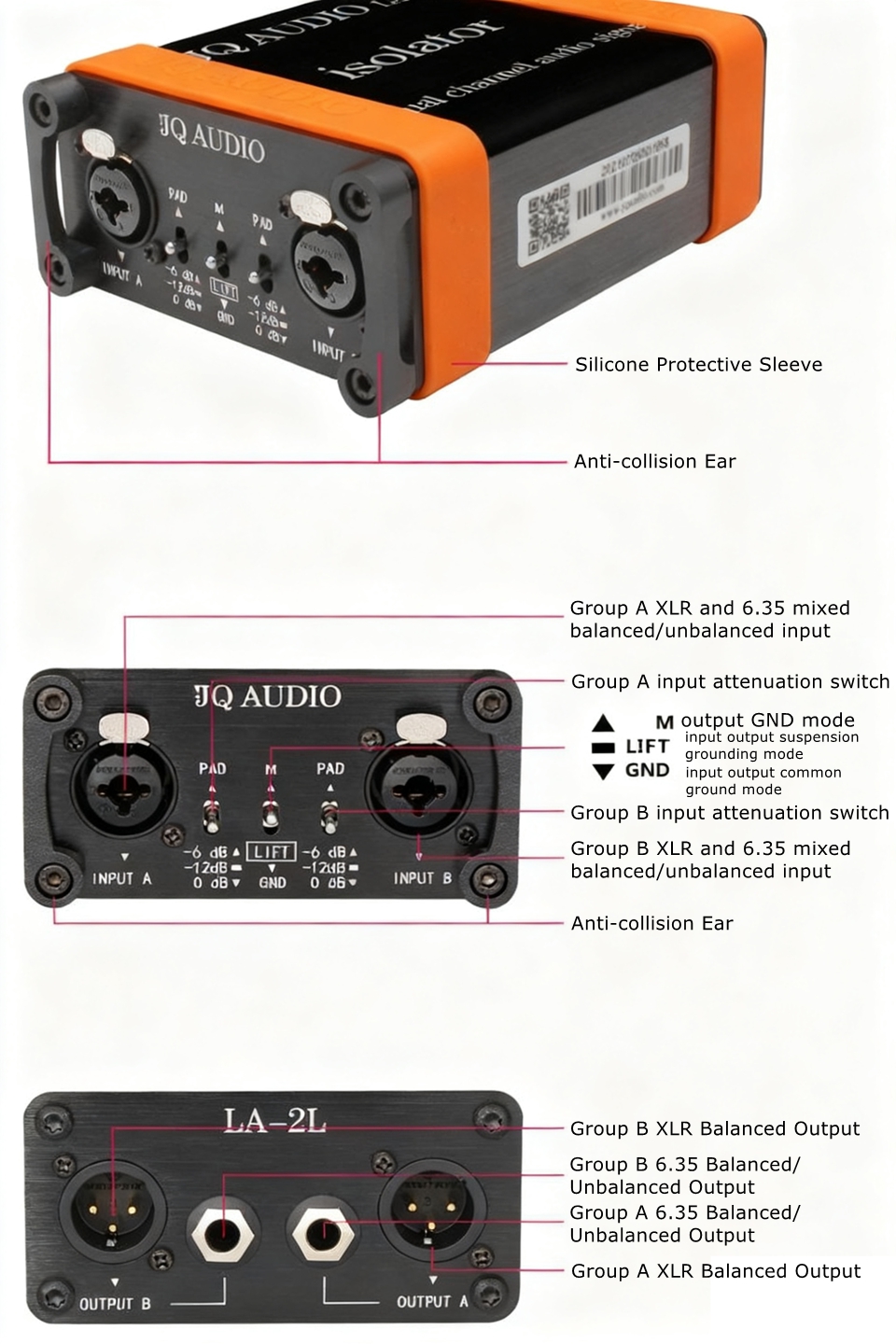

- Two channels are physically isolated and converted between balanced and unbalanced.
- Each channel is equipped with three attenuation switches and three grounding mode selection switches.
- Isolate external interference, isolate current sounds and noise generated by non common ground.
- Protect equipment from damage caused by ground voltage differences (ignition, static electricity) and improve sound quality.

Specification:
- Model: LA-2L
- Input impedance: 600ohms (AC impedance)
- Output impedance: 600ohms (AC impedance)
- Input interface: 6.35, XLR x 2
- Output interface: 6.35 x 2, XLR x 2
- Mode: passive
- Main function: two channel physical isolation, balanced/unbalanced conversion
- Frequency response: 20Hz - 30kHz (≤0.2dB ref 1kHz)
- Loss: <0.5dB (ref 1kHz 1Vrms)
- Insulation resistance: DC1000V 100Mohms
- Isolation voltage: AC 50Hz-60Hz 0V-1500V

Audio isolators are widely used in broadcasting and television media systems, multimedia conferences, audio and video systems, on-site sound reinforcement systems, large-scale outdoor performances, lightning protection, sound engineering, entertainment venues, exhibitions, and other places to connect the noise, current, and sound generated by equipment. They are devices in the audio system cascade.
- Eliminate current noise generated by connecting a computer to a mixing console (especially when connecting a computer to an LED or projector).
- Eliminate noise generated by connecting cameras and audio equipment.
- Eliminate noise generated by connecting simultaneous interpretation equipment to the mixing console.
- Eliminate noise generated by the connection between electronic instruments and mixing consoles.
- Eliminate noise generated by long-distance transmission between devices.
- Eliminate noise caused by impedance mismatch between devices.
- Eliminate noise generated by connecting the remote video conferencing system to the mixing console.

Package Included:
- 1 x Audio Isolator
- 1 x 3.5mm to 2x6.5mm Connection Cable
- 2 x Silicone Protective Sleeve (random color)
- 1 x Storage Bag
- 1 x User Manual
