LA5016 LA5016 PC USB Logic Analyzer 500M Sample Rate 5G 16CH PWM Output

Description:

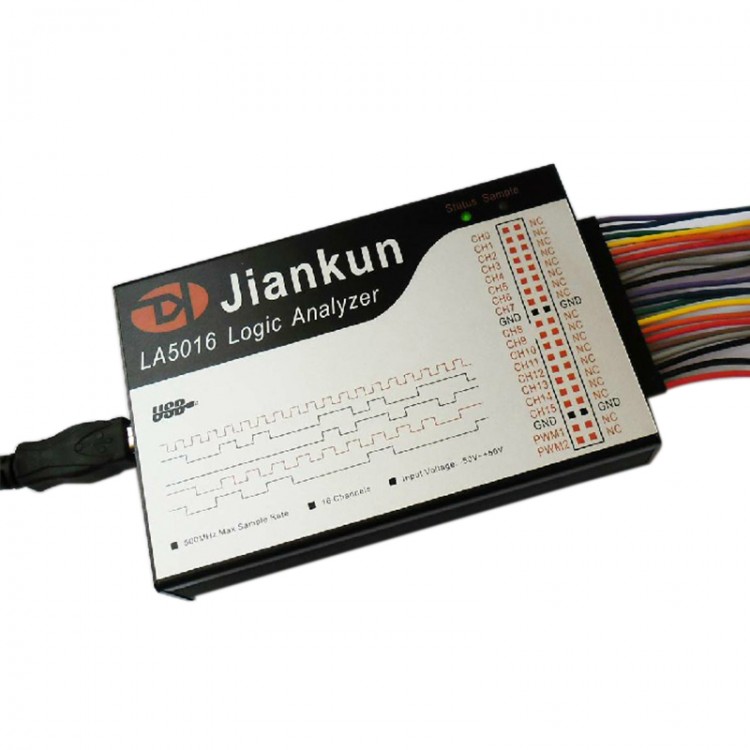

LA5016 is a high-performance logic analyzer with 16 channels and 500M sampling rate. It is composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc.

LA5016 can sample 16 digital signal at the same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved.

Software and manuaml: Click here

Features:
- Portable and lightweight
- 500M sampling rate @ full channels
- Large sampling depth and support compression
- The built-in PWM generator
- Compatible USB2.0/3.0 interface
- Powerful software and easy to use
- Support online upgrade automatically

Specifications:
- Input channels number: 16
- Max sampling rate: 500M
- Measurement bandwidth: 80M
- Min pulse width can be collected: 6.25ns
- Hardware memory size: 512Mbits
- Hardware sampling depth: 32M/channel
- Max compressed depth: 5G/channel
- Input voltage range: -50V ~ +50V
- Input impedance: 220KΩ, 12pF
- Threshold voltage: low level < 1.0V, high level > 2.0V
- PWM channels number: 2
- PWM frequency range: 0.1 ~ 12.5MHz
- PWM frequency adjust step: 8ns
- PWM pulse width adjust step: 8ns
- PWM output voltage: +3.3V
- PWM output impedance: 50Ω
- Standby current: 300mA
- Max operating current: 550mA
- Dimensions: 117mm * 79mm * 24mm
- Support OS: Windows XP, Vista, Windows 7/8(32bit/64bit)
- Support standard protocols: UART(RS-232/485/422), I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, Simple Parallel, PS/2 Keyboard/Mouse, UNI/O, USB1.1

Package included:
- 1 x USB Logic Analyzer
