LA5016 USB Logic Analyzer 16CH 500M Sampling 5G Sample Depth PWM Output
Feature:
- Max sample rate: 500MHz (full 16 channels)
- Max input voltage range: -50---50V
- Aluminum alloy shell
- Size: 117*79*24mm
- 512Mbits memory, max 5G sample depth
- 0.1Hz---20MHz PWM output X2
- English software, support WinXP,Win7/8(32/64bits)
- User friendly interface, powerful analysis function
- Support decoder:UART(RS232/485/422),I2C,SPI,CAN DMX512,I2S/PCM,Manchester,1-Wire,UNI/O, etc
- Data display format: Decimal/hex/bin/ASCII
- Support data export, for save or other software
- Free online automatic upgrade

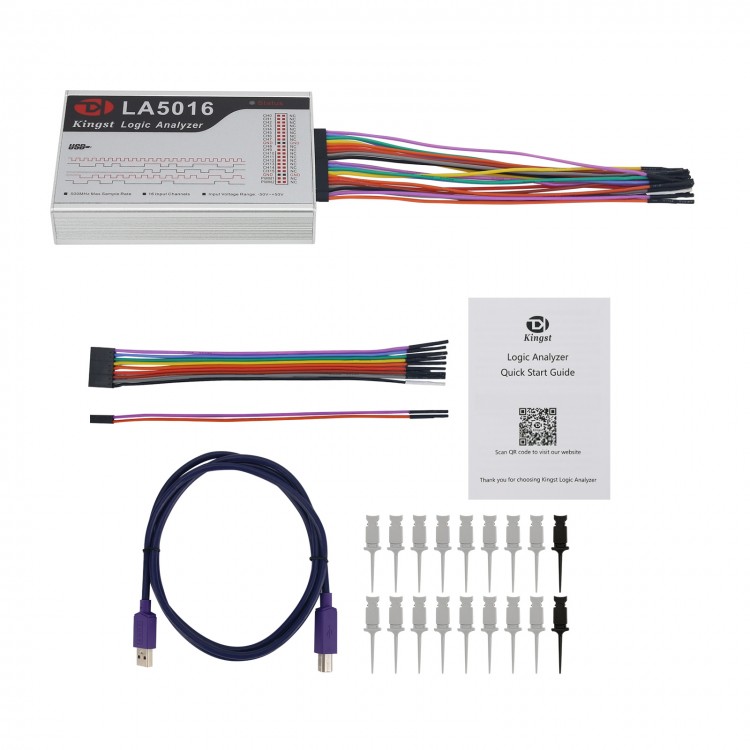

Package Included:
- 1 x LA5016 main unit
- 2 x 9P FFC cables
- 1 x 2P FFC cable
- 16 x Gray test hooks
- 2 x Black test hooks
- 1 x Premium USB cable
