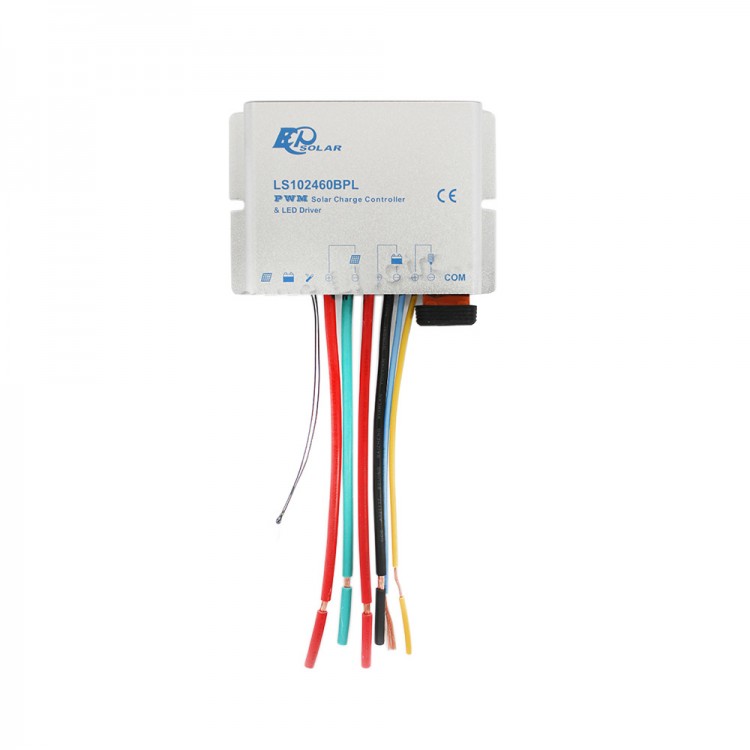

LandStar LS102460BPL 10A PWM Solar Charge Controller LED Constant Current Control Solar Regulator

Description:

LandStar BPL series solar charge controller combines the solar charge controller and LED constant current driver into one unit which is ideal for solar LED Lighting, especially for the application for LED lamp which requires dimmer function. It can also reduce the system cost and increase the system flexibility.

Features:
- 12V/24V automatic identify or user-defined working voltage.
- Gel, Sealed, Flooded and user-defined battery type option.
- With functions of current power calculation, it is convenient to view charging and discharging  energy of each day, month, year and total value.
- Wide input voltage range:DC8.0V—DC32V, compatible with 12V/24V full voltage range.
- Digital precision constant current control and the control accuracy are better than ± 2%.
- Maximum output efficiency of 95%.
- The rated output current can be adjusted at rated power and current range.
- The max output voltage can reach up to 60V
- Charge control parameter, the load control parameter and the output current value can
be set separately.
- Use of standard Modbus communication protocol for TTL232 bus connections,
communication protocol compatibility much better.
- Fully encapsulated PCB, IP67 protection.
- Aluminum housing.

Load control mode:
Manual,   Light ON/OFF,   Light ON+ Timer,   Time Control

Electronic Protections:
- PV array short circuit
- Over discharging
- Over charging
- Load overload
- Load short circuit
- PV reverse polarity
- Battery reverse polarity
- Overheating

Package included:
- 1 x Solar Charge Controller
