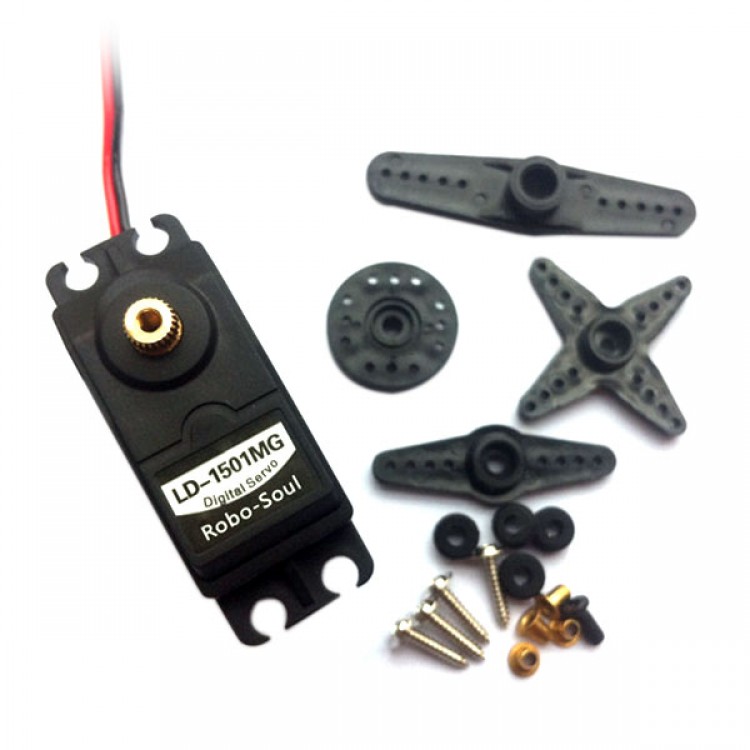

LD-1501MG Digital Servo 17KG Torque Full Metal Gear for Robot Mechanical Arm
Description:
- Large torque, quick speed, low noise, very small block zone and diastema. Suitable for mid/ high end robot
- Only need one signal, the digital servo can be locked and the angles are fixed
- Digital servo is added micro controller
Parameters:
- Weight: 60g
- Size: 40*20*40.5mm
- Speed: :0.16sec/60°7.4V
- Block torque: 15kg/cm 6V ; 17kg/cm 7.4V
- Working voltage: 6-7.4V
- Unloaded current: 100mA
- Cable length: 30cm
Note: Avoiding block rotation from happening, otherwise it will cause servo burn down due to high temperature
