LDG AT-100ProII Tuner Automatic Antenna Tuner HF Antenna Tuner Accessory for 100W Transceivers
Description:
The LDG AT-100ProII is a general purpose automatic tuner suitable for many amateur applications. It covers 1.8-54 MHz, and features a two-position antenna switch allowing instant switching between two antennas. The AT-100ProII requires just 1 watt for operation but will handle up to 125 watts, making it suitable for everything from QRP to a typical 100 watt transceiver.
Like most LDG tuners the AT-100ProII operates automatically, beginning a tuning cycle whenever the SWR exceeds a preset limit. The AT-100ProII also features LDG's advanced memory tuning, providing 2,000 memory locations; when tuning near a previously used frequency it will recall the settings for nearly instant tuning. It learns your favorite frequencies and bands as you use it. You can also start a tuning cycle manually whenever necessary.

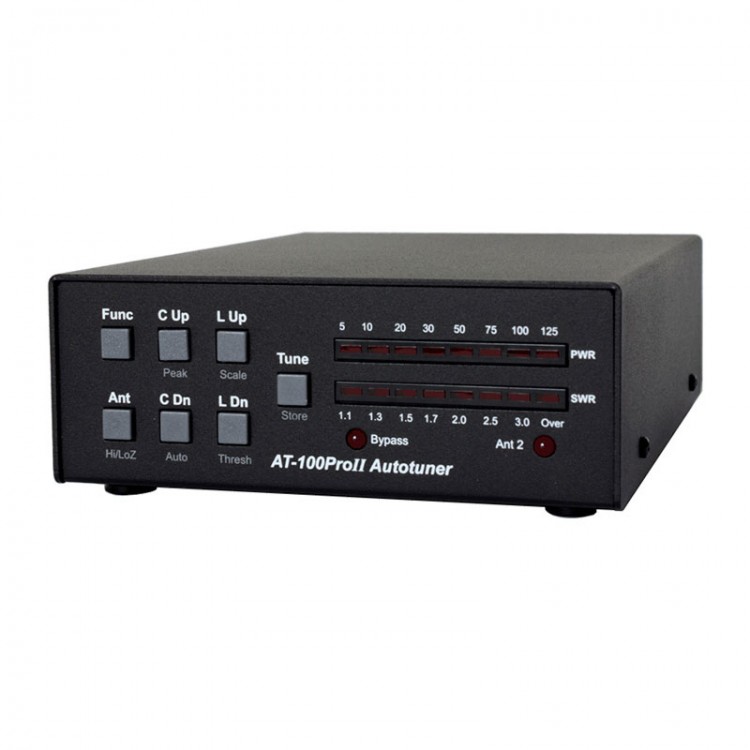

Large, easy-to-read LED bar-graphs show forward and reverse power in peak or average mode, and SWR. Two power scales are provided: 12.5 watts and 125 watts. The bar-graphs also indicate tuner status and input confirmations.
The AT-100ProII uses LDG's state-of-the-art, processor-controlled Switched-L tuning network. It will match dipoles, verticals, inverted-Vees or virtually any coax-fed antenna. With an optional LDG balun, you can also use long wires or antennas fed with ladder-line. It handles 100 watts SSB or 50 watts FM/Digital when used with a solid-state transceiver; vacuum tube transmitters cut the power ratings about in half.
The AT-100ProII uses latching relays which retain the tuned configuration indefinitely even when the unit is powered down. The latching relays also enable extremely low power consumption; when not actively tuning the AT-100ProII draws next to no power at all. This makes it suitable for portable or mobile operation from batteries.
Specifications:
* Transmit Power Limits: SSB: 1.0 to 125 watts; CW: 100 watts; FT-8: 75 watts; PSK and Other Digital Modes: 50 watts; 6 meters: 50 watts.
* Latching relays for ultra-low power operation.
* 4,000 memories for instantaneous band changing.
* Built-in 2-port antenna switch, with 2,000 memories each.
* Tuning time 0.2 to 5 seconds full tune, 0.2 seconds memory tune.
* 1.8 to 54.0 MHz coverage. Built-in frequency sensor.
* Tunes 6-to-1,000-ohm loads (16 to 150 on 6m).
* LED bar-graph displays power level, SWR, and status.
* Antenna Indicator LED show the currently selected antenna.
* Bypass Indicator LED shows when the tuner is in pass-thru mode.
* User-selectable operating parameters: Automatic/Semi, 125W/12.5W scale, and more.
* DC power cable included.
* Optional external Baluns allow tuning of random length, long wire or ladder line fed antennas. Click here for details.
* Optional interface cables are available. Click here for details.
* Power requirements: 11 to 16 VDC at 500mA. 7mA when idle.
* Dimensions: 7.5" x 5.5" x 2.25".
* Weight 1 pound, 5 ounces.
Packing List:
* 1 × Shortwave Antenna Tuner
* 1 × DC 12V Power Cable
* 1 × User Manual
Packaging Details:
* Weight: 3kg
