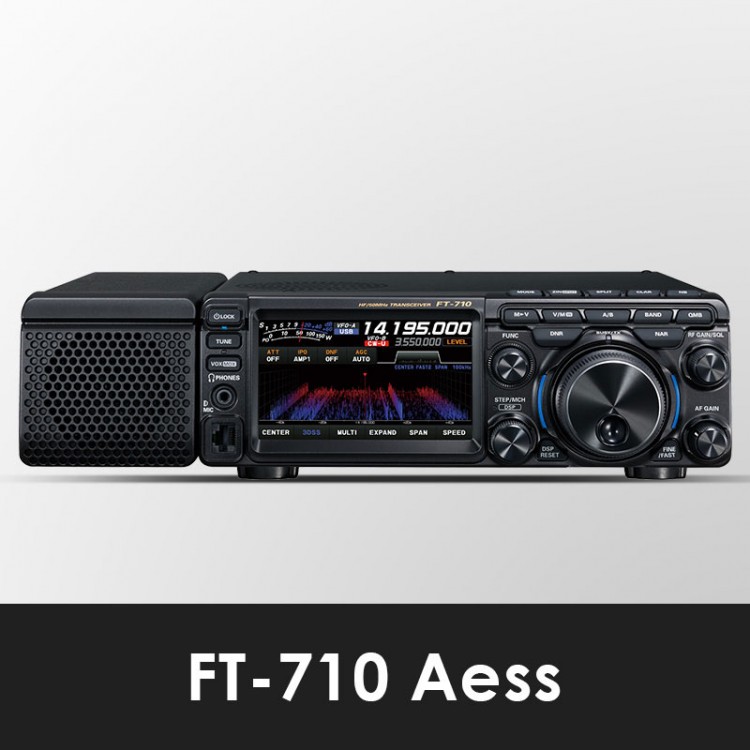

Original FT-710 Aess 50MHz 100W HF Transceiver HF SDR Mobile Radio with SP-40 Speaker for YAESU

Original FT-710 Aess 50MHz 100W HF Transceiver HF SDR Mobile Radio with SP-40 Speaker for YAESU

Features:
- HF/50MHz band 100W compact SDR transceiver
- SDR circuit configuration emphasizes receiving performance which is enabled by the same high-resolution A/D converter and FPGA used in high-end SDR transceivers for YAESU
- Powerful RF Front-End and Low Noise Oscillator System enable Phenomenal Multi-Signal Receiving Characteristics*
·RMDR: 113dB+     ·BDR: 127dB+
·3rd IMDR: 102dB+   ·TX Phase Noise: -143dBc/Hz
* Multi-Signal Receiving Characteristic: 14MHz band/2kHz separation  *TX Phase Noise: 100W, CW mode
- Band-Pass-Filters dedicated for the amateur bands to eliminate out-of-band unwanted signals
- Built-in High-speed Automatic antenna tuner with 100 channel memory
- Effective QRM rejection afforded by dual-core 32-bit high speed floating decimal point DSP
- AESS (Acoustic Enhanced Speaker System) with the supplied SP-40 speaker to create High-fidelity audio output
- High Resolution 4.3-inch TFT Color Touch Panel Display
- 3DSS, real-time 3-Dimensional Spectrum Stream presentation
- VMI (VFO Mode Indicator) shows the current operating mode (VFO-A, VFO-B, Memory Mode and Clarifier/Split operation) at a glance
- "PRESET" Mode functions most suitable for FT8 operation
- Equipped with the External Display terminal (DVI-D)
- Two (2) USB Ports (Type-A and Type-B)
- SD Memory Card Slot
- Support the FC-40 Auto Antenna Tuner
- Remote Operation with Network Remote Control System (Available in the near future)

Specifications:
General:
- TX frequency range: 1.8-50 MHz (Amateur bands only)
- RX frequency range: 30kHz-75MHz (Operating), 1.8-29.699999MHz (Specified performance in amateur bands only) and 50-53.999999MHz (Specified performance in amateur bands only)
- Emission modes: A3E (AM), J3E (SSB), F3E (FM)
- Frequency step: 1*/5/10/20Hz (CW/SSB/AM) , 100Hz (FM) FINE tuning "On"
- Antenna impedance: 50Ω, unbalanced (antenna tuner off); 16.7-150Ω, unbalanced (antenna tuner on, 1.8MHz-29.7MHz amateur band); 25-100Ω, unbalanced (antenna tuner on, 50MHz amateur band)
- Operating temperature range: 0°C to +50°C
- Frequency Stability: ±0.5ppm (after 1 minute at 0°C to +50°C)
- Supply voltage: DC 13.8V±15%
- Power Consumption (approximately):
  * Reception (no signal): 1.8A
  * Reception (with signal): 2.2A
  * Emission (100W): 21A
- Dimensions (WxHxD): 239 x 80 x 247mm/9.4 x 3.1 x 9.7"
- Weight (approximately): 4.5kg/9.9lb

Transmitter:
- Power output: 5-100W (5-25W AM carrier)
- Modulation type:
  * J3E (SSB): Balanced
  * A3E (AM): Low-Level (Early Stage)
  * F3E (FM): Variable reactance
- Maximum FM offset: ±5.0kHz/±2.5kHz (Narrow)
- Harmonic radiation:
  * Better than -50dB (1.8MHz-29.7MHz amateur band)
  * Better than -63dB (50MHz amateur band: 100W)

Transmitter:
- SSB carrier suppression: at least 60dB below peak output
- Unwanted side-band suppression: at least 60dB below peak output
-Bandwidth:
  * 3kHz (LSB/USB), 500Hz (CW)
  * 6kHz (AM), 16kHz (FM)
- Audio response (SSB): no more than -6dB for 300 to 2700Hz
- Microphone impedance: 600 Ω (200 to 10 kΩ)

Receiver:
- Circuit type: Direct sampling super heterodyne
- Intermediate frequencies: SSB/CW: 18kHz; AM/FM: 24kHz
- Sensitivity (typical):
  * SSB/CW (BW: 2.4kHz/10dBS+N/N)
  * 1.8MHz-30MHz 0.16μV (IPO: AMP2)
  * 50MHz-54MHz 0.125μV (IPO: AMP2)
  * 70MHz-70.5MHz 0.16μV (IPO: AMP2)
  * AM (BW: 6kHz/10dBS+N/N, 30% modulation at 400Hz)
  * 0.5MHz-1.8MHz 6.3μV
  * 1.8MHz-30MHz 2μV (IPO: AMP2)
  * 50MHz-54MHz 1μV (IPO: AMP2)
  * 70MHz-70.5MHz 2μV (IPO: AMP2)
  * FM (BW: 12kHz, 12dB SINAD, 3.5kHz DEV at 1kHz)
  * 28MHz-30MHz 0.25μV (IPO: AMP2)
  * 50MHz-54MHz 0.2μV (IPO: AMP2)
  * 70MHz-70.5MHz 0.25μV (IPO: AMP2)
- Image rejection: 70dB or better (1.8MHz-28MHz amateur bands); 60dB or better (50MHz amateur bands)
- Maximum audio output: 2.5W 4Ω with 10% THD
- Audio output impedance: 4 to 16Ω (4Ω: nominal)
- Conducted radiation: Less than 4nW


Package Included:
- 1 x Transceiver
- 1 x SSM-75E Handheld Microphone
- 1 x SP-40 High-Quality External Speaker
- 1 x DC Power Cable

Packaging Details:
- G.W.: 8.5kg
