• LEADIY-M3A MPU6050 Serial Attitude Angular Velocity Plus Attitude Angle Module for DIY

LEADIY-M3A MPU6050 Serial Attitude Angular Velocity Plus Attitude Angle Module for DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$11.15
  • Price in reward points: 112 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $10.93 $10.70 $10.37 $9.92 Contact US
Quantity:

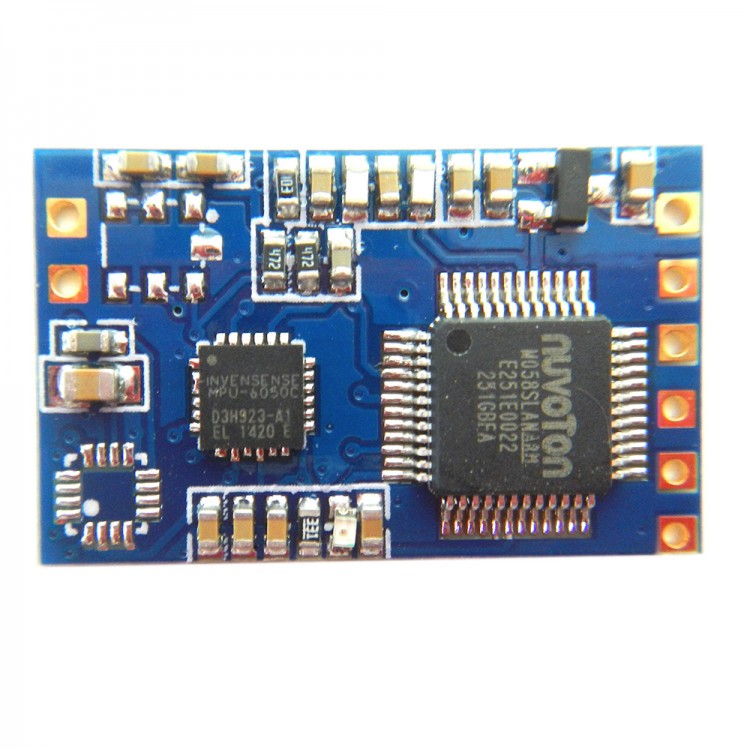

LEADIY-M3A MPU6050 Serial Attitude Angular Velocity Plus Attitude Angle Module for DIY

Description:

LEADIY-M3C is the newest and greatest version of intchip smart uart output IMU module. M3C is 10Dof IMU module with auto run feature. The goal of the M3C is to simplify the development of projects based upon the most powerful and new consumer grade inertial, magnetic and pressure sensors. M3C incorporates three sensors: an MPU-6050(MEMS triple-axis gyro with triple-axis accelerometer ), HMC5883L(triple-axis magnetometer), thus it can give you nine degrees of inertial measurement. In addition, M3C incorporates BMP180(pressure sensor). There is also a cortex MCU on board, by reading the data from the various sensors, it is possible to compute precisely the orientation of M3C in the space. The orientation result is output through uart interface. The main application of M3C is orientation sensing such as drones, action game controller, self-balancing robot, industrial measuring instrument, autonomous vehicles and video stabilization systems. M3C is a tiny but powerful orientation solution.

Specification:
- Supports baud rate: 9600, 115200, 230400, 460800
- Default baud rate: 115200
- Communication interface: Seriel port
- Data update: each 2MS-2.5MS output an attitude angle
- Small size: 16mm*26mm
- Pitch: 2.54mm (100mil)
- Power supply: 3V--5V (on board LDO integration)
- Read data through the serial port or IIC interface
- PCB immersion gold process, machine patch, mass production
- Seriel port communnication level is TTL level

Package included:
- 1 x Attitude Angle Module
