Leadshine 3-Phase Hybrid Servo Driver HBS507 + 573HBM20-1000 Hybrid Servo Motor

Leadshine 3-Phase Hybrid Servo Driver HBS507 + 573HBM20-1000 Hybrid Servo Motor

HSB507 Hybrid Servo Driver

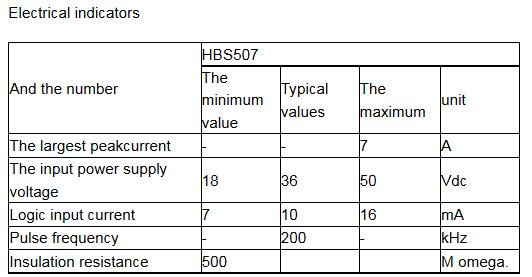

Specifications:
- Voltage input: DC 18~50V
- Maximum peak current: 7A
- Microstep range: 200~51200ppr
- Signal input: differential / single ended, pulse / direction
- Optical isolated signal input, strong anti-interference ability
- Pulse response frequency: 200KHz
- Function like serial communication; current, microstep, signal edge, alarm output logic can be adjusted
- Automatic setting function of parameters when power on
- Closed loop vector control to ensure that the motor speed high torque output, while ensuring that the motor does not lose step
- Variable current control, motor heat greatly reduced
- Ultra low vibration noise
- With over-voltage, over current, tracking error and other protection functions
- Compact size, saving installation space
- Ambient Temperature: 0 to 50℃
- Humidity: 40–95% RH
- Operating Temperature: 0 to 70℃
- Vibration: 10-55Hz/ 0.15mm
- Storage Temperature: -20 to 65℃
- Weight: 0.28kg



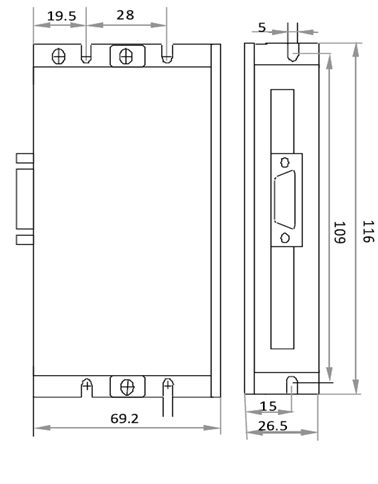

Interfaces:

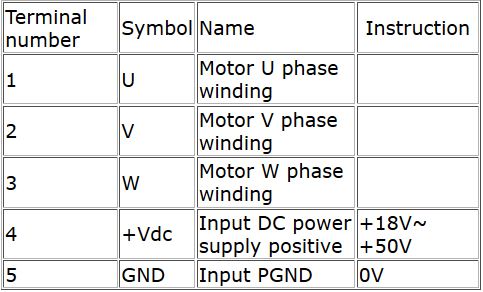

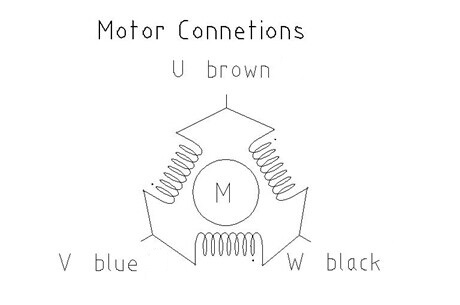

1. Motor and power supply input port:



2. Encoder signal input port

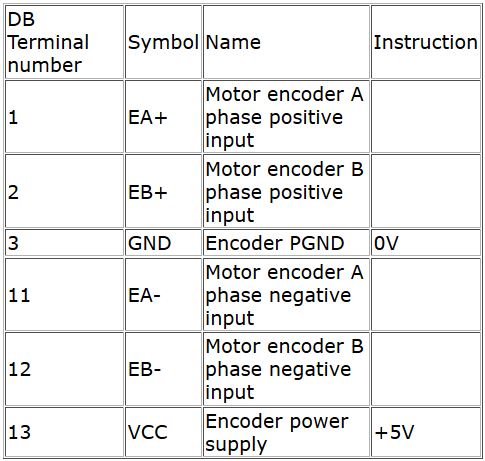

HBS507 encoder signal interface adopts 15pin DB head, pins defination in the following table:

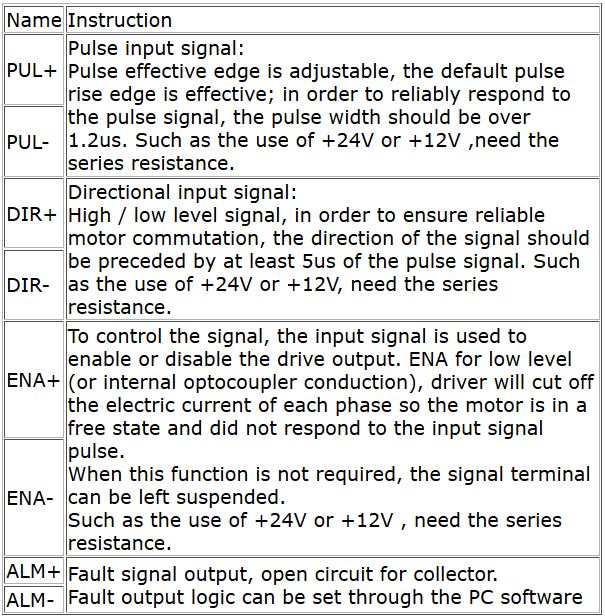

3.Control signal port:

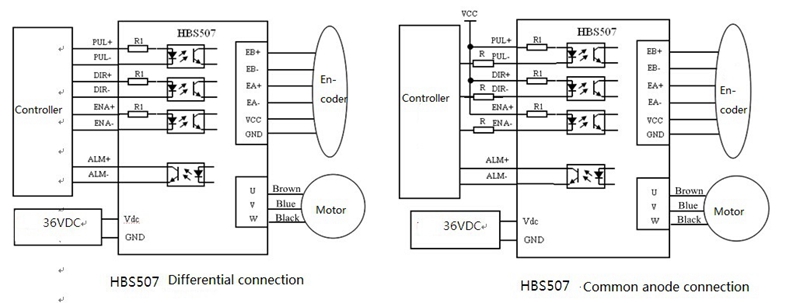

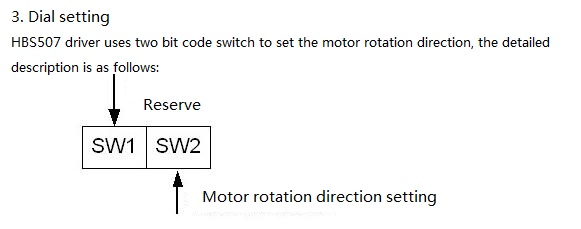

Note:
1. In the diagram, when VCC=5V, no need to connect in series for signal end; when VCC=12V, the signal needs to be connected in series with the 1K resistance  R=1K/0.25W, when VCC=24V, 1K, the signal needs to be connected in series with the 2K resistance , R=2K/0.25W.
2. Driver internal current limiting resistance 270Ohm.

573HBM20-1000 Hybrid Servo Motor
Specifications:
- Model: 573HBM20-1000 3-Phase hybrid servo motor
- Motor holding torque: 1.0~2.0NM
- Rated current: 3.5A
- Length: 97mm
- Rotor inertia: 0.5kg·cmxcm
- Weight: 1.4kg
- Built in 1000TVL incremental photoelectric encoder
- Large output torque
- Motor heat is little, low energy consumption
- Running smoothly, small vibration noise
- Fast response, suitable for frequent start and stop
- Temperature rise: 80K
- Operating environment: Temperature: -10~+50 degrees C; humidity: 85% MAX
- Insulation grade: B
- Insulation resistance: 100MOhm  MIN 500VDC
- Voltage resistance: 1min 1000VAC
- Radial pulsation: 0.025 MAX mm (load 5N)
- Shaft Axial pulsation: 0.075 MAX mm (load 10N)

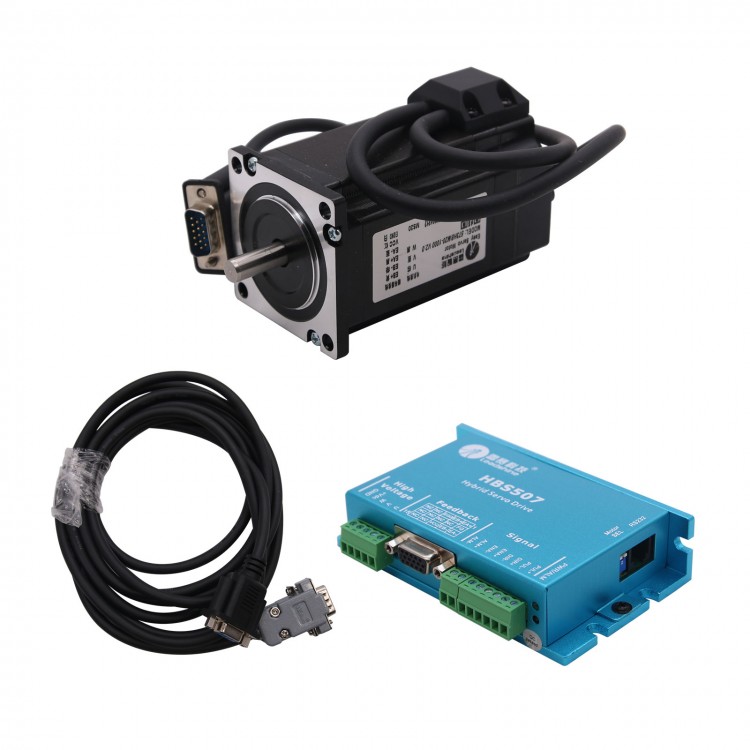

Package Included:
- 1 x HBS507 Hybrid Servo Driver
- 1 x 573HBM20-1000 Hybrid Servo Motor
   (Including Encoder Line & Connector)
