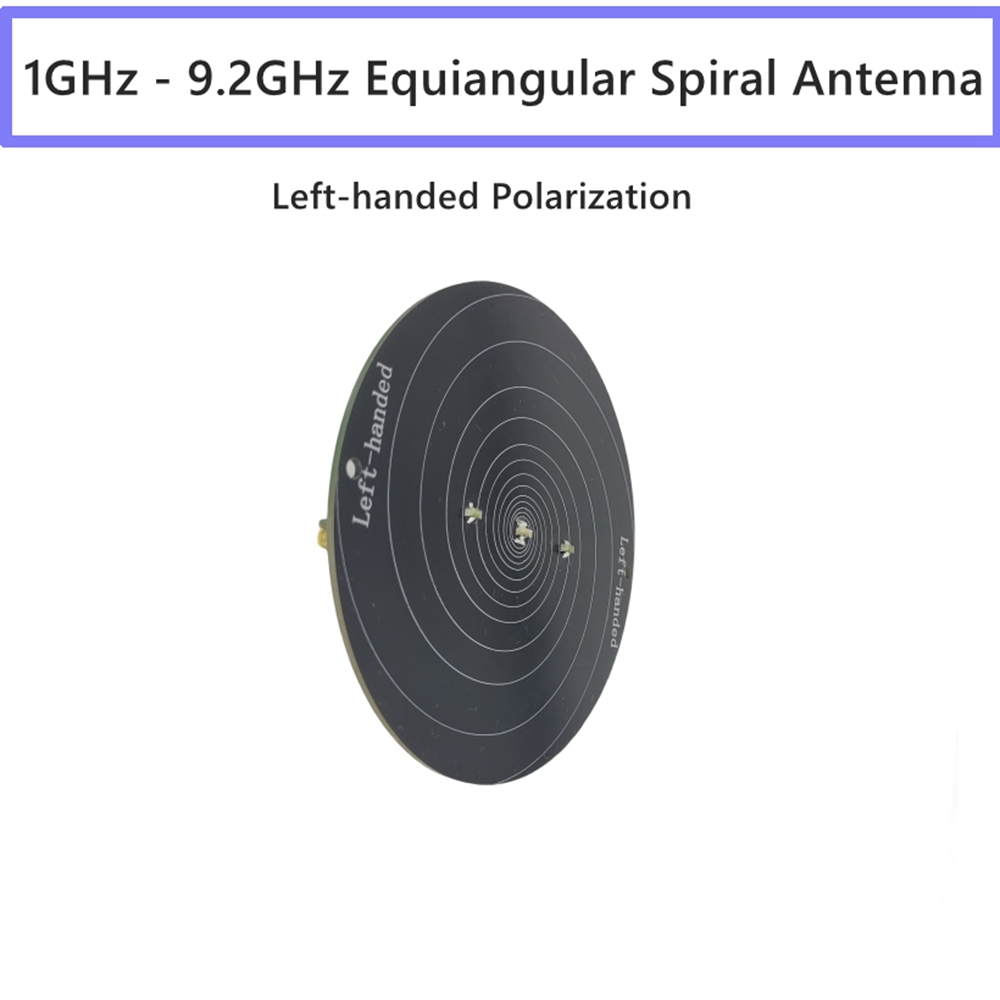

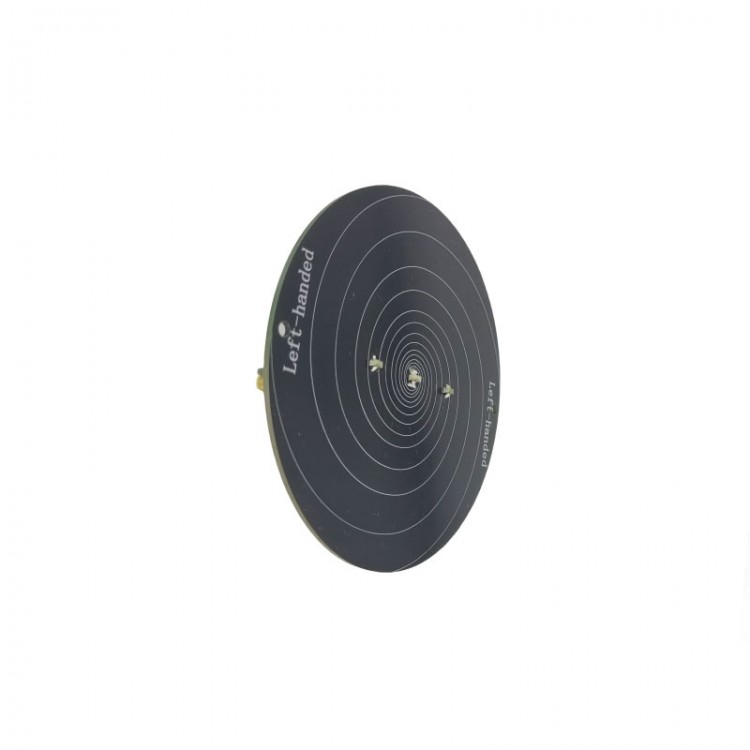

Left-handed 1GHz - 9.2GHz UWB Ultra Wide Band Antenna Circular Polarization RF Equiangular Spiral Antenna
Description:
- This antenna is an ultra wideband equiangular spiral circularly polarized antenna, divided into left-handed circularly polarized and right-handed circularly polarized antennas.
- It can be used for direction finding, spectrum analysis, signal analysis, navigation positioning, broadband measurement, direction finding, etc., providing 4 - 6dBi circularly polarized directional gain in the frequency range of 1GHz - 9.2GHz.
- It is used for typical operating frequencies of 915MHz, 1090MHz ADS-B, 1268MHz-1610MHz GPS, 1420MHz, 2.4GHz, 5.8GHz VTX with low standing wave, high gain, and significant performance.
Specification:
- Working bandwidth: 1GHz - 9.2GHz
- Polarization method: circular polarization left-handed
- Gain: 4dBi - 6dBi
- Radiation angle: H=E=84°
- Axial ratio: < 1dB
- Impedance: 50ohm
- SWR: < 1.5
- Diameter: 10cm; height: 5cm
Package Included:
- 1 x UWB Antenna
