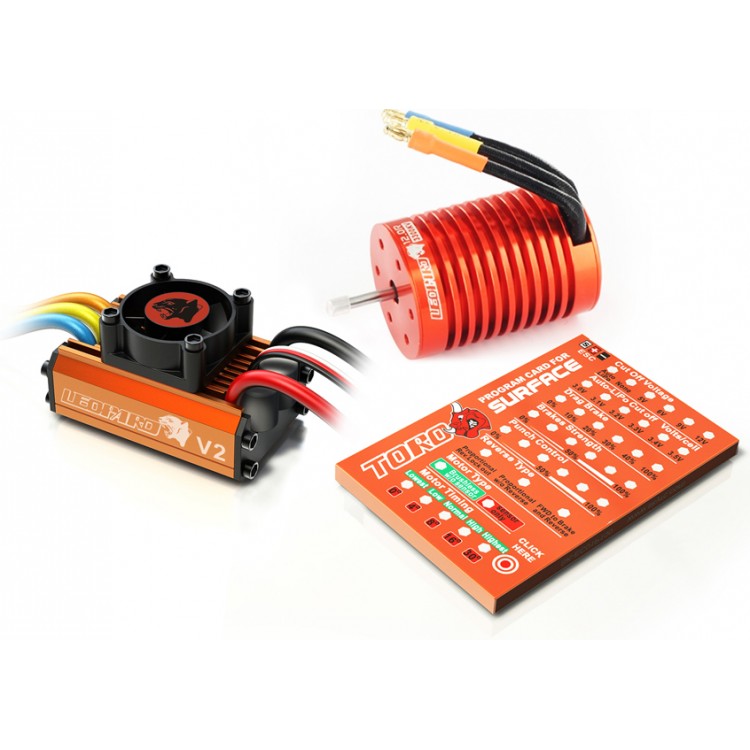

Leopard V2 60A ESC Combo + 12T Motor(3300KV/P2) + Program Card

Availability: Out Of Stock

  • Price:$73.75
  • Price in reward points: 738 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $72.28 $70.80 $68.59 $65.64 Contact US
Quantity:

Leopard V2 60A ESC Combo + 12T Motor(3300KV/P2) + Program Card


Leopard 60A ESC is high performance 1/10 Scale Brushless Motor Electronic Speed Control.
The speed controller is specially designed to offer high power and high efficiency combined with low weight and compact dimensions.

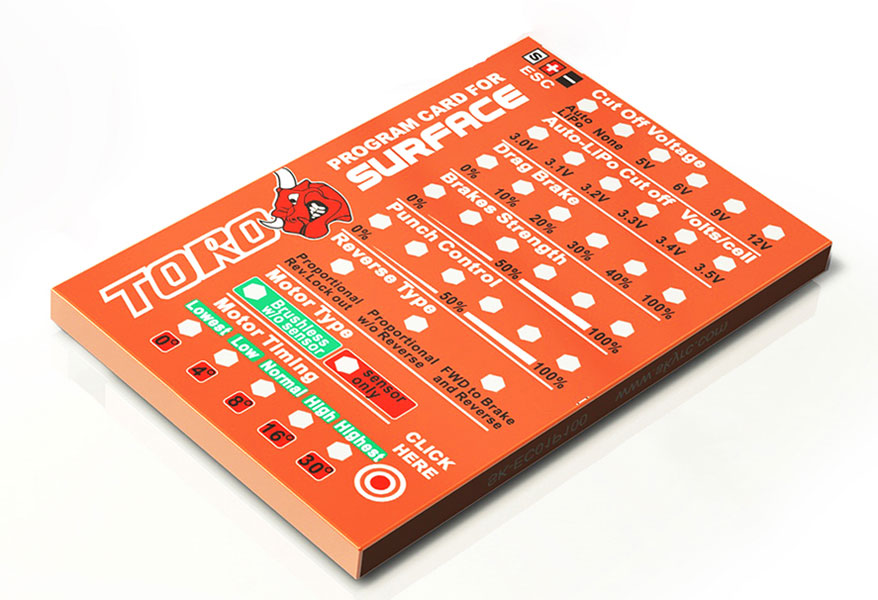

ESC Motor Program Card
Leopard 60A ESC for 1/10 Car Leopard 3300KV/12T/2P BL Motor Y

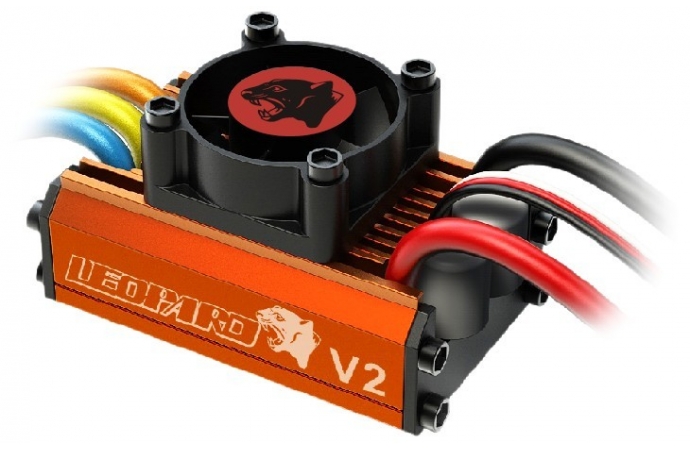

ESC Specifications:

Controls, Leopard 60A ESC V2

Fwd/Brk or Fwd/Bra/Rev

Input Power (Cells)

2-3S LiPo,4-8S NiCd/NiMh

On Resistance,    Brushless

0.001 Ohms per phase

Continuous/Burst Current

60Amp/90Amp

Linear BEC

5V 2Amp

Input Power (Cells)
2S LiPo
3S LiPo

Motor Limits
On Road:≥9.0T   Off Road:≥10.0T
On Road:≥10.0T  Off Road:≥13.0T

Thermal Overload Protection

Yes

Dimensions(L*W*H)

51.6*30*27.4mm(2.03*1.18*1.08in)

Weight(With wires)

78g(2.75oz)

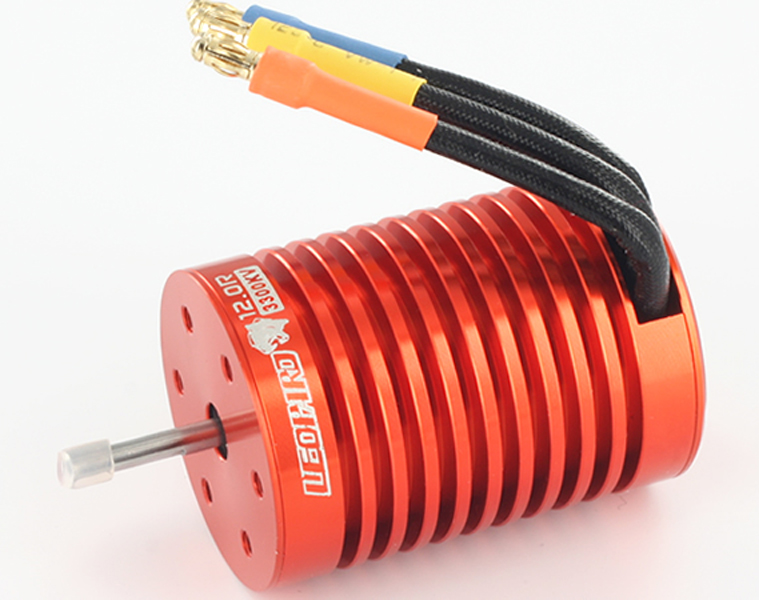

Motor Specifications:

Item Name Leopard 3300KV/12T/2P BL Motor for 1/10 Car
Sensored /Sensorless sensorless No loading @7.2V Current 1.6A
Turns 12T Max current 55A
KV value 3300KV Resistance (Ω) 0.0186Ω
Poles 2P Battery range 1-3S
Diameter 36mm Operation Temperature /
Motor length 50mm Max Temperature 150°
Extend shaft diameter  3.165mm Suitable car scale 1/10
Length of extend shaft 15mm Suitable ESC 35A or higher
Weight  176g Connector Type 3.5mm
