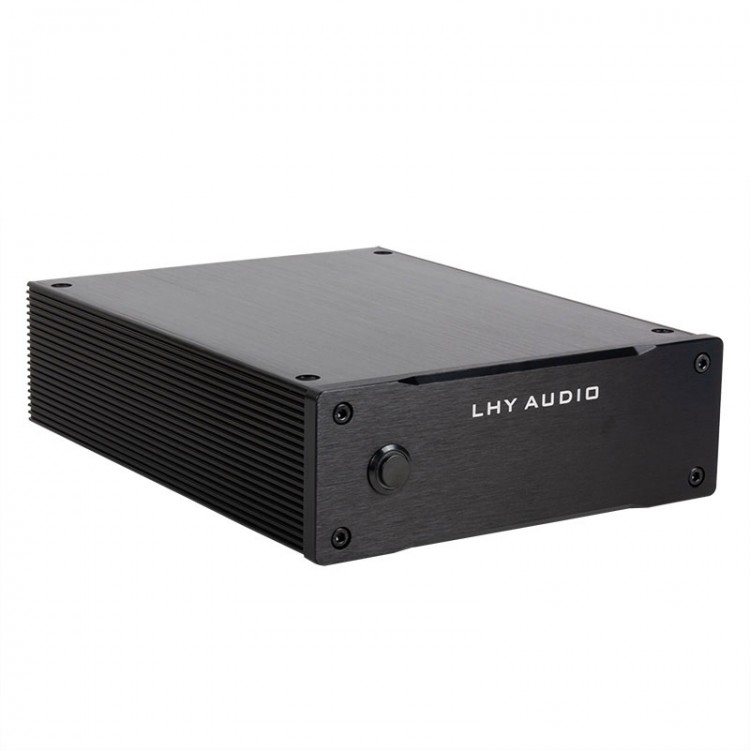

LHY Audio 110V 5 Port Gigabit Switch Network Switch Hifi Audio LPS & OCXO Switch Linear DC Powered

LHY Audio 110V 5 Port Gigabit Switch Network Switch Hifi Audio LPS & OCXO Switch Linear DC Powered

Description:
The HiFi audiophile network switch was developed based on the LGS105 switch for Linksys.

Power Supply
The chip on the motherboard is powered by 2-stage multi-channel low-noise pure DC (composed of LM1085 and LT3045). Its power supply noise is as low as uV level, which greatly reduces various noise and interference on the board. In the case of no reduction in the amount of sound information, its background is purer and the high-frequency sound is more rounded.

High-Precision OCXO
It adopts an imported high-precision SC-cut OCXO and a low-phase noise PLL circuit to replace the low-end 2-pin crystal oscillator of the original switch. This greatly improves the accuracy of the clock and reduces temporal jitter, resulting in significantly richer sound detail and more accurate stage positioning.

Specifications:
- Number of ports: 5-port
- Port speed: 10/100/1000M
- Regulated power supply: LM1086/LT3045 solution
- Core clock: imported OCXO
- Housing type: aluminum alloy profile
- Dimensions: 180 x 220 x 60mm/7.1 x 8.7 x 2.4" (WxDxH)
- Net weight: 1.5Kg/3.3lb
- Power consumption: 8W

Package Included:
- 1 x Main unit
- 1 x Power cable
