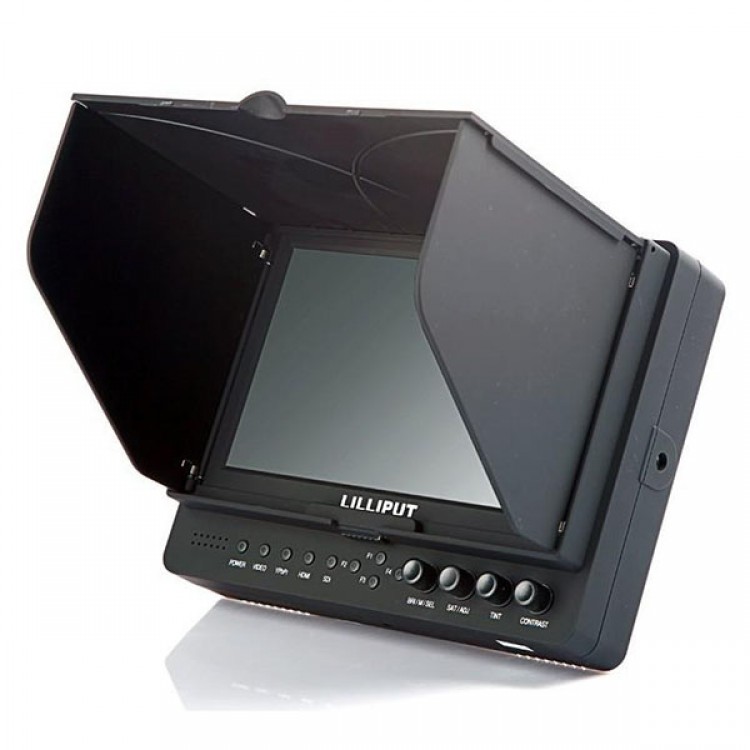

Lilliput 665/S 7" 3G-SDI Monitor HDMI/YPbPr/AV/3G-SDI with Advanced Functions for Full HD Camera

Lilliput 665/S 7" 3G-SDI Monitor HDMI/YPbPr/AV/3G-SDI with Advanced Functions for Full HD Camera

Description:
- Lilliput 7" 3G-SDI Monitor  with Advanced Functions for Full HD Camera:
- Model:  665/S
- F1-F4, 4 user-definable buttons, default function:
- F1: Peaking Filter
- F2: False Colors
- F3: Exposure
- F4: Histogram

Functions:
- Peaking Filter, False Colors, Histogram, Exposure, Camera, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 4x Zoom, Picture-in-Picture, Image Flip.

Specifications:
- Panel Size: 7" TFT LCD (16: 9)
- Resolution: 1024× 600, up to 1920× 1080
- Brightness: 250CD/m2
- Contrast: 800: 1
- Viewing Angle: 160° / 150° (H/V)
- Input Voltage: DC 6.5-24V (XLR DC Connection)
- Input Signal: HDMI, YPbPr, AV, 3G-SDI
- Output Signal:HDMI.AV.3G-SDI
- Current: 650mA
- Standby Current: 50mA
- Power Consumption: 7.8W
- Size(LWD): 194.5× 150× 38.5mm
-194.5× 150× 48.5mm (with cover closed)
- 194.5× 150× 158.5mm (with cover open)

SDI Support mode:
     Resolution                                 Mode
1080P@60HZ/59.94HZ            3G-SDI
1080P@50HZ                            3G-SDI
1080I@60HZ/59.94HZ             HD-SDI
1080I@50HZ                            HD-SDI
1080P@30HZ/29.97HZ            HD-SDI
1080P@25HZ                           HD-SDI
720P@60HZ/59.94HZ              HD-SDI
720P@50HZ                             HD-SDI
720P@30HZ/29.97HZ              HD-SDI
720P@25HZ                             HD-SDI
720P@24HZ/23.97HZ              HD-SDI
480I@60HZ/59.94HZ               SD-SDI
576I@50HZ                              SD-SDI
PAL                                           SD-SDI
NTSC                                        SD-SDI

Accessories:
- Flexible Folding Sun Shade Cover: 1piece
- Battery plate (F-970, QM91D, DU21 or LP-E6,choose 2 of them。We would send F970 and LP-E6 as default, if you need other option, please contact us when you order. )
- DC Adapter: 1piece
- HDMI A/C Cable: 1piece
- Manual: 1copy
- V-mount battery plate (optional): 1piece
- Anton Bauer mount battery plate (optional): 1piece
- Shoe Mount (for camera only)(optional): 1piece
